Applied Techno Products Private Limited Sector 27, Gurugram, Haryana

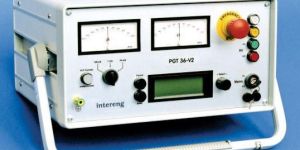

we are offering vlf test set. the 20 kv pgt 20-v3.6 type and 36 kv pgt 36-v2 type versions of the portable vlf test set enable testing of medium voltage cables with extruded insulation (vpe, pe, epr insulation) and with a nominal voltage of up to 6.3/11 kv and 12/20 kv respectively. the low-load vlf method uses a low-frequency alternating voltage of 0.1 hz and a maximum of 20 or 36 kv for testing

Number Of Flower : Portable VLF Test Set

Usage : Testing Medium Voltage Cables

We are offering tachometers : • large 5 digit lcd display is easy to read. • built-in memory recalls last max/min value stored. • autoranging with 0.05% accuracy. • contact measurements from 0.5 to 19,999rpm plus linear surface speed measures in ft/min or m/min. • simply contact rotating object with sensor tip and read. • accessory wheels enable tachometer to measure linear surface speeds. • complete with cone tip, flat tip and spare wheel for surface speed measurements, four 1.5v aa batteries and case.

Accuracy : 0.05%

Power Source : Four 1.5V AA Batteries

Packaging : Standard Packaging

Application : Contact Measurements, Linear Surface Speed Measurements

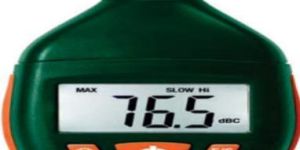

We are offering sound level meter.features  high accuracy meets ansi and iec 651 type 2 standards  high and low measuring ranges  data hold and max hold functions  backlit display to view in dimly lit area  complete with microphone wind screen and 9v battery applications:  enforcing community noise ordinances  meeting government safety issues (osha)  installing audio systems  product noise certification and reduction.

Number Of Flower : Handheld

Body Material : Plastic

Applications : Enforcing Community Noise Ordinances,Meeting Government Safety Issues (OSHA)

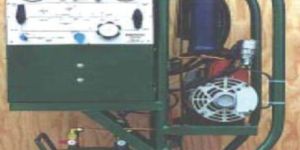

We are offering gas recovery unit etc. We are offering sf6 gas enervac latest sf6 gas recovery unit incorporates a new and improved high pressure, totally oil-less compressor capable of 1000 psig of pressure. This new technology allows for liquification of sf6 gas even in the warmer climates typical of the southern united states. this cart is ideally suited for servicing small volume sf6 equipment. All processes required for servicing sf6 equipment can be performed such as gas removal, temporary storage, contaminant filtration to 0.1 micron, gas purification and drying, equipment evacuation, and equipment repressurization. The cart is also ideally suited for consolidating partially used sf6 bottles into one bottle.

Number Of Flower : SF6 Gas Recovery Unit

Material : Metal

Packaging Type : Standard Packaging

We are offering sf6 gas leak detector uses an innovative infrared absorption sensing cell that is extremely sensitive to sf6. The sf6 gas leak detector maintains that sensitivity over time for consistent, accurate and reliable performance. Best of all the sensing cell lasts approximately 800 hours to lower your costs of ownership and improve job site productivity. sulfur hexafluoride (sf6 ) is an excellent gaseous dielectric for high voltage power applications. It has been used extensively in high voltage circuit breakers and other switch gear employed by the power industry. Sf6 gas is used in a variety of applications where invariably leaks will occur. When these leaks occur, enervac’s sf6 gas leak detector will pinpoint where the leak is so that repairs can be completed quickly.

Material : Metal and Plastic,Innovative Infrared Absorption Sensing Cell

Number Of Flower : Gas Leak Detector

Application : Detecting SF6 Gas Leaks In Various Applications

Multi Gas Analysis Cambridge Sensotec specialises in the manufacture of Rapidox gas analysers. We have a vast knowledge and experience within a wide range of multigas applications, including SF6, Syngas and biogas analysers. For further information on your particular application please contact us at

Cambridge Sensotec specialises in the manufacture of Rapidox oxygen analysers. We have a vast knowledge and experience within a wide range of oxygen applications. For further information on your particular application, please select from the options below. ADDITIVE MANUFACTURING Additive Manufacturing is becoming a more popular method of component production. Oxygen analysis is adopted to safeguard against adverse effects such as oxidisation and ignition of metal powders. FOOD Modified Atmosphere Packaging is a popular method used for increasing the shelf life of food. In-line analysis provides non-destructive and continuous monitoring of the gas mixture.

We are offering portable air conditioners lcm iii – a complete portable system for condition monitoring of live metal oxide surge arrestors. The system is suitable for measurement and analysis of resistive leakage current of las in live switchyard conditions without any need for shutdown. The system is based on the measurement of 3rd harmonic resistive current with compensation for harmonic in the system voltage as per method b-2 of iec 60099-5. it provides quick and reliable information about the health of the la and allows for storing of all the measurement data in the field. Customized reports can be generated and printed on the optional printer. The system includes a complete set of accessories, a carrying case for safe transportation and storage of kit & accessories required for the successful operation of the system at site.

Number Of Flower : Portable Air Conditioner

Packaging Type : Standard Packaging

Usage/Application : Condition Monitoring Of Live Metal Oxide Surge Arrestors

We are offering portable moisture analyzer.features applications  -110°c to +20°c dewpoint sensor  fast, accurate and repeatable  built-in temperature compensation  small & lightweight  state-of-the-art electronics & software  advanced user-friendly graphical interface  programmable data logging  battery backed clock calendar  built-in sensor desiccant store for rapid results.

Number Of Flower : Portable

Application : Moisture Analysis

Feature : Fast, Accurate, Repeatable

Power Source : Battery

Accuracy : High

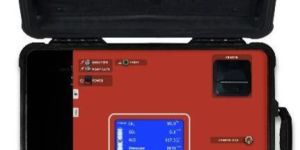

We are offering gas analyzer gru-6 etc.we are offering gas analyzers regular checking of sf6 gas insulated substations allows fault preventative maintenance programs to be implemented, and increases the life cycle of the sf6.the rapidox sf6 analyzer ir is the latest high precision gas analyzer designed for controlling and monitoring the quality of sf6 in gas insulated sub-stations and circuit breakers. The analyzer not only measures the sf6 gas content in air or nitrogen over the full range, but also measures the moisture content of the sf6 which is essential when monitoring the dielectric strength of the gas, together with the decomposition gas so2.

Number Of Flower : Gas Analyzers

Model : GRU-6

Material : Metal

Application : Fault Preventative Maintenance Programs

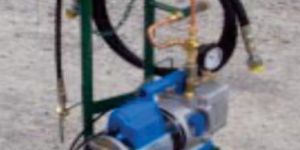

We are offering evacuation, rifilling unit etc.product overview a lightweight, yet rugged, portable unit for the evacuation of gas switchgear and breaker compartments and regulated filling using standard sf6 gas cylinders. features  single valve operation  large tyres for easy movement over gravel yards  permanently mounted high capacity, high vacuum pump  user adjustable regulated gas refilling specifications  < 0.03 mbar vacuum blank-off  10 m3h-1 high vacuum pump  optional 16 m3h-1 or 25 m3h-1 high vacuum pump  refill pressure regulator  handcart mounted  250 mm diameter wheels  sturdy tubular steel construction  integral vacuum gauge  3 way ball valve for simple switching between evacuation and refilling

Number Of Flower : Portable Gas Evacuation And Refilling Unit

Material : Steel

Usage : Evacuation Of Gas Switchgear And Breaker Compartments

Purity : Single Valve Operation,Large Tyres For Easy Movement Over Gravel Yards

We are offering cable fault locator etc.intercable fos p-line series have been developed for all cable measuring tasks in low and medium voltage networks. Individual variants of the inter-cable fos p-line series have been selected in cooperation with the users and their requirements related to practice. The proven prelocation method based on art (arc reflection technique) surging has been integrated for the prelocation of high impedance cable faults.

Number Of Flower : Fault Locator

Application : Measuring Cable Faults In Low And Medium Voltage Networks

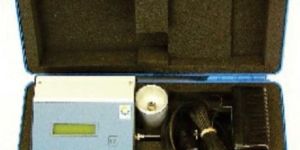

We are offering gas tester the buchholz gas tester serves to measure the fault gas content of the buchholz relay. Measurement can be performed directly at the sampling site, e.g. In the transformer substation or in a testing laboratory. The buchholz gas tester allows quick fault analysis on site, hence facilitating the decision-making pro cess with regard to the elimination of faults.

Number Of Flower : Gas Tester

Application : Measure Fault Gas Content Of Buchholz Relay On-site Or In Testing Laboratory,Elimination Of Faults

Feature : Quick Fault Analysis, Facilitates Decision-making Process

We are offering acoustic pinpointing system.the acoustic pinpointing fault location system kamphone is a ground sound microphone and is used for pinpointing of flashover faults in power cables. It consists of a receiver, a sensor and headphones. Three search methods are available: acoustic pinpoin-ting, coincidence and relative distance measurement. The display of the receiver can be used to call different information. The innovative digital signal processing and a simple, well-designed operating concept enables a quick and precise fault location.

Number Of Flower : Fault Location System

Material : Metal and Plastic

Application : Industrial

Feature : Innovative Digital Signal Processing, Simple Operating Concept
