Bitumen Emulsion Plant Dealers in Gurugram

(2 products available)
  • Bitumen Decanter

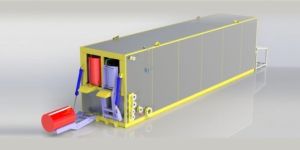

    Bitumen Decanter

    Get Price Quote

    • Capacity2 x 15 drum/hour x 200 kg/drum
    • Capacity of bottom reservoir12 m³
    • Length9250 mm (with folded loading arms)
    • Width2210 mm
    • Height2500 mm
    • Insulation materialRock wool
    • CladdingAluminum sheet
    • Pipe dimensionsØ 60.3 x 3.6 mm
    • Heating systemThermic oil
    • Thermal capacity400,000 kcal/hr
    • Drum loadingHydraulic system
    • Hydraulic power pack1 no.
    •  Hydraulic cylinder2 nos.
    • Bitumen drums, with one opened side, are loaded upside down by means of a hydraulic lifting mechanism one by one. The molten bitumen is collected at the bottom of the unit which is equipped with high capacity heating coils. These coils melt the bitumen in a short time and the liquid bitumen is then pumped into the storage tanks through the bitumen pump.
    ...more
  • Bitumen Emulsion Plant

    Bitumen Emulsion Plant

    Get Price Quote

    Bitumen Emulsion is one of the main ingredients used in road construction and maintenance. It is a two-phase system consisting of bitumen, water and one or more additives (Emulsifiers). Bitumen is dispersed throughout the water phase in the form of discrete globules typically in the range of of 0.1 to 10 micron in size, which are held in suspension in water and prevented from flocculating and settling by emulsifier charges. The emulsifier plays an important role to keep the bitumen droplets in a stable suspension, control breaking time and aids adhesion also.Bitumen Emulsion typically contains 50-75% bitumen, o.1-2% emulsifying agent and rest water. These components are introduced into a colloid mill that operates at a very high speed motor (1000-6000rpm) which shears bitumen emulsion into tiny globules. Variable Rotor Stator Gap in Colloid mill controls bitumen material. The size of globules that in turn controls the viscosity of bitumen emulsion. We are quality Bitumen Emulsion manufacturers and exporter in all over India.
    ...more
