CAMFIL Sector 16, Gurugram, Haryana

A few uncollected particles or gas molecules can have extremely serious consequences in some processes. Just imagine what harm contaminated air could do to the manufacture of semiconductors, pharmaceuticals and to other sensitive processes. Different processes need different levels of air cleaning, so an important part of our business concept is to help you analyse and specify your requirements. We have a complete range of filter solutions to satisfy your every need.

When a global pharmaceutical company specialising in delevoping and distributing therapeutic solutions and producing over 50 million pharmaceutical packages a year, required a new dust extraction system for their tablet packaging line, they contacted Camfil to provide the solution. Having been a customer of Camfil S.p.A. for many years, buying HVAC filters, this major pharmaceutical company knew that Camfil supplied quality products and that Camfil also had the best solution for dust extraction in the pharmaceutical industry. Having looked carefully at the customer’s requirements Camfil developed the right solution, including protection for the operators at the tablet machine and protection for the maintenance person-nel removing the dust from the collector and changing the filter cartridges.

Engineering paint spray booths so that theairflow provides a good environment isremarkably difficult. Although the airflow design seems quite simple – blow air in from the top and remove it from the bottom – the airflow is often far from uniform. The sheer scale of the production line means that obtaining uniformity of airflow through the filters and avoiding a wind-tunnel effect from one booth to the next has often been more of an art than a science.

For sensitive processes with the strict demands on safety, traceability and control.  Advantages Specially designed for Process Safety (Food, Life Science application) Food compliant - EC1935:2004 Anti-microbial growth certified (ISO846 - VDI6022) Sealed bag for transport through clean room The latest developed glass fiber media with high water repelancy QR code for a quick access to information and certificates The lower energy costs Aerodynamic radial design Resistance up to 5500 m3/h Light and easy maintenance (handles) Delivered in standard with continuous PU gasket for efficiency warranty Application: Air conditioning applications and preparatory filtration in clean rooms. Type: High efficiency, incinerable filter. Frame: 25mm thick flange, polypropylene and ABS, robust and waterproof. Media: Glass fiber paper. Separator: Hot-melt beads. Sealant: Polyurethane. EN779:2012 efficiency: M6, F7, F8, F9. EN1822:2009 efficiency: E10. Temperature: 70°C maximum in continuous service. Packing: Hygienic packing in sealed plastic bag. Outer packing: environmental friendly cardboard boxes, easy to carry. Option: PU continous gasket (ProSafe certified)

ADVANTAGES Large surface area Up to 6000 m3/hr air flow Less frequent changes Low pressure drop

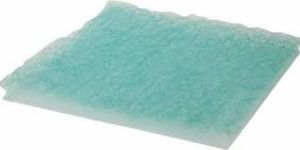

Media rolls can be used as pad pre-filters in air handling units, but also as filters in paint booths and similar applications. Media rolls are sold in filter classes G3 to F5. Application: For use as a pre filter in air conditioning, and spraybooth ventilation. Media: Synthetic and glass fiber EN779:2012 efficiency: G2-M5 Arrestance efficiency: 65% - 92%. Temperature: 80°C - 100°C maximum in continuous service. Humidity: 100% RH.

As mechanical filters load with particles over time, their collection efficiency and pressure drop typically increase. Eventually, the increased pressure drop significantly inhibits airflow, and the filters must be replaced. For this reason, pressure drop across mechanical filters is often monitored because it indicates when to replace filters. Conversely, electrostatic filters, which are composed of polarized fibers, may lose their collection efficiency over time or when exposed to certain chemicals, aerosols, or high, relative humidity. Pressure drop in an electrostatic filter generally increases at a slower rate than it does in a mechanical filter of similar efficiency.

The Filter holding frames will be used for the reliable, leak-free assembly of header frames (HF) filters. Typical Camfil Farr header frame (HF) filters are bag- ( e.g. Hi-Cap, H-Flo, S-Flo) and compact-filters (e.g. Opakfil, Citycarb, Citysorb).Ergonomic Rapid installation Modular concept for all installations Suitable for commercial and industrial applications CREO Approved

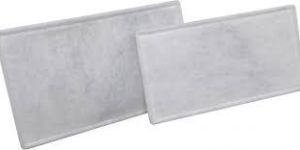

Fan coil filters prevent dust and dirt from building up on heating and cooling coils in ventilation systems. The product is available in filter class G3 and G4.   Application: Prevention of dust and dirt build up on heating/cooling coils within ventilation systems. Type: Coarse dust removal. Frame: Metal with downstream support. Media: Synthetic. EN779:2012 efficiency: G3. Arrestance efficiency: 65%. Eurovent 4/5 efficiency: EU2. Temperature: 70°C maximum in continuous service. Humidity: 100% RH.   Advantages   Available in a wide variety of sizes Economical Low pressure drop Light and robus

As mechanical filters load with particles over time, their collection efficiency and pressure drop typically increase. Eventually, the increased pressure drop significantly inhibits airflow, and the filters must be replaced. For this reason, pressure drop across mechanical filters is often monitored because it indicates when to replace filters. Conversely, electrostatic filters, which are composed of polarized fibers, may lose their collection efficiency over time or when exposed to certain chemicals, aerosols, or high, relative humidity. Pressure drop in an electrostatic filter generally increases at a slower rate than it does in a mechanical filter of similar efficiency.

Fan coil filters prevent dust and dirt from building up on heating and cooling coils in ventilation systems. The product is available in filter class G3 and G4.Available in a wide variety of sizes Economical Low pressure drop Light and robust

Applications: Pre-filtration for removing the largest particles in an air conditioning system. Type: Base filter with synthetic fibre bags and medium degree of separation. Frame: PS plastic – one-piece and combustible. Media: Polyester fiber. Filter class according to EN779:2012: G4. Maximum flow: 1.25 x nominal flow. Temperature: Max. 70°C under continuous operation. Packing: Hygenic packing in plastic bags. Outer packing: Environmental friendly cardbord boxes, easy to carry.     Advantages Specially designed for Process Safety (Food, Life Science applications) Rigid self supporting pockets Moulded, stabile and aerodynamic plastic header in one piece High mechanical strength Compliant to EC 1935:2004 Compliant to VDI 6022 / ISO 846

Camfil Hi-Flo A filters incorporate high-lofted air-laid micro-fibre glass media to ensure reliable efficiency over the entire lifetime of the filters.   Application: Comfort air conditioning applications, pre filter applications. Type: Multi pocket bag filter. Case: Galvanised steel. Media: Glass Fiber. EN779:2012 efficiency: M5, M6, F7, F9. Recommended final pressure drop: 450 Pa (suggested economical change point 250 Pa). Temperature: 70°C maximum in continuous service. Holding frames: Front and side access housings and frames are available, Type 8, Type L, and FC Housings.   Advantages   Comprehensive range of standard sizes New developed pocket design for the best air distribution Conical pockets Robust metal header frame High dust holding capacity

Airopac High Temp is a high efficiency compact silicon free pleated compact filter designed for paint bake ovens and other high temperature applications.   ADVANTAGES   High efficiency High temperature Silicon free construction Compact design

airMet Double Filter is a robust and efficient double panel with flame guard and knitting mesh for restaurants and the catering industry. Minimises the risk of fat clogging and excess pressure drop.   advantages The fat is arrested in two stages in the filter The air passes through the labyrinth strips and is cooled The fat condenses out and runs down in a channel This minimises the risk of clogging and excess pressure drop The air then passes through a knitted stainless steel filter Any residual fat is trapped The filter is fitted with two strong handles

Air intakes must often handle large amounts of water from heavy rain, fog, mist and in special area´s in the world even sand. Therefore dedicated air intake systems are very important to protect the air handling system at the very beginning

We were the first air filtration company in Europe to invest in our own Eurovent & EN 779 test rigs. The test rigs have undergone rigorous 'round robin' tests to ensure consistency of filter evaluation with independent test laboratories.By having a number of our own test rigs we can test new filters as well as used filters from the field to build up our own database of how filters work and perform in real life. Standards have so far been concentrating on finding fast, economical methods to classify filters.

AeroPleat is a family of high-performance pleated panels. The AeroPleat can be used as a pre-filter in two-stage filtration systems but also in roof-top applications, small air handling units and other stand-alone applications.   Advantages Low pressure drop media resulting in low energy costs Robust construction for reliable operation Three frame alternatives with different benefits: Green: Incinerable plastic frame for increased robustness and water resistance Eco: Moisture resistant incinerable cardboard frame Metal: Rigid frame for demanding applications. Fire classified M1
