Govind Scaffolding Sector 37, Gurugram, Haryana

Adjustable U-Jacks/ Stir-up Heads are used for supporting floor forms, slab & beams. It has a jack nut which provides for accurate adjustment and it has a solid stem. Adjustable Base Jack/ Base plates are used to secure the pipe/ cuplock to the ground. It is used for precise rise of pipe especially on uneven surfaces. Adjustable Base Jack & U Jacks are available in the size from 350 to 450mm.

Tele Props is considered as one of the ideal, most economical & most reliable method of support for all kinds of formwork, slabs, beams, walls and columns. They are also required for a wide variety of applications in general construction and repair work. Props eliminate the cost incurred and time consumed in cutting timber to desired length, wedging it and nailing it. The end of the telescopic prop is provided with welded U/ Flat Head that makes it more easy to use. Adjustable Props are specially engineered with a threaded external tube, internal tube and intermediate holes so that the prop can be extended to a desirable size. Advantages Easy to install Reusable Can be extended to a desired length Eliminate labor work Precise structure Excellent durability High strength Prop Jack are avaliable in the following sizes:- Outer member made of 50 NB “B class pipe” Inner member made of 40 NB “B class pipe”

Spigot pin is used as internal vertical to vertical jointer. Though small in size, they are an extremely important part of the scaffolding system as they are required to support multiple stories of scaffolding. Spigot pin have a standardized sizes.

Cuplock vertical are principally used in access scaffolding applications and also as a base structure for formwork support applications. Cuplock vertical are made of 40 NB “B class pipe”. Both ends are drilled to fix spigot joints. Bottom cups are welded at 500 mm distance position. Top cups can be moved and retained by a fix stop. Advantages Easy to erect and dismantle No loose components Low maintenance cost Reduced on time and labor cost SCAFFOLDING CUPLOCK are available in the following sizes: 0.5 Meter 1 Meter 1.5 Meter 2 Meter 2.5 Meter 3 Meter

Shuttering plate is made of high quality 3mm sheet with 35×5 mm steel angle. It is water tight shuttering which can bear the load of cement concrete placed on it. It can be used for horizontal, vertical or any other shape required for the work. It gives leveled surface which has good appearance. If the plaster is required, the thickness of plaster will be less. Being water tight, the strength of concrete with steel shuttering is comparatively higher. Advantages Steel plates are stronger, durable and have longer life than timber formwork and their reuses are more in number. Steel plates can be installed and dismantled with greater ease and speed. The quality of exposed concrete surface by using steel plates is good and such surfaces need no further treatment. Steel plates do not absorb moisture from concrete. Steel plates do not shrink or warp. MS Plates are available in the following sizes:- 2′ x 3′ (600 x 900 mm) 9″ x 3′ (230 x 900 mm) 1′ x 3′ (300 x 900 mm) 15″ x 3′ (375 x 900 mm) 18″ x 3′ (450 x 900 mm) 1.5’x 4′ (450 x 1200 mm)

M.S. Pipes are available on hire for all infrastructural & construction projects. It is made of 40 NB “B Class pipe”. MS PIPE are available in the following sizes:- 3 Meter 6 Meter

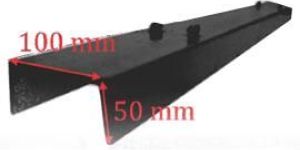

A channel is a right angle “C” section. They are also called C Channels. Along with beams, channels are mainly used in structural applications. M.S. Channels are used to support steel plates or floor from below. It is fixed on top of Adjustable Props/ Cuplock system. MS CHANNEL are avaliable in the following sizes:- 2.5 Meter 3 Meter

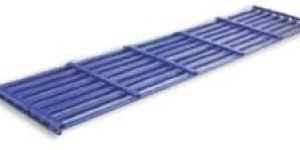

MS Challis/ Jali/ Platforms are widely used in the new construction, as it speeds up work in high areas by allowing more than one worker on the platform, and providing a place to handle materials. MS challis has standardized size i.e. 18 Inch x 2 Meter.

Ledgers are made of 40 NB “B class pipe” with forged ledger blades that are welded at the ends which locate into bottom cups of the Vertical and are locked in place by the corresponding top cups. Length of the ledger is calculated between center to center of two vertical. Ledger are available in the following sizes:- 0.9 Meter 1 Meter 1.2 Meter 1.5 Meter 2 Meter

couplers/ clamps are available on hire for all construction and infrastructural projects. Two types of couplers are available, they are:m.s. Fixed coupler : it is used for joining 40 nb pipes at a 90 degree angle to other 40 nb pipes, ledgers or props.available sizes are: 40 nb x 40 nb 40 nb x 50 nb m.s. Swivel clamp : it is used for connecting 40 nb pipes at any angle to other 40 nb pipes, ledgers or props for diagonal bracings.clamp are avaliable the following sizes:- 40 nb x 40 nb 40 nb x 50 nb

Material : Brass

Diameter : 15-20mm

Thickness : 20-30mm

Length : 2inch

Application : Jointing

Availability : 10-20kg

Finishing : Polished

Feature : Corrsion Proof, Durable, Fine Finished

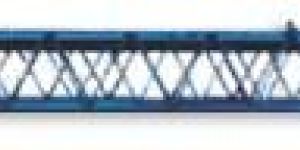

Acro Spans are ideal to be used as self – supporting runner in shuttering systems. Moreover, Adjustable Beam spans are installed under shuttering plates or floor from panels. Acro span have a standardized size i.e. 2.5 x 2.5 meter (2350 x 2350 mm) Advantages Portable Highly Accurate and precise Easy handling Installation is easy High load bearing capacity
