Ozone Architectural Products Behrampur, Gurugram, Haryana

Both our horizontal and verticle dividing panels are fitted with appropriate end fittings which are included in the adjacent product codes.Must be used in conjuction with either our single wall high metal drawer sides.

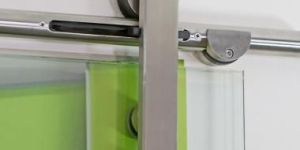

Soft Closing Single Sliding Glass Door for Office, Kitchen, Living Room and Pocket Doors Elegant and Slim design Can be Mounted on Glass, Wall and Ceiling. No CutoutHoles Required for Glass Doors. Internationally patented in Germany as per EN1527 standards Roller tested for 100,000 cycles Hydraulic soft closing bumper-Tested for 2,00,000 impact cycle

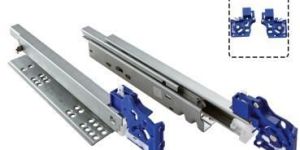

Load Capacity : 35kg Finish : Zinc Plated Lengths : 300-600mm (12”-24”) Silent Undermount Full Extension Soft Close Self Closing Tool free assembly and removal of drawer Silent system guarantees smooth run without noise Drawer Height Adjustment : 0 ~ + 3 mm

Strike Box with Recessed Handle Suitable for SDL 13-A Suitable for glass thickness 10-12mm Rounded design at corners Stainless Steel Grade 304

Square Magnetic Latch cum Dead Bolt Glass Door Lock One side key other side knob operation Max Glass Thickness= 810mm, can be avail for 12mm on request. Casting Material:- Aluminium Alloy. Finish:-Brushed SS

Speciality : Easy to change left t/right or in/out orientation. Use for Interior applications.

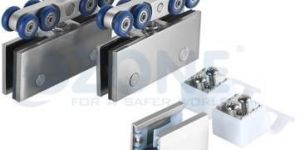

System with Accessories for 120kg. Frameless Sliding Door Each set comprises of - 2 Standard Rollers - 2 Stoppers - 1 Floor Guide Suitable Track - OZ-ESL-TRACK-E2 (Not included in set) For frameless panel of 120kg. Material : Aluminium with SS Finish

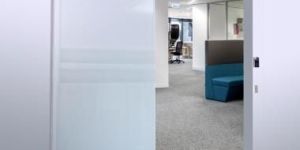

Single bi-parting sliding door system Suitable door weight : 120 Kg x 2 Max door width : 2mtr 3mtr Adjustable parameters for opening speed, door buffer distance, door buffer intensity, closing speed, closed buffer distance, closed buffer force, opening hours & starting force Integration possible with Microwave Sensor, Handwave Sensor, PIR Sensor, Digital Door Key, Wireless push button, Safety Beam, Remote Control, Push Buttons etc.

Feature : Extra slim type track 24V DC 100 watt brushless motor with built-in rectifier Adjustable parameters

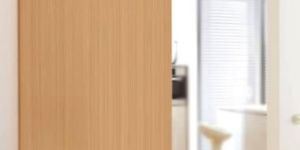

Soft closing Single Sliding Wooden Door Suitable for Office, Kitchen, Living Room and Pocket Doors Elegant and Slim design Systems can be mounted on Glass, wall and ceiling. Internationally patented in Germany as per EN1527 standards Roller tested for 100,000 cycles

Feature : Aluminium anodised top track Finish: SS or brushed clear

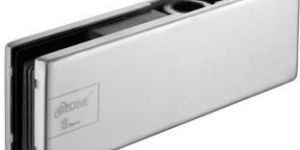

Stainless steel bracket to accept the pivot pin ø15 mm bracket adjustment:- 55 to 65mm compatible with ozone ofs-acc-gdp-s & opf-1s standard sss 1.5mm thick ss 316 cover plate base casting material :-alloy steel gasket :- non-asbestos material spring steel (special metal) snap fit points for more strength cut outs are same as that standard opf-2.

Feature : The Side Plate allows better finishing and aesthetics. Finish:-SSS

Single leaf door weight: 80Kg DC 24V 45W brushless motor Can be installed on doors of kitchen, balcony, office, shop front, aisle,french window or other sliding windows Suitable door width: 500-1000 mm

Feature : Converts existing manual sliding door/window into automatic Suitable for residential applications

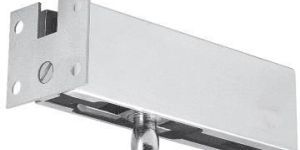

Pivot Pin Ø15 mm with Variable adjustment of 55 to 65mm. 1.5mm thick SS 316 cover plate Base Casting Material :-Alloy Steel Gasket :- Non-Asbestos Material Spring Steel (Special Metal) snap fit points for more strength Cut Outs are same as that Standard OPF-4.

Feature : Strong steel cover which doesn’t come out easily. Stainless Steel wall fixing Bracket Finish:-SSS

For key to knob application Different lengths of 60mm, 70mm, 80mm and 100mm Standard keys For application on to different door thicknesses

Both side knobs active • No locking • 6 pins cylinder • ANSI Grade -3 • Tested 2,00,000 cycles • Suitable for 35 to 45mm wooden door • 60mm backset

Primary dead bolt with double throw operated by key from outside key to knob function Door thickness 35-50mm 2 point dead bolt for additional security Latch lockable by knob from inside 5 High Security Computerized Brass Keys

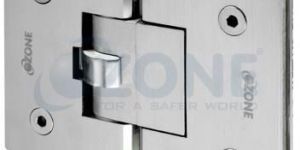

Self Centering spring action from 35° to 90° Hold open point at 90° Stainless Steel Grade 304 Suitable for Glass Thickness 10mm 12mm

Can be used for double action doors also. Secure holding with glass. No oil Leakage: Imported seal material, delicate structure, process control on quality. Max Door Dimension: 1000 X 2200 mm. Max Glass Thickness: 8 to 14mm Max Door weight: 60 Kg .( Each Pair) Max Closing Force: 4-8Nm Opening Angle: 100 Deg (Double Action) Working Temperature: 30-60 Des-C

Feature : Spring Loaded Hydraulic Hinges Durability: 5,00,000 Cycle Tested

Secure grip on glasses With four friction free rollers Rollers with independent bearing for free rolling action Ensures noisefree operation of the partition With Stainless Steel Cover Grade 304 Cover secured with ‘L’ key Gaskets provided to prevent damage of glass and secure grip Finish SSS

Single sliding glass door for office, kitchen, living room and pocket doors Elegant and slim design Can be mounted on Glass, Wall and Ceiling No cutoutholes required for glass doors Internationally patented in Germany as per EN1527 standards Roller tested for 100,000 cycles

Feature : Max Glass Thickness: 10mm or 12mm Aluminium anodised top track

patented door height adjustment +-4mm on carriage Glass thickness: 8-10mm for standard model; Specify if required for 12mm thick glass Max. door weight: 80kgs 2 carriages for soft closing mechanism Standard track length: 1760mm Finish: SS 304

Feature : Cushioning against door slamming, gentle self-closing the door for about 100mm In-house tested for 2,00,000 cycles

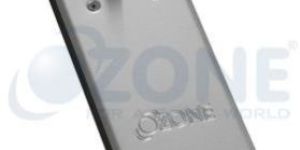

Closing Force EN 1-4 Max Door Weight Capacity: 65-200 Kgs. Max Door Widht 1300mm Closing Speed 130-10 Degree Final Closing Speed 10-0 Degree Without Hold Open as Standard Hold open at 90,105 Degree on Demand Wieght of floor machine approx 6 Kg

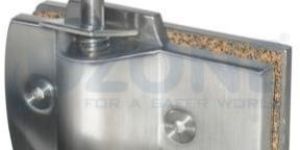

Sliding Folding Panel Bottom End Fitting for odd panels Locking pin provided for locking the panel with floor Spring loaded locking pin Locking pin can be released by pressing the release knob Finish SSS

Cross Railing available in 1100mm size with T or L connectors Quantity can be ordered as per the requirement.

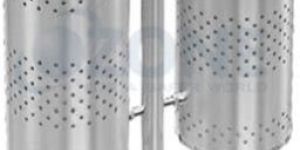

Stainless steel 304 grade Sheet thickness = 1.2 mm Double Dustin OD = 374 mm H = 816mm All around diamond shaped perforations Mounted on a pole OD =75mm

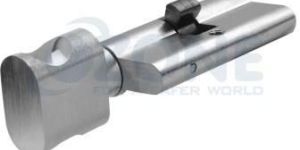

One side knob, one side coin release Different lengths of 60mm, 70mm, 80mm and 100mm Recomrnded for use in bathroom doors For application on to different door thicknesses Material: Brass
