simptronix private limited Palam Vihar, Gurugram, Haryana

Electrial parameters frequency (mhz)2400 – 2500 gain (dbi) 14±0.5 vswr (max) 1.5 : 1 h plane bw (°) 120±0.5 e plane bw (°) 8 ± 2 polarization vertical max. Power input (watts) > 50 impedance (ω) 50 front to back ratio (db) >25 cross poln. (db) >28 connector termination dc ground lightning protection >dc ground mechanical parameters dimension (mm)850 x 130 x 70 gross weight (kg) 2.3 radome upvc mounting hardware ms galvonized and powder coated mounting style tower and pole mechanical down tilt 20° environmental parameters temperature range (°c)( - ) 40 to ( + ) 70 wind speed (km/hr) 200 humidity 95% no condensation

Brand Name : TELIMART INDIA

Frequency : 2.4 to 2.5 GHZ

Electrial Parameters Frequency (MHz)4900 - 5900 Gain (dBi) 2 X 12±0.5 VSWR (Max) 1.5 : 1.0 H Plane BW (°) 360 E Plane BW (°) 7 Polarization H & V Max. Power Input (Watts) 50 Impedance (Ω) 50 Connector Termination 2 x SMA(F) Lightning Protection DC Ground Mechanical Parameters Dimension (mm)Ø 75 Length (mm) 585 Weight (Kg) 1.5 Radome UPVC Mounting Hardware MS Galvanized & Powder Coated Mounting Style Direct on Equipment Supporting Pole Diameter 2-2.5 Inches Environmental Parameters Temperature Range (°C)( - ) 40 to ( + ) 70 Wind Speed (km/hr) 200 Humidity 95% No Condensation

Size : TM55D-HVOMNI-12

Number Of Flower : standard

Brand Name : TELIMART

Length : 4*4*4

Frequency : 4.9 TO 5.9

Electrial parameters frequency (mhz)2400 - 2500 gain (dbi) 6 + 0.5 vswr (max) 1.5:1.0 h plane bw (°) 360 e plane bw (°) 28±2 polarization vertical max. Power input (watts) 50 impedance (ω) 50 connector termination n(f) lightning protection dc ground mechanical parameters dimension (mm)ø40 length (mm) ≈520 weight (kg) 1±0.2 radome upvc mounting hardware ms galvanized & powder coated mounting style tower and pole supporting pole diameter 2-2.5 inches environmental parameters temperature range (°c)( - ) 40 to ( + ) 70 wind speed (km/hr) 200 humidity 95% no condensation

Size : TM24V-OMNI-12

Number Of Flower : standard

Brand Name : TELIMART INDIA

Frequency : 2.4 to 2.5 GHZ

we are offering point to point cable.

Number Of Flower : standard

Brand : TELIMART INDIA

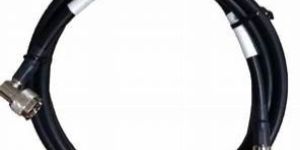

lmr-400 standard is a uv resistant polyethylene jacketed cable designed for 20-year service outdoor use. The bending and handling characteristics are significantly better than air-dielectric and corrugated hard-line cables.

Number Of Flower : Standard

Brand : TELIMART

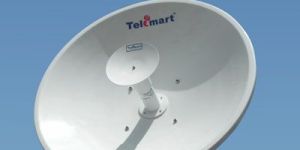

Electrial parameters frequency (mhz)4900 – 5900 gain (dbi) 2 x 29±0.5 vswr (max) 1.5 : 1 h plane bw (°) 6±0.5 e plane bw (°) 6±0.5 polarization linear v & h port to port isolation (db) > 30 max. Power input (watts) 50 impedance (ω) >50 front to back ratio (db) >32 cross poln. (db) >26 connector termination 2 x n(f) or customized lightning protection dc ground mechanical parameters dimension (mm)ø 600 antenna material aluminium alloy gross weight (kg) 5 packing dimension (inch) 27 x 27 x 10 mounting hardware ms galvanized & powder coated mounting style tower and pole mounting pole diameter (inch) 2 mounting adjustment h plane ± 180° mounting adjustment v plane ± 15° environmental parameters temperature range (°c)( - ) 40 to ( + ) 70 wind speed (km/hr) 200 humidity 95% no condensation

electrial parameters frequency (mhz)4900 – 5900 gain (dbi) 2 x 26±0.5 vswr (max) 1.5 : 1 h plane bw (°) 9±0.5 e plane bw (°) 9±0.5 polarization linear v & h port to port isolation (db) > 30 max. power input (watts) 50 impedance (ω) >50 front to back ratio (db) >30 cross poln. (db) >22 connector termination 2 x n(f) or customized lightning protection dc ground mechanical parameters dimension (mm)ø 450 antenna material aluminium alloy gross weight (kg) 3.5 packing dimension (inch) 20 x 20 x 8 mounting hardware ms galvanized & powder coated mounting style tower and pole mounting pole diameter (inch) 2 mounting adjustment h plane ± 180° mounting adjustment v plane ± 15° environmental parameters temperature range (°c)( - ) 40 to ( + ) 70 wind speed (km/hr) 200 humidity 95% no condensation

Size : 0-2ft

Number Of Flower : Standard

Material : Metal

Certification : ISO 9001:2008

Frequency Range : 0-5Ghz

Mounting Type : Wall Mounted

Antenna Height : 0-2ft

Brand Name : TELIMART INDIA

Application : NETWORKING

Cable Length : 1 METRE
