Indian Valve International Howrah, West Bengal

Due to growth in demand for products of the IVC group of companies, it required expansion of it's production activities hence, in 1991, Indian Valve International ( IVI ) came into being with the sole objective of entering the international markets. IVI products are presently exported to countries in West Africa, South East Asia, the gulf countries etc. Getting good support in designs and drawings from IVPL, Nashik, IVI was able to develop the manufacture of Sluice Valves up to 1,500 mm and Butterfly valves upto 1,800 mm within a very short span of time. Presently IVI is able to execute big orders for larger valves as aforementioned. Quality of products also improved and their durability resulted in an increase in sales. IVI is a licensee of the Bureau of Indian Standards (BIS) for sluice valves and non- return valves.

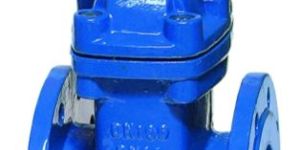

=Ductile Iron Body =Elastomer encapsulated DI wedge =Pocketless � smooth flow =Ease of operation � Negligible headloss � Maintenance free =Electrostatic powder coating Liquid epoxy coating =Reference standard: BS EN 1171 AWWA C � 509 =Flanges conform to ANSI B 16.1 Cl 125 =Optional drilling: IS 9523 Table 4 (flat face) =Non shock cold working pressure 250 psi (17.2 bar) =ISBS LOF, PN-16 valve under development

Due to growth in demand for products of the IVC group of companies, it required expansion of it's production activities hence, in 1991, Indian Valve International ( IVI ) came into being with the sole objective of entering the international markets. IVI products are presently exported to countries in West Africa, South East Asia, the gulf countries etc. Getting good support in designs and drawings from IVPL, Nashik, IVI was able to develop the manufacture of Sluice Valves up to 1,500 mm and Butterfly valves upto 1,800 mm within a very short span of time. Presently IVI is able to execute big orders for larger valves as aforementioned. Quality of products also improved and their durability resulted in an increase in sales. IVI is a licensee of the Bureau of Indian Standards (BIS) for sluice valves and non- return valves.

Due to growth in demand for products of the IVC group of companies, it required expansion of it's production activities hence, in 1991, Indian Valve International ( IVI ) came into being with the sole objective of entering the international markets. IVI products are presently exported to countries in West Africa, South East Asia, the gulf countries etc. Getting good support in designs and drawings from IVPL, Nashik, IVI was able to develop the manufacture of Sluice Valves up to 1,500 mm and Butterfly valves upto 1,800 mm within a very short span of time. Presently IVI is able to execute big orders for larger valves as aforementioned. Quality of products also improved and their durability resulted in an increase in sales. IVI is a licensee of the Bureau of Indian Standards (BIS) for sluice valves and non- return valves.

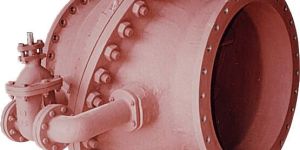

NOTE: 1) VALVES GENERALLY CONFORM TO IS:5312 PART I & II (OTHER STANDARDS ON REQUEST) 2)THESE VALVES ARE FOR HORIZONTAL APPLICATION WITH FLOW VELOCITY UPTO 3.5m sec 3)FOR VERTICAL INCLINED APPLICATION AND HIGHER VELOCITY, PLEASE CONSULT US> 4)SINGLE DOOR TILTING DISC CHECK VALVE (VELOCITY 1.5 TO 5m sec) CAN BE GIVEN FOR SIZES 500 TO 1200 N.B. 5) FOR ARDUOUS DUTY AND PRESSURE ABOVE 10 BAR, VALVES IN CARBON STEEL S G IRON, (DUCTILE IRON) CONSTRUCTION CAN BE GIVEN. 6) FOR SUFFICIENT BATCH QUANTITY VALVES TO BS 5153 CAN BE GIVEN. 7) ALTERNATE LENGTH (LOF) CAN BE SUPPLIED FOR REPLACEMENT.

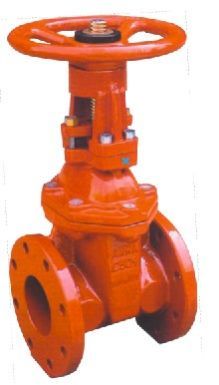

IS 14846 BS EN 558 – 1 ISO - DIS 5752 BASIC SERIES 3 FLANGE DRILLING: IS 1538 TABLE 4 & 6 BS EN 1092 – 2 TABLE 8 & 9 STD. CONSTRUCTION: CAST IRONDUCTILE IRON WITH BRONZE TRIM AND ST. STEEL SPINDLE PRESSURE RATING : PN 10 UPTO 1500mm NB AND PN 16 UPTO 900mm NB. OPTIONAL FITTINGS: BTB - BALL THRUST BEARING ARRANGEMENT S & C - SHOE AND CHANNEL WGB - WORM GEAR BOX SGB - SPUR GEAR BOX DPA - DRAIN PLUG ARRANGEMENT SBG - SPUR - BEVEL GEAR BOX HSA - HEAD STOCK ARRANGEMENT IDA - INDICATOR ARRANGEMENT BSB - BACK SEAT BUSH BPA - BYPASS ARRANGEMENT OUR DEVELOPMENT: GLANDLESS, DROP-TIGHT, METAL SEATED DUCTILE VALVES OUR SPECIALITY: TAILOR MADE, MAINTENANCE FREE, ROBUST SCOTTISH DESIGN.

=Available in circular, square or rectangular opening =Generally conforming to IS 3042:1965 or IS 13349: 1992 AWWA C501 =Open Channel Gate as per IVC Design =Rising or Non-rising spindle =Adjustable machined tapered wedging arrangement to improve sealing =Suitable for manual (headstock) or Power (electric pneumatic) operation =All metal seats faces are riveted to the frame door using a special technique, thus eliminating any possibility of their becoming loose in service =Trim material to suit service condition

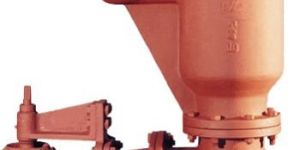

The presence of free air in pipeline can reduce the severity of water hammer considerably. Celerity(speed) of an elastic wave with, say 2% of air at a pressure head of 50m of water reduces celerity from about 1100ms to 160 ms for a typical pipe line. On the other hand air in a rising main, wheather in solution or in bubble from can have number of ill effects. =Cavitation - The formation of vacuous cavities which subsequently rapidly collapse and erode the pump or pipe =Headloss - Accelerating water past air pockets formed in pipes, leading to head losses =Other forms may include surging, Corrosion, reduced pump efiiciency, malfunctioning of valves or vibrations A pipeline designer therefore has to factor in all the aforesaid, the critical level of permissible vaccum inside a pipeline to prevent collapse vis-a-vis the suction and discharge capacity of an air valve (curves on request) before deciding upon the type, size, spacing and location of these air valves.
