Koley Converting Machinery (P) Ltd Shibpur, Howrah, West Bengal

Wet & dry lamination machine technical specification basic specification substrate machine speed web width films, paper, aluminium foil, etc. upto 250 m/min (depending on material & adhesive quality, 600 mm - 1400 mm no. 1 unwinder unwind type reel diameter edge guide single fixed shaft type or 2 shaft turret type unwinder 800 mm automatic control no. 2 unwinder unwind type reel diameter edge guide single fixed shaft type or 2 shaft turret type unwinder 800 mm automatic control no. 3 unwinder unwind type reel diameter one shaft fixed type max. 400 mm core locking air expansion shaft or taper cone with solid shaft.

Material : Iron, Stainless Steel., Mild Steel

Application : Industrial

Feature : Good quality

Condition : New

Total Carbohydrate : 1 year

technical specifications basic specification substrate web width slitting method machine speed main driving motor film, paper, al. Foil upto 1500 m. M. razor blade & circular knife max. 300 m / min. (depending on material) variable speed a. C. Or d. C. Motor unwinder real. Dia tension control edge guide max. 800 m. M. by powder brake or a. C. Or d. C. Motor or manual automatic control rewinder real dia tension control slitting width max. 500 m. M. by powder clutch or a. C. Or d. C. Motor or manual from 50 m. M.

Condition : New

Rated Power : 5 HP

Total Carbohydrate : 1year

Availability : 400kgs

Application : Industrial

Rotogravure printing machines technical specifications basic specification web substrate number of colours web width web roller machine speed film, paper, aluminium foil, etc 1 - 10 colours 600 mm - 1400 mm aluminium rollers upto 200 m/min unwinder unwind type reel diameter unwind shaft tension controller single fixed shaft type or 2 shaft turret type unwinder 800mm air shaft, tapper cone with solid shaft or shaftless fully automatic control system (a. C. Motor) infeed unit synchronized control (a. C. Motor) printing unit frame cylinder chucking impression drying system doctor blade ink system registration system cast iron diameter - 130 mm to 300 mm shaft with taper cone one roll arm with pneumatic pressure system single chamber impingement slot dryer (electric, thermic oil, hot air generator, etc. ) pneumatic pressure system s. S. Ink tray auto registration control

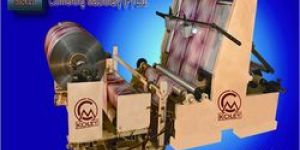

Inspection rewinding technical specifications basic specification substrate web width machine speed film, al. Foil & paper upto 1100 m. M. max. 300 m / min. unwinder real. Dia tension control edge guide max. 800 m. M. by powder brake automatic control rewinder real dia tension control max. 600 m

Availability : 3300 kg

Country of Origin : 220V

Condition : New

Automatic Grade : Automatic

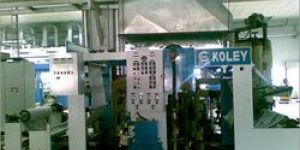

Features : Three-Roll Hot Melt Coater In this process Hot Melt can be coated in single side of the substrate. The coating thickness should be 16 - 22 gsm. +/- 3 gsm. Coating Machine Three-roll coater will have the following station. 3 roll coating head. Unwind Station (One) Chilling Roll Station (2 nos Chilling Roller) Rewind Station (One) Machine Roller width is 1200 mm. with coating width of 1000mm. The machine is suitable for paper. Precision adjustments are incorporated for control of Hot Melt coating thickness. Temperature to be maintained constant with PID Temperature Controller in the Hot Melt Tray for uniform coating. Hot Melt Tank (Kettle) Our offer include supply of Hotmelt Tank with Agitator Motor for making uniform hot Melt, with Tank capacity of 500 kg. This Tank has to be heated up to 170A Centigrade maintains uniform temperature in the tank.

Condition : New

Total Carbohydrate : 1 Year

Material : Iron, Stainless Steel., Mild Steel

Usage : Industrial

Specialities : Good Quality

Machine Weight : 250kg

Number Of Flower : Automatic

Availability : 500-1000kg

Country of Origin : 220V

Condition : New

Power : 20-25kw
