Patil Electric Works Pvt. Ltd. Gokul Road, Hubli, Karnataka

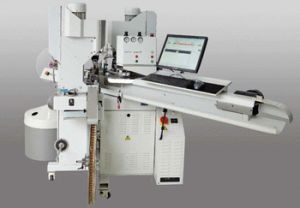

Wire Harness is a string of wires which transmits information signals or operating currents in a machine just as nervous system in a body. By binding many wires into a bunch systematically, the wire can be better secured against the adverse effects of vibrations, abrasions, temparrature & moisture.   State of the art CNC wires cutting, stripping, seal insertion, crimping with crimp quality monitor. Digital push pull load tester for crimping. Ultra sound welding for splice. Assembly &amo; testing jigs. Harness tester with integrated lable printer. Engineering Capabilities For Wiring Harness Design, Develop & Validate Wiring Harness. Design & Fabricate Jigs, Fixtures. Assembly & Circuit checking boards.   Wire Harness for various applications like:   Automobile sector: Buses, Trucks, LCVs, Cars, Construction equipments & two/three wheelers. Elevator Lifts & Excavator. Control panel for machines. Home appliances: Refrigerator, Mixer, Washing Machine, etc., Electronic Industries. Aviation Industries.

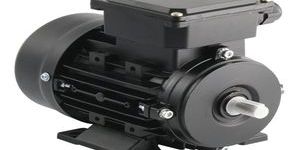

Patil Electric is a reputed manufacturer of a wide range of high-quality motors up to 160 L Frame (15 kW). The range includes various types of motors such as Standard Induction, Crane & Hoist Duty Motors, Energy Efficient motors, Textile Motors to name a few. The range has been proving its worth for different applications in various industries for nearly two decades. Patil Electric Motor is the preferred choice of major corporates, MNCs & OEMs due to the product quality, performance, timely deliveries and competitive prices.   Product Range Motors Standard Motors Single Phase Three Phase Crane & Hoist Duty Motors Energy Efficient motors Textile Motors Special Motors Dual Speed Motor Dual Voltage Motor 50 to 60 Hz. frequency motor High torque motor H Class motor High slip motors Special Performance Requirements Inverter Duty motors Cooling tower motors

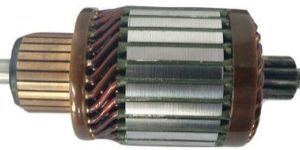

An Armature is one of the key parts in rotating machinery, generally it is a rotating mass with systematic arrangement of conductors culminated at the commutator & electrically joined to produce motoring or generating action. State of the art fully Automated Manufacturing facility for Armatures (Used mainly for Starter Motors & Power Tools). CNC controlled Induction welding Machine. Automated Varnishing Station. CNC Controlled Balancing Machine. Some of the Assembly Line Stations Paper Flaring Hair pin forming Shaft & Stack Pressing Varnishing Twisting Commutator r/o Measurement Welding Station Tinning Ring Pressing Slot Insulation Commutator Pressing Electrical testing

Features Compact and aesthetically built Conforms to all leading industrial and marine standards Simple design, fewer parts easy access to coupling bolts, output terminals, and rotating diodes. Simple to install and maintain Wound with 2/3 pitches in stator to eliminate harmonics Sophisticated and reliable AVR, having good capability to handle non-linear loads Self lubricating, sealed type for ball bearing

Phase : Three/Single

Country of Origin : 415/240 V

Speed : 1500 rpm
