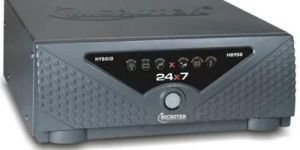

Solar Hybrid UPS
Get Price Quote
We are engaged in exporting, importing and supplying a vast gamut of Solar Hybrid UPS. It is sturdily constructed and procured from known vendors of the market. Solar Hybrid UPS works on DSP technology with high output. It is available in different electrical capacities of 500va, 700va, 850va, 1kva, 12v, and 24v. Solar Hybrid UPS is equipped with a seven-segment digital LCD display, and control switches. The LED indicator indicates solar power, charger, and relay.
Inverter/ UPS Switch :
Inverter-Low voltage-100V High Voltage-270V AC
UPS-Low voltage-170V High Voltage -270V AC
Charger Selection Switch :
Mains charger OFF –Mains charger will be permanently OFF and Battery will charge only from solar
Mains/solar-In this mode both charger will work UP TO 13.8V, mains charger will turned OFF @ 13.8V automatically and only solar will work UPTO 14.3V
Auto / Manual Switch :
Auto-This solar Hybrid inverter can provide power to the connected load by utilizing the PV power, Utility (Mains) power and battery power. When PV energy is good it will charge the connected batteries , when battery voltage reaches @14.3V
Relay will turn ON and this inverter will convert power to the connected loads from solar and Batteries. When PV and Battery power is not sufficient for connected loads ( It means less than 11.5V) this inverter will source from the utility (mains) at the same time . When PV energy is not sufficient and Utility (mains) is failed, The System selects the Battery as source.
Manual-This inverter will work when mains failed.
...more
