The wide range of products is a result of intense quality analysis of raw materials at the initial stages of production. With stern checking, the products are examined with utmost precision. From the sourcing of raw material till the final dispatch, our quality auditors keep a stern eye on every sage.
The wide range of products is a result of intense quality analysis of raw materials at the initial stages of production. With stern checking, the products are examined with utmost precision. From the sourcing of raw material till the final dispatch, our quality auditors keep a stern eye on every sage.

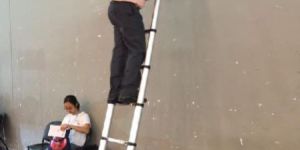

Alco series: model no.al-133
telescopic ladder
1. length on full expand condition 1830mm
2. length on full collapsed closed condition 610mm
3. weight of the ladder 6kgs
4. width of the ladder 350mm
5. load capacity of the ladder 150kgs.
Alco series: model no.al-133
telescopic ladder
1. length on full expand condition 1830mm
2. length on full collapsed closed condition 610mm
3. weight of the ladder 6kgs
4. width of the ladder 350mm
5. load capacity of the ladder 150kgs.

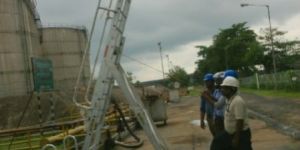

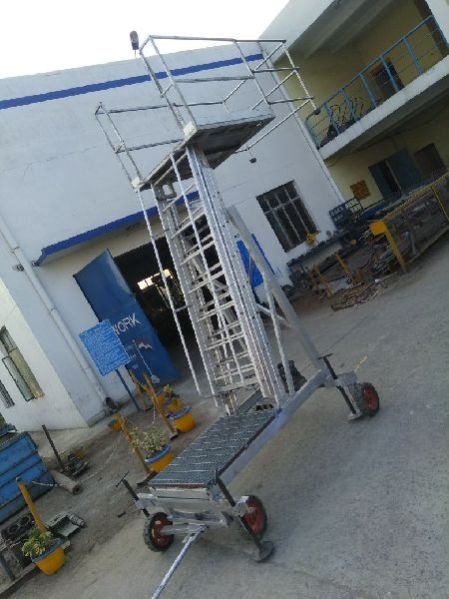

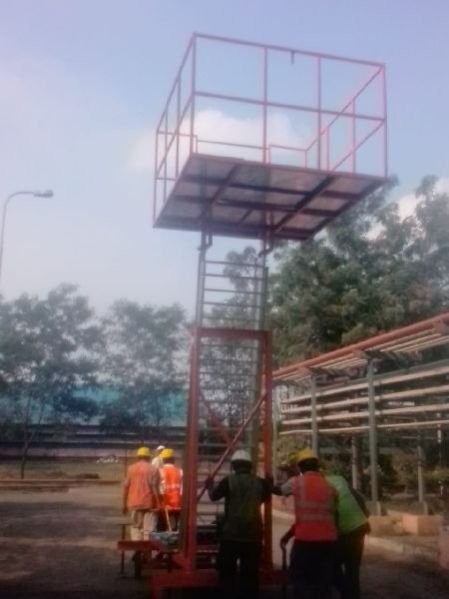

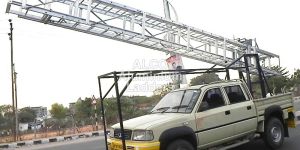

1. alco truck ladder consists of mild steel base and an aluminum telescoping ladder with handrails, and an aluminum platform with handrails and toeboard. 2. the base incorporates an aluminum fixed ladder bolted to a frame support; front and rear with 16"x4" rubber solid tyres incorporated with a front tow barsteering mechanism. 3. 4nos leveling mechanical jacks are mounted on the rear and front outrigger bars of the steel base. 4. the telescoping aluminum ladder and platform are bolted together to telescope as a unit. 5. the base walk surface is slip resistant. 6. the aluminum platform structure includes a partial walk area with a slip resistant walk surface; the remaining area is open for vehicle equipment access. There should be a door with lock for accessing the top of tankers from the ladder and vice versa. 7. a 6mm steel rope attached to the inside bottom of the telescoping ladder, and running over pulleys on the frame, is attached to a hand winch mounted on the frame support; the winch is the source of power for raising and lowering the telescoping ladder platform. 8. base trolley size: as per vender design 9. platform size: 60” wide by 24” deep platform with 5”x5”safety cage 10. m.s trolley is painted with lavender green color 11. aluminum ladder is made of aluminum channel size: 3x1 12” 12. step is made of mullion box size 65mmwide 13. aluminum ladder outer to outer step size: 570mm 14. step to step distance 300mm
1. alco truck ladder consists of mild steel base and an aluminum telescoping ladder with handrails, and an aluminum platform with handrails and toeboard. 2. the base incorporates an aluminum fixed ladder bolted to a frame support; front and rear with 16"x4" rubber solid tyres incorporated with a front tow barsteering mechanism. 3. 4nos leveling mechanical jacks are mounted on the rear and front outrigger bars of the steel base. 4. the telescoping aluminum ladder and platform are bolted together to telescope as a unit. 5. the base walk surface is slip resistant. 6. the aluminum platform structure includes a partial walk area with a slip resistant walk surface; the remaining area is open for vehicle equipment access. There should be a door with lock for accessing the top of tankers from the ladder and vice versa. 7. a 6mm steel rope attached to the inside bottom of the telescoping ladder, and running over pulleys on the frame, is attached to a hand winch mounted on the frame support; the winch is the source of power for raising and lowering the telescoping ladder platform. 8. base trolley size: as per vender design 9. platform size: 60” wide by 24” deep platform with 5”x5”safety cage 10. m.s trolley is painted with lavender green color 11. aluminum ladder is made of aluminum channel size: 3x1 12” 12. step is made of mullion box size 65mmwide 13. aluminum ladder outer to outer step size: 570mm 14. step to step distance 300mm
We are counted among reliable Manufacturers, Exporters and Suppliers of a wide range of Suspended Wire Rope Platforms. Available with us in varied specifications, these Suspended Wire Rope Platforms can be custom made to suit buyers’ unique requirements. We guarantee our Suspended Wire Rope Platform have excellent mechanical properties, as we make them from premium raw materials and the latest technologies.
We are counted among reliable Manufacturers, Exporters and Suppliers of a wide range of Suspended Wire Rope Platforms. Available with us in varied specifications, these Suspended Wire Rope Platforms can be custom made to suit buyers’ unique requirements. We guarantee our Suspended Wire Rope Platform have excellent mechanical properties, as we make them from premium raw materials and the latest technologies.
From the point of view of marketing, shipping, and handling, our products are securely packed in top-grade supplies using ultramodern packaging machines. The packaging is extremely reliable. From Hyderabad(India), India, we delight our valuable patrons by providing quality-centralized products.
From the point of view of marketing, shipping, and handling, our products are securely packed in top-grade supplies using ultramodern packaging machines. The packaging is extremely reliable. From Hyderabad(India), India, we delight our valuable patrons by providing quality-centralized products.
Suspension PlatformRoof Support Device Telescopic Arm And Counter Weight
Cable2.5 Mm X 5 Core
Wire Rope4 No. Wire Ropes Of Dia 8.6 Mm (2 Nos Working Wire Rope And 2 Nos. For Safety)
Platform And Roof Support MaterialsEnamale Based 2 Coat Paint
Height Adjustment Range1150 TO 1750 MM
Front Beam Extent1200 Mm -TO 1800 Mm
Load Capacity DecreaseProportionately Decrease When The Extent Is More Than 1.5 M
Height of Platform 45 MTRS
Max. weight carrying capacity (uniformly distributed load) 1000 Kgs
Lifting speed 8.3 meter per Minute
Platform size 1000(L) x 680 (W) x 1000(H)
Electric Hoist Motor POWER – 2.5 HP x 2 nos
VOLTAGE - 415V
Suspension platform Roof support device Telescopic arm and counter weight
Cable 2.5 mm x 5 core
Wire rope 4 No. wire ropes of dia 8.6 mm (2 nos working wire rope
and 2 nos. for safety)
Platform and roof support materials Enamale based 2 coat paint
Height adjustment 1150 TO 1750 MM
Front beam extent 1200 mm -TO 1800 mm
(Load Carrying Capacity Will Proportionately Decrease
When The Extent Is More Than 1.5 M )
Height of Platform 45 MTRS
Max. weight carrying capacity (uniformly distributed load) 1000 Kgs
Lifting speed 8.3 meter per Minute
Platform size 1000(L) x 680 (W) x 1000(H)
Electric Hoist Motor POWER – 2.5 HP x 2 nos
VOLTAGE - 415V
Suspension platform Roof support device Telescopic arm and counter weight
Cable 2.5 mm x 5 core
Wire rope 4 No. wire ropes of dia 8.6 mm (2 nos working wire rope
and 2 nos. for safety)
Platform and roof support materials Enamale based 2 coat paint
Height adjustment 1150 TO 1750 MM
Front beam extent 1200 mm -TO 1800 mm
(Load Carrying Capacity Will Proportionately Decrease
When The Extent Is More Than 1.5 M )
