BROIL SENSOTEK INDUSTRIES Habsiguda, Hyderabad, Telangana

We offer water level controller. A solution provider to a simple level monitoring to complicated level controlling. Over head tank and sump level control can be achieved by means of float switches of different types depending upon the type of the storage tank, like pvc, ms, ss and rcc. For a small size pvc tank have come up with a level controller to on and off pump motor depending on the water level in the storage tank and the same unit can be even used for sump water control by reversing the switches position.

we offer water level controller. a solution provider to a simple level monitoring to complicated level controlling. over head tank and sump level control can be achieved by means of float switches of different types depending upon the type of the storage tank, like pvc, ms, ss and rcc. for a small size pvc tank have come up with a level controller to on and off pump motor depending on the water level in the storage tank and the same unit can be even used for sump water control by reversing the switches position.

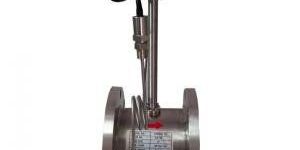

Model No :: VRT Product Specification :: Broil sensotek industries Vortex Flowmeter bases on Karman vortex street Principal for detection and metering the liquid, gas and steam. It is widely used in Petroleum, chemical, metallurgy, heat supply industry, etc.for steam and gas application available with pressure and temperature compensating, 1) Technical Specification :  Process media : Gas, liquid, air, steam, vapor Enclosure                   : 1Cr18Ni9Ti   Accuracy                    : +/-  0.5  for liquied,                                     : 1% for gas and steam Repeatability              : 0.2%     Flow range: Liquid:0.4-7.0m/s;                   :Gas:4.0-60.0m/s;                   :Steam:5.0-70.0m/s                                                                                                           Maximum working pressure: 6 MPa                                              Fluid &Ambient temperature: -40 to 350 Deg. C Connection: Thread (M/F) or flange    2) DISPLAY Power voltage: 3.3 V10AH lithium batteries can be used more than 5 years in a row. OR 24 v dc display mode: Liquid Crystal Display (LCD), as follows:      L XXX. X    four instantaneous flow (m3 / h) or L/h     XX. XXXXXX eight cumulative flow (m3)  or L Pressure, temperature reading Cumulative flow: automatically expand the display precision, the cumulative flow values can be reset. Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop.   3) output : 3 wire pulse                   : 2 wire 4 to 20 mA                   : RS-485                   : HART     Range :: Flow range: Liquid:0.4-7.0m/s;:Gas:4.0-60.0m/s;:Steam:5.0-70.0m/s   Product Applications :: Pure Water Fuel Air & Gas Steam Acid& Chemical

Our Vibrating Fork Level Switches are diligently designed by the experts, employing the technologically advanced methods of designing. However, our Vibrating Fork Level Switches are hugely demanded by the clients across the nations. SpecificationsElectronically stimulated fork vibrates at their mechanically resonance frequency of about 125 & 400 HzResonance is caused by the piezoelectric crystalsPIEZO Crystals produces a small voltage, which is transmitted to the switching amplifierDamping effect is produced and the PIEZO Crystal does not produce the environmentCorresponding signal output is actuatedCan be configured either for High or Low Level

We Offer Tank Top Mountable Float Switch for Total Tank Automation.

Model No :: UF Product Specification :: Ultrasonic Digital Clamp-on flow meter   Advantages: ·         OIML / MID 001 / 2014/32/EC certified ·         digital signal processing, high noise immunity; ·         DN range from 10 mm up to 5000 mm; ·         stable operation in spite of weak signal on aged piping; ·         reliable metering on fluid parameters alteration; ·         easy commissioning; ·         bidirectional flow measurement; ·         clamp-on and wetted transducers; ·         no pressure loss in pipeline; ·         batching mode to measure the dose; ·         multi-beam measuring; ·         up to 4 pipes with one electronic unit; ·         waterproof transducers; ·         ISO 9001:2008 certified. ·           Measured Media: ·         hot and cold process and potable water; ·         waste water; ·         acids; ·         alkalis; ·         liquid foods.  Specification: Parameter wetted PEA clamp-on PEA       Nominal diameter of the pipeline, DN 10 ÷ 5000 50 ÷ 5000 Accuracy, %, with flowrate range from 1:100: - single-beam sounding- two-beam sounding- four-beam sounding ± 2 ± 1± 0,5 Flow velocity range, m/s 0.1 ÷ 20 Fluid temperature range, °? minus 30 ÷ 160 minus 30 ÷ 150 Ambient temperature for transmitter, °? 0 ÷ 50 Maximum pipeline pressure*, MPa/bar 2.5/25 - Transmitter / transducers protection IP54/IP68 Measurement data logging, number of records:- hourly log- daily log- monthly log- programmable- batching 1440604814400512 Power supply, VDC 24 Power consumption, VA under 12 Transmitter weight, kg under 3 Transmitter dimensions, mm 250 ÷ 132 ÷ 90      *- on request is possible to supply pipeline sections with wetted PEAs designed for up to 25 MPa/250 bar pressure.   Outputs: ·         LCD; ·         pulse or logic digital output (up to 8 additional digital outputs on request); ·         RS-232/RS-485 serial interface (ModBus); ·         0-5, 0-20, or 4-20 mA analog output (on request); ·         Ethernet (on request).       Product Features :: Range :: Product Applications :: Pure Water Waste Water Fuel Acid& Chemical Heat/BTU Hygienic Liquid

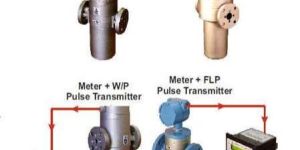

Our Turbine Type Flow Meter is designed by the experts in accordance with the specific requirements of the clients in the most efficient manner. The high performance of our Turbine Type Flow Meter has made it hugely appraisable among the clients. Suitable forMonitoring large to small volumeControlling Process of flow as a baseUsing on most of the acids, chemicals treated and untreated waterHighly viscous edible grade media�s and mineral oilsThermic fluid Available withMechanical counterDigital displayInput device for Retransmission & interfacing hardware and softwareMIS for better fuel and revenue management

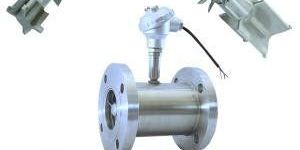

Turbine Flow Sensor - Pulse Output     Model No :: BT DTFS- Turbine flow sensor Product Specification :: Turbine flow sensor heart is high  accurate and balanced turbine rotor and pickup coil, mehaniccal energy ( velocity) of fluid passing through the flow meter rotate a rotor, an angular velocity of rotor proportional to fluid flow rate (mechanical energy /velocity) in the flow path ,through pickup coil generate electrical frequency  proportional to angular velocity of turbine rotor, and flow rate of fluid,Turbine flow sensor output is direct pick up coil  / amplified pulse/ linear current or voltage   General Technical data:   Material of construction:   Enclosure                   : S.S-304/S.S-316 Rotor                          : S.S-304 Shaft                           : Hard Stainless Steel-316 with                                         carbon bush Accuracy                    : +/-  0.5 or 1%  FSD Repeatability              : 0.1%                                                                                                             Maximum working pressure: 6 MPa                                               Fluid &Ambient temperature: -20 to 120 Deg. C Connection: Thread (M/F) or flange   1) Pulse output Turbine flow  sensor: Power voltage: 12 V DC  Output signal: NPN open connector                                            Output:    high electric level : High than 8 VDC( input voltage 12 VDC) low electric level  : lower than 0.8 VDC( input voltage 12 VDC)   Turbine flow sensor  model no wise Technical data:    Model no                   Line size                          Range       BT-DTFS-004            04 mm                 40~400 L/H         BT-DTFS-012            12 mm                600~6000 L/H    BT-DTFS-025            25 mm                1000~10000 L/H   BT-DTFS-040            40 mm                 2000~20000 L/H   BT-DTFS-050            50 mm                 4000~40000 L/H   BT-DTFS-080            80 mm                 10000~100000 L/H       BT-DTFS-100          100 mm                 20000~200000 L/H    BT-DTFS-150          150 mm                 30000~300000 L/H   BT-DTFS-200            200 mm               80000~800000 L/H Product Features :: Turbine flow sensor with explosion proof headTurbine flow sensor with two pulse output for custody transfer appliction, Range :: Turbine flow sensor can be applied to Hygienic, relatively clean, and corrosive liquids from line size 4 mm to 20 mm   Product Applications :: Pure Water Fuel Oil Heat/BTU Hygienic Liquid

Accuracy : +/- 0.5 or 1% FSD

We offer turbine flow meter for water & viscous medias with local display & retransmission output.

Model No :: BT-TMFM Product Specification :: BROILTECH Thermal mass flow meter for detection and metering the gas and air. Its work on principal of calorie amount taken away from the heated sensor by a fluid flow is calibrated to the mass of flow,   Thermal mass flow meter use for measuring : air, nitrogen, argon, co2, chlorine, ethane, ethylene, methane, ammonia, helium, hydrogen, bio gas,  Thermal mass gas flow meter 1) Technical specification :   Type                    : Inline and Insertion Medium              : All kinds of gases (pure & stable except for acetylene)Accuracy : 1%Repeatability : 0.2% full scale meterAmbient Temperature : -40C to 50CMedium Temperature : -40C to 260 CEnvironmental Pressure : 1 MPa, 2.5 MPaProtection : Water Proof, Explosion Proof Material of construction : S.S. 316 (Standard) other on request INLINE TYPE CONECTION : FLANGE  , 2) DISPLAY Power voltage: 85 v ac – 250 v ac OR 24V DC 10% display mode: Liquid Crystal Display (LCD), as follows:      L XXX. X    four instantaneous flow (m3 / h) or L/h     XX. XXXXXX eight cumulative flow (m3)  or L temperature reading Cumulative flow: automatically expand the display precision, the cumulative flow values can be reset. Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop.   3) output : 3 wire pulse                   : 2 wire 4 to 20 mA                   : RS-485                   : HART   Upper Range Value of Common Gas (Unit: Nm3/h. The follow table can be extended)   The flow rate in standard condition: The flow rate is in the condition of 20? temperature and 101.325kPa pressure. The unit of flow rate is optional: Nm3/h, Nm3/min, L/h, L/min, t/h, t/min, kg/h or kg/min. Product Features :: Thermal mass flow meter use for measuring air and gas , and we provide more than 59 gas k factor calculation, Range :: Thermal mass flow meter use for measuring : air, nitrogen, argon, co2, chlorine, ethane, ethylene, methane, ammonia, helium, hydrogen, bio gas,   Product Applications :: Air & Gas

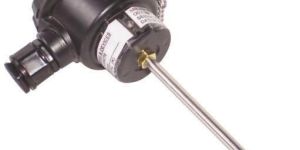

We are offering temperature sensors rtd ( pt-100).

We are Offering Temperature Sensors Rtd ( Pt-100).

Our Temperature Sensor (Type S, Simplex) is high on demand across the nation for its ability to provide clients� desired results in the tough industrial applications. Our Temperature Sensor (Type S, Simplex) is precisely designed by the experts, based on which we can assure its durability and reliability. SpecificationsConfiguration : SimpleInsulation : Mineral InsulatedElement : PT-PT-RH 10%Sheath Material : Ceramic double tubeSheath Dia : 6 mm - 10 mmLength : up to 300 mmCalibration as per DIN 43761Element conn. : ½� BSP (M) adj.Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.

Our Temperature Sensor (Type RTD-Pt100) is high on demand across the nation for its ability to provide clients� desired results in the tough industrial applications. Our Temperature Sensor (Type RTD-Pt100) is precisely designed by the experts, based on which we can assure its durability and reliability. SpecificationsConfiguration : SimpleInsulation : Mineral InsulatedExtension wire : SilverSheath Material : SS � 316Sheath Dia : As per orderLength : As per orderCalibration as per DIN 43761Element conn. : ½� BSP (M) adj.Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.

Our Temperature Sensor (Type R, Simplex) is high on demand across the nation for its ability to provide clients� desired results in the tough industrial applications. Our Temperature Sensor (Type R, Simplex) is precisely designed by the experts, based on which we can assure its durability and reliability. SpecificationsConfiguration : SimpleInsulation : Mineral InsulatedElement : PT-PT-RH 13%Sheath Material : Ceramic double tubeSheath Dia : 15 mm ~ 20 mmLength : up to 300 mmCalibration as per DIN 43761Element conn. : ½� BSP (M) adj.Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.

Our Temperature Sensor (Type K, Simplex) is high on demand across the nation for its ability to provide clients� desired results in the tough industrial applications. Our Temperature Sensor (Type K, Simplex) is precisely designed by the experts, based on which we can assure its durability and reliability. SpecificationsConfiguration : SimpleInsulation : Mineral InsulatedElement : Cr-AlSheath Material : SS � 316Sheath Dia : As per orderLength : As per orderCalibration as per DIN 43761Element conn. : ½� BSP (M) adj.Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block

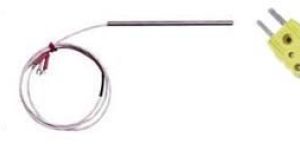

Our Temperature Sensor (Type J, Simplex) is high on demand across the nation for its ability to provide clients� desired results in the tough industrial applications. Our Temperature Sensor (Type J, Simplex) is precisely designed by the experts, based on which we can assure its durability and reliability. SpecificationsConfiguration : SimpleInsulation : Mineral InsulatedElement : Fe-CoSheath Material : SS � 316Sheath Dia : As per orderLength : As per orderCalibration as per DIN 43761Element conn. : ½� BSP (M) adj.Complete with die cast aluminum head, nickle plated Brass terminals and porcelain terminal block.

We Offer Temperature Gauge with Elctrical Micoswitch Contacts. 100mm 150mm Dial Mercury in Steel Tube Dial Thermometers with Capillary in Armor Sheath and No, Nc, C Electrical Contacts.

Material : Stainless Steel

Shape : Round

Application : Used To Measure The Temprature Of Liquids

Size : 4inch

Certification : ISI Certified

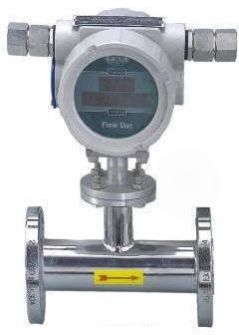

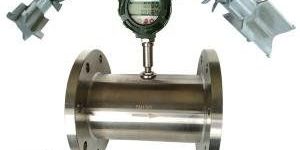

Model No :: BT DTFS D- turbine flow meter Product Specification :: producer and developer of turbine flow meter from minimum line size 4 mm to maximum 400 mm, above 400 mm produced as per customer requirement,Turbine flow meter is best for measuring flow of liquied and gas, Turbine flow meter available with 1) inline battery operated display ( EX OR ip-65)2) 4 to 20mA output 2wire display(EX)3) 4 to 20mA + RS 485 output diplay( EX)4) 4 to 20mA + HART output diplay( EX)Turbine flow meter General Technical data: Material of construction:  Enclosure                  : S.S-304/S.S-316Rotor                         : S.S-304Shaft                         : Hard Stainless Steel-316 with carbon bushAccuracy                   : +/-  0.2%  or 0.5 %  FSD Repeatability            :0.1%                                                                  Maximum working pressure : 60 bar/ 250 bar/ 400 barFluid &Ambient temperature : -20 to 120 Deg.  Connection : Thread (M/F) or flange 1) Battery operated Turbine flow meter  :Power voltage: 3.3 V10AH lithium batteries can be used more than 5 years in a row.display mode: Double row Liquid Crystal Display (LCD), as follows:    L XXX. X    four instantaneous flow (m3 / h) or L/h   XX. XXXXXX eight cumulative flow (m3)  or LCumulative flow: automatically expand the display precision, the cumulative flow values can be reset. Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop. 2) Turbine flow meter  with 4 to 20 mA OutputPower voltage: 24 V DC Output signal: 4 TO 20 mAOptional: RS 485 Turbine flow Meter model no wise Technical data:   Model no                   Line size                          Range    BT-DTFS-004            04 mm                 40~400 L/H   BT-DTFS-012            12 mm                600~6000 L/H  BT-DTFS-025            25 mm                1000~10000 L/H BT-DTFS-040            40 mm                 2000~20000 L/HBT-DTFS-050            50 mm                 4000~40000 L/H BT-DTFS-080            80 mm                 10000~100000 L/H    BT-DTFS-100          100 mm                 20000~200000 L/H  BT-DTFS-150          150 mm                 30000~300000 L/H BT-DTFS-200            200 mm               80000~800000 L/H Product Features :: BROILTECH turbine flow meter available with explosionproof certificate,Turbine flow meter rotor made with special hardness treatmentall bush and shaft hard carbide materialavailable for special custody transfer application with 2 pulse sensor Range :: Turbine flow meter use in monitoring flow rate, batching, controlling of clean liquid flows in chemical, petroleum, pharmaceutical, hydrocarbon, food and beverage and water industries. Product Applications :: Pure Water Oil Acid& Chemical Heat/BTU Hygienic Liquid

Accuracy : +/- 0.2% or 0.5 % FSD

Repeatability : 0.10%

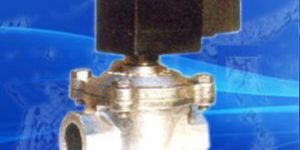

We offer solenoid valve 2 2 way in ss 316 & 304.

We Offer Snubber Dampener, Pusation Dampener. to Dampen the Pressure Line Pulsation.

Our Single Set Point Digital Display is one of the hugely popular products of the company, which are consistently catered by us across the nations. Our Single Set Point Digital Display is designed by the experts that make it suitable in varied industrial applications.

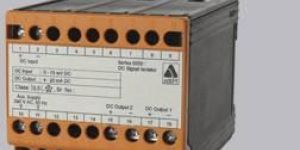

we offer signal isolator cum transmitter. loop powered dc signal isolator to provide galvanically isolated 4 – 20 ma dc output current proportional 4 – 20 ma dc input current. the isolator utilises high frequency transformer isolation technique. the power required for internal circuitry is derived from input current. use of latest circuit techniques and quality components ensure reliable operation over long periods.

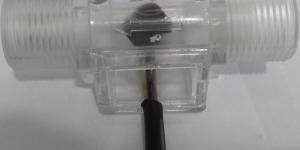

Sight Glass Flow Indicator With Liquid Flow Sensor   Model No :: BT PHTFS PC Product Specification :: Broiltech produced POLYCARBONATE flow meter and flow sensor that provide sight flow indication with battery operated display or pulse output,  Helical rotor polycarbonate flow meter and sensor   Material of construction: Enclosure                   : PC + GF Rotor                          : PA66/POM/PPS Shaft                           : Hard Stainless Steel-316 bearing : carbon/pom with hard S.S. BALL Accuracy (standard installation position) : +/-  0.5 or 1%  FSD Repeatability : 0.05%                                                                                                              Maximum working pressure : 2.5 MPa                                              Fluid &Ambient temperature: -40 to 120 Deg. C Connection: Thread (M)   1) Pulse output sensor : a) Hall sensor Power voltage: 5 to 24  V DC/ Low power: 2 to 5 V DC Output signal: NPN open connector                                           Output:   high electric level : High than 4.5 VDC( input voltage 5 VDC) low electric level  : lower than 0.5 VDC( input voltage 5 VDC) b) Reed sensor c) pick up coil - two wire/ amplified three wire option    2) Battery operated meter  : Power voltage: 3.0 Vbatteries can be used more than 1 years in a row. display mode: Double row Liquid Crystal Display (LCD), as follows:      L XXX. X    four instantaneous flow (m3 / h) or L/h      L XXXX. X    Partial total  (m3 / h) or L/h      XXXXX.X*100  eight cumulative flow (m3)  or L     XXXXX.X*100  eight cumulative flow (m3)  or L( never reset total) Cumulative flow: automatically expand the display precision, the cumulative flow/partial values can be reset. Power-fail protection: instrument coefficient, the Total flow values ten years is not lost when power supply drop.   3) Display with 4 to 20 mA Output Power voltage: 24 V DC Output signal: 4 TO 20 mA     Helical flow sensor model no wise  Technical data:   Model no                   Connection(M)                   Range                           Pulse/Litter     BT-PHTFS-004            1/4 BSP                        5~40~400 L/H                        4200 BT-PHTFS-008            1/2 BSP                     10~150~1500 L/H                     1200 BT-PHTFS-012            3/4BSP                      50~500~5000 L/H                     215 BT-PHTFS-020            1” BSP                      80~8000~8000 L/H                       97 BT-PHTFS-025            1.25” BSP              100~1000~10000 L/H                    52  Product Features ::              •flow measurment with 1% accuracy,                           • I ndependent of viscosity, perfect for 1 to 106 mm²/s              • Low pressure drop compared with other positive displacement meters              • High resolution             • Pulsation-free measurement, non-sensitive to pulsating flows             • Resistant to corrosion by advanced materials and bearings Range ::   Product Applications :: Pure Water Fuel Oil High Viscosity Liquid
