FeaturesHeat dissipation to reduce the temperature rise, Improves True power factor, reducing harmonic enhances the load motor life as the result of less loss.
PuritySingle phase and 3phase shell type and core type. Designed with laminations E&I, UI or cut strips or C cores with suitable air gap to avoid saturation with given current or voltage.
Purity : Single phase and 3phase shell type and core type. Designed with laminations E&I, UI or cut strips or C cores with suitable air gap to avoid saturation with given current or voltage.

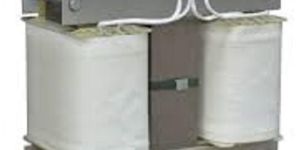

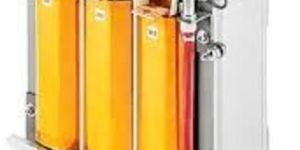

ApplicationThe IT hub power systems, sensitive installations and communication systems.
Featureshigh efficiency with low flux density and current density to reduce the losses and heat Primary 3wire system and output 4wire system with zig-zag winding to reduce the imbalance and non linearity.
Range5KVA TO 50KVA single phase to 3phase
Frequency50/60/400Hz
VoltagesPrimary 1200V Secondary 1200V
TerminationFlying leads bus bars and barrier (Wago)

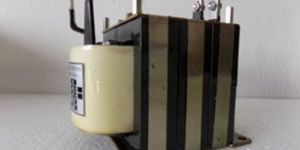

FeaturesTo reduce the high frequency losses (Eddy current) core material used very thin amorphous, Nano crystalline and ferrite cores, To reduce the leakage suitable winding techniques are used.
Range1VA TO 50KVA
VoltagesPrimary up to 1200V To Secondary 1200V
Di-Electric Strength100V to 3.5KV AC.

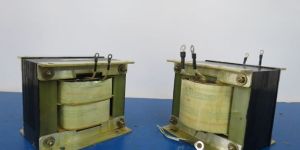

ApplicationDC To DC converters (Buck Boost and SMPS Transformers)
FeaturesBus bar or single turn or multi turns primary with suitable high grade low loss toroidal cores/E&I lamination, winding is designed for the required current and Knee voltage (saturation of flux and ISF
Range1-10000 Amperes.
Burden0.5VA to 50VA.
Di- Electric strength100V TO 3.5KV.
ApplicationCurrent measurement and current sensing.
FeaturesLow losses with higher saturation flux suitable shunt adjustments in design and practice gives the required constant voltage output at designated tap.
Range100 VA to 5KVA dry type
TerminalsFlying Leads or Barrier type shrouded studded lugs
