GETECH EQUIPMENTS INTERNATIONAL PRIVATE LIMITED Cherlapalli, Hyderabad, Telangana

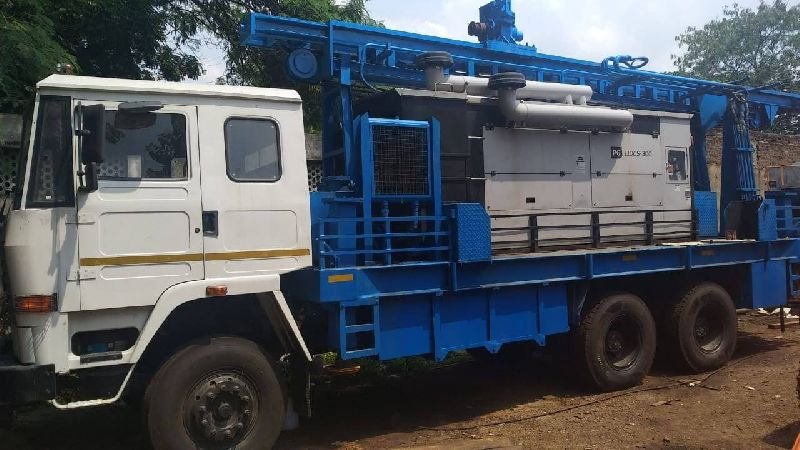

The DTH300 drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The DTH300 rig’s flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used. Optional: Skid mounting Key features: Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves Key specification: Drill rod handling 15 feet (4.5 meter) - 20 feet (6.0 meter) Drilling depth up to 1,000 feet (300 meters) Drilling diameter 6 inch (152mm) - 8 inch (203mm) Pull up force 10,500 kgf Drill head torque 360 kg.m Air compressor 1,100 cfm/300 psi

The GPR3-04SA drill rig is ideal for water well drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The GPR3-04SA rig’s flexibility means it can be mounted on single truck version, two truck versions and on local truck matching the rig to the terrain it will be used. Optional: Skid mounting Key features: Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves Rig platform horizontal swing ±120º Rig platform horizontal slide 900mm Mast swing and sliding Key specification: Drill rod handling 8.2 feet (2.5 meter) Drilling depth up to 10 feet (3 meters) Drilling diameter 10 inch (254mm) - 15 inch (381mm) Pull up force 8,600 kgf Drill head torque 600 kg.m Air compressor 1,100 cfm/300 psi Contact us for higher drilling depth and drilling diameter. Optional: Auger drilling

Number Of Flower : Reduced Shank

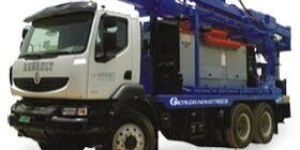

Drilling Rigs » Foundation/Piling drilling rigs » GPR 5-1 Brief description: The GPR5-1 drill rig is ideal for Foundation/Piling drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The GPR5-1 rig’s flexibility means it can be mounted on multiple truck version and on local trucks matching the rig to the terrain it will be used. Optional: Skid mounting Key features: Proven technology ensures easy maintenance and more productive. The rig can be customze as per customer requirement All the actuators are operated by proportional control valves Key specification: Drill rod handling 13 feet (4.0 meter) Drilling depth up to 33 feet (10 meters) Drilling diameter 30 inch (762 mm) -42 inch (1,066 mm) Pull up force 12,000 kgf Drill head torque 3,000 kg.m Air compressor 3,300 cfm/300 psi

Condition : New

Automatic Grade : Electric

Power : 100-300bhp

Application : Construction, Industrial

Certification : ISO 9001:2008

Feature : Capable For Load, Easy To Use

Country of Origin : India

Type : Drilling Rig

Model : GPR 5-1

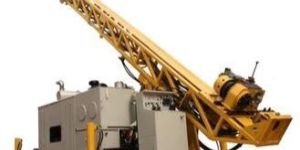

The CDR150 drill rig is ideal for exploration drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. The CDR150 rig’s flexibility means it can be mounted on single truck version, crawler mounted versions and on local truck matching the rig to the terrain it will be used. Optional: Multipurpose drill rig (Core, DTH, mud rotary) Key features: Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves Key specification: Drill rod handling 10 feet (3.0 meter) Drilling depth up to 500 feet (150 meters) Drilling diameter BQ - NQ Pull up force 4700 kgf Drill head torque 40 kg.m – 80 kg.m Dual speed gearbox Mud pump flow 80 lpm (optional: 100 lpm) Angle hole drilling Contact us for other drilling sizes

Packaging Type : Any

Application : Ore Mining

Number Of Flower : Dth Button Bits, Straight Shank

Material : High Speed Steel

Material : Solid Carbide

Length : >300 mm

Number Of Flower : Straight Shank

Application : Mining

Availability : 4.5 kg

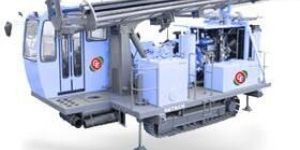

Brief description: The CBD12C hydraulically operated drill rig is ideal for Blast hole drilling application in rock formation. Thanks to its simple and compact design, excellent performance, high accessibility and reliability at afford cost in its class. CBD12C rig’s flexibility means it can be mounted on crawler mounted version to 60% terrain it will be used. Air compressor will be mounted on board. Key features: Proven technology ensures easy maintenance and more productive. The rig can be customize as per customer requirement All the actuators are operated by proportional control valves Key specification: Drill rod handling 20 feet (6.0 meter) Drilling depth up to 40 feet (12 meters) Drilling diameter 6.0 inch (152mm) - 6.5 inch (165mm) Pull up force 3000 kgf Drill head torque 180 kg.m Air compressor 600 cfm/200 psi Boom swing Mast swing Mast sliding
