Lennox Clean Room Technologies Kukatpally, Hyderabad, Telangana

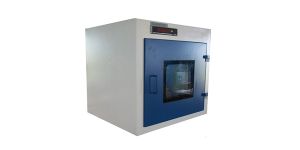

Lennox offering supreme quality Static Pass Box, which is made in compliance with world class standards. Static Pass Box is specifically designed that aids in the material transfer without much personnel movement. Furthermore, the Static Pass Box also acts as a control for entrance of contaminants in clean room and other classified areas Specifications Made available in powder coated Mild Steel, SS 304 / SS 316 Double Walled Construction Doors equipped with double walled flush glass view panels SS Handles and SS hinges Internal covings for easy cleaning Electro-magnetic Interlocking Indicator on either side Internal covings for easy cleaning Door Release Switch on either side Accessories Made Available : Mechanical Interlocking Provision for ventilation with perforated grille U. V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if any of the door opens Three wall construction for floor mounting Floor mounted construction with three side wall structure & Door Drop Seal Support stand for mounting the pass box Flange for filling the gap between the pass box and the clean room wall Fluorescent light with interlocking arrangement to put on light when the doors are in closed position

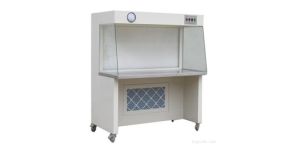

We make quality Horizontal Laminar Air Flow Unit. Horizontal Laminar Air Flow Unit that we deliver in the market is known for its robust construction, smooth functioning and unsurpassable performance. Manufactured using high grade materials, our Horizontal Laminar Air Flow Units are high on demand in the market. Specifications High product protection by provision of ISO Class 5 particle free work area Able enough to handle critical process Protection for the samples and processes The work area is incessantly supplied with positive pressure HEPA filtered horizontal air flow Horizontal unidirectional airflow peed prevents contamination from operator and environment to work area Laminarity of the flow handles cross contamination between the items in the working space Two Stage filtration Made available in powder coated Mild Steel and SS 304 / SS 316 EU6 – Prefilter (95% down to 5 micron) EU14 - HEPA Filter – Supply (99.999% down to 0.3 micron) Dynamically balanced Motor-blower provided with suspension arrangement to minimize the noise level Differential Pressure Gauge : 1 No On / Off Switch for Motor SS 304 work table with due reinforcement Polycarbonate side panels/Toughened glass Fluorescent Light with milky white diffuser (250 Lux) 5/15 Amp single-phase switch socket for external equipment DOP Test Port Suitable For: For handling of non hazardous products: Sensible to dust Susceptible to contamination like : Inject able medicines Cell and tissue cultures Food sample preparation for sterility testing Sterile packaging I.V. pharmacy preparations Micromechanics Optics electronics Options And Accessories : A wide range of configurations to suit any containment application: Front doors (hinged/pneumatic cylinder) U. V. Light with Hour Meter Air / Gas Cock Explosion proof electrics for Flame-proof applications Clean Down Timer with Operation Hold Indicator & interlocking to put on fluorescent lights only after clean down time over Audio / Visual alarm for blower tripping with Fault Acknowledgement & Reset Switch 1 – Piece / foldable polycarbonate front door Digital Pressure of Minihelic Gauge

Lennox Clean Air Technologies Modular Clean Room Systems interface with floors, ceilings, and mechanical components to provide clean room environment with effective control of airflow, pressure, temperature, humidity and filtration. They can be customized to match specific requirements and provide a cost-effective alternative to conventional construction without compromising quality, durability or efficiency. Modular clean rooms also utilize a flexible design that allows for fast, easy installation in a system that can be expanded or relocated as need be Advantages Of Lennox Modular Clean Rooms CGMP certified clean room design Full compatibility with chemicals used for cleaning and sanitizing Easy clean room installation State-of-the-art clean room technology Flush surfaces everywhere! Scratch-resistant materials Easy to modify during wall installation Wall system suitable for ISO 5 (class 100) to ISO 8 (Class 100,000) Modular Clean Room Walls, Panels & Flush Doors Modular Wall Panels Lennox Clean Air Technologies Modular Wall panels are made out of Double Skin Panels of PPGI (Pre-coated Gl) both sides with 0.6 to 0.8 mm as standard thickness. The wall panels are of 1200 mm as standard width. Panel Thickness varies from 50mm / 60mm / 80mm / 100mm with provision for PVC conduits for Electrical cables and panels of 80mm/100mm are specially designed to carry return Air Ducts / Built in Risers. Panel height can be adjusted to 4000mm with provision for stackable panels. Modular Ceiling Panels Lennox Clean Air Technologies Modular Ceiling panels are made up of 50mm / 60mm thickness depending upon the type of application. Ceiling panels are mounted with specially designed suspension members and linkages for every application. Walkable & Non Walkable ceiling panels are made as per client's requirement with specially designed stiffening systems for walkable load bearing ceilings Insulation Material Polyurethane PUF Foam (CFC Free) with closed content of 90 to 95%. This foam is injected under high Pressure with Precise Ratio & Proportion to maintain the PUF density between 38 to 42 Kg/m3. OR Bonded Mineral wool or Rockwool insulation of various thicknesses ranging from 50mm to 100mm is sandwiched between the outer & Inner skins and is properly sealed from the exterior by Aluminium or G.I. Profiles. Covings All the internal & external corners of Modular Wall panel systems are covered with Aluminium covings having special Male & Female profiles with locking system and are fixed from Wall Panel to Floor, Ceiling to Wall panel & Wall to Wall panel. Aluminium covings are powder coated in various colours as per client's requirement

We are enlisted as one of the foremost Clean Room Doors Manufacturers and Suppliers based from Hyderabad in India. Made using galvanized steel & Stainless steel the Clean Room Doors offered by us are highly praised in the markets. These doors can be tailor made to suit the varied requirements of the esteemed clients. Available in different specifications, Clean Room Doors are widely acknowledged by the customers Specifications Single leaf and double leaf frames Removable over panels Finishing in primer or epoxy polyester powder coating Ability of accepting glazing in many configurations with louvers and a wide range of hardware Metal Doorsteps Available In: Sizes up to 2300mm Height : 3000mm

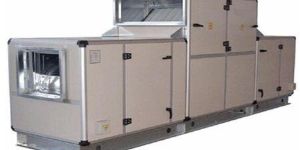

Air Handling Units (AHUs) also known as Air handlers are used to supply and circulate air around a building, or to extract stale air as part of a building’s Heating, Ventilating and Air Conditioning (HVAC) system. Basically, an Air Handling Unit system includes a large insulated metal box that contains a fan, heating and/or cooling elements, filters, sound attenuators and dampers. In most cases, the AHU is connected to air distribution ductwork; alternatively, the AHU can be open to the space it serves Supply air passing through the AHU is filtered and is either heated or cooled, depending on specified duty and the ambient weather conditions. In some buildings, Air Handling Units are used only to supply fresh air for ventilation and extract stale air. For heating or cooling, AHUs may be connected to central plant such as boilers or chillers, receiving hot or chilled water for heat exchange with the incoming air. Alternatively, heating or cooling may be provided by electric heating elements or direct expansion refrigeration units built into the air handler. When AHU systems are used to extract stale air from the building, a controlled proportion of this air may be recirculated to avoid having to condition all supplied air. AHUs can also incorporate heat recovery mechanisms to extract heat from the air being expelled and use it to heat incoming supply air Air Handling Units vary considerably in size, capacity and complexity, depending on the job they are designed to perform
