Mini Crane Dealers in Hyderabad

Mini Crane is used in the construction and engineering industries for lifting various objects from one place to another. Mini Crane that we offer is easy-to-operate and can be rotated in any direction at 360 degrees. Our Mini Crane is electrically operated and known for its sturdy construction, high-speed performance and longer service life.

We are offering Mini Crane. Model no. JKmini 150 JKmini 300 JKmini 500 JKmini 1000 Capacity 150 Kg 300 Kg 500 Kg 1 Ton Height 30 - 60 Mtrs 30 - 120 Mtrs 30 - 120 Mtrs 30 - 150 Mtrs Boom Length 6.5 Ft 6.5 Ft 6.5 Ft 7Ft Rotation 3600 3600 3600 3600 Prime 2 HP 3 HP 5 HP 7.5 HP Mover Crompton MotorCrompton Motor Crompton Motor Crompton Motor Wire Rope 8 mm 10 mm 10 mm 12 mm Bucket L 645 x W 645 L 750 x W 750 L 920 x W 920 L 1035 x W 1035 Size x H 272 mm xH 342 mm x H 423 mm x H 560 mm Bucket Volume 60 Litres 120 Litres 225 Litres 415 Litres Overall L 3450 x W 685 L 3785 x W 685 L 4673 x W 762 L 5614 x W 813 Dimensions x H 1828 mm x H 1980 mm x H 1980 mm x H 1980 mm Weight 350 kg 480 kg 700 kg 950 kg.

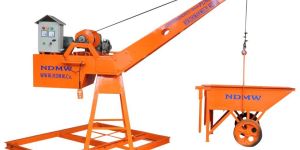

We are offering mini crane item code:ace-nmdw1170 specification of building material lift machine ( model no. 1178) height 100 ft. (30 mtr.) working. Speed limit 22 mtr.min weight capacity 300 kg. Brake (electric break system make bch) lock (electric lock system) gear box (reduction gear) motor 3 hp, 415v& (220 v) boom length 1900mm. Boom height 2100mm. Stand height 900mm. Steel wire rope 30 mtr.(8mm) operation (panel with cable remote) rotation 360* wheel barrow 2 (hand trolly)
