MINING & DRILLING EQUIPMENTS Cherlapalli, Hyderabad, Telangana

Features: Higher Penetration rate Better safety and stability Enhanced productivity Lower operating cost Extra heavy duty traction motor Optional provision for Dust suppression Salient Features Rugged box section base frame for stability, ease & secure setup Powered adequately with Extra Heavy Duty SPM of 8 HP to easily move the unit from hole to hole on rough terrain Centralized control panel for easy operation Additional mechanical locking arrangement for drill mast for safe and secure drilling operations at different angles Adequate features incorporated for better safety and stability of the unit during Drilling, Shifting and Towing Lower initial and long term economical operational cost backed up by effective after sales service Optionally can be supplied with water injection system at extra cost for dust suppression Tyre Mounted Wagon Drill Model KWD – 125 KALA Wagon Drill, Model KWD-125 is capable of 102-115 mm dia-holes up to a depth of 30 mts. Used in blast hole mainly for various Mining, Construction and Excavation applications. The improved features incorporated have enhanced it’s suitability for safer, more, Efficient & Economical drilling operations. Besides advanced safety and operational features, the unit can be optionally equipped with water injection system for dust suppression. The Wagon drills are designed to handle 76mm dia x 3mts, drill tubes and also available in shorter versions to handle 2 mts long drill tubes.   KALA Wagon drill model KWD – 125H is specially designed with Hydraulic power pack consisting air motor coupled to hydraulic pump of adequate capacity for actuating Hydraulic stabilizers rising and lowering of Mast and Boom desired to set up the unit with individual separate Hydraulic directional control valves and double check valves.

Technical Features KALA KTM-130: Tractor mounted Rigs are specially designed for fast & cost effective drilling, economical alternative to crawler mounted drill. The drill is capable of drilling 102-115 mm dia holes up to a depth of 130 feet in Blast hole drilling using down the hole Hammer and bits. MAST: Heavy duty drilling mast fabricated out of robust welded sections & designed for vibration free and continuous duty conditions. Rotary Head: Piston type air motor with spur type heavy duty gear box Feed Unit: Piston type air motor with spur-cum-worm type gear box STABILISER: During drilling, entire load of the unit is shifted on to three hydraulic jacks provided. Desired set up of the unit is achieved by individual/separate leveling control through hydraulic directional control valves guided by a spirit level indicator to obtain desired setup in rough terrain. Additional Double check valve is incorporated in the hydraulic system as extra safety measures. HYDRAULIC SYSTEM: The source of power is drawn from Tractor prime mover to operate hydraulic pump of adequate capacity for actuating hydraulic stabilizers, raising/lowering of mast. OPTIONAL SPECIAL TROLLEY: If desired, a double axled special trolley (with articulate front axle) can be manufactured & supplied by us at extra cost to conveniently house compressor, diesel tank for entire unit, drill tubes and other accessories and allied items, which can be towed by the KTM-130 Tractor Mounted Drill

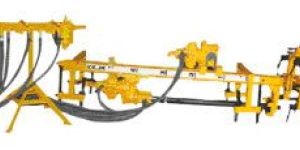

Kala light drill/Slim Drill/LD 4 Our company has been able to mark its strong presence in the market as one of the well equipped manufacturers, suppliers and exporters. Quality is the prime focus of our company. Our manufactured product is highly appreciated by our valuable clients due to trouble free drilling operations, long working life and robust construction. Further details:  These KALA Light drill/Slim Drills Model – KLD – 4 have an effective down the hole hammer that can drill holes of diameter 76 to 115 diameter in vertical and horizontal directions. Moreover, it drills the hole with a depth of 25m in Marble and Granite Query to pass diamond wire rope through the holes. Salient Features: Lightweight unit DTH drilling of 76 – 115mm holes. Easy to anchor and stable to operate simple to set up. Heavy duty rotation motor with less oil consumption

Pneumatic drill model KALA DTH – 100 Tripod Mounted Man portable with sub assembles drilling rig can be assembled in well and residences/commercial establishment having capacity to drill  76 – 125 mm dia holes up to a depth of 150 mts and Mast is designed to handle 5’ long drill tube accommodating 8 HP winch motor for pull up and pull down 6HP Rotation motor.

KALA Water Well Drilling Rig all Hydraulic Top Drive Drill Rig mounted truck design with steel construction fully welded structure for handling shocks and loads in drilling , accommodating specially design transfer gear box coupled to truck differential, for hydraulic pump.   The rig is capable of drilling 61/2” dia hole up to a depth of 300 mts &12” dia holes up to depth 100mts.   (Drilling depth are based on straight, vertical, clean holes parameters based on favorable drilling conditions)   Base frame skid 6 mts x 2.4 mts 5 mm chequer sheet with 250 mm sorting Break out cylinder with wire rope welded to pillar frame of 300 mm stroke Hydraulic return line filters, 25 Micron, Mechanical clogging indicator for filters air breather assembly fitted on tank. Micro feed control valves, valve for setting travel speed of rotary head while drilling, hydraulic oil coller 25 kw & control panel. Leveling jacks mounted to base frame of size 125x70x610 mm stroke with valves Lubricator capacity 13 liters with 1110 CFM 350 PSI Optional : Rod changer to handle the drill rods lifting winch with manual swing Water pump 50 LPM @ 400 PSI Specifications subjected to change or modify

Button Bits  Relying on our expertise and profound knowledge of our team, we have bee successful in carving a niche of r ourselves as a prominent manufacturer and exporter of Button Bits. Manufactured in compliance with the industrial standard and norms, our offered bits are renowned for their features such as durability, longer life and outstanding quality. Our offered range of Button Bits is extensively used in mining industry. Moreover, we are offering this product to our clients at reasonable prices. HAMMER HAMMER SIZES : 3”-12” OUTER DIAMETER: 68 mm to 273 mm LENGTH : 810 mm to 1560 mm WEIGHT : 16 Kg to 580 kg HOLE SIZE : 75 mm to 428 mm
