Nishtha Engineering works Balanagar, Hyderabad, Telangana

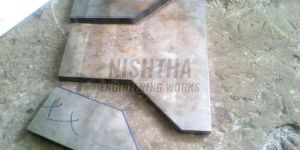

We are offering v shap cutting service. En- plate 50mm thick , cutting on vertical band saw machine

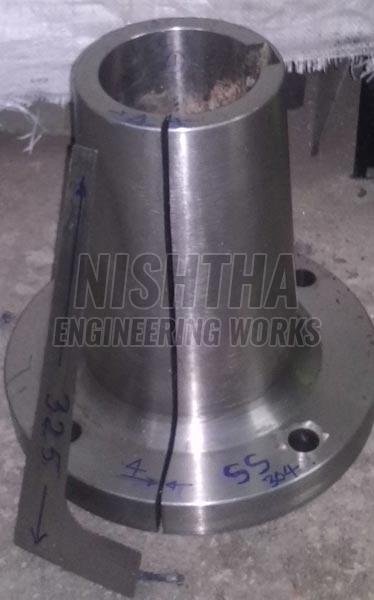

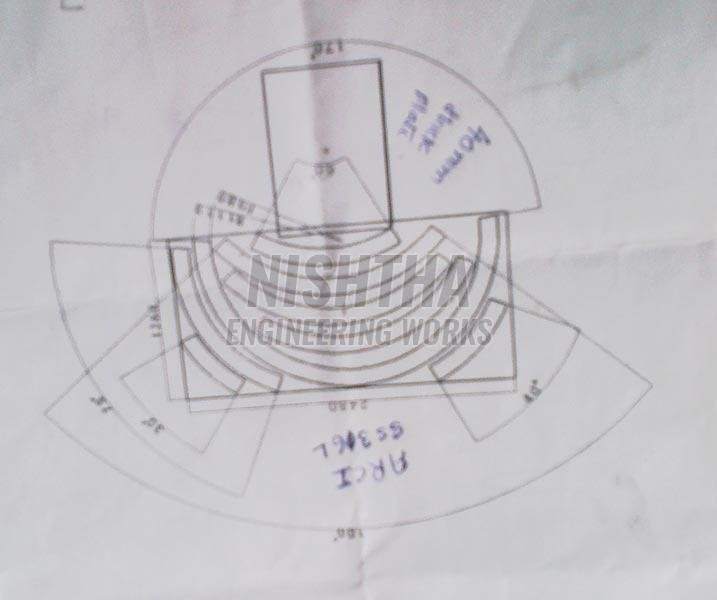

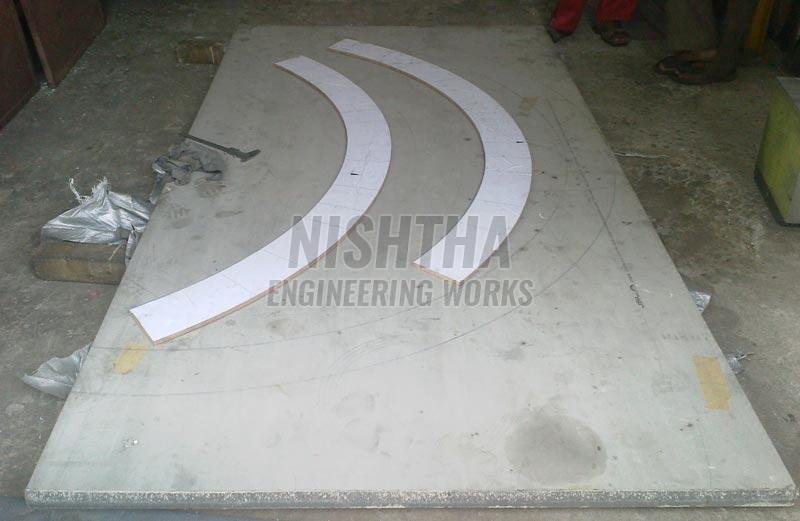

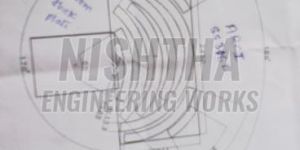

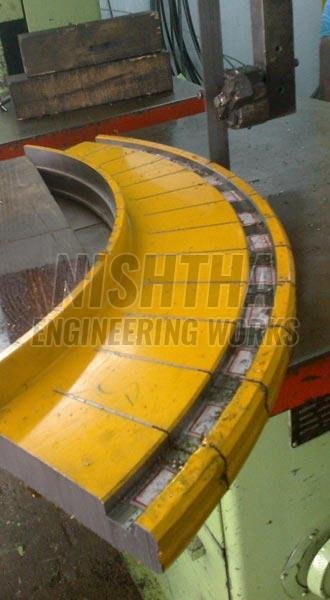

Cutting of Stainless Steel plates for smaller thickness, lot of non-conventional methods like lazar, plasma cutting process are available. As there is heat involvement in this type of process there is a change in mechanical properties.  We are cutting huge thickness of Stain Steel plates and machine components without any taper. Images Descriptions :- Cutting layout of 1250 x 2500 x  40 mm thick  SS-316L plate. 100 mm thick SS plate cut 1000 mm length. Machine component for segment cutting. Slitting of 4mm in SS taper bush of 325mm height done by cutting process.

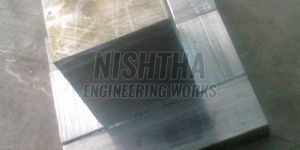

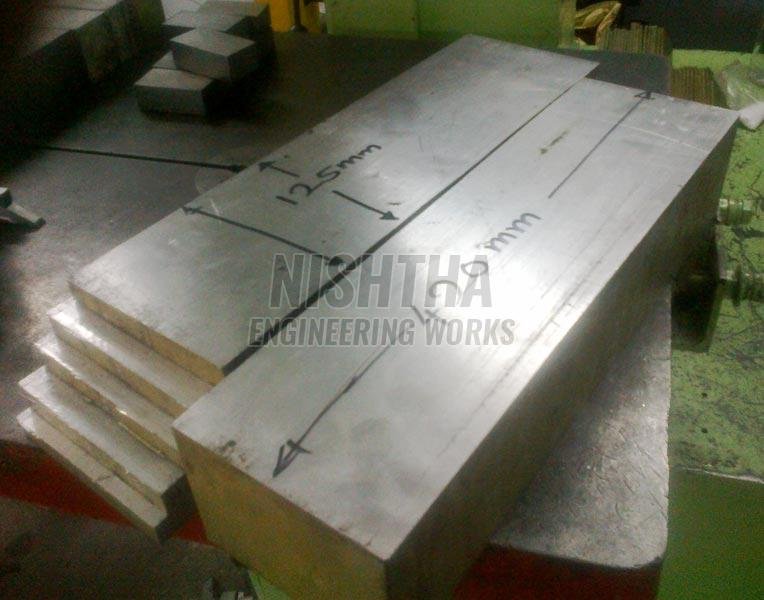

We are having 8 no. Of vertical band saw machines we can cut aluminium plates in different profiles. Circles upto 1500mm dia and thickness upto 100 mm can be easily cut. in the following image the aluminium block of 450 x 250 x 85 mm thick is cut along length wise into two half. One half of size 450 x 125 x 85 mm is further cut into 5 pieces of size 125 x 16 x 450 mm. till now we have cut the circle cutting of size 1500mm dia and 38 mm thick aluminium plate.

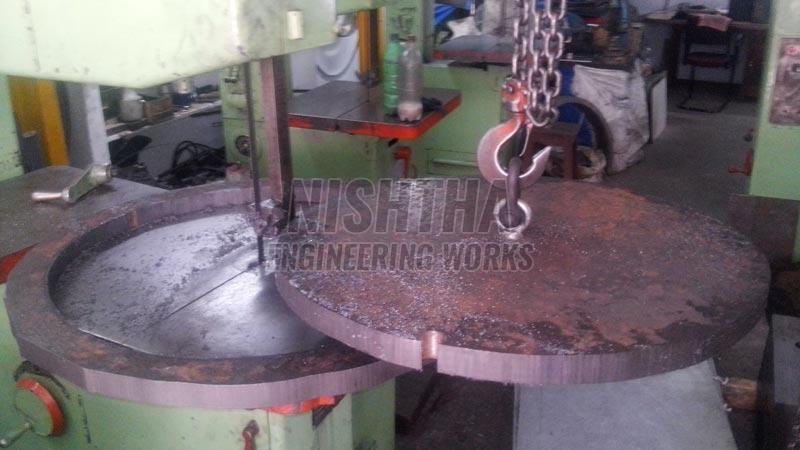

A different range of vertical band saws (amada vac-500, thil, all cut, maru-mwm-14) provides the ability to cut various alloy steel (ferrous ,nonferrous) and non-metals plates up to a maximum 150mm thick (aluminium plates up to 250mm). On amada vac-500 being the most recent additions and with rotary table attachment facility we can cut internal pockets and round cutting in plates (1000mm dia up to 100mm thick, in case of aluminium it will very). Profiles such as l shape , t shape , diagonals , counters ( the radius of the counter is limited to blade width) can be cut easily so that lot of material can be saved. other descriptions: our range of straight & profile cutting services includes the following materials in plates. ferrous metals: ms, en-8, en-31, en-47, hchcr , cast iron, etc., non ferrous metals: aerospace aluminium , copper, brass, cladding plates, etc., stain less steel: 304, 316l, mdn-250, 15-5ph, etc., non metals: accrelic, nilon,hdpe, pp , backalite , shinanium sheet, rubber etc.,

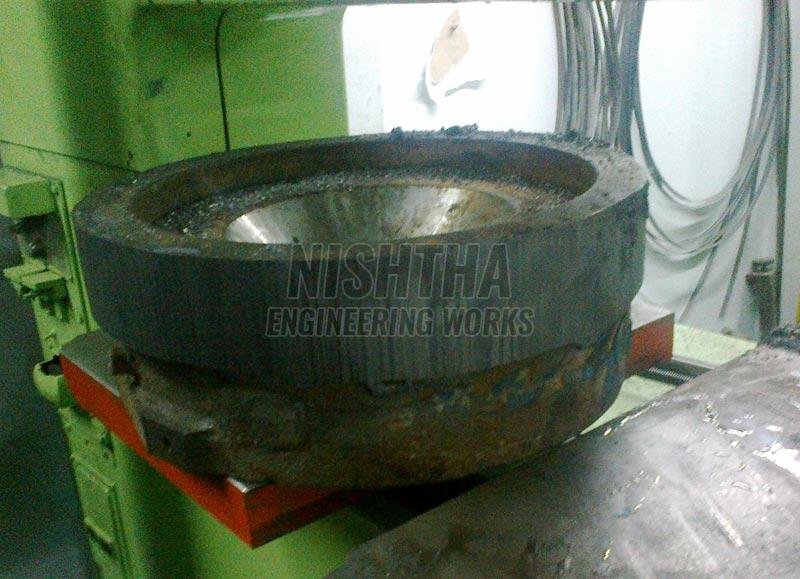

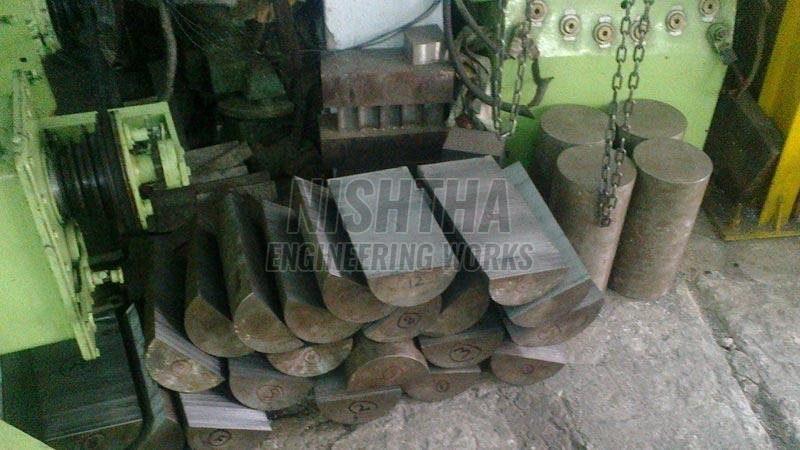

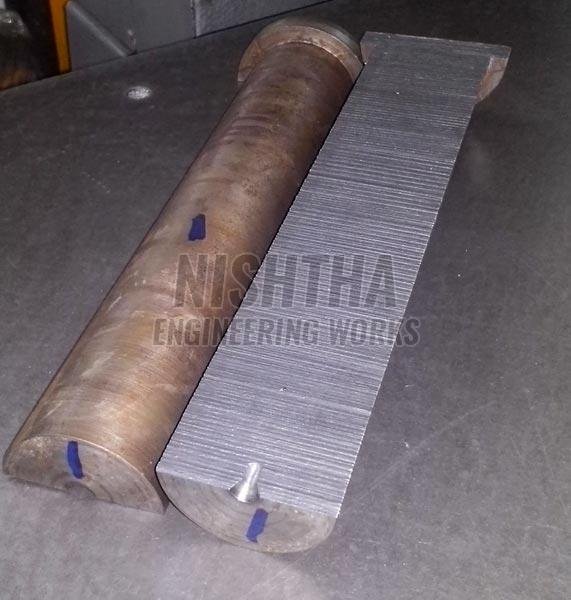

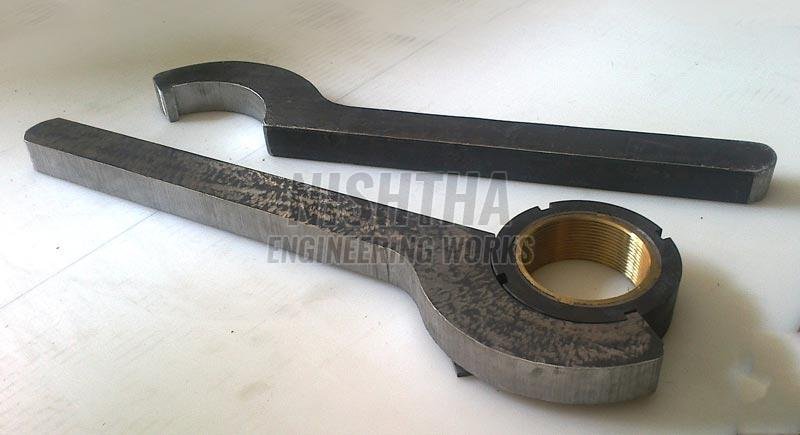

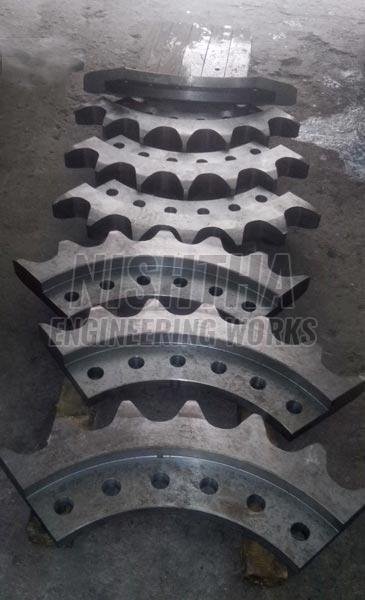

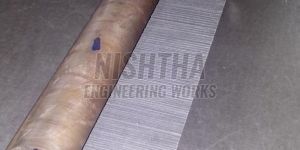

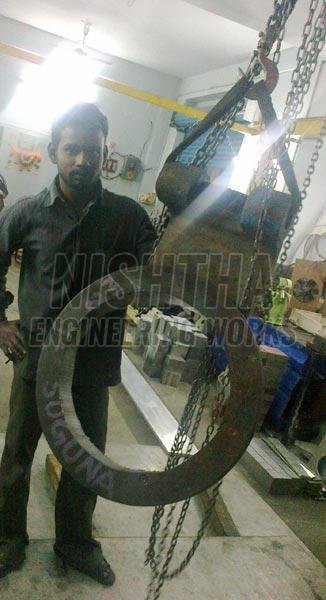

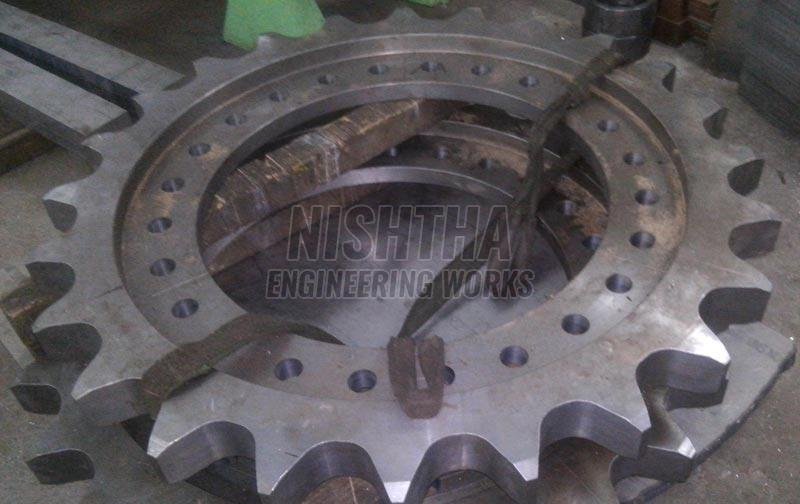

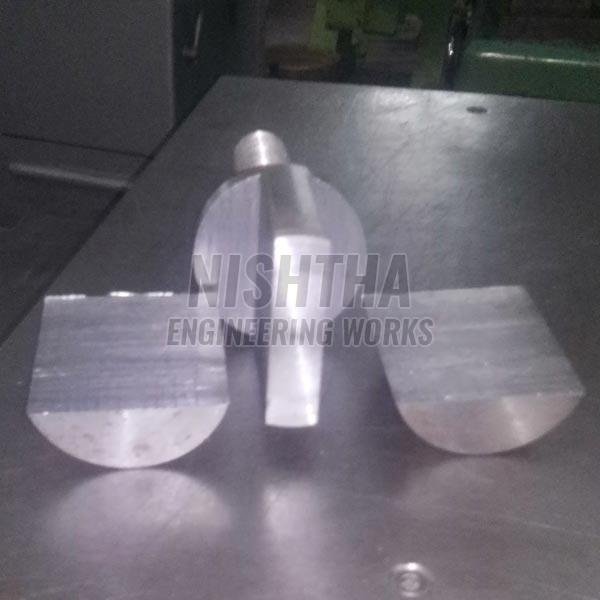

All those who are looking for a trusted firm offering Machine Components Cutting Services can get in touch with us. We are backed by a team of deft professionals who work in close collaboration with the clients and render the requisite solution in the best possible manner. Further, we have installed well-equipped facility for cutting of components. Our prices are quite nominal and we are acknowledged for our timeliness. The following are the different Machine components, which we have cut. Image Description :- 150 dia  X 300mm length EN-41B material cut into two half lengthwise 75 dia  x 350mm length pin cut length wise C – Spanner Cutting Huge Chain sprockets have to be cut into segments before assembly Machine component and its cut portion

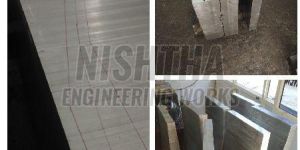

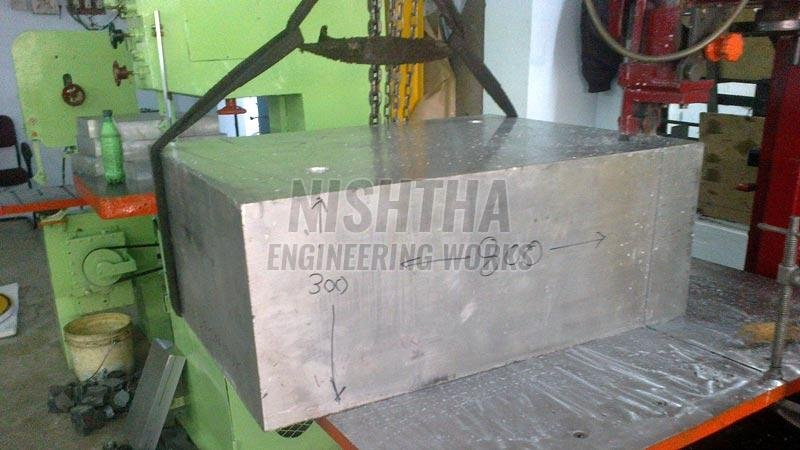

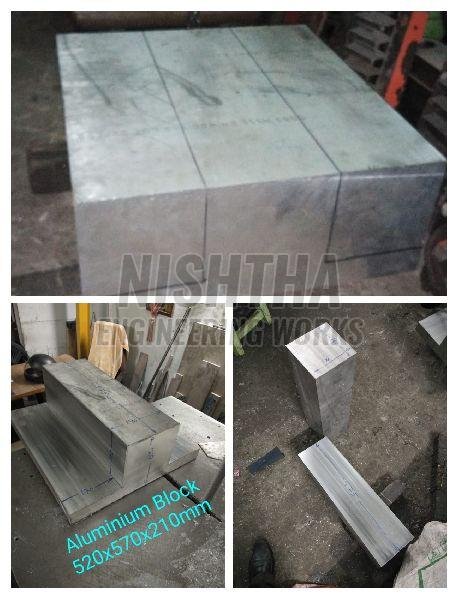

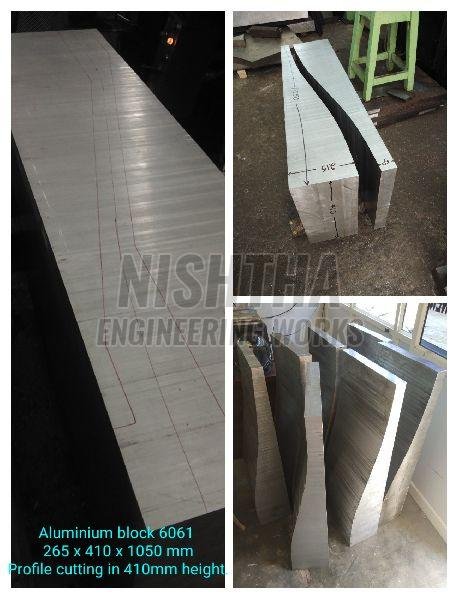

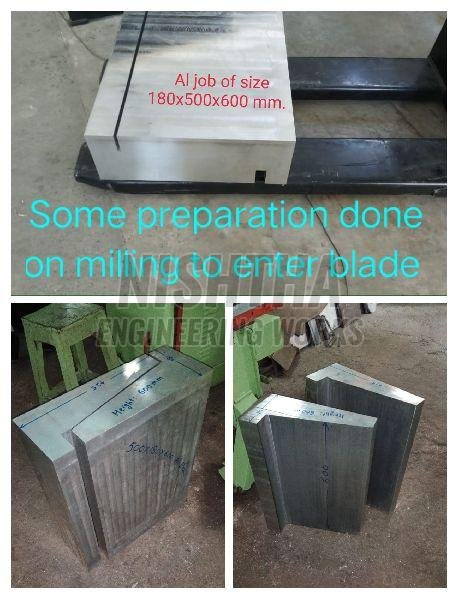

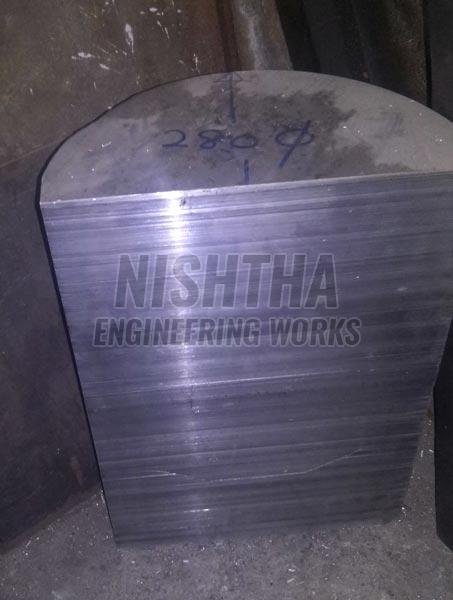

We can cut Aluminium plates up to a size of 1250 x 2500 x 250 mm thick plate. Depend upon the block size the thickness will vary up to 450mm. We are having 8 no. of vertical band saw machines we can cut Aluminium plates in different profilesImage Description :- This is an Aluminum-6061 plate of  size 1250 x 2500 x 250 mm. 10” thick plate cutting L-Shaped components. 450mm thick plate cutting in profile. Aluminium block size 720x350x250 cutting in 250mm height in profile. 80 dia round Aluminium rod half cutting.

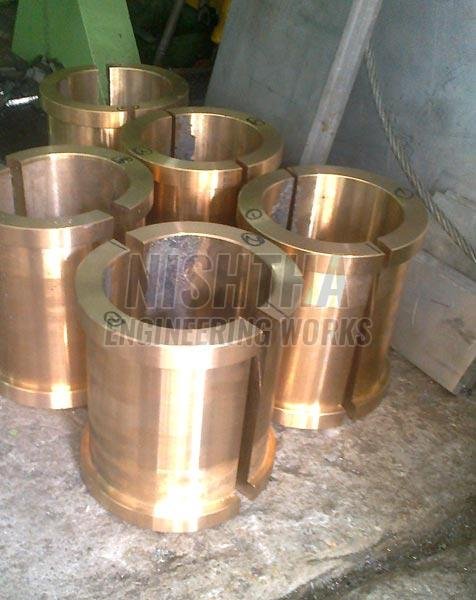

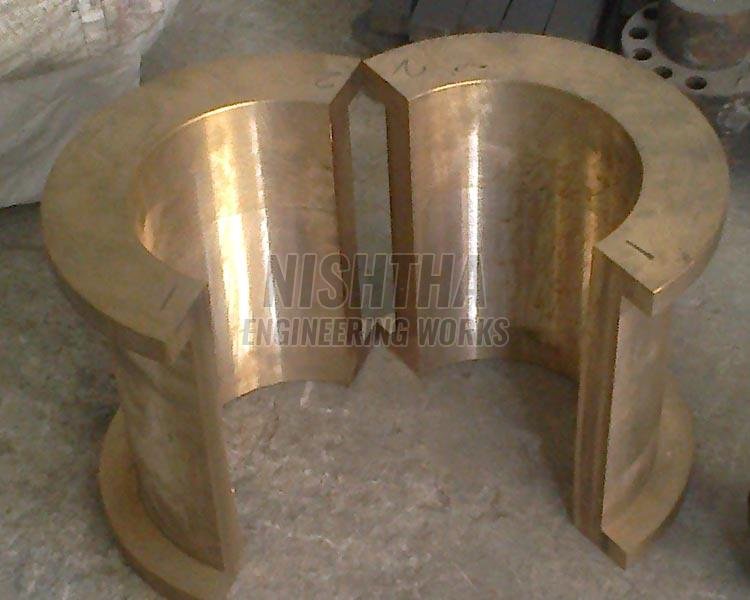

In  most of the industrial application, Gunmetal and Phosphor bronze material is used as the bush bearing applications. On the huge diameter die shafts, the bushes are assembled after splitting into two half. The following images show the cutting of such bushes with a minimum of cutting wastages.

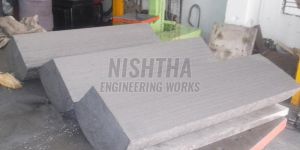

Graphite is one of the costly materials used in Industrial Applications. We are cutting the Graphite blocks solidly to remove the unwanted portion which can be used for other application with minimum cutting wastage 1.2mm.Till now we have cut the Graphite block of size 1000 x 750 x 240mm.  The following images show the cutting the Graphite in 120 degrees to remove 100mm dia 3 nos.  from a round of 180mm dia x 300mm length.

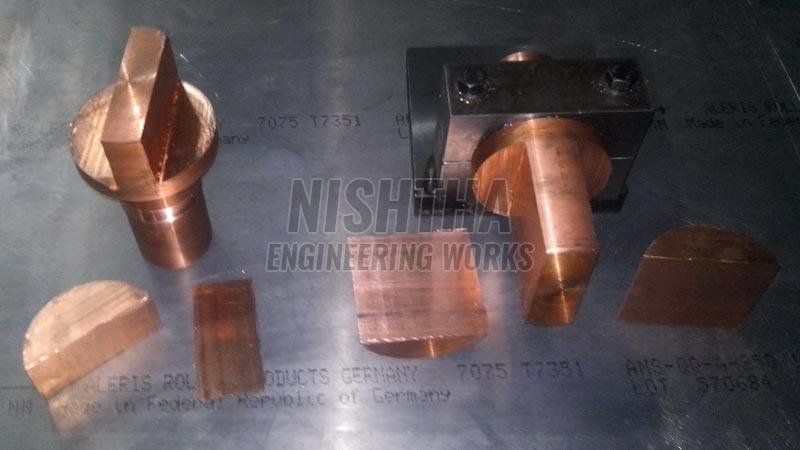

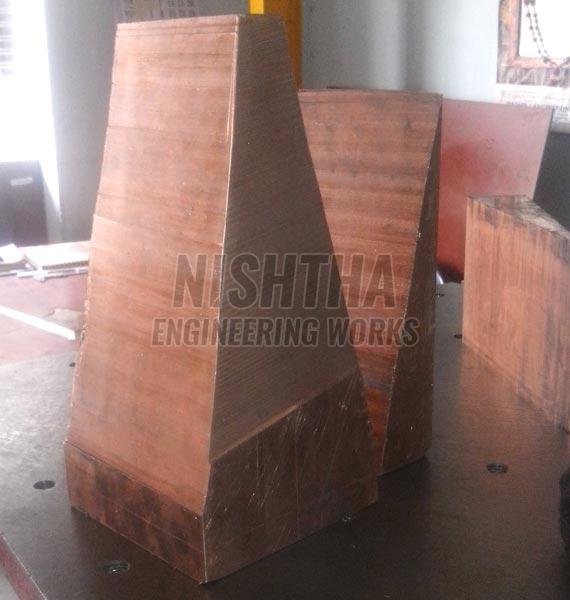

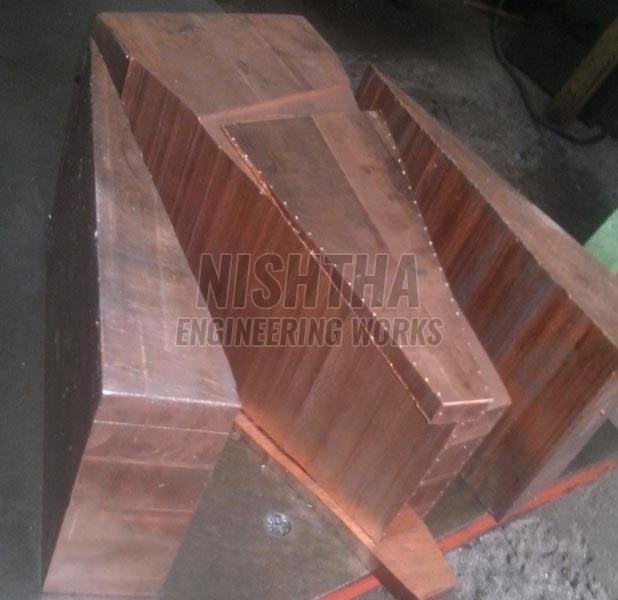

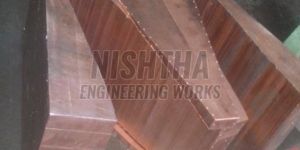

Copper is one of the costly materials used in Industrial Applications. We are cutting the copper blocks solidly to remove the unwanted portion which can be used for other application. By this lot of machining time can be saved. The following images show the cutting the copper in different angles.

We are capable of cutting steel and CI casting for Destructive Testing. The internal sizes   cannot be inspected unless and until is cut at the different sections. The images show the castings cut at the different sections as per the customer requirements.

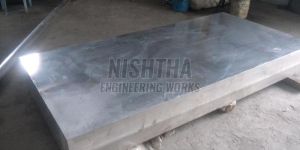

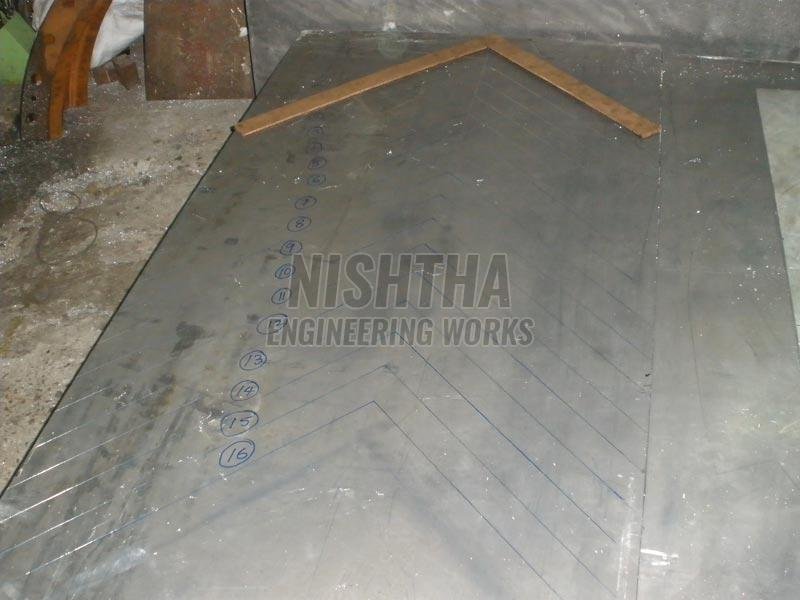

This is the aluminium plate of size 1250 x 2500 x 250 mm thick . We are cutting the plate with circular saw and on vertical band saw machine.

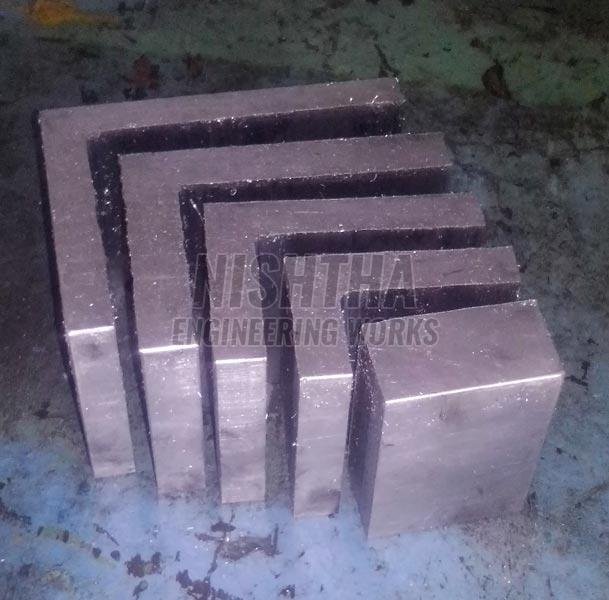

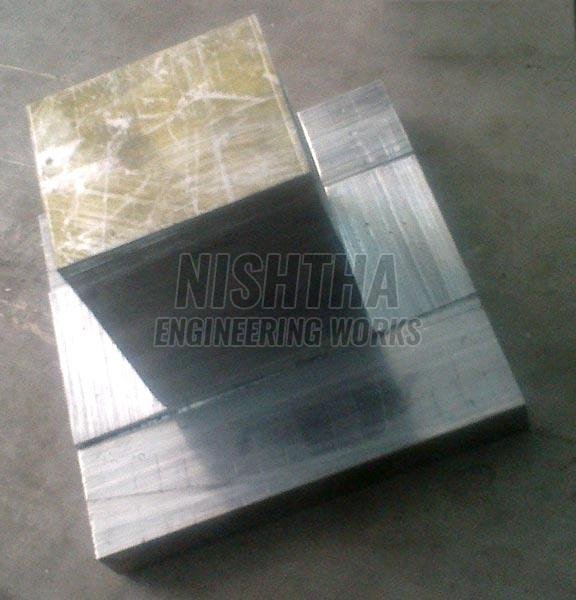

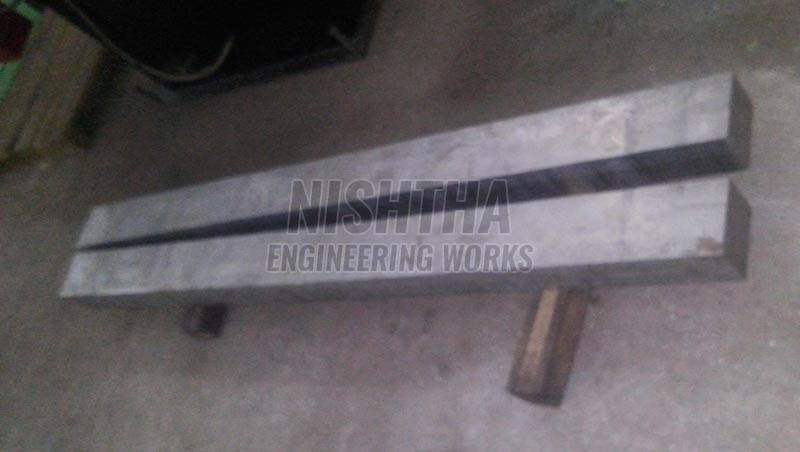

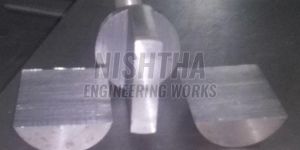

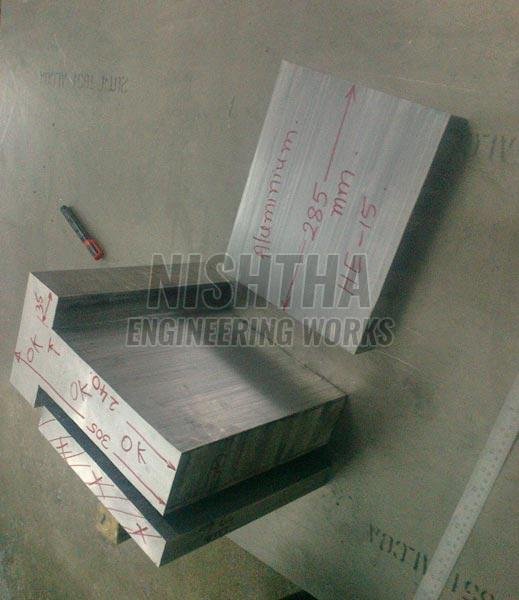

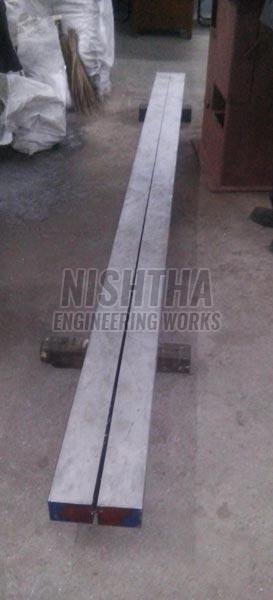

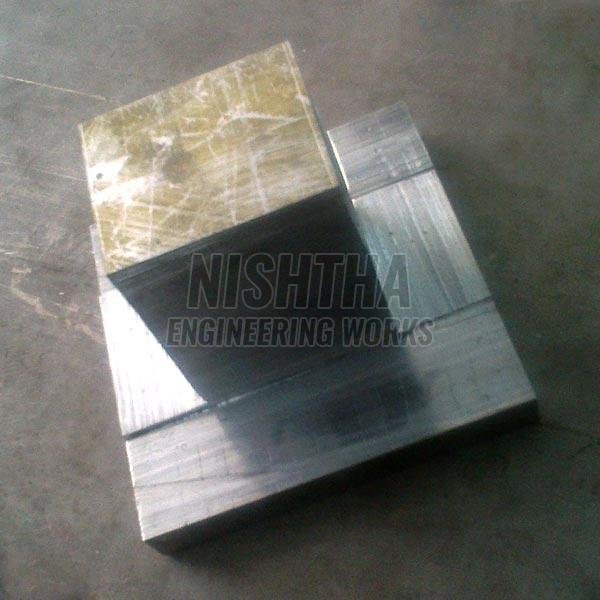

We can cut aluminium plates of different thickness of size 4 feet  x 8 feet size. We are having 8 no. of the vertical band saw machines we can cut aluminum plates in different profiles. Circles up to 1500mm dia and thickness upto 100 mm can be easily cut. In the following images the different types of aluminum cutting are shown. Till now we have cut the circle cutting of size 1500mm dia and 100 mm thick Aluminum plate.   This is an Aluminum-2014 black of size 155 x 155 x 120 mm which is cut in such a manner to save material as solid block Aluminium plates cutting into 5 pieces. Aluminium plate of size 450 x 250 x85 mm thick cut in centre length wise and the one-half of the piece is further cut into five pieces of size 450 x 125 x 16 mm. 3600 x 200 x 75 mm Aluminium plate length wise cutting 75 mm thick Aluminium cutting in profile. The solid portion has been removed to make use for other purpose. Aluminium plate cut in L –Shape cutting. 70 mm thick plated cut into different rings.

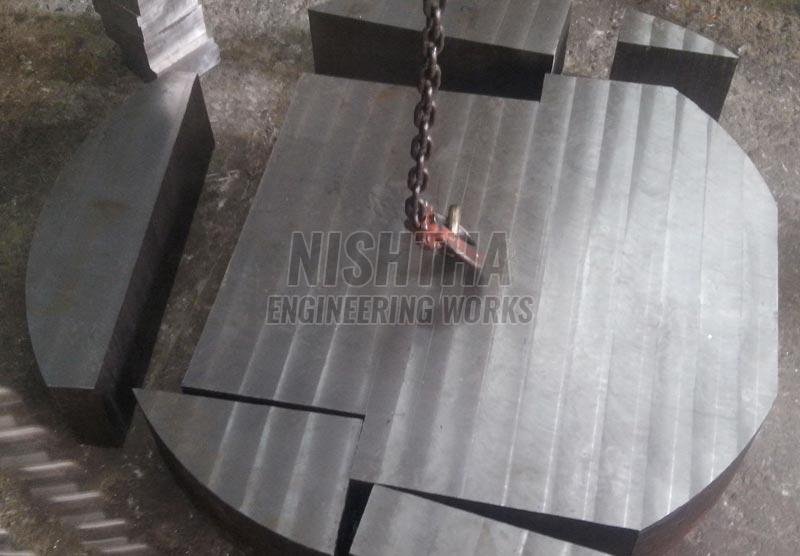

This is en-19 plate of size 1000 mm dia x 150mm thick. All the scrap is removed as a solid blocks and can be used for different purpose.

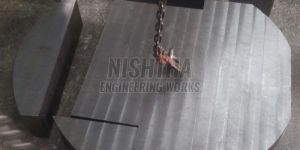

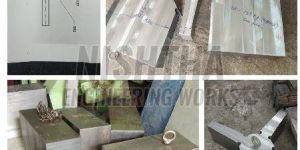

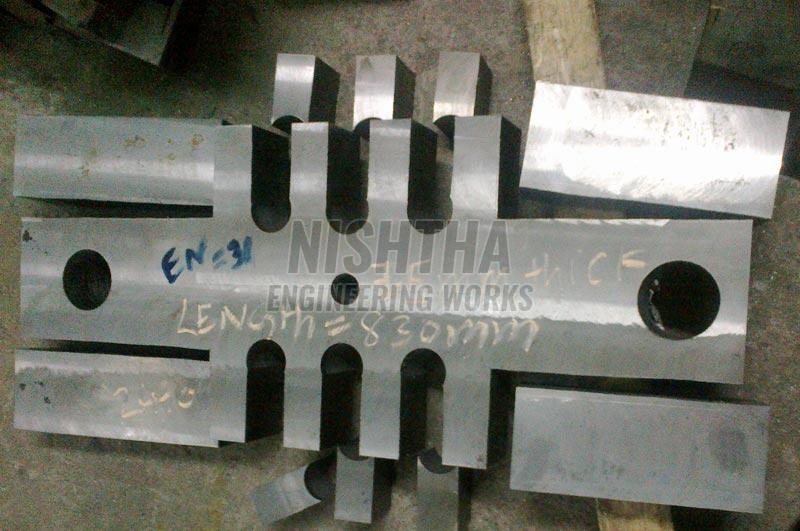

We are offering  cutting job work in alloy steel plates. We provide cutting services of different types of alloy steel plates on Vertical Band Saw machines. Our company is equipped with the requisite machines and equipments to ensure that the cutting is done without any hassles. A different range of vertical band saws (AMADA VAC-500, DOALL, ALL CUT ) provides the ability to cut various alloy steel (ferrous, nonferrous) and non-metals plates up to a maximum 150mm thick. On AMADA VAC-500 being the most recent additions and with rotary table attachment facility we can cut internal pockets and round cutting in plates (1000mm dia up to 100mm thick. Profiles such as L shape, T shape, diagonals, counters ( the radius of the counter is limited to blade width) can be cut easily so that lot of material can be saved. our range of straight & profile cutting services includes the following materials in plates.   Ferrous metals: MS, EN-8, EN-31, EN-47, EN-24, HCHCr , Cast Iron, etc
