The vertical model is sturdy in construction, simple to operate and easy to handle. The flute roller, mounted on roller bearings for smoother running and longer life, impart the proper impression on the board. The machine is provided with manual operated twin shaft reel stand. The heaters are provided for the appropriate conversion of paper to 2-ply. The variable speed motor shown is not standard with the machine but is recommended, at an additional cost.

arnishing Machine • High speed Semi Automatic• Easy to handle & dependable• Fitted with chamber & conveyor• Streamlined finish

Maximum Unwinding Dia : 102 cms

Number Of Stitches : 1-7

This machine is utilized for evenly setting of the corrugated sheets processed on the pasting machine. This ensures removal of air bubble, thus producing an even board without damaging the flutes. The machine is provided with two limit switches and reversing starter to avoid any chances of accident. Hydraulic model is also available at extra cost.

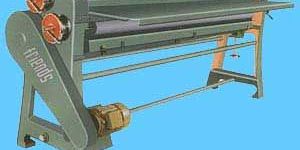

    Sheet Pasting Machine finds its use in the application of the glue on the tips of the corrugated surface of the board. The rolls are precision ground to ensure minimum thickness of glue on the applicator roll. The controls for gum adjustment and pressure adjustment on the sheet being fed, are from single side. The feeding table can be rotated to facilitate the cleaning of the rollers. All the gears and belts are concealed in covers.

Semi Automatic Paper Cutting Machine SPECIFICATIONS Suspended pendulum scissor cut for smooth and pressure free cutting Double drum multi disk Clutch & Brake Adjustable Wheel Shaft support stand   ACCESSORIES INCLUDED Two spanners One Screw Driver L Keys One Oil Can One Extra Cutting Knife

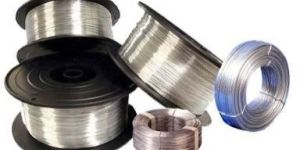

ROUND AND FLAT GULVANISED WIRE STITCHING COIL AVAILABLE GUAGE: 18,20,22,24 AND 26

Materials To Be Printed Polyester  : 12-100 micron, Polyethylene, LDPE, HDPE, HM           : 30-150 micron,P.P.,BOPP, Cellophane :12-100 micron

Roll To Sheet Cutter Machine • Size : 1 Mt. to 3.5 Mts. and above.• C.I. heavy duty framings.• Slitting attachment.• Flying knives.• C.I. Taper cone pulleys for cutting different sheet lengths.• Variation free accurate size cutting. • Automatic Digital Counting• Automatic Jogging • A/C Electric Motor• WPS Blades • Slitting Circle Knifes• Heavy Duty Framings• Vibration Free Slitting & Cutting

Availability : 1200 to 1500 Kgs.

Power : 2 HP or As per required.

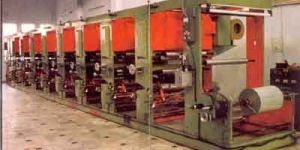

Printing station comprise of pneumatically operated impression roll with adjustment at both sides. Printing cylinder shaft mounted on anti-friction bearings in bearing housings and positively driven by precision Gear Box, Double reservoir ink tray to maintain constant ink level, with continuous circulating ink pump. Pneumatically operated doctor blade assembly ensuring equal pressure at all printing stations for high quality and consistent print quality, along with forward and reverse printing facility. Online print running registration by precision manual/electronic control (optional)

*Digital Controlled Perfect Binder*Automatic Jogging & Clamping*The Cover Nipping Strength & Nipping*2-Up Faciltiy for Increasing Out Put*650 Books Per Hour

Thickness : 2 to 70 mm

Size (mm) : 70 to 480 mm

Binding Speed : 1160 cycles per hour

Power : 4.5 HP

Width : 580 mm

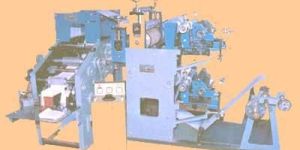

OTHER FEATURESAll Rollers are Dynamically BalancedStandard Bearings are used.   TWO EMBOSSING UNITSMale/Female Embossing Unit comprising of one hard chrome plated Design Roller attached with Paper Ball RollOrdinary Embossing Unit comprising of one Burfi Design Roll attached with Rubber Roll.   TWO COLOUR FLEXO-GRAPHIC PRINTINGEach Printing Unit Consits OfStereo Cylinder Changeable from 8" to 14"Stereo Cylinder SidesForward and Backward adjustment for colour matchingOnline Multi-Colour RegistrationOne Ink Roller Dipped in DuctOne Ink Carrying Roller could be adjustable for the required ink   OPTIONALStatic Elecricity EliminatorPower Roll LiftWeb AlignerAuto BreakAny No. of Printing UnitsAny No. of Male-Female Embossing UnitsPoint Cutting 8" to 14"No.of counts could be varied   FOLDING UNITRotary Cutting SystemOne DrumStacking PlateformAutomatic Couting of any Nos. or 50Online Cutting AdjustmentAutomatic Couting of any Nos. or 50 UNWINDING UNITSide Adjustment of Roll PositionAuto -Tension Control System

Paper Embossing Machine Reel to Reel

Width : 30"

Paper Bag Making Machine (Flat & Satchel Type)   PAPER BAG MAKING MACHINE IS DESIGNED TO MANUFACTURE FLAT AND SATCHEL PAPER BAGS FROM KRAFT PAPER, GREASEPROOF, WHITE PAPER AND POSTER PAPER ETC. IN DIFFERENT SIZE FOR PACKING CONFECTIONERY, FOOD STUFF, READY-MADE GARMENTS, TOBACCO, TEA POWDER GROCERY, DRY CLEANERS ETC.   GENERAL FEATURE : PAPER BAG MAKING MACHINE IS MADE OF RIGID AND ROBUST CONSTRUCTION TO AVOID VIBRATION. ALL PAPER ARE ARRANGED IN MOST ACCESSIBLE WAY THUS MAKING OPERATION AND ADJUSTMENT VERY SIMPLE AND QUICK SO THAT EVEN AN UNSKILLED LABOUR CAN EASILY OPERATE THE MACHINE SUCCESSFULLY. THE CHANGE OF SIZE IS VERY EASY AND CAN BE DONE IN A FEW MINUTES TIME. THE MACHINE IS SUPPLIED WITH ONE SIZE PLATE AND ONE SIZE GEARS TO MANUFACTURE ONE SIZE OF PAPER BAG. DIFFERENT SIZE PLATES & SIZE GEARS FOR FLAT AND SATCHEL BAGS ARE AVAILABLE AT AN EXTRA COST. MILL REELS UPTO 34” DIA AND 34” WIDTH CAN BE ACCOMMODATED OF THE MACHINE. THE WIDTH OF THE PAPER REEL TO BE FED ON THE MACHINE CAN BE CALCULATED AS UNDER.FLAT BAGS TWICE THE BAG WIDTH PLUS 2 CM FOR CENTRE SEAM.SATCHEL BAGS TWICE THE BAG WIDTH PLUS 4 TIMES DEPTH OF GUSSET PLUS 2 CM FOR CENTRE SEAM.BAG FORMATION : THE REQUIRED SIZE OF BAG IS OBTAINED BY FIXING THE EXACT SIZE PLATEFOR FLAT OR SATCHEL TO THE SIZE PLATE HOLDER AND THE LENGTH OF THE TUBE IS OBTAINEDBY CHANGING THE SIZE GEAR WHEEL, EACH TOOTH OF WHICH, REPRESENTS ONE CENTIMETER ININ LENGTH, THE TUBING AFTER BEING CUT BY THE BEATER INTO EXACT SIZE AS PER THE SIZE GEARIS CARRIED FORWARD BY MEANS OF CONVEYOR ROLLERS TO THE DELIVERY CYLINDER.THE DELIVERY CYLINDER : IS ALSO THE BOTTOM FOLDING SAND PASTING CYLINDER AS THE BOTTOM FOLD IS MADE IS THE BAG IT IS PASTED AND THE BAG IS CARRIED BY THE FOLDING CYLINDER TO THEDELIVERY TABLE WHERE IT IS RELEASED AND DELIVERED IN A VERTICAL STACK.PRINTING ATTACHMENT : OUR TWO COLOUR FLEXO PRINTER CAN BE COUPLED WITH THE PAPER BAG MAKING MACHINE

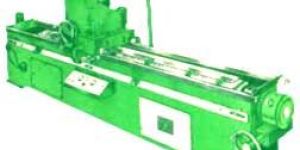

Knife Re-Grinding Machine All electrical motors, wiring, switches, starters are ISI marked to increase the life of machine Machines are fitted with T-Slot holding device or electromagnetic chulk as per customer's requirement The body of machine is fabricated from suitable M.S. plates and is duly stress relieved.

 The flute rollers mounted on the roller bearings, for smoother running and longer life, impart the proper impression on the board. Dancing rolls are provided to eliminate the effect of improper winding of paper on the finished product. AVAILABLE SIZES: 5/8",1/2",1",11/4"11/2"&2"

This is a clutch operated machine for automatic stop after each impression. Most rigid machine to undertake full Load. Useful for manufacture of Envelopes. Inland letters, cards etc. Distance between the two plates is adjusted by means of Bevel gearing, according to pile of papers & height of die.
