PHARMABASIX Patancheru, Hyderabad, Telangana

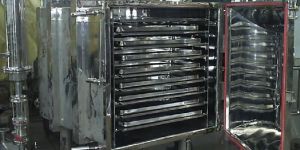

Vacuum Tray Dryer (PBXVTD) is suitable for drying of thermal sensitive materials easily resolved, polymerized of deteriorated under higher temperature. Sterilization can be conducted prior to the drying process, during which no matter is allowed to enter the product. Static vacuum dryer eliminates the configuration damage of the drying materials therefore widely used in pharmaceutical, chemicals and foodstuff etc. 50 mm thick glass wool insulation on the vacuum chamber outer surface except door. The insulation is enclosed and covered with removable SS 304 angle frame Digital temperature controller with pneumatic operated valve at hot watersteam inlet

vacuum tray dryer (pbxvtd) is suitable for drying of thermal sensitive materials easily resolved, polymerized of deteriorated under higher temperature. Sterilization can be conducted prior to the drying process, during which no matter is allowed to enter the product. Static vacuum dryer eliminates the configuration damage of the drying materials therefore widely used in pharmaceutical, chemicals and foodstuff etc. salient features: mani body and door are made in ss 316 with rigid flange shelves(hollow type) in ss 316 with baffles trays(without back folding) in ss 316 condenser(shell & tube) and receiver in ss 304 for solvent recovery digital temperature indicator(flp) at h.w. Inlet and outlet digital temperature indicator(flp) at vacuume line dail type vacuume gauge in vacuum line dail type temperature guage in body glass view provided on door and receiver flow glass provided to monitor condensation between condensor and receiver validation port provision for nitrogen purging vacuum break valve provided in vacuum line construcion and finish as per cgmp standards optionals:  condenser and receiver are made in ss 316 300 mm wide ss 304 skirting all along the flange 50 mm thick glass wool insulation on the vacuum chamber outer surface except door. The insulation is enclosed and covered with removable ss 304 angle frame digital temperature controller with pneumatic operated valve at hot water/steam inlet 2 stage water ring type vacuum pump (partial ss) run by flp motor hot water system with circulation pump testing: the vacuum dryer shelves are hydro-tested 5 kg/cm2 assembled condition. The vacuum chamber is tested for leaks under vacuum.

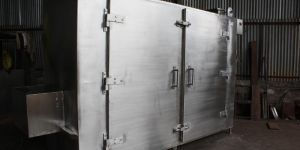

 tray dryer (pbxtd) is specially designed for pharmaceutical, food, chemical, paint and textile industries. It is an electrical/steam heated thermostatically controlled hot air oven fitted with time switch to facilitate working day and night. Pbx drying ovens are well accepted for fast economical drying of granules, effervent salts and other materials. Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuable features of the oven. A highly effective re-circulating air system provided by belt driven axial fan. The filtered air is heated and re-circulated with fresh air. salient featrues / moc : inner in ss306 outer in ss304 trays in ss316 trolly and steam coil in ss316 silicon door gasket flp motor and electricals digital temperature indicator(flp) door fitted with strong hinges and special lock arrangement 10 micron air filter at inlet adjusttable air outlet damper explosion vent for safety constructionand finish as per cgmp standards. optionals: outer in ss316 ss316 trays in 18g(without back folding) self operating temperature controller(sotc) range 40-100°c

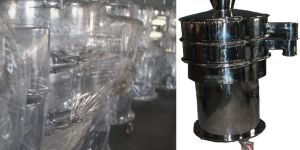

vibrosifter/sieving/grading machine is specially designed and developed for seperation of solids and grading of material in accordance with their sizes. it has features to provide gyratory vibration generated by balanced flywheel. the amplitude of vibration can be adjusted by means of movable weight on the flywheels for any required processing. salient features: contact parts in ss 316 structure cladded with ss 304 charging port with lid in ss 316 flp motor and electricals mesh can be replaced easily tyre wheels for easy mobility construction and finish as per cgmp standards

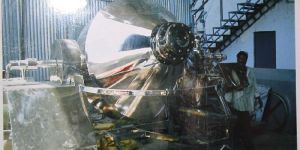

Rotocone Vacuum Dryer (PBXRCVD) is suitable for drying of materials which cannot resist high temperature, material which are easily oxdised, volatile materials which should be retrived, materials which are strong irritants and poisonous in nature. PBXRCVD with the improved technology integrates during operation under vacuum. The RCVD facilitates enhanced drying efficiency, low temperature operations and economy of process by total solvent recovery. It helps cGMP based working by achieving optimum dust control, while offering advantages of efficient charging and discharging of materials. The drying unit equipped with lump breakers initially breaks large lumps and subsequently powders them (in single cone). The rotary action of the dryer together with mechanical action of the breakers, cuts down drying time and gives a lump free product. ADVANTAGES: Reduces drying time Eliminates need for re-drying of lumps Handling and exposure of final product is avoided Gives uniformity size dry product System can process crystalline or amorphous powders which are prone for lumps Easy to clean internal surface, thus ensuring purity of product Optimum and continuous vacuum maintenance during process Uniform material shuffling over the heated contact surface of the cone SALIENT FEATURES/MOC (GMP Model) Inner shell/cone and contact parts in SS316 Heating (H.W./Stream) Jacket in SS304 Insulation with jacket in SS304 Cyclone seperator in SS304 Drive unit enclosed with SS Covers Dry mechanical seal for vacuum side Dry mechanical seal for waterside FLP motor and electricals Provision for nitrogen purging Digital temperature indicator (FLP) at hot water inlet and outlet Digital temperature indicator (FLP) Temperature and vacuum gauges (Dail type on cone) Safety guard with limit switch. Pulse jet type dust filter is provided inside the cone Butterfly valve at discharge Positioning wheel for cone Drive: Gear box and motor direct coupled and box to cone drive shaft chain drive/Hbull gear and pinion Construction and finish as per cGMP standards OPTIONALS: 2 Stage water ring vacuum pump Condenser and receiver in SS316 Digital temperature controller (FLP) with pneumatic valve at hot water inlet Vacuum pump (partial SS) with FLP motor Lump breakers on cone with FLP motor and dry mechanical seals

Rotocone Vacuum Dryer (PBXRCVD) is suitable for drying of materials which cannot resist high temperature, material which are easily oxdised, volatile materials which should be retrived, materials which are strong irritants and poisonous in nature. PBXRCVD with the improved technology integrates during operation under vacuum. The RCVD facilitates enhanced drying efficiency, low temperature operations and economy of process by total solvent recovery. It helps cGMP based working by achieving optimum dust control, while offering advantages of efficient charging and discharging of materials. The drying unit equipped with lump breakers initially breaks large lumps and subsequently powders them (in single cone). The rotary action of the dryer together with mechanical action of the breakers, cuts down drying time and gives a lump free product.

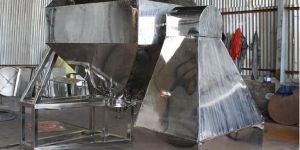

pbx ocb  is ideal for mixing of powders and homogenous lubrication of granules. Cones are manufactured out of ss 316 quality sheet. To enhance the mixing, paddle blades are provided on central shaft. Drive motor is connected to a gear box on ss rigid stand. Charging height varies as per the capacities. Suitable opening for charging with ss cover and lock nuts, discharge port is fitted with mucon/butterfly valve which helps to unload powder faster. Pipe guards provided with limit switch interlocking to motor, which ensures safe operation for higher capacities. two-thirds of the volume of the cone blender is filled to ensure proper mixing.

  Multimill (PBXMM) is widely used for wet and dry granulation, pulverization in pharmaceutical, chemicals etc. It operates on the principal of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required reduction. Material fed in the hopper passes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber. Out put and quality of the product depends on three factors: Shape of the Beaters, Speed & Screen. SALIENT FEATURES/ MOC (in GMP MODEL): Contact parts in SS 316 Stand and Structure SS 304 FLP Motor and Electricals FR switch to change the direction of Beaters Screen can be replaced easily Nylon wheels for mobility Construction and finish as per cGMP Standards

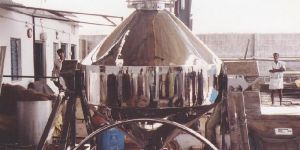

double cone blender (pbxdcb) is ideal for mixing of powders and homogenous lubrication of granules. Cones are manufactured out of ss 316 quality sheet. To enhance the missing, paddle blades are provided on central shaft. Drive motor is connected to a gear box on ss rigid stand. Charging height varies as per the capacities. Suitable opening for charging with ss cover and lock nuts, discharge port is fitted with mucon/butterfly valve which helps to unload powder faster. Pipe guards provided with limit switch interlocking to motor, which ensures safe operation for higher capacities. Two-thirds of the volume of the cone blender is filled to ensure proper mixing.
