Power Protection Ameerpet, Hyderabad, Telangana

We are listed at the apex in the list of the most preeminent Voltage Transformers Suppliers in India. The flawless range of the voltage transformers includes Low Voltage Transformers and High Voltage Transformers so as to suit the requirement of the application and customers. Additionally, customers are also facilitated with the availability of the voltage transformers at the most reasonable prices. Oil/Paper Insulated, Compact Design, High Mechanical and Dielectric properties Complying with latest IS : 3156 upto 66KV Ratings.

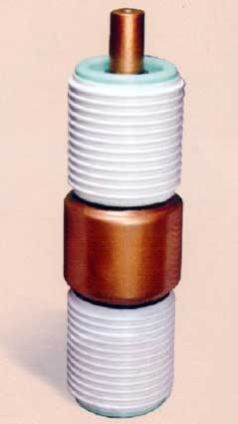

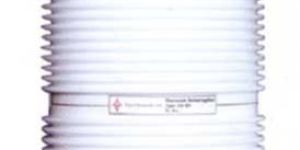

The "GV Series" Vacuum Interrupters (VIs) are designed to suite the requirements of the users for various applications. These VI designs are being manufactured in the state of art processing facility with the unique selling parameters (USPs). The USPs of Vis are validated to enhance the performance &reliability of Vis as well as the switchgears. The clinically clean manufacturing & testing facility at "Vijai Electricals Ltd.," in India is comprising of world class brands of Vacuum Furnaces, Clean Room of 10001 100 class and other processing, testing equipments. The VI specifications varies from rated voltage 690 V to 52 kY, rated normal current 400 Ato 3 150 A, Short Circuit breaking 4 kAto 44 kA.The application of Vis encompasses Conventional Circuit breakers, Vacuum Contactors, Auto Reclosers, RMUs etc. USPs Mechanically Strong Construction. No external insulation on VI Such as Silicon rubberl Polyurethane. EPDM Sleeve facilitates closer interphase distance inVCB. Rated line to line voltage can be extended if required to the next standard rating. Rated short circuit current can be extended if required to the next standard rating. Best performance &Higher reliability due to above special Design features.

Advantages Hermetically sealed ready - to - use device Confirms to IEC 62271-100 / IEC 60265 / IS:7567 / IS:9920 / ROSa specifications Highly reliable and efficient Non - hazardous and Noise - free operation Ideal for use in different environments Absolutely maintenance free Permits modular construction of circuit breakers & offers flexibility to mount in VCB's Long operating time, Low operation cost, High safety Stable dielectric Special Features Radial/Axial magnetic field design Low chopping current Low contact erosion/long contact life Compact Size Manufactured by state - of - the - art technology Acclications Power Generation and Distribution networks Capacitor Switch Auto-recloser for rural electrification Industrial applications like Motor switching, Arc furnace switching, etc., Railway Traction sub-station Sectionalizer switch Ring Main Unit (RMU) Gas Insulated Switchgear

Salient Features design Conforms to Iec62271-202 Standards the Compartmentalized Construction Prevents Accidental Entry to Energized Areas meets Ip53/ip23 Degree of Protection tailored Configuration to Customer Needs designed to Withstand Electrical Impulses, Thermal and Dynamic Stresses variety and Choices for Mv/lv Switchgear low Power Loss and Low Noise Transformer number of Feeders for Lv Can Be Customer Specific easy to Install delivery Ready for Commissioning modern Manufacturing Techniques Ensure Cost Effectiveness, Reliability and Long Trouble Free Performance Range Up to 990 Kva with Oil Cooled Transformer and Up to 1600 Kva with Dry Type/cast Resin Transformer.

We are counted among the most trustworthy Voltage Surge Arrestor (Lightning Arrestor) Suppliers in India. Various leading industries are placing huge and repeated orders for the Surge Arrestor due to the countable features like high durability and resistivity to various adverse conditions. Additionally, the ever growing demand of the Lightning Surge Arrestor reflects upon the authenticity of the product and our reliability. Moreover, the Voltage Surge Arrestors are procured from the reputed vendors in India. We also provide the Surge Arrestors at the most affordable prices. Over-voltage Protection is of Key Importance to Utilities to Improve their Network Quality And Reliability. Appropriate surge protection increases the quality of power supply and minimises the system outage costs. Metal oxide arresters for distribution network protection manufactured by AREVA T&D is specially designed for areas with strong Surge exposure and high pollution levels. Technology : Active parts of the arrester are non-linear blocks designed and manufactured in our state of the art production facility. Metal oxide blocks change instantaneously from isolating to the conductive state in case of over-voltage. Housing : We offer a choice of porcelain, polymeric & fibreglass housing. The polymeric technology without internal gas volume allows higher electrical performance and reliability combined with easy installation and better operating conditions. Thanks to the fiberglass reinforced woven structure polymeric housed surge arresters are explosion proof, preventing mechanical damage to close equipments. Range : 3.3KV to 400KV Standards : IEC 60099 4/ IS 3070 Options : A disconnecting devise with a sensitivity of 20A/1s connected to the Surge Arrester isolates a faulty arrester as well as provides an end of life indication. This option must be selected when user needs to have service continuity as a priority. Accessories : Split clamp or NEMA type bracket for vertical mounting can be provided as option. Performances Improved values of residual voltage for better protection.High-energy absorption capability.Minimum power loss.Easy mounting. Dimensions D : Axis to Axis d - Axis to Ground

We are Reckoned among the Top-notch protection Relays suppliers in India. the Entire Gamut of Electrical Protection Relays is Procured from the Reliable Vendors So as to Ensure Delivery of Immaculate Products Top the Customers. Moreover, the Materials Used in the Manufacturing of the Motor Protection Relays also Helps in Making Them Highly Durable and Resistive to Various Fluctuations in the Flow of Electric Current. We also Provide the Lt / Ht Protection Relays as These Relays Exhibit Inexplicable Performance in Various Industrial Applications. features trouble-free and Strong Construction.compact Design.high Stability On External Faults.dust Proof Enclosure. application : Protection for Ac Machines, Reactors, Autotransformers and Bus Bars. Earth Fault Protection of Generators and Transformers. description : Mcagrelay,Usedwith a Stabilizing Resistor Designed for such Applications Where Sensitive Settings with Stability On Heavy Through Faults Were Occur. the Relay Has Its Operating Coil Connected in Series with a Small Choke and Capacitor Forming a Series Resonant Circuit. this Circuit is Energized from An Internal Auto- Transformer, Which is Tapped to Provide Seven Equally Spaced Current Settings. rating : 1aor Sa setting Range : 20-80% or 10-40% - in Seven Equal Steps as Standard. Continuously Variable External Stabilizing Resistors of 200 and 50 Ohms are Supplied as Standard for 1a and Sa Relays Respectively. Stabilizing Resistors with other Ohms Values are also Available. burdens : 0.9va At Current Setting On Lowest Tap. 1.0va At Current Setting On Highest Tap. Current Transformer Requirements Will Be Given- On Request. short Time : 20x Setting Current for 3 Seconds. accuracy error Class Indexe 5.0 as per Bs 142 -19665.0 as per is 3231-1965. operation Indicator : Hand Reset Operation Indicator Provided. contacts : Two Pairs of Self Reset' Make' Contacts. insulation : the Relay Meets the Requirements of Is3231-1965/iec255-5 Seriesc- 2 Kvfor 1 Minute. case and Finish : 1d Vertical Draw Out Case Suitable for Flush Mounting Finished Twin Tone and Tropicalised. Suitable Trip Isolating Switches and Ct Shorting Switches Provided On Cradle Assembly/ Case. information Required with Order type of Relay (mcag 14 or Mcag 34).ct Secondary Rating.current Setting Range. the Relayscomply with is 3231: 1965 and Suitable for Use in Normal Tropical Environments.

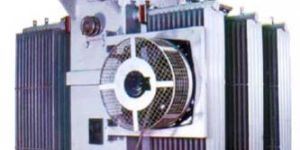

Our Company is Renowned among the Most Trustworthy Power Transformers Suppliers in India. the Unmatched Quality and Inexplicable Performance of the Power Supply Transformers in Various Industrial Applications Has Attracted Various Leading Industries to Place Repeated Orders. Moreover, Customers are also Facilitated with the Availability of the High Power Transformers At Pocket Friendly Prices. applications: Industries, Power Stations, Receiving Stations and Substations, Railwaysand Ports. standard Fittings lifting Lugs skid Base/ Roller Arrangement rating and Diagram Plate primary Bushings secondary Bushings oil Level Guage silicagel Breather drain/ Filter Valves thermometer pressure Relief Device / Explosion Vent optional Fittings terminal Connectors magnetic Level Guage oil Temperature Indicator winding Temperature Indicator buchholz Relay rtcc Panel condensor Type Bushing for Voltage Class Of33kv* & 66kv offcircuit Tap Switch/on Load Tap Changer

Power Factor Control Panel is a special type of control panel. We offer Power Factor Control Panel of superior quality. These are the most sophisticated form control panels. They are highly performance oriented and durable. We are among the top most Automatic Power Factor Control Panel Suppliers in India who stock and supply almost all the renowned brands.  Unitised Package Sub-Station(USS) Upto36 kV and 2500 KVA Available in both Indoor/Outdoor VersionsCompactAesthetically superiorSafe, as the transformers used are dry, cast resin type.Fully compartmentalised, no accidental access to live partsTransportable & Ready to install.Minimal Maintenance Reference Standards : VCB - IS 13118, LBS - IS 9920, LTACB / MCCB - IS 13947 Partl/2, LT SFU - IS .13947 Part 3, Metal Enclosure - IS 3427

We Deal in Electric circuit Breakers of Excellent Quality. the Power Circuit Breaker is Very Important Electric Equipment Used in the Industry. the Quality of Power Circuit Breaker We Deal in is Unrivaled in the Market. Several Industries Rely On Us for the Electric Circuit Breakers as We Provide Them Only the Quality Products. in Fact, We are among the Prominent Suppliers of Electric Circuit Breakers in India Who Supply Almost all the Renowned Brands. Our Customers are Satisfied with Us for the Constant Maintenance of the Standard of Quality.

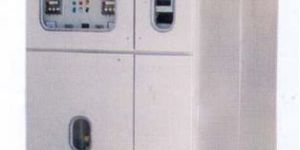

Megawin Outdoor Vacuum Circuit Breaker KIOSK type MSK12/ 24/ 36 is directly installed at site on a plinth. CTs/ PTs and relay control panel is in-built in the metal enclosure. The power supply can be taken either through roof bushings or cable box or a combination of roofbushing and cable box as the case may be. The operatingmechanism is eithermanual motorisedspring charged. The clearance between phases and between phase and earth on the VCB truck as well as the bus connections are as per the relevant standards. The vacuum circuit breaker is very robust aridvirtually maintenance free. Emergency tripping arrangementcanbe providedoutside the cubicle on request. Interlocks Adequateinterlocksfor the vacuumcircuitbreakertruck are provided to ensure total safety to the operating personnel. Mechanical CastleInterlockswithup stream! down streamisolatorscan be provided onrequest. Transport, Erection, Commissioning The MSK outdoor kiosk vacuum breakers are completely factory assembled and ready for installation at site. Only the power connections and control cable connections need to be extended to the kiosk. Advantages Compact Saving of floor space Ready to install Higherreliability Salient Features Totally enclosed, Simple in construction & easy to operate The VCB can be fixed or drawout type Fully Type Tested Enclosure Tested for IP55 High Electrical and Mechanical life No fIre hazard Restrike free Suitable for rapid Auto-reclosing duty Negligible maintenance Stagewise stringent quality checks

We Deal in Electric circuit Breakers of Excellent Quality. the Power Circuit Breaker is Very Important Electric Equipment Used in the Industry. the Quality of Power Circuit Breaker We Deal in is Unrivaled in the Market. Several Industries Rely On Us for the Electric Circuit Breakers as We Provide Them Only the Quality Products. in Fact, We are among the Prominent Suppliers of Electric Circuit Breakers in India Who Supply Almost all the Renowned Brands. Our Customers are Satisfied with Us for the Constant Maintenance of the Standard of Quality.

We Deal in Electric circuit Breakers of Excellent Quality. the Power Circuit Breaker is Very Important Electric Equipment Used in the Industry. the Quality of Power Circuit Breaker We Deal in is Unrivaled in the Market. Several Industries Rely On Us for the Electric Circuit Breakers as We Provide Them Only the Quality Products. in Fact, We are among the Prominent Suppliers of Electric Circuit Breakers in India Who Supply Almost all the Renowned Brands. Our Customers are Satisfied with Us for the Constant Maintenance of the Standard of Quality.

We have Carved a Niche among the Stupendous switchgear suppliers in India. the Unmatched Quality and Inexplicable Performance of the Electric Switchgear in Respective Applications have Attracted Customers from Every Nook and Corner of India. Moreover, to Ensure the Authenticity of the High Voltage Switchgear; We Procure It from the Reliable Vendors in India. Some of the Switchgears Provide By Us are as Mentioned Below: outdoor / Indoor Load Break Switchoutdoor / Indoor Ring Main Unit (rmu)outdoor Vcb Kiosk with Cable Box

Control Panels are the Essential Electrical Equipments Used in the Industries. We Offer Quality Electric Control Panels to Several Industries. They Ensure Not Only High Standard of Quality But also High Durability and Performance. the Power Control Panels We Supply are of Unmatched Quality. among the Leading Control Panels Suppliers in India, We Stand in the Front Raw as We Deal in Only the Branded and Guaranteed Products. We have Achieved Glory all Over India for Keeping a Huge Stock of Quality Control Panels.

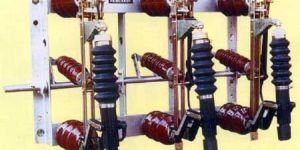

Three Pole and Single Pole nominal Voltage 12kv, 24kv and 36kv nominal Current 400a/ 630a the Outdoor On Load Isolator or Load Break Switches Contained in the List are Meant for the Switching Feeder I.jnesand Ring Mains or Transformer Feeders (in Connection with Hthrcf Uses with Tripping Arrangement Orwith Indication)for Short Circuit Protection. theyare Produced in 6 Modules: for Vertical Installation. for Horizontal Installation On Lattice Towers, Concrete or On Wooden Towers. without Fuses. inconnection with Hthrc Fuses with Tripping Arrangement & with Making Capacity. also Available Wijh Remote Operation in Connectionwithhthrcfuses with Tripping Indication Only. in Connection with Drop Out Fuses. the Load Break Switches Comply with Latest Iec60265,Vde 0670 Part 3. the Fuses Comply with Iec60282 and Ansi Specification.

Control Panels are the Essential Electrical Equipments Used in the Industries. We Offer Quality Electric Control Panels to Several Industries. They Ensure Not Only High Standard of Quality But also High Durability and Performance. the Power Control Panels We Supply are of Unmatched Quality. among the Leading Control Panels Suppliers in India, We Stand in the Front Raw as We Deal in Only the Branded and Guaranteed Products. We have Achieved Glory all Over India for Keeping a Huge Stock of Quality Control Panels.

We offer a one stop platform to our valuable customers for acme quality Low Voltage Vacuum Contactor. High tensile strength, low maintenance cost, effective performance is the few features which have gained firm name to these products in the market. Consequently, we are regarded as one of the trusted AC Low Voltage Vacuum Contactor Suppliers from India.

We Deal in Vacuum Circuit Breaker of Superb Quality. the Vacuum Mechanical Circuit Breaker We Supply is Having a Huge Demand in the Industry. It is Unrivaled in the Market in Terms of Performance and also the Durability. among the Leading Vcb Suppliers in India, We Stand in the Front Raw.

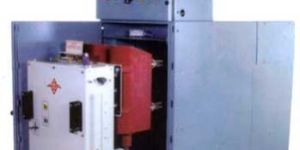

Vijai's Indoor Switchgear of type WMS employs proven vacuum interrupter technology with motor operated spring mechanism matching M2class(I0,000) operations, meeting the requirements of national and international specifications.Availablewith optional features like Busconnected VT, Feeder connected VT, Buscoupler arrangement, Busbarcable box, Rearextension chamber, internal arc chamber, series trip coil, two trip coilsetc. as per customer requirement. These products are being manufactured at VEL Switchgear plant (Rudraram, Hyderabad), where VELis known for the quality & consistency.
