Servomax India Ltd. ECIL, Hyderabad, Telangana

We have substantial warehouse that is well-equipped with the cutting-edge technologies and upgraded machines; thus, we are capable of entertaining the voluminous requirements with super ease. For the utmost customer satisfaction, we are flexible in delivering the product range at the place agreed by the customers and that too in the set time. Most Suitable For CNC Machines Bio Medical Equipments Printing Machineries Cell Phone Networks Scientific Equipments Textile Machineries. Oil & Vanaspathi Plants Large Computer Installations Garment Equipments and many more.

Operating Temperature : 0oC to 45oC

1. IGBT PWM AC to AC Switching control 2. Individual Phase control 3. Quick response time

with Relay / Contactor High voltage protection Low voltage protection with MCB Overload protection Short circuit protection

Input Voltage : 380 – 440 Volts, 3-Phase 50Hz. AC supply

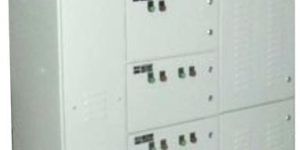

  In order to keep the quality of the products up to the mark, we check the entire range against varied quality parameters. We ensure on time distribution of wholesale as well as retail consignments owing to an extensive vendor, distributor and logistic facility base.     Most Suitable For 1. Street Lights / Security Lighting 2. Telecom Buildings 3. Sub-Station Buildings 4. Work Shops 5. Pump Houses 6. Software Units / Call Centers 7. Hotels and Restaurants 8. Commercial Complexes 9. Food Processing units ….. and many more.     1. Reduces heat generation in chokes, ballast and prevents energy loss and hazards 2. We can also provide timing profile for enhanced power savings 3. Power savings above 20% in discharge lighting. 4. Uses imported, high quality raw material to get high efficiency of 99.5% 5. Reduction in MDI 6. Improves life of all equipment 7. Uses Isolation shielding to suppress the harmonics and to give quality power to load 8. Reduces maintenance cost up to 80% 9. Eligible for accelerated depreciation benefit 10. Pay back period is 8 to 12 months based on the conditions and usage.

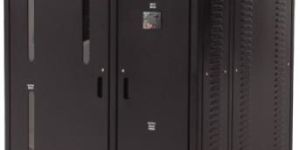

  S.NoTechnical Specification 1 Transformer 2 Double wound , High Isolation 3 Double sized neutral 4 Insulation class 5 Regulation is better than 3.5% 6 Overload rating of 100% for 10 secs 7 Core of CRGO and conductor of copper 8 Natural / Forced Air Cooled 9 As per IS:2026 standards 10 Attenuation – 80 db CMRR and 60 db CMNR 11 Primary connect as DELTA, secondary connection as STAR 12 Efficiency of the transformer is minimum 98% 2 Power Distribution 13 Floor mounting Panel board with MS angles and Ms sheets with powder coated Paint and suitable provisions for cable 14 Distributed outgoing through sub branch breakers and branch breakers 15 Extra sub breakers also provided 16 Suitable capacity 3 pole incomer 3 Metering & Indications 17 LED indications provided to read the availability of incoming supply 18 Multi parameter reading meter to read Voltages, currents and power is incorporated Power distribution unit is fitted with multiple outputs designed to distribute electrical power. In a data centre, all the distributed power loads are connected through a non linear power source, due to which HARMONICS generation is unavoidable. These generated Harmonics are flow back and directly effects the mains power source, which a UPS. The effect of harmonics derates the capacity of UPS. Hence 100% utilization of UPS capacity becomes wasted. The effect of harmonics also creates much heat in the transformers of UPS. To eliminate these direct effects on UPS, KFactor Transformers are designed based on the harmonics present the load. The special design of K-Factor Transformer helps us to depend on much to eliminate or withstanding from the effects of Harmonics.

An isolation transformer is a transformer used to transfer electrical power from a source of alternating current (AC) power to some equipment or device while isolating the powered device from the power source. Basically this function goes like this; it decouples the circuits and then supplies the current from one circuit to another. This transformer completely isolates all the circuits and then supplies power individually which makes it all the more desirable and comprehensive. An isolation transformer does not have a direct electrical path from the power input side to the power output side their design is based more on the requirements of the user. So, in a way you can say that they are customized transformers.

Product Special Features SMS facility for Energy Reading & Low Power Factor Earth fault relay Phase Sequence indication MOST SUITABLE FOR INDUSTRIAL, RESIDENTIAL AIRPORT , STADIUM       1. L.V Switchboard 2. As per IS Standards 3. IP 52 / 54 / 55 protection 4. Indoor / Outdoor 5. Electrolytic Busbars Aluminium / Copper 6. Customized Panels 7. Single Front / Double Front / Dead Front 8. DMC / SMC Insulators 9. Capacity Expandable 10. Complete Earthing of Doors & Frame 11. Shipping sections as per demand

Servo Voltage Stabilizers come in a wide range of models. The standard 3-phase models are suitable for balanced & unbalanced supply/loads, which conform to the following Most Suitable For Cement Plants Air Ports Rolling Plants Flour Mills Engineering Units Cell Phone Networks Rice Mills Pharmaceutical Units Cold Storage

Number Of Flower : Indoor / Outdoor

Most Suitable For cnc machines bio medical equipmemts printing machiniers cell phone networks scientiic equipments textile machineries oil & vanaspathi plants large computer installations Garment equipment

Input Voltage : 415v 3 phase

Output Voltage : 415-200v 3 phase

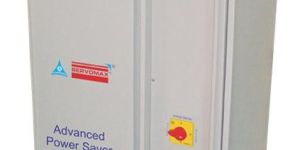

Integrated power management and monitoring unit is a customized solution for providing quality power with monitoring of various power parameters, logging of faulty parts and faulty power equipments and transmitting data logs to service stations, main computers and various other locations using GPRS \ GSM \ CDMA Route. This unit performs multi functional jobs like: Automatic Mains Transfer, Voltage Regulation, Fire \ Smoke Detection, Surge Protection, Power Line Isolation, Remote monitoring along with various power protections and features like timer unit for on \ off of Aviation lamps, Automation By- pass etc.

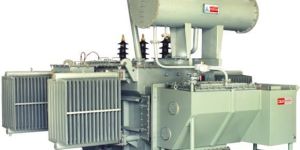

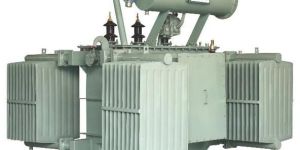

Temperature Rise It is designed for 30-35 degree C above ambient. Suitable for any kind of ambient temperature conditions. Core Core is constructed from Low Loss of CRGO M-4 Grade confirming to latest standards & is fitted & clamped with special built in-house frames to reduce the magnetic noise & to make the structure rigid & robust. Windings Use paper covered electrolytic grade copper strip for winding. Cooling ducts are provided to keep the hot spot temperature as low as possible. Tanks & Paint Tanks are made of M.S. Sheets with adequate bracing & stiffeners are given a coat of Epoxy Primer & Epoxy paint for better life. Both light grey & Siemens grey (RAL 7032) are available in colour. Oil Oil of IS: 335 standard is being used & is filtered before topping.       1. Power Saving ( Reduction in Power Bills ) 2. Reduction in breakdown of electrical / electronic equipments 3. Reduction in MDI 4. Improvement in Power Factor (At Higher Voltage) 5. Uniform Quality / Lesser Tripping 6. Improvement in quality of end products 7. Better Efficiency in Plant 8. Unmeasurable Benefits 9. Depreciation as per income tax act (In India Only)

Even after the installation of standard off circuit distribution transformer, the voltage fluctuation on the LT side persists due to limited range of voltage correction of the transformer. To control the voltage fluctuations, it is ideal to install Servo Controlled Automatic Voltage Controller either on LT side or HT side.SERVOMAX make Transformers with built-in rolling contact type AVR suitable for indoor/outdoor installation, copper wound HT Two-in-one system is a revolutionary landmark in the industry when it comes to voltage regulation and stabilization. Even after the installation of standard distribution transformer the problem of low/high voltage on the LT side persists, resulting in improper operation of the electrical equipments, premature failure & production loss of a plant. The standard off – circuit tapping of transformers can correct limited voltage variation and cannot regulate the voltage while in ‘On Load’ conditions. We have developed state of the art technology two-in-one system with Transformers having built-in HT Automatic voltage regulator that operates on load, sleeplessly & gives stabilized voltage on the LT Side. The equipment is basically a combination of HT AVR with a standard distribution transformer. The Fluctuating voltage from grid is initially controlled by the HT AVR and then fed to the transformer resulting in the constant L.T. Output within +/- 1% accuracy and the biggest advantage being its robust design ; Lesser losses & more efficiency make the distribution transformer to utilize up to 100% capacity.       H.T. Transformer with built-in Automatic Voltage Stabilizer: 3000 kVA The Unit Consists Of: Step down double wound in copper construction On load stepless rolling contact type voltage regulator Buck/boost transformers Advantages Of Built – In AVR Space Saving Better Efficiency Protection of Motor etc. Reduced Installation Cost Reduction in Electricity Bill SERVOMAX H.T. Stabilizer Comprises Of: Step down unit, double wound Buck/boost unit, double wound Stabilizer unit, auto wound delta connected with rolling contacts capable of moving on the winding through Automatic, Motorized, Manual mechanism for regulation of the voltage at the output side. Control unit

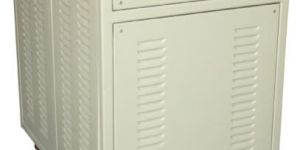

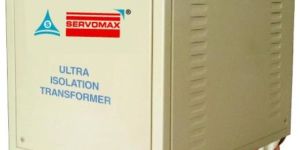

Multiple Shielding Techniques employed to reduce the inter winding capacitance to below 0.005 picofarad and increases DC Isolation to over 1000 Megaohms. Technically any transformer that has no direct current path between its primary & secondary windings provides isolation from any kind of leakage in Current, Spikes/Surges produced in the system. Provision of electrostatic shield in between primary & secondary winding depends upon its construction, specification & performance characteristics. Isolation / Ultra Isolation Transformer are being used to protect Electronic & Sophisticated equipments, CNC Machines from the excessive line voltage transients, spikes / surges produced in the system. Electrostatic shielding helps in grounding these spikes & not allowing to pass on to the secondary side of the transformer. Furnace Transformer are built in delta / star connection with neutral as floating & electrostatic shielding is used to protect the furnace from any kind of Earth Fault Tripping.

Dry type transformers are suitable for indoor installations in explosive atmospheric areas and populated locations such as malls, multiplex etc. These dry type transformers have F or H insulation class with or without enclosure as per the site requirement. Dry transformers are very compact in sizes and hence suitable for basement installations in high rise buildings etc. Dry transformers are available with low losses giving savings over long service periods. Periodical vacuum cleaning of winding surface is the only maintenance. The capacity range of these iron core transformer is up to 2000 KVA with primary Voltage up to 11 KV class & secondary Voltage between 433 to 6600 Volts. Most Suitable For Measurement of Winding Resistance Measurement of Voltage / Turns Ratio Measurement of Impedance Voltage / Short Circuit Impedance & Load Loss Measurement of No Load Loss & No Load Current Measurement of Insulation Resistance Di-Electric Tests     50 kVA to 5000 kVA, 11 kV & 33 kV Class suitable for Indoor applications with off circuit tap links, off circuit tap switch, on load tap changer (Indigenous & Imported). The Dry Type transformers are manufactured to comply with National International Standards BIS, IS 11171, and IEC 76. Servomax manufacture Ventilated Dry Type Transformer are totally maintenance free and safe from fire as material used are metals, ceramics, fiberglass and resin It is environment friendly as there is no oil, hence handing becomes easier and there are no chances of spillages and leakages and there is minimal non toxic smoke in case of fire. Servomax offers Ventilated Dry Type Transformers with class H/E insulation which can bear heat up to 180/220 degree C and can be used in humid and chemically polluted atmosphere.

  Subjected to rigorous and strict quality controls at every stage of manufacturing, Designed to meet latest national international standards like BIS, IS, IEC, ANSI, BS, DIN, etc., Wide range of Transformers duly tested at Central Power Research Institute, Bangalore , Bhopal Quality assurance programme available     MOST SUITABLE FOR Tube Mills Telecom Centers Rice Mills Rolling Plants Educational Institutions Cold Storage Clubs Pharmaceuticals Units Residential & Commercial  Food Processing Unit

Phase : 50 Hz in voltages of 11 KV, 22 KV and 33 KV

Most Suitable For Manufacturing Companies BPO Organizations Shopping Malls Steel Mills Spinning Mills Cement and Paper Mills Offices & Buildings Hotel & Restaurants Rice Mills Hospitals Cinema Halls / Multiplexes

Country of Origin : 415 V, AC

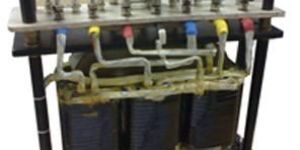

SERVOMAX make 3-Ø Amorphous Core Isolation Transformers 50 Hz or 1 KHz with primary Voltage 360-480V & Secondary voltage 380-415 Volts, 120/240 Volts or as required, Oil immersed, naturally air cooled, double wound with Aluminium / Copper, Step up / Step down core type continuous duty transformers having no load voltage ratio from 200 VA to 160 KVA with ‘H’ Class Insulation and designed to withstand Short Circuit, & Impulse Test in accordance with IS 2026.

Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage. PROGRAMMABLE PARAMETERS Output voltage set ( 210-245V) Output Low Voltage Cutoff Input High on LCD Display Sensitivity / Regulation Over Load Cutoff CT full scale Output High Voltage Cutoff Input Low on LCD Display METERING ON LCD DISPLAY 3ph Input volt meter to read ph to ph and ph to Neutral Voltages 3ph Output volt meter to read ph to ph and ph to Neutral Voltages Frequency meter to read system Frequency 3ph Ammeter to read Output Current on each ph PROTECTIONS Input Short Circuit Protection with MCB Input Over Load Protection with MCB Output Low Voltage Protection Output High Voltage Protection Output Electronic Over Load Protection

Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage.   Protections Single Phasing Prevention Output Electronic Over Load Protection Phase Reversal Protection Input Short Circuit Protection with MCB Input Over Load Protection with MCB Output Low Voltage Protection Output High Voltage Protection Audio Alarm for Protections     Indications Mains Input on 3 LED Indications, 3ph output on indication Phase Reversal indication over Load indication Indications in LCD Display Input High and Input low Output on indication Output high Cutoff and Output Low Cutoff     Programmable Parameters Output voltage set ( 210-245V) Output Low Voltage Cutoff Output High Voltage Cutoff Input Low on LCD Display Input High on LCD Display Sensitivity / Regulation Over Load Cutoff CT full scale Programmable Control Timings Over load Cutoff Time Auto Restart Time On & Off Delay Time Programmable Controls Display Scrolling – Auto / Manual Start / Stop Buttons Menu / Start / Stop / Reset / Log Button Data Log: Last 100 fault events log with Date & Time stamp and works on FIFO basis. Very Important For CSD Analysis Problems
