ApplicationUnique input and output sound effects; pass alert blinkers; optional body colors.
Power Input100 - 240 V AC
Power Consumption60 Watt
Body1,2 mm 304 quality stainless steel or electrostatic paint.
Operational Temparature(-20), (+50) C
Dimensions940 x 200 x 260 mm
Length of Arm750, 900 mm or intermediate lengths
Smart ArmThe tourniquet may feel any objects it touches during its back and forth movements and react accordingly.
ControlFor pass triggering, it may be used by dry contact or 3-50 V dc impact, or by direct PC control with TTL, CMOS or RS232-RS422-485 can be used.256 swing gates can be controlled by a single PC. All sorts of access control units and other peripherals may be
SystemIt has been designed with a microprocessor control.It has bidirectional operation. It has a data output on the pass direction. This output can be either a digital output or be directly sent to a PC when controlled by a PC.
Sensor ControlIn the event that a person stands in front of the tourniquet arm during passing, arm's movement will be prevented thanks to the security sensor even in triggering situation for the closing of tourniquet by any control unit. In the event that passing is co
Button ControlAlso works with a single or double button control. In single button control, tourniquet will make its subsequent movement (closes if open, opens if closed) every time the button is pressed. In double button control, there are separate buttons for opening
Time ControlIf you wish the tourniquet to close automatically some time after opening, it has a time control adjustable to the desired time.
Emergency ModeControl opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available. Emergency passes can also be made by remote control. This way, the tourniquets allows for emergency exits.
Display PanelsTree-phase light indicator ensures pass control of system.Green arrow flashes if the tourniquet is ready for the pass. Green arrow is continuously on when one has been permitted to pass. At the moment one has passed througt the tourniguet, red X signal is
Remote ControlIt may be controlled by button (30 m) or keyless (3 m) remote controls. Thanks to the keyless command module attached to the key holder or that the personnel will keep with them, when one approaches 3 meters to the tourniquet, the tourniquet recognizes th
ExtrasRequired feed tension conditions may be provided depending on customer requirements.Optional features are available with the system. Custom solutions may be produced.
Technical ServiceFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.
Micro_processor controlled system. Operates in two directions. Allows passing in one direction. A data output avaliable in the direction advanced. This may either be a digital output to additional equipment or may be sent directly to pc. We developed new mechanich which brakes circle movement of the turnstile arm with hydraulic shock absorver unit. System switches to automatic free passing mode in case of a power failure.
for pass triggering, it may be used by dry contact or 3-50 v dc impact, or by direct pc control with ttl, cmos or rs232 rs422-485 can be used. Up to 256 turnstiles can be supervised by a single pc. All sorts of access control units and other peripherals may be easily connected.
illuminated three level display provides access control for the system. If turnstile is ready for access, a green arrow flashes. When access is granted, the green arrow permanently lights up. At the moment of access, a red sign appears for the opposite direction as an indication of blocked access.
control opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available.wooden or granite options for top cover.
fast and uninterrupted high-quality, expert technical support throughout turkey, turkish republic of northern cyprus, central asia and balkans.
Micro_processor controlled system. Operates in two directions. Allows passing in one direction. A data output avaliable in the direction advanced. This may either be a digital output to additional equipment or may be sent directly to pc. We developed new mechanich which brakes circle movement of the turnstile arm with hydraulic shock absorver unit. System switches to automatic free passing mode in case of a power failure.
for pass triggering, it may be used by dry contact or 3-50 v dc impact, or by direct pc control with ttl, cmos or rs232 rs422-485 can be used. Up to 256 turnstiles can be supervised by a single pc. All sorts of access control units and other peripherals may be easily connected.
illuminated three level display provides access control for the system. If turnstile is ready for access, a green arrow flashes. When access is granted, the green arrow permanently lights up. At the moment of access, a red sign appears for the opposite direction as an indication of blocked access.
control opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available.wooden or granite options for top cover.
fast and uninterrupted high-quality, expert technical support throughout turkey, turkish republic of northern cyprus, central asia and balkans.

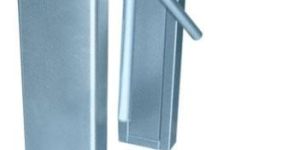

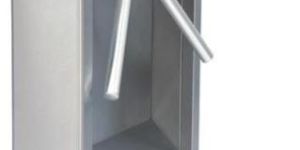

ApplicationAssembly kit provides fast and easy installation
Power Input100 - 240 V AC
Power Consumption60 Watt
Operational Temparature(-20), (+50) C
Dimensions(W x L x H / mm) 230 x 790 x 980
Length of Arm43 cm
ControlFor pass triggering, it may be used by dry contact or 3-50 V DC impact, or by direct PC control with TTL, CMOS or RS232 RS422-485 can be used. Up to 256 turnstiles can be supervised by a single PC.All sorts of access control units and other peripherals ma
Emergency ModeMicro_processor controlled system. Operates in two directions. Allows passing in one direction. A data output avaliable in the direction advanced. This may either be a digital output to additional equipment or may be sent directly to PC. We developed new
SystemControl opportunity linking to security systems (automatic free pass mode in emergency situations,and fire alarm ) is available.
Display PanelsIlluminated three level display provides access control for the system. If turnstile is ready for access,a green arrow flashes. When access is granted, the green arrow permanently lights up. At the moment of access, a red sign appears for the opposite dir
ExtrasSmooth and quiet access features are integrated in a decorative design bu its unique configuration.
Special DesignWooden or granite options for top cover.
Technical ServiceFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.

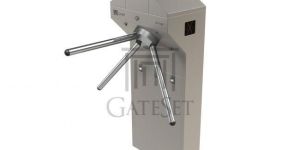

MATERIAL - MAIN BODY1.5 mm 304 grade stainless steel, satin finishing
MATERIAL - ROTATING ARMS1.5 mm 304 grade stainless steel
TREATMENT - OTHER PARTSAll other parts are coated against corrosion
DIMENSIONS (mm)GT-3100 / GT-3104: 280 x 450 x 970 (WxLxH) GT-3140 / GT-3144: 280 x 450 x 1050 (WxLxH)
ARM LENGTH (mm)430
OPERATING VOLTAGE115-240 V AC / 24V DC - 50-60 Hz
NOMINAL / MAX. CURRENT250 mA / 850 mA
POWER CONSUMPTION30 W
OPERATING TEMPERATURE-20 oC / + 70 oC
ACCESS CONTROLMicroprocessor based control for granting access Easy integration with all kind of access control equipment
POSITION DETECTIONPosition detection with two separate micro-switches at mechanics
DROP ARM FEATUREDropping feature at each tripod arm providing ease of site evacuation at the case of emergency, (only at GT-3104 and GT-3144 models)
WARNING INDICATORSTwo separate warning indicators at front and rear sides of the gate. Green arrow indicates - Passage Open, Red cross indicates - Passage Closed
OPERATION MODE6 different operational modes available, programmed by means of software
DIRECTIONAL MODEUnidirectional and Bidirectional operation features as Only Entrance, Only Exit, Entrance and Exit
ROTATION CONTROLSelf-centered and smooth operation by means of spring and hydraulic damper
CAPACITYHandling more than 30 passengers per minute
DESIGNWhile aesthetic classical case design provides good outlook, its modularity ensures ease of installation and part replacement
OPERATION SAFETYElectrical and mechanical safety for all component. To avoid injuries, all corners and sides are rounded
ELECTRICAL FAILURESMain mechanism released and unlocked automatically. Arms rotates free
SystemTurnstile is designed to operate with a microprocessor control. Works two-ways. Allows only one access per permission. Digital data output is provided in the direction of access. Upon access permission and following contact with the turnstile arm, the tur
Total Carbohydrate2 Years
InstallationAssembly kit allows fast and easy installation
Body1,2 mm 304 quality 3M stone stainless steel
Operational Temparature(-20), (+50) C
Length of Arm43 cm, 40 cm
ControlFor access triggering dry-contact, 3-50 DC boost, TTL, CMOS or direct PC controlled RS232 - RS485 can be used. Up to 250 turnstiles can be supervised by a single PC. All kinds of access control units and other peripheral options can be easily added to the
Display PanelsIlluminated three-level display provides access control for the system. If turnstile is ready for access, a green arrow flashes. When access is granted, the green arrow permanently lights up. At the moment of aces a red "X" sign appears for the opposite d
ExtrasDifferent voltage support is available. Suitable solutions can be realized depending on the needs.
Special DesignThanks to its special design, offers a decorative aspect as well as a soft, easy and silent access.
Technical ServiceFast and uninterrupted high-qualit, expert technical support throughout Turkey, Turkish Republic of Notrhern Cyprus, Central Asia and the Balkans.
System : Turnstile is designed to operate with a microprocessor control. Works two-ways. Allows only one access per permission. Digital data output is provided in the direction of access. Upon access permission and following contact with the turnstile arm, the tur
Total Carbohydrate : 2 Years
Installation : Assembly kit allows fast and easy installation
Power InputMechanical controlled security turnstile does not need any energy source. It turns with the power of the passing person.
Dimensions93 cm x 145 cm x 111 cm
Total Carbohydrate2 years
ApplicationAssembly kit provides fast and easy installation
BodyMaterial : 1,5 mm 304 quality stainless steel electrostatic paint on metal sheet or anodized aluminium profiles.
Special DesignThanks to its special design, offers a decorative, aspect as well as a soft, easy and silent access.
Technical ServiceFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.
Total CarbohydrateDevice is under warranty for a period of one year.
Power Input220 - 240 V AC
Power Consumption400 W
Operational Temparature(-20), (+60) C
Dimensions102 cm x 25 cm x 39 cm
Body1,25 mm 304 grade stainless steel, electrostatic dye on 5mm composite or 0,8mm galvanized sheet
Engine380V AC, 3F
Engine ControlThe engine is controlled via current protected inverter circuit producing three phase using 220V input.
Length of Arm3,3m / 4,8m / 6 m or in between lengths
Remote / Time / Button / Access / Sensor ControlRemote Control: Possible to control via button (30m) or keyless (3m) remote control. Thanks to the keyless remote module that can be attached to the vehicle key or placed any location inside the car, the barrier recognizes the vehicle from 3m while approa
Smart ArmThe barrier arm is capable of sensing an object coming into contact during upwards and downwards movement and acting accordingly. It is possible to manufacture the arm breakable at crash (OPTIONAL).
SystemElectronic circuit is designed as microprocessor controlled. All of the optional features on the electronic circuit are ready for use. It is always possible to improve the system by making the peripheral connections.
Warning LightThe warning lamb of the device blinks during the upwards & downwards movement of the barrier until the arm stops moving.
Indicator LightsComfortable and highly safe passing control is ensured by the green and red lights mounted on the barrier enclosure (OPTIONAL).
ReflectorRed reflector bands visible during night and the "STOP" caption are available on the barrier arm.
Emergency ModePossible to control by connecting to security systems (automatic free pass mode during emergency and fire alarm conditions).
Special DesignOffers a decorative look with its custom design for both indoor and outdoor.
Technical ServiceExpert, quality, fast and uninterrupted technical support throughout Turkey, Cyprus, Turkic Republics and in the Balkans.
InstallationEasy and quick installation thanks to the installation kit.

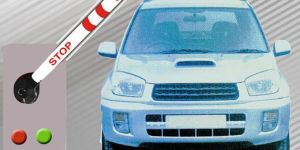

We offer automatic nova barrier.
remote control: possible to control via button (30m) or keyless (3m) remote control. Thanks to the keyless remote module that can be attached to the vehicle key or placed any location inside the car, the barrier recognizes the vehicle from 3m while approaching and grants pass without clicking any button. A barrier has a capacity of 1-250 / 1-500 button or keyless remote definitions. Time control: in case you like the barrier to be closed automatically after a period of time, the desired time can be adjusted using the time control. Button control: the barrier operates with single or double button control. In single button control, the barrier performs the next action whenever clicked (closes if open, opens if closed). In double double control, it is possible to use separate buttons for opening and closing. Access control: dry contact is used for pass triggering. Easily connected to all kinds of access control units and other peripheral units. Sensor control: in the event that the vehicle stops while passing under the barrier arm, downwards movement of the arm is prevented thanks to the safety sensor, even if the barrier is triggered for closing action. Once the vehicle passes, system performs the delayed closing action. Additional safety sensor is used for trucks and lorries.
the barrier arm is capable of sensing an object coming into contact during upwards and downwards movement and acting accordingly. It is possible to manufacture the arm breakable at crash (optional).
electronic circuit is designed as microprocessor controlled. All of the optional features on the electronic circuit are ready for use. It is always possible to improve the system by making the peripheral connections. The warning lamb of the device blinks during the upwards & downwards movement of the barrier until the arm stops moving. The engine is controlled via current protected inverter circuit producing three phase using 220v input. Comfortable and highly safe passing control is ensured by the green and red lights mounted on the barrier enclosure (optional).
red reflector bands visible during night and the "stop" caption are available on the barrier arm. Possible to control by connecting to security systems (automatic free pass mode during emergency and fire alarm conditions). Offers a decorative look with its custom design for both indoor and outdoor.
We offer automatic nova barrier.
remote control: possible to control via button (30m) or keyless (3m) remote control. Thanks to the keyless remote module that can be attached to the vehicle key or placed any location inside the car, the barrier recognizes the vehicle from 3m while approaching and grants pass without clicking any button. A barrier has a capacity of 1-250 / 1-500 button or keyless remote definitions. Time control: in case you like the barrier to be closed automatically after a period of time, the desired time can be adjusted using the time control. Button control: the barrier operates with single or double button control. In single button control, the barrier performs the next action whenever clicked (closes if open, opens if closed). In double double control, it is possible to use separate buttons for opening and closing. Access control: dry contact is used for pass triggering. Easily connected to all kinds of access control units and other peripheral units. Sensor control: in the event that the vehicle stops while passing under the barrier arm, downwards movement of the arm is prevented thanks to the safety sensor, even if the barrier is triggered for closing action. Once the vehicle passes, system performs the delayed closing action. Additional safety sensor is used for trucks and lorries.
the barrier arm is capable of sensing an object coming into contact during upwards and downwards movement and acting accordingly. It is possible to manufacture the arm breakable at crash (optional).
electronic circuit is designed as microprocessor controlled. All of the optional features on the electronic circuit are ready for use. It is always possible to improve the system by making the peripheral connections. The warning lamb of the device blinks during the upwards & downwards movement of the barrier until the arm stops moving. The engine is controlled via current protected inverter circuit producing three phase using 220v input. Comfortable and highly safe passing control is ensured by the green and red lights mounted on the barrier enclosure (optional).
red reflector bands visible during night and the "stop" caption are available on the barrier arm. Possible to control by connecting to security systems (automatic free pass mode during emergency and fire alarm conditions). Offers a decorative look with its custom design for both indoor and outdoor.
SystemControl opportunity linking to security systems (automatic free pass mode in emergency situations,and fire alarm ) is available.
Total Carbohydrate2 years.
ApplicationAssembly kit provides fast and easy installation.
Operational Temparature(-20), (+50) C
Length of Arm43 cm
ControlFor pass triggering, it may be used by dry contact or 3-50 V DC impact, or by direct PC control with TTL, CMOS or RS232 RS422-485 can be used. Up to 256 turnstiles can be supervised by a single PC.All sorts of access control units and other peripherals ma
Emergency ModeMicro_processor controlled system. Operates in two directions. Allows passing in one direction. A data output avaliable in the direction advanced. This may either be a digital output to additional equipment or may be sent directly to PC. We developed new
Display PanelsIlluminated three level display provides access control for the system. If turnstile is ready for access,a green arrow flashes. When access is granted, the green arrow permanently lights up. At the moment of access, a red sign appears for the opposite dir
ExtrasSmooth and quiet access features are integrated in a decorative design bu its unique configuration.
Special DesignThanks to its specific design, offers a decorative aspect as well as a soft and silent passage.
Technical SpesificationsFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.

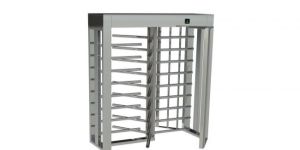

MATERIAL - MAIN BODYGF-4300 / GF-4320: Electrostatic Powder Coating on Steel. GF-4340: 304 Stainless Steel - Satin Finishing
MATERIAL - ROTATING ARMSGF-4300: Electrostatic Powder Coating on Steel. GF-4320 / GF-4340: 304 Stainless Steel
TREATMENT - OTHER PARTSAll other parts are coated against corrosion
DIMENSIONS (mm)1250 x 1500 x 2200 (WxLxH)
PASSAGE WIDTH (mm)620
OPERATING VOLTAGE220V / 50Hz
NOMINAL / MAX. CURRENT250 mA / 850 mA
OPERATING TEMPERATURE-20°C / + 70°C
ACCESS CONTROLMicroprocessor based control for granting access. Easy integration with all kind of access control equipment
POSITION DETECTIONPosition detection with two separate micro-switches at mechanics
PASSAGE ACKNOWLEDGMENTProvided by 4 pieces of optical passage sensors controlled with PLC (optional)
WARNING INDICATORSTwo separate warning indicators at front and rear sides of the gate. Green arrow indicates - Passage Open, Red cross indicates - Passage Closed
OPERATION MODE6 different operational modes available, programmed by means of software
DIRECTIONAL MODEUnidirectional and Bidirectional operation features as Only Entrance, Only Exit, “Entrance and Exit
ROTATION CONTROLSelf-centered and smooth operation by means of spring and hydraulic damper
CAPACITYHandling more than 30 passengers per minute
DESIGNWhile Cage type design enhances security, its modularity ensures easy part replacement
OPERATION SAFETYElectrical and mechanical safety for all components, To avoid injuries, all corners and sides are rounded
MANUAL OVERRIDEEntry and Exit Manual Override option with locked switch cabinet (optional)
ELECTRICAL FAILURESMain mechanism released and unlocked automatically. Arms rotates free.

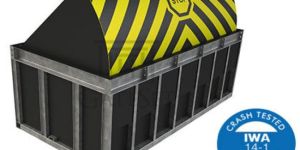

BLOCKING LENGTHIntermediate Lengths from 2000 mm to 6000 mm
OBSTACLE HEIGHT800 mm (standard). Intermediate Heights are provided from 500 mm to 1000 mm
OTHER DIMENSIONSCase Width: 1325 mm, Case Depth: 1100 mm (for standard 800 mm Obstacle Height)
BLOCKER UNDERGROUND CASEHeavy Gauge 100x100x4 Square Profiles, 6 mm Thick Front Circu-lar Plate, Supported by A Shaped Supports made out of 100 mm NPI Steel, Steel Top Plate Thickness 12 mm
BLOCKING WEDGE8 pieces Impact Absorbing Stents, Placed inside each A Shaped Support, 12 mm Thickness
TREATMENTTwo Component Surface Tolerant Epoxy Mastic Coating for Corrosion Protection (Jotamastic) and Painted with Polyester Outdoor Paint, Black Finishing with Yellow Stripes on the Circular Front Steel and Top Plate
CONTROL CABINET2 mm Thick Steel, Electrostatic Thermal Painting for Anti-Corrosion Resistance
CABINET DIMENSIONSFeature: Standard With HPU2400 Kit With EOK Kit HPU2400 + EOK Kit Width: 390 mm 510 mm 510 mm 510 mm Length: 750 mm 1250 mm 1310 mm 1310 mm Height: 1290 mm 1050 mm 1250 mm 1250 mm
DRIVEHeavy Duty Hydraulic
DRIVE POWERMin 10 Bars / Max 120 Bars
RISING / FALLING TIME2-3 Seconds
SPEED CONTROLSlowing Down at Opening and Closing Limit Points
WORKING FREQUENCY300+ Cycles/Hour
EMERGENCY OPERATIONRising in 1.5 Second (with optional EOK Kit)
POWER OUTAGECapable to make up to 10 Complete Cycles without Electricity (with optional HPU2400 Kit)
POSITION DETECTION2 Weather Proof Proximity Limit Sensors
MANUAL OPERATIONAscending and Descending with Manual Hand Pump
ELECTRIC MOTOR380 VAC / 50-60 Hz. 4 to 5.5 kW,
CONTROL PANELSchneider SR2 A201BD PLC, Programmable for Integration with Various Systems
TEST PANELIntegrated Test Panel on Electric Cabin Cover with Phase Indicators
IMPACT RESISTANCE7,500 kg at 80 km/h (K12 - PAS68 Equivalent)
AXLE LOAD RESISTANCE35 Tons
PROTECTION CLASSIP 65
HYDRAULIC PIPES18/1.5 Connector - 1/2 Radius, 350 Bars Max Pressure,10 m Pipe Length (standard)
SAFETY EQUIPMENTEmergency Stop Button (standard), Front and Rear Loop Sensor (optional)
STANDARD ACCESSORIESRemote Control Keyboard (wired), Test Unit on ECU Panel, Oil Level and Temperature Indicator, Manometer
Features microprocessor controlled design. Works two ways in upward and downward directions. Suitable for continuous performance. Duration of upward/downward action can be set within the 2-4 second range. With its emergency mode signal feature, system can reverse its direction of movement before completing its intial task. In case of emergency or power outage, a special function button is available for manual raising or lowering of the bollard in the pneumatic model, and a special function pump equipped with an arm and an external pressure avacuation valve is available for manual raising or lowering of the bollard in the rydraulic model.
There is a dot-matrix LCD display screen on the microprocessor control anel. Current action and position of the system can be monitored through the display screen. This special feature empowers the user with speedy and prompt intervention and control of the system. In Pneumatic model; fuses, peripheral connection relays and loop-sensor sockets are also located on the control board. In hydraulic model; phase and power overload protection units, fuses, peripheral connection relays and loop-sensor sockets are also located on the control board. Variety of power feed options can be provided according to customer demand. Optimum solutions to customer needs can also be devised.
Features microprocessor controlled design. Works two ways in upward and downward directions. Suitable for continuous performance. Duration of upward/downward action can be set within the 2-4 second range. With its emergency mode signal feature, system can reverse its direction of movement before completing its intial task. In case of emergency or power outage, a special function button is available for manual raising or lowering of the bollard in the pneumatic model, and a special function pump equipped with an arm and an external pressure avacuation valve is available for manual raising or lowering of the bollard in the rydraulic model.
There is a dot-matrix LCD display screen on the microprocessor control anel. Current action and position of the system can be monitored through the display screen. This special feature empowers the user with speedy and prompt intervention and control of the system. In Pneumatic model; fuses, peripheral connection relays and loop-sensor sockets are also located on the control board. In hydraulic model; phase and power overload protection units, fuses, peripheral connection relays and loop-sensor sockets are also located on the control board. Variety of power feed options can be provided according to customer demand. Optimum solutions to customer needs can also be devised.
Body1,25 mm 304 quality stainless steel or electrostatic paint on metal sheet
Operational Temparature(-20), (+60) C
Dimensions124 cm x 23 cm x 103,5 cm (h) LEFT/RIGHT
124 cm x 32 cm x 103,5 cm (h) DOUBLE CENTER
Length of Arm28cm standard / other lenghts are optional
Smart ArmThe tourniquet may feel any objects it touches during its back and forth movements and react accordingly
SystemIt has been designed with a microprocessor control.It has bidirectional operation. It has a data output on the pass direction. This output can be either a digital output or be directly sent to a PC when controlled by a PC.
Access ControlFor pass triggering, it may be used by dry contact or 3-50 V dc impact, or by direct PC control with TTL, CMOS or RS232-RS422-485 can be used. Tourniquet as much as 32 and multiples can be controlled through a single PC. All sorts of access control units
Sensor ControlIn the event that a person stands in front of the tourniquet arm during passing, or even in the case that the person have passed the turnstile but left his/her bag behind, arm's movement will be prevented thanks to the security sensor even in triggering s
Button ControlAlso works with a single or double button control. In single button control, tourniquet will make its subsequent movement (closes if open, opens if closed) every time the button is pressed. In double button control, there are separate buttons for opening
Time ControlIf you wish the tourniquet to close automatically some time after opening, it has a time control adjustable to the desired time
Display Panels
Emergency ModeControl opportunity linking to security systems (automatic free pass mode in emergency situations, and fire alarms) is available
Special DesignThanks to its special design, offers a decorative aspect as well as a soft, easy and silent access.
Technical ServiceFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.
SystemMicro-processor controlled system. Operates in two directions. Allows passing in one direction. A data output is available in the direction advanced. This may either be a digital output to additional equipment or may be sent directly to a PC. System switc
Total Carbohydrate2 Years
ApplicationSpesific audio effects for entry/exit and different body color optional.

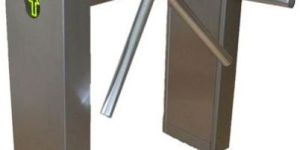

Body1,5 mm 304 quality stainless steel or electrostatic paint on metal sheet
Operational Temparature(-20), (+60) C
Length of Arm65 cm standard
ControlSuitable for using through direct PC control together with dry contact to trigger or 3-50V DC impact, TTL, CMOS, or RS232/422/485. Easily connected to any access contol units and other peripheral units.
Emergency ModePossible to control through connection with security systems. (Automatic free passing-panic mode in case of emergency, fire alarm)
Display PanelsLigthing indicator with three positions ensures passing control of the system. If the turnstile is ready for passing a green arrow blinks. When passing is allowed green arrow lights permanent. At the moment of passing through, a red 'X' lights up indicati
ExtrasDifferent voltage support is available. Suitable solutions can be realized depending on the needs.
Special DesignThanks to its special design, offers a decorative aspect as well as a soft, easy and silent access.
Technical ServiceFast and uninterrupted high-quality, expert technical support throughout Turkey, Turkish Republic of Northern Cyprus, Central Asia and Balkans.
System : Micro-processor controlled system. Operates in two directions. Allows passing in one direction. A data output is available in the direction advanced. This may either be a digital output to additional equipment or may be sent directly to a PC. System switc
Total Carbohydrate : 2 Years
Application : Spesific audio effects for entry/exit and different body color optional.
MaterialBarrier case: 2 mm heat treated powder coating with anti-rust layer (standard) 304 grade stainless steel case (optional) Motor and gearbox holder: 10 mm galvanized steel sheet
Power Input220 V AC Single Phase
Motor0.75 kW, 380 V AC 3 phases 50-60 Hz controlled by Frequency Inverter
InstallationSlotted external mounting plate for robust and easy installation
CertificationISO 9001:2015
Total Carbohydrate2 years
CASE DIMENSIONS320 x 280 x 1020 mm (WxLxH)
RISING ARM80 mm Diameter Circular white (RAL9016) aluminum boom with reflective stripes. Up to 6 meters (standard)
TOP COVER2 mm heat treated powder coating with anti-rust layer (standard) 10 mm cast aluminum with LED Stripe for enhanced visibility (optional)
OPENING / CLOSING TIMEFrom 0.6 seconds at 3 meters arm to 2.5 seconds at 6 meters arm Adjustable from 0.6 to 6 seconds with parameter setup depending on requirements
OPERATION FREQUENCY6,000+ consecutive movements supported with 100% duty cycle Suitable for handling 10,000+ vehicle passage per day
SPEED CONTROLOperation speed, ramp-up, ramp-down control parameters adjustment on Frequency Inverter panel
TRANSMISSIONMulti Directional Gearbox providing effortless change of arm direction
MOVEMENT CONTROLSmooth Control down to Zero Speed with Control Techniques Inverter
MANUAL OPERATIONManual Rotating Key in Case of Power Outage
POSITION CONTROLInductive limit switches with physical position adjustment for down and up positions
AUTO CLOSEBarrier automatically closes itself, close time is adjustable Seamless integration with GateSet Parking Management Systems
OBSTACLE DETECTIONArm detects obstacle in both direction and reverse operation instantly
CRASH DETECTIONArm releases itself automatically from its mounting point when hit by vehicle (optional)
OPERATING TEMPERATURES- 25°C / +70°C
AMBIENT HUMIDITY100% RH or less (without condensation)
Material : Barrier case: 2 mm heat treated powder coating with anti-rust layer (standard) 304 grade stainless steel case (optional) Motor and gearbox holder: 10 mm galvanized steel sheet
Power Input : 220 V AC Single Phase
Motor : 0.75 kW, 380 V AC 3 phases 50-60 Hz controlled by Frequency Inverter
Installation : Slotted external mounting plate for robust and easy installation
MaterialBarrier case: 2 mm heat treated powder coating with anti-rust layer (standard) 304 grade stainless steel case (optional) Motor and gearbox holder: 10 mm galvanized steel sheet
Power Input220 V AC Single Phase
Motor0.75 kW, 380 V AC 3 phases 50-60 Hz controlled by Frequency Inverter
InstallationSlotted external mounting plate for robust and easy installation
CertificationISO 9001:2015
Total Carbohydrate2 years
CASE DIMENSIONS320 x 280 x 1020 mm (WxLxH)

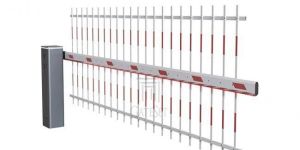

RISING FENCE100x42 mm octagonal white (RAL9016) main aluminum boom with 40x20 mm horizontal and 20x10 mm vertical support bars. Up to 6 meters (standard)
TOP COVER2 mm heat treated powder coating with anti-rust layer (standard) 10 mm cast aluminum with LED Stripe for enhanced visibility (optional)
OPENING / CLOSING TIMEFrom 4 seconds at 3 meters arm to 6 seconds at 6 meters arm Adjustable from 3 to 6 seconds with parameter setup depending on requirements
OPERATION FREQUENCY6,000+ consecutive movements supported with 100% duty cycle Suitable for handling 10,000+ vehicle passage per day
SPEED CONTROLOperation speed, ramp-up, ramp-down control parameters adjustment on Frequency Inverter panel
TRANSMISSIONMulti Directional Gearbox providing effortless change of arm direction
MOVEMENT CONTROLSmooth Control down to Zero Speed with Control Techniques Inverter
MANUAL OPERATIONManual Rotating Key in Case of Power Outage
POSITION CONTROLInductive limit switches with physical position adjustment for down and up positions
AUTO CLOSEBarrier automatically closes itself, close time is adjustable
OBSTACLE DETECTIONArm detects obstacle in both direction and reverse operation instantly
CRASH DETECTIONArm releases itself automatically from its mounting point when hit by vehicle (optional)
OPERATING TEMPERATURES- 25 0C / +70 0C
AMBIENT HUMIDITY100% RH or less (without condensation)
Material : Barrier case: 2 mm heat treated powder coating with anti-rust layer (standard) 304 grade stainless steel case (optional) Motor and gearbox holder: 10 mm galvanized steel sheet
Power Input : 220 V AC Single Phase
Motor : 0.75 kW, 380 V AC 3 phases 50-60 Hz controlled by Frequency Inverter
Installation : Slotted external mounting plate for robust and easy installation
CASE DIMENSIONS3200 x 1600 x 1320 mm (for GSR3100-X)
BLOCKER UNDERGROUND CASEHeavy Gauge 200 mm NPU Steel Profile Top Frame, Supported by vertical 100 mm NPI Steel Profiles placed all along the perimeter of the case within intervals less than 500 mm
BLOCKING WEDGEHeavy Gauge 160 mm NPU Steel, Supported by Vertical and Diagonal 100 mm NPI Steel Profiles. Steel Top Plate Thickness is 12 mm. 6 sets of 3-up hinge bars, constructed from 40x100 mm and 20x120 mm Steel Plates
TREATMENTTwo Component Surface Tolerant Epoxy Mastic Coating for Corrosion Protection (Jotamastic) and Painted with Polyester Outdoor Paint, Black Finishing with Yellow Stripes on the Circular Front Steel and Top Plate
CONTROL CABINET2 mm Thick Steel, Electrostatic Thermal Painting for Anti-Corrosion Resistance
CABINET DIMENSIONSFeature: Standard With HPU2400 Kit With EOK Kit HPU2400 + EOK Kit Width: 390 mm 510 mm 510 mm 700 mm Length: 750 mm 960 mm 1160 mm 1300 mm Height: 1152 mm 1170 mm 1520 mm 1200 mm
DRIVEHeavy Duty Hydraulic
DRIVE POWERMin 10 Bars / Max 120 Bars
LIFT PISTON VARIATIONS2 Heavy Duty Lifting Pistons
RISING / FALLING TIME2-3 Seconds(Adjustable)
SPEED CONTROLSlowing Down at Opening and Closing Limit Points
WORKING FREQUENCY300+ Cycles/Hour
EMERGENCY OPERATIONRising in 1.5 Second (with optional EOK Kit)
POWER OUTAGECapable to make up to 10 Complete Cycles without Electricity (with optional HPU2400 Kit)
POSITION DETECTION2 Weather Proof Proximity Limit Sensors
MANUAL OPERATIONAscending and Descending with Manual Hand Pump
CONTROL PANELSchneider SR2 A201BD PLC, Programmable for Integration with Various Systems
TEST PANELIntegrated Test Panel on Electric Cabin Cover with Phase Indicators
IMPACT RESISTANCE7,500 kg at 80 km/h (K12 - PAS68 Equivalent)
AXLE LOAD RESISTANCE35 Tons
PROTECTION CLASSIP 65
HYDRAULIC PIPES18/1.5 Connector - 1/2 Radius, 350 Bars Max Pressure,10 m Pipe Length (standard)
SAFETY EQUIPMENTEmergency Stop Button (standard), Front and Rear Loop Sensor (optional)
STANDARD ACCESSORIESRemote Control Keyboard (wired), Test Unit on ECU Panel, Oil Level and Temperature Indicator, Manometer
Reviews & Ratings
Write a Review
Post Free Ad
