Vijaya Sai Engg Industry Vanasthalipuram, Hyderabad, Telangana

Features: built-in Emi Filter 100% Full Load Burn-in Test protection:over Voltageover Currentshort Circuit 1 Year Warranty product Desc.: 1.ac Input Voltage:88-264v Selected By Switch 2.acnput Frequency:47-63hz 3.dc Output Voltage Adjustment Range:+-5%~+-10% of Rated Output Voltage 4.output Overload Protection:110~150% Constant Current Limiting,Auto-recovery 5.output Voltage Protection:115~150% of Rated Output Voltage 6.withstand Voltage:ip-op:1.5kvac1min,Ip-fg:1.5kvac1min 7.setup,Rise,Hold Up Time:1000ms,50ms,20ms At Full Load and 230vac 8.working Temperature:-10 Deg C to +50 Deg C 9.storage Temperature:-20 Deg C to +85 Deg C 10.safety Standards:ul60950,En60950 11.emc Standards:en55022 12.mean Time Between Failures:>50,000hours 12.cooling Method: Cooling By Free Air Convection

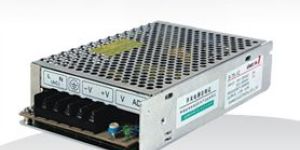

Built-in Emi Filter 100% Full Load Burn-in Test protections: Over Voltageover Currentshort Circuit 90~132vac176~264vac Selected By Switch frequency:47~63hz output Voltage Adjustment Range:+-5% output Overload Protection:110~150% output Over Voltage Protection:115~150% withstand Voltage:ip-op:3kv Ac1min; Ip-fg:1.5kv Ac1min;op-fg:0.5kv Ac1min rise,Hold Up Time:50ms,20ms At Full Load and 230vac working Temperature:-10~+50deg C storage Temperature:-20~+85deg C safety Standards:gb4943,Ul60950,En60950 emc Standards:gb9254,En55055 mean Time Between Failures:>50,000hours cooling Method:cooling By Free Air Convection skk-s-75w-12 skk-s-75w-15 skk-s-75w-24 more Specifications Can Customized as Customers' Requirements.

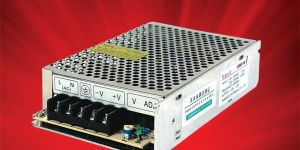

60w Series Single Output Switching Power Supply built-in Emi Filter 100% Full Load Burn-in Test protection: Over Voltage, Over Current, Short Circuit one Year Warranty input Voltage:90~132vac176~264vac Selected By Switch input Frequency:47~63hz output Voltage Adjustment Range:+-5%~+-10% Rated Output Range output Overload Protection:110~150% Constant Current Limiting,Auto-recovery output Voltage Protection:115~150% Rated Output Voltage withstand Voltage:ip-op:3kvac1min,Ip-fg:1.5kvac1min rise,Hold Up Time:50ms,20ms At Full Load and 230vac operating Temperature:-10 Deg C to +50 Deg C storage Temperature:-20 Deg C to +85 Deg C safety Standards:ul60950,Gb4943,En60950 emc Standards:en55022,Gb9254 mean Time Between Failures:>50,000hours cooling Method: Cooling By Free Air Convection dimensions:159x98x42mm modeldc Outuput Load Rgul.r&neffi. skk-s-60w-55v,12a0.5%80mv75% skk-s-60w-1212v,5a0.5%90mv78% skk-s-60w01515v,4a0.5%90mv78% skk-s-60w-2424v,2.5a0.5%110mv80%

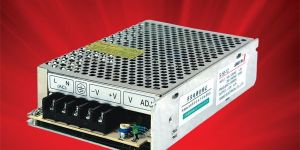

50w Single Output Switching Power Supply built in Emi Filter 100% Full Load Turn-in Test protection:over Voltage, Over Current, Short Circuit with 1 Year Warrany input Voltage:90~132vac176~264vac Selected By Switch input Frequency:47~63hz output Voltage Adjustment Range:+-5% to +-10% output Overload Protection:110~150% Constant Current Limiting,Auto-recovery output Voltage Protection:115~150% Rated Output Voltage withstand Voltage:ip-op:3kvac1min, Ip-fg:1.58kvac1min rise,Hold Up Time:50ms,20ms At Full Load and 230vac operating Temperature:-10 Deg C to +50 Deg C storage Temperature:-20 Deg C to + 85 Deg C safety Standards:ul60950,Gb4943,En60950 emc Standards:en55022,Gb9254 mean Time Between Failures:>50,000hours cooling Method: Cooling By Free Air Convection dimension:129x92x38mm package:1 X Switching Power Supply model No.dc Outputload Rgul.r&neffi. skk-s-50w-5 5v,10a 1%70mv72% skk-s-50w-1212v,4.2a0.5%80mv77% skk-s-50w-1515v,3.5a0.5%80mv77% skk-s-50w-2424v,2.1a0.5%100mv82%

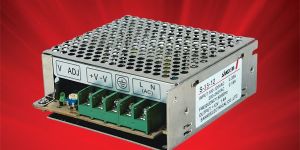

35w Single Output Switching Power Supply built in Emi Filter 100% Full Load Turn-in Test protection:over Voltage, Over Current, Short Circuit with 1 Year Warrany input Voltage:90~132vac176~264vac Selected By Switch input Frequency:47~63hz output Voltage Adjustment Range:+-5% to +-10% output Overload Protection:110~150% Rated Output Voltage output Voltage Protection:115~150% Rated Output Voltage withstand Voltage:ip-op:3kvac1min, Ip-fg:1.58kvac1min rise,Hold Up Time:50ms,20ms At Full Load and 230vac operating Temperature:-10 Deg C to +50 Deg C storage Temperature:-20 Deg C to + 85 Deg C safety Standards:ul60950,Gb4943,En60950 emc Standards:en55022,Gb9254 mean Time Between Failures:>50,000hours cooling Method: Cooling By Free Air Convection dimension:129x92x38mm package:1 X Switching Power Supply model No.dc Outputload Rgul.r&neffi. skk-s-35w-5 5v,7a 0.5%60mv73% skk-s-35w-1212v,3a0.5%80mv80% skk-s-35w-1515v,2.5a0.5%100mv81% skk-s-35w-2424v,1.5a0.5%100mv82%

Features: built-in Emi Filter 100% Full Load Burn-in Test protection:over Voltageover Currentshort Circuit 1 Year Warranty product Desc.: 1.ac Input Voltage:ac90-132vac176-264v Selected By Switch 2.acnput Frequency:47-63hz 3.dc Output Voltage Adjustment Range:+-5%~+-10% of Rated Output Voltage 4.output Overload Protection:110~150% Constant Current Limiting,Auto-recovery 5.output Voltage Protection:115~150% of Rated Output Voltage 6.withstand Voltage:ip-op:1.5kvac1min,Ip-fg:1.5kvac1min 7.setup,Rise,Hold Up Time:1000ms,50ms,20ms At Full Load and 230vac 8.working Temperature:-10 Deg C to +50 Deg C 9.storage Temperature:-20 Deg C to +85 Deg C 10.safety Standards:ul60950,En60950 11.emc Standards:en55022 12.mean Time Between Failures:>50,000hours 12.cooling Method: Cooling By Free Air Convection

Features: built-in Emi Filter 100% Full Load Burn-in Test protection:over Voltageover Currentshort Circuit 1 Year Warranty product Desc.: 1.ac Input Voltage:88-264v Selected By Switch 2.acnput Frequency:47-63hz 3.dc Output Voltage Adjustment Range:+-5%~+-10% of Rated Output Voltage 4.output Overload Protection:110~150% Constant Current Limiting,Auto-recovery 5.output Voltage Protection:115~150% of Rated Output Voltage 6.withstand Voltage:ip-op:1.5kvac1min,Ip-fg:1.5kvac1min 7.setup,Rise,Hold Up Time:1000ms,50ms,20ms At Full Load and 230vac 8.working Temperature:-10 Deg C to +50 Deg C 9.storage Temperature:-20 Deg C to +85 Deg C 10.safety Standards:ul60950,En60950 11.emc Standards:en55022 12.mean Time Between Failures:>50,000hours 12.cooling Method: Cooling By Free Air Convection
