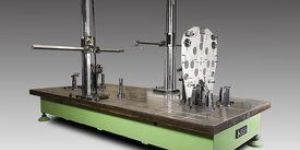

Layout Marking and Measuring Machine
Get Price Quote
Application:
Marking and Measurement of Sheet Metal Components,Car Body, Dies and Fixtures etc.
Reverse engineering, Digitizing & Inspection of large and heavy components.
Styling and Milling Application.
Clay models making, measuring of graphic data.
Measurement of master-models, wooden or metallic moulds.
Measurement of all other three-dimensional objects.
Optional Modules :
Scanning/Digitizing for Reverse Engineering
Profile Analysis
Surface Inspection
3D Bent Tube Inspection & Analysis
CAD/CAM Connectivity
Upgradable from Manual/ DRO to full CNC
Accessories for Marking:
Universal Scribing head
Short end & long end Scribers
Split Scriber
Half round/ Quarter round rotating scriber
Circular & Angle Scribing attachment
Accuracy :
For Measuring Machines: 30 + 'L'/30 micron ( Standard ).
For Marking Machines: 300+ 'L'/25 micron ( Standard) ( Where 'L' is measured in Length in mm ).
Better accuracy on requests.
