PCB Machine Dealers in Indore

• Availability: 10-100kg
• Country of Origin: 220V
• Automatic Grade: Automatic
• Power: 1-3kw
• Driven Type: Electric
• Feature: Easy To Operate, High Performance

We are rated  amongst the prominent Manufacturers and Suppliers  of  Brushing Machines. The Brushing unit of the Brushing Machine is driven by the electric motor. We supply Brushing Machine with complete unit of stainless steel brush holder, pedestal type bearing, electric motor cover, electric motor, etc. We also offer S.S/ M.S Soaking tank as per the customer requirement.Product Detail : Brushing Machine is available in Ten, Eight, Six, Four HeadsFeatures : High Speed, Easy To Use, Quick Adjustment.

• Spindle Speed: 5,000-42,000 rpm (Software Control)
• Power Consumption: AC 110-220 V
• Working Area: 320 x 230 x 50 mm
•  :

• Number Of Flower: Automatic
• Certification: CE Certified
• Country of Origin: 220V
• Power: 1-3kw
• Driven Type: Electric
• Total Carbohydrate: 1 Year

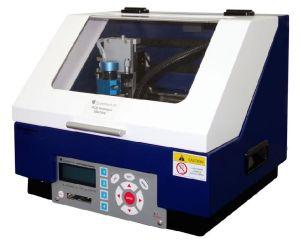

The PCB Design Lab Scientech 71 is a unique solution to design and develop prototype PCBs in your laboratory. This machine is compact and ideal for making prototype PCBs with Tina Circuit Design, Simulation and PCB Design software in lab. In Electronic design the prototype PCB is essential, this machine works without a PC, that means you can design your circuit in Tina, convert it into gerber file which can load directly into the machine to get the PCB ready. The machine performs all the operations such as drilling, milling, engraving and routing which helps designer to fabricate PCB at low cost and in short time. Scientech 71 does not require any dark room, its offers easy and environmental friendly operation and can be use to design & develop even antenna. The machine can be use to design small and large size prototype PCBs. The machine comes with a complete package of software & tool kit. The Scientech 71 is best choice for your PCB Lab to design & develop Prototype PCBs in lab. Product Features : Small volume, easy setup Compact size 395 ´ 330 ´ 375 mm, even small than a microwave. Easy setup & operation. Machine works without a PC The difference between Scientech 71 and other machines is that Scientech 71 does not need a computer to connect and drive machine all the time. In Scientech 71 all the process data are saved into a Compact Flash card (CF card). Just insert this CF card in the machine then you can start using it. High accuracy , lower price Even though Scientech 71 is small but it can make trace as small as 0.15 mm (6 mil) and it is the first choice for industry, college, university and laboratory to design and develop a PCB at low cost & in short time. Integrated sound/ dust inclosure An integrated sound/dust enclosure reduces working sound and provide safety environment to protect users. Integrated micrometer depth controller Micrometer adjustment resolution of 0.01mm (0.0004") to adjust working depth. Easy use membrane switch panel In Scientech 71 you don`t have to watch several operations on a monitor. It has a fast key for major job i.e. Drill / Engrave / Route. In less then 3 clicks you can finish all setting. Motorized Z-axis with software control drill speed For drilling & using various diameter of drill bits, the motorized Z-axis control drill speed becomes very important to avoid tool bit being broken. Users never have to worry about drill speed setup when drilling holes. All drill speed will be assigned by software. Easy, chemical free PCB and Antenna design & development Machine does not require chemicals for single side PCB and can be used to design & develop easy Antennas.

• Dimensions (W x H x D): (432x320x455) mm
• Weight: 28kg
• Power consumption: 110/220VAC, 50W
• Tool holder: 1/8 inch
• Min drill hole size: 0.3 mm

If you are an impatient circuit designer who wants to replicate software design on the PCB with high precision and accuracy, and also without investing much of your valuable time and efforts, we have an exciting solution for you. Nvis 72 PCB Prototype Machine provides several features which can make your life easier. With this new electro-mechanical utility, you can escape cumbersome task of traditional PCB designing which involves time taking etching and drilling processes. Get rid of dealing with chemicals which often spoil your hands and are harmful to you and environment. Provided with the USB connectivity, Nvis 72 can print your desired circuit on the PCB within minutes. Accompanied design software provides simple and elegant interface which is user-friendly, and can even be operated by novice Engineers and Students.

Everprecision equipment offers cost-effective, environmentally friendly equipment for each stage of the prototyping process, from design verification to structuring and board assembly. It allows customers to produce fully functioning boards quickly and easily by drillingmillingengravingrouting, mil track and trace. Auto Tool Change is up to 12 tools are automatically changed during production. This reduces set-up times and allows for unattended production. 42,000 rpm spindle motor ensures the shortest machining times and highest accuracy. It can be control spindle speed by software and apply to 4 mil track and trace. PCAM Software: PCAM is compatible with all windows system and accepts standard RS274DX format Gerber files exported from Layout Software like : P-Cad allegro protel ALTIUM Designer Power PCB(PADS)ORCAD, etc Product Features Engrave Tool For engraving trace and pad. End-mill Tool For copper removing. Drill Bit For drilling holes. Router Bit For PCB outline cutting. No pollution environmental friendly. Working Area : 320mm X 230mm.

• Country of Origin: 230V/50Hz Single Phase
• Power: 0.25 H.P.
• Availability: 50 Kg
• Floor Area: 1.5 ft x 1.5 ft

Features Easy to operate No maintenance Compact Design
