Scientech Technologies Pvt. Ltd. Pardesipura, Indore, Madhya Pradesh

Nvis 6040 Young`s Modulus Setup is a complete system used to determine Young`s Modulus of Elasticity of materials. When a metal wire is stretched beyond its elastic limit then its cross section is reduced i.e. its structure is changed internally. These changes increase with repeated drawings. The hardness and elasticity of the material are profoundly affected. Setup is used to investigate the change in length of a sample under a varying tension.

Digital portable ultrasound system adopts 3.5 MHz electronic convex array probe and introduces the image processing technologies such as the changeable aperture, dynamic changes of marks, the multistage electronic focus, the dynamic filter, image enhancement, different types of correlations etc. The instrument manly applies in the dynamic image diagnosis of the liver, gall bladder, spleen, kidneys urinary bladder, pancreatic glands and so on, as well as the gynecology and obstetrics examinations. The instrument can not be used in the internal organs examination like stomach, intestine and lungs which contains the gases. Scientech 2364 Working of Medical Ultrasound Machine is designed in such a manner that it provides full technical information of both medical and electronic parts. Students can learn different techniques for the analysis of ultrasound imaging.

Brand Name : Scientech

Country of Origin : Indore, M.P.

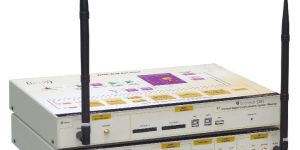

Wireless Communication is fundamentally the art of communicating information without wires. In principle, wireless communication encompasses any number of techniques including underwater acoustic communication, semaphores, smoke signals, radio communication, and satellite communication, among others.   Details : Thus the spotlight of this solution will focus on digital wireless communication. Every major wireless system being developed and deployed is built around digital communication including cellular communication, wireless local area networking, personal area networking, and high-definition television. This class is unique because it approaches wireless communication from the perspective of digital signal processing (DSP). No background in digital communication is assumed, though it would be helpful. Scientech Wireless Digital Communication System is an practical approach to wireless digital communication. This approach makes wireless more concrete, avoids simply drowning in mathematics and useful for graduate students as well. Students build a practical foundation for further study and good preparation for industry. Features : Portable design Block level study and implementation Supported Communication Links: - Wired, Wireless and Optical (optional Built-in simulation & real time software More than 20 built-in labs Internal & External data mode Baseband signal analysis of I & Q channel Dual 125 MSPS 10-bit D/A converters for I Channel and Q Channel Control setting for individual blocks Built-in RF-up converter Built-in RF-down converter User programmable Provision for external reference signal for PLL SMA connectors Built-in analog signal acquisition Logic Analyzer for digital signal analysis Constellation view for I & Q Study of impairments Digital Filters: Interpolation, Decimation and Raised Root Cosine with variable roll-off(?) Various Spreading codes Built-in low-noise frequency synthesizer Variable chip rate up to 10 Mchips/s JTAG USB connector for FPGA configuration USB2.0 interface

Number Of Flower : Wireless

Application : Satellite Use

Certification : CE Certified

Country of Origin : 220V

Number of Conductors : 5-10

Power : 1-10kw

Driven Type : Electric

Total Carbohydrate : 1 Year

Nvis 6008 wind energy trainer is a versatile training setup used in laboratories to understand the conversion of wind energy into electrical energy. It introduces the basic concept of wind turbine, of converting kinetic energy of wind into mechanical energy and then this mechanical energy into electrical energy. The setup works as a live demonstration unit of wind turbine and generator in terms of its concepts and applications. It is provided with a wind turbine setup and wind energy trainer.

The NV2000 Wave and Propagation Trainer is a useful training system for the Laboratories. It helps student to learn Wave Properties and Propagation results. Concepts of Reflection, Refraction, Polarization, Interference, Standing waves, Interferometer can be understood very easily. The setup is mainly consists of Microwave Transmitter, Microwave Receiver, Goniometer scale. Alongwith this setup lot of accessories are provided to perform different experiments. A user friendly manual is provided with this system to help student in performing the experiments and to understand the topic theoretically.

Water Level Control by PLC Scientech 2421 enables Students and practicing Engineers to gain invaluable practical experience of the principles and application of Programmable Logic Controllers. The objective is to connect and program an external Programmable Logic Controller to monitor and control the level of water in a tank system. Water level controlling is shown with the help of LEDs. The module is connected with output of PLC. Two valves for filling and draining water are shown, for indicating ONOFF condition of valve LED is used. Filling of tank is indicated by two sensors positioned to sense maximum and minimum water levels of tank.

Nvis 6020 Van De Graaff Generator is a standard apparatus for demonstrating the presence of static electricity. Overall, the concept of Van De Graaff Generator is very simple. A belt passes over two rollers, made of different materials (Teflon and Aluminum). Two metal combs are held near the belt surface and the lower roller is attached to the electronic motor. This device harnesses an effect called Electrostatic Induction in order to pump electrical charge. These electrical charges get accumulated on the surface of the aluminum dome. As a result, sparks are seen if the grounded aluminum sphere is brought near the dome, depicting the phenomenon of corona discharge.

Brand Name : Nvis

Country of Origin : Indore

In today`s environment of automation, the importance of PLC has rapidly increased. Scientech 2400 Universal PLC Platform is an ideal setup to study the working of PLC`s used for industrial applications. Scientech 2400 has been designed to learn and practice Wiring of PLC with different inputs and outputs. Push to ON switch, Toggle switch, Limit switch, IR Sensor as an input to the PLC. Realistic Simulation that can drive visual indicators, audio indicators, and DC Motor, Pilot Lamp, Relay card. Product Features : Freedom to select PLC of different makes Open platform to explore wide PLC applications Industrial look & feel Toggle switches, Push to ON switch, Limit switch, IR Sensor , LED`s , Buzzer, DC Motor, Pilot Lamp, Relay card Din rail mounting for PLC}Powerful instruction sets PC based Ladder programming High execution speed Extremely easy and student friendly software to develop different programs Several sample Ladder programs Choice of PLC and expansion modules Easy downloading of programs Practice Troubleshooting skills Compact tabletop ergonomic design Ready Experimental details Robust Construction Online Product Tutorial

Number Of Flower : Universal

Certification : CE Certified

Application : Laboratory

Country of Origin : 220V

Power : 1-3kw

Driven Type : Electric

Total Carbohydrate : 1 Year

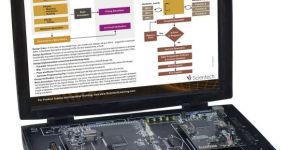

Scientech 116 Universal Embedded Development Platform has been designed to provide a quick and easy way of learning and implementing VLSI front end & Embedded design. Using Scientech 116 you will be able to design a high end design based on FPGA, Controller and DSP applications.

Brand Name : Scientech

Country of Origin : Indore, M.P.

Nvis 7089 Universal Electrical Workstation offers an excellent approach to the teaching of Electrical Machines principles by introducing a unique modular designed control unit. It provides flexibility for the students to carry out experiments over AC and DC Machines using a large selection of Industry standard inbuilt components. Electrical Machines is one of the most important area of study as it helps users to understand the operational characteristics and working of AC and DC Machines. Nvis 7089 enables user to put their theory knowledge into practice with ease. There is an additional facility tomake wireless connection on workstation with computer and to monitor real time electrical parameters using computer interfacing software. Users can also observe a real time graph between any of the AC and DC electrical parameters on computer. Workstation comprises of separate AC and DC measuring sections equipped with all the necessary instruments such as digital meters, facility to connect AC and DC Supplies along with protection devices such as Fuses, MCB`s, Supply Indicators, etc. There are multiple buses provided on the Workstation to make external connections while performing AC and DC Machines Experiments. The design of the control unit ensures to get the highest quality practical experience to user. All the necessary protective measures are taken to avoid fault or danger.

Scientech TechBooks are compact and user-friendly learning platforms to provide a modern, portable, comprehensive and practical way to learn Technology. Each TechBook is provided with detailed Multimedia learning material which covers smart manual with language tutorial, examples, labs, sample codes in Verilog/VHDL, basic theory, step by step procedure to conduct the experiment and other useful information. Scientech 110 Universal Development Platform has been designed to provide a quick and easy way of learning VLSI front and & embedded design. It is based on mother board -daughter card concept for VLSI designs targeting the FPGAs, CPLDs, Cool runner CPLDs from Xilinx & can also be used in embedded lobs by using ARM7 daughter card. The Development platform contains on board input-output, ADC, DAC, Displays, keyboard & peripheral, which can be used to learn & implement basic as well as advanced VLSI designs .

Brand Name : Scientech

Country of Origin : Indore, M.P.

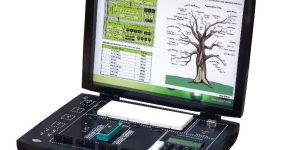

Nvis TechBook 5001A 8051 Universal Development Platform is a full-featured development system for 8051 microcontrollers. It is an ideal platform to implement and test the designs both for the beginners and the experts. The Nvis 5001A comes with 20 Keys Hex keypad with 16x2 LCD for user programming mode. Details : Nvis 5001A 8051 Universal Development Platform   also supports PC-based programming for large size program code. Using Nvis 5001A, a range of projects in various domains like telecommunication, robotics, consumer electronics, etc can be made.Nvis 5001A gives designers a quick start to develop code on a   controller with on-board programmer and on board breadboard facility. The flexibility of connectors allows a   user to make external connections. On board breadboard allows them to make their own circuits and perform any experiment they desire. Nvis 5001A, 8051 Universal Development Platform is an ideal platform to enhance education, training, skills & development among   our young minds. Features : Core 8051 MCU clocked at 11.0592 MHz. User can enter op code using on board 20 keys Hex keypad For large program user can use on board PC based USB Programmer. On board LCD for both programming mode and run mode. Every pin is marked in order to make work easier User can write assembly codes in PC software and run on Nvis 5001A PC Programmer mode also supports other devices like AT89C51/52/55, AT89S51/52/53 , AT89S8252 Input / Output & test points provided on board Self contained development board with on board DC Power Supply plug in modules and prototyping area On board breadboard for self circuit design CD with sample project code in assembly and C, Programmer software & useful documents

Number Of Flower : Portable

Material : Carbon Steel, Stainless Steel

Certification : ISI Certified

Finishing : Polished

Driven Type : Electric

Wireless Sensor Network (WSN) research has enabled large scale monitoring using small Sensors with radio links. The technological advance in wireless communications and microelectronics has enabled the development of small, low-cost Sensor Nodes. Wireless Sensor Networks are developed to organize and control these Sensor Nodes, which have sensing, data processing, communication and control capabilities. Information collected from these Sensor Nodes is routed to a sink Node via wireless communication approach. The research in the Wireless Sensor Network has focused primarily on the networks issues such as routing, data dissemination and aggregation of co-related data for downstream data delivery. The combination of small size, low cost and wireless networking functionality makes Wireless Sensor Network (WSN) technology exceptionally scalable. Scientech 2311W Wireless Sensor Network will help users to design their own WSN network and also help them to understand the overall concept & its applications.

Country of Origin : Indore, M.P.

Nvis 7002 Understanding SMPS has been designed specifically for the study of Switch Mode Power Supply. SMPS consists of a rectifier section, filter section, switching section and regulator section. Each section is explained separately and the internal structure of different blocks is also described. Switching transformer and chopper controller circuit are the main parts of SMPS. Switching Transformer works at high frequency, so it is also called as HFT i.e, High Frequency Transformer and the chopper controller is simply DC to DC controller. It gives constant output even when the AC mains is varied from 80V to 270V. Students can vary Voltage by using Variac.

Scientech 2660 Understanding Public Address System is a comprehensive training platform to learn the operation of Public Address System. It is demonstrator cum training system specifically designed for the comprehensive practical study on Public Address System for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system. This didactic product develops the sense of investigation within the student and familiarises him with repair techniques/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of Public Address System is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

Country of Origin : Indore, M.P.

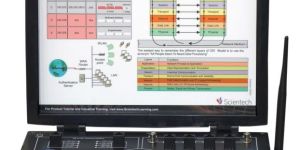

Understanding of Local Area Network (LAN) Scientech 5002A provides the understanding of all the fundamentals of networking. It helps the users to gain knowledge of all network layers, cable designing and building of a complete network of computers. The users can understand and actually implement various topologies using different standards given by IEEE. Actual connections can be made in different topologies and data can be transferred. The users will understand the protocols, topologies used in networking, measurement of error rate, throughput and effect of errors on protocols. The versatile software provided with Scientech 5002A will assist the users to observe the various effects and configurations on a network along with the graphical representation.

Brand Name : Scientech

Country of Origin : Indore, M.P.

Scientech 2651A Understanding LED Television is a friendly training platform to learn the operation of LED Television receiver. It is demonstrator cum training system specifically designed for the comprehensive practical study on LED TV engineering for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system. This didactic product develops the sense of investigation within the student and familiarises him with repair/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of LED TV system is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

Brand Name : Scientech

Country of Origin : Indore, M.P.

Scientech 2276 Understanding Global Positioning System (GPS) technology is rapidly changing how people find their way around the earth. Whether it is for fun, saving lives, getting there faster, or whatever uses you can dream up, GPS navigation is becoming more common every day. GPS TechBook will provide a basic understanding of the GPS Fundamentals, Satellites & Design Aspects of GPS Receiver by actually connecting to the Satellite by GPS Antenna.

Brand : Scientech

Country of Origin : Indore

Scientech 2662A Understanding DVD/CD Player is a simplified training platform to learn the operation of Optical Disc Player. It is demonstrator cum training system specifically designed for the comprehensive practical study on Optical Disc player for the beginners with a basic knowledge of the various electronic building blocks and fundamentals of communication system. This didactic product develops the sense of investigation within the student and familiarises him with repair/design techniques. One of the main features of this training system is fault simulation to educate on actual fault finding, by simulating faults on this platform. The complete block diagram of DVD/CD Player is printed on the mimic. Finally this equipment allows us to do experiments and to observe waveforms/signals/voltages of different sections, which are guided thoroughly by theory and product tutorials to gain in-depth knowledge of the system.

Scientech 2132A Understanding Dual SIM Mobile Phone TechBook is a unique, self contained, easy to operate, training platform that demonstrates the complete arrangement of a 2G Dual SIM GSM handset to understand the working of the mobile phone. Scientech 2132A Understanding Dual SIM Mobile Phone TechBook is the perfect product for today's global technical professional. One of the main features of the TechBook is its real time signals. This realistic classroom training TechBook introduces the user to the fundamental of 2G Dual SIM GSM mobile equipment and clears the concept of underlying GSM technology in simple way. The Keypad of mobile handset, SIM sockets and User Interface section of the mobile phone i.e. Vibrator, Buzzer, Microphone, Speaker, Hands free port and display LEDs have been exposed onboard with switched faults creation facility and 58 test points for signal observation and detailed study. Also its attractive features and self explanatory multicolored chart containing useful technical information will help user in creating a full understanding of dual SIM mobile phone system.

Scientech TechBook 2664 DTH Receiver System is a versatile platform useful for students to learn the concept of DTH and its troubleshooting. Scientech 2664 is housed in an elegant cabinet with proper block diagram on the mimic. Scientech 2664 is provided with fault creating and troubleshooting facility to understand the working of DTH. DTH (Direct to Home) is a satellite-aided TV rebroadcast system, featuring a compressed digital encoded signal for uplink/downlink. Today most satellite TV customers in developed television market get their programming through a Direct Broadcast Satellite (DSB) provider, such as Doordarshan DTH platform. The provider selects programs and broadcast them to subscribers as an attractive package. Unlike earlier, the provider`s broadcast is completely digital, which means it has high picture and stereo sound quality.

Brand Name : Scientech

Country of Origin : Indore, M.P.

Scientech 2611B Understanding Digital Logic Circuits is designed to fulfill requirement of performing experiments to study and understand the working principle and functioning of basic logic gates, universal gates and various logic circuits. Students can explore a wide variety of electronic concepts simply by making connections to the on board logic circuits indicated with their schematic/logic symbols. All connections and controls are clearly marked and conveniently located. It is very useful in digital electronics laboratories for performing digital experiments. It is also useful to build and test circuits as well as making projects related to digital electronics or when learning the subject.

Brand Name : Scientech

Country of Origin : Indore, M.P.

Nvis 6512A Understanding Characteristics of MOSFET, FET & UJT is a compact, ready to use experiment board. This is useful for students to plot different characteristics of n-channel MOSFET, n-channel FET and UJT and to understand operation of these power electronics devices in various regions. Using this product student can also evaluate FET parameters (Drain resistance). Transconductance, and Amplification factor) & UJT parameters (Inter base resistance and intrinsic standoff ratio). In-built DC power supply, voltmeter and ammeter with DPM features make this product easy to operate and can be used as standalone system. Breadboard allows student to construct circuits using external components along with on-board resources.

Nvis 6530A Understanding Characteristics of DIAC, TRIAC & SCR is remarkable and frequently used laboratory equipment which is designed to explain fundamentals and working of DIAC, TRIAC & SCR. By using this product student can understand the basic concept of DIAC, TRIAC & SCR which are the basic devices used in Power Electronics. V-I Characteristics can be drawn by the student which helps them to understand the behavior of these devices easily. This product has suitable in-built power supply and on-board resistor of different values. Breadboard area allows construction of circuits using external components along with on - board resources.

Nvis PCB LAB is a complete solution for designing PCB. This solution includes all the necessary machines and chemicals which are used in the PCB development process. The PCB artwork film maker is used as a contact printer for creating design films from the PCB Layout. The artwork table is used for manually designing the films and for correcting or changing the existing films. The shearing machine is used for cutting the PCB according to film size. The photoresist dip coating machine is used for coating photoresist on the PCB Laminate. After photoresist coating, the PCB and films are placed in UV exposure machine for exposing. After exposing the development tank is used to remove unused photoresist. The dye tank is used for highlighting the design on the PCB. The etching machine is used for removing unused copper from the PCB. The drilling machine is used for making the holes in the PCB. The PCB design kit is provided which include tapes, stencils and other accessories used for designing the PCB.
