Scientific Mes-technik Pvt. Ltd. Nand Nagar, INDORE, Madhya Pradesh

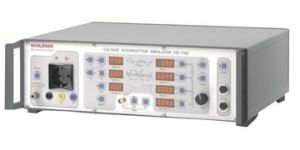

Voltage Interruption Simulator Inrush current measurement at any phase position 0° - 360 ° Automatic AC + DC ramp function, DC-Test: IEC EN 61000-4-29, Voltage interruption simulator AC + DC ramp function.

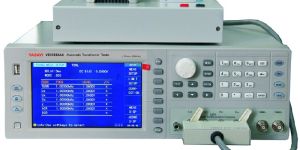

Wider impedance test range and better stability for small signal test, Built-in 0-100mA0-10V bias source (standard) or 1A bias source (optional), Diode PN characteristic detection can test all parameters of network transformer.Improved high turn ratio and weak coupling transformer test ability, To display one or two groups of primary and secondary parameters is selectable in LCR test.Flexible time-labeling system: time of file setting, calibration and deduction can be saved.

Surge voltage pulse shape 1,2 50 µs, Surge current pulse shape 8 20 µs , Amplitude 0,1 - 2,2 kA, as per IEC EN 61000- 4- 5 & IEC 60

We are offering spectrum analyzers the increasing wide-spread use of wireless applications as well as the requirement for minimizing electromagnetic emissions from high performance digital systems caused a change of approach in design labs and test sites. While signal analysis in the time domain is well established, spectrum analysis is now starting to find its place on the lab bench. The scope of applications of a spectrum analyzer in r & d, test sites, service and emi testing is wide. Spectrum analyzers can display signals up into the ghz range. Lisn ( line impedance stabilization network) , near field probes in conjunction with emc software offers very cost-effective solutions to active (emission) measurement problems which allow to perform precompliance measurements.

Soldering - De-soldering Station 60W Mini Temperature Controlled Soldering Station, Spike-free circuitry for safe soldering of sensitive device, Temperature can be locked with a password code, Soldering iron stand with brass tip cleaner.

Custom programmable table for simulation of complex I-V curve, TCP with Ethernet interface, Constantly read out of power supply status, Save & Load function, Validation of the curve supply

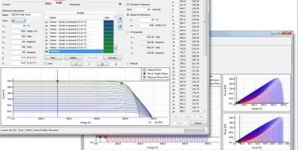

Solar Array Simulator Photovoltaic Power Profile Emulation There are three methods to generate a power profi le in the PPPE software: Automatic voltage current profi le calculation from reference parameters.

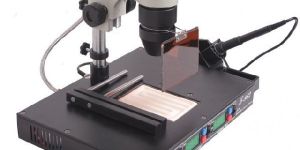

IR-860 is specially designed for SMDBGA rework and also very convenient for re-balling smaller BGA components, SolderLight - Temperature display (3 segment) IR Hand tool intensity.RESET- Offset frontward counting

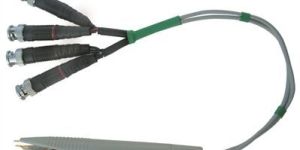

SMD Probe for LCR Meters very difficult to handle and make any measurements. Scientific offers SMD Probes for LCR Meters, these are uniquely designed to be used with SMD components & single hand operations.

Selective Level Meters Mains 12 volt dc internal battery operation, Supplied complete with rugged flight case, Dual frequency SLM mode, Low and High level generators, Dual frequency SLM mode

Rf synthesizers to choose from 1hz to 3 ghz, accuracy ±5x10-7 (optional ±5x10-8), resolution 1hz, amfmpmgatefskpsk modulations.

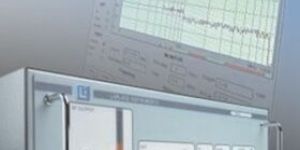

RF Synthesiser The frequency coverage extends from 100 kHz to 230 MHz for conducted tests and 30 MHz - 3 GHz for radiated tests. They are all controlled from the users PC via a USB link, and powerful Windows software is included to enable the user to control all the parameters of the test, to monitor the test in progress, and to view the results.Includes PC (Windows) software to enable very simple operation

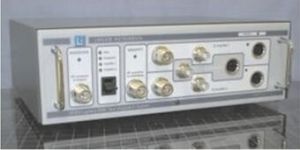

Radiated RF Immunity Test Equpiment LETIS This means that if the test requirement extends both sides of this 1GHz point, the power amplifier needs to be changed over. Generally, this involves three connections. Software issued with the Laplace Synthesisers automatically detects the presence of a LETIS and handles the switching automatically.

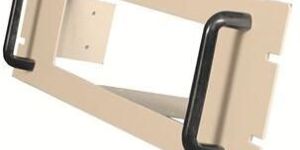

Rack Mount Kits to suit varios instruments in oscilloscopes, power supplies, function generators etc. By selecting appropriate 19" Rack Mount Kit , one can easily assemble and use it as and when needed. No special tooling of efforts needed.

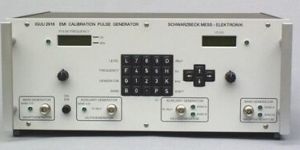

Pulse Generators Pulse repetition frequency main generator 0.1 - 200 Hz (aux. generator up to 1 MHz) with IEEE-488 Interface, response of EMI receivers. To calibrate the pulse, Calibration-Pulse Generator

Programmable DC Power Supplies Fast Transient Response, Standard Analog Programming. Typical applications where power sinking is required , with option power sink optional, it offer robust solution to application like DC Motors controlled by PWM circuits.

Power : 800W

Programmable AC Power Sources Fast Switch on Time: Proprietary Design, DC+AC Output: DC-1kHz (10 kHz small signal bandwidth), Pre Set Waveforms: Stored in hardware for Fast Recall, Custom Arbitrary Waveform, Sequencing and more, Compact Design, High Power Density.

Phase : Single Phase

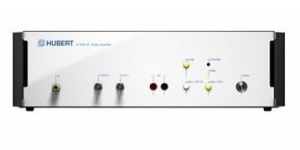

Precision Power Amplifiers Universally applicable broadband lab amplifier; ideally suited as downstream equipment for function generators. Preamplifier output (bridge out) allows for simple bridge circuit structures for doubling the output voltage. Universally applicable broadband lab amplifier; ideally suited as downstream equipment for function generators. 2 supply voltages for ideal load adjustment.

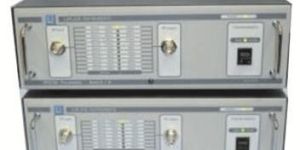

Pre-Selectors Installation and operation is completely automatic, and the filters will synchronise with the analyser scan without any operator intervention. A front panel switch allows manual operation if required.

Power Analyzer High precision internal shunts Superior accuracy to any external shunt, 10 millidegree phase accuracy – Necessary for low power factor applications, Unique x10 gain mode for Standby Power measurement, Simple BNC connection of N4L shunts for high current applications, RS232, USB, LAN, Extension and Auxiliary port.

We are offering oscilloscopes scientific offers wide range of analog , analog -digital , digital oscilloscopes up to 350 mhz bandwidth. At entry level , 30 mhz , sm410 is very popular model with unsurpassed price- performance ratio. Modern circuits often use high speed vlsi techniques , high speed micro controllers etc, hmo3524 is equipped with facilities and capabilities to handle these signals. The entire range of oscilloscope , pass through strict quality control and performance requirements, archives beyond it's published specifications and performance.

Offers Network analyzer. Network analyzers designed for use in the process of development, adjustment, and testing of various electronic devices in industrial and laboratory facilities, including operation as a component of an automated measurement system.

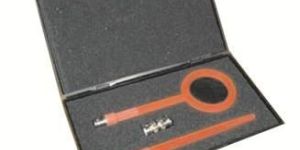

Near Field Probe of a passive E field probe and H field probe, BNC adaptor and carry case. The output is via a BNC socket. These are general purpose probes which are ideal for use in conjunction with an EMC measuring system. They are sensitive to sources in close proximity, but are insensitive to background signals. This makes them ideal for the identification of emission frequencies in noisy environments... thus making measurements easier and quicker. The proximity requirement also enables sources to be located and the exit route identified.

Offers multifunction tv meters it-08 is a multifunction hand-held compact lightweight measurement instrument incorporating two components. One of the components, mb-08 base unit, remains invariable and provides color display, control and powering (from batteries or mains adapter) features. The other component, mc-08x, is one of the removable modules, which determine measurement functions of the whole instrument. it-08 is capable to satisfy all your needs in terrestrial, cable and satellite, analog and digital tv measurements. According to your measurement target, you can easily and quickly plug in one of the modules into the base unit and perform the required measurements.
