Trumen Technologies Pvt. Ltd. Mangal Nagar, Indore, Madhya Pradesh

Operating Principle : Electronics of LSV-R excites the piezo-electriccrystals inside tuning rod, which makes the rod vibrate at it's natural resonance frequency in free air. Amplitudes of vibration are above threshold when rod is free to vibrate. When material touches rod, vibration stops as resonance gets disturbed. Amplitudes of vibration, as seen by electronics falls below the thresholdstrength, material presence is thus detected. Features : Fast Switching Response 1" screw mountings available High pressure 15 bar High Tempreture up-to 250°C available Calibration-less operation Remote electronics with std 10 meters cable length Tropicalized & potted electronics module Threaded & Flanged Mountings Electronic Inserts support all requirements Ingress protection : IP 68/66 (as per IS-13947) Ex-proof (Ex d T6 IP-66 IIC ) Flameproof as per IS/IEC 60079-1:2007 Weatherproof (IP-66) as per IS/IEC 60529:2001 Suitable for Gas Group : IIC Suitable for Zone 1 & 2 atmospheres Compact size Low power consumption (0.5 to 0.7 VA) Vibration complied as per IEC 60068 part 2-6 Settable switching delay as a standard feature Applications : Free flowing powders and granules Suitable for side as well as top mounting Minimum and maximum failsafe field selectable Process temperature max 200°C Process pressure max. 15 bar

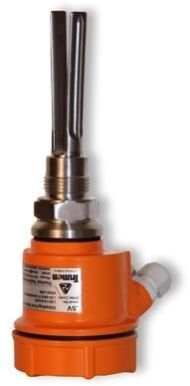

Operating Principle : Electronics of LSV excites the piezo-electric-crystals inside tuning fork, which makes the fork tines vibrate at their natural resonance frequency in free air. Amplitudes of vibration are above threshold when tines are free to vibrate. When material touches fork tines, vibration stops as resonance gets disturbed. Amplitudes of vibration, as seen by electronics falls below the thresholdstrength, material presence is thus detected. Fast Switching Response : 0.8 second on Request 1.5 second on Request 2.0 second as Standard

Usage : Level Switches

Frequency (Hertz) : 50HZ

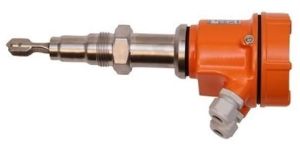

Operating Principle : Electronics of LFV excites the piezo-electric-crystals inside tuning fork, which makes the fork tines vibrate at their natural resonance frequency in free air. When fork tines are immersed in liquid, the frequency of fork vibration falls due to the density of liquid. This change in frequency is detected by electronic circuit of LFV. Presence of liquid is thus detected. Features : Fast Switching Response 1 sec ½" screw mountings available High pressure 15 bar forks High Tempreture up-to 250°C available Calibration-less operation Remote electronics with std 10 meters cable length External indication LED available Threaded & Flanged Mountings NAMUR (L-H / H-L) as per IEC-60947-5-6 Ingress protection : IP 68/65 (as per IS-13947) Ex-proof (Ex d T6 IP-66 IIC ) Flameproof as per IS/IEC 60079-1:2007 Weatherproof (IP-66) as per IS/IEC 60529:2001 Suitable for Gas Group - IIC Suitable for Zone 1 & 2 atmospheres Compact size Vibration complied as per IEC 60068 part 2-6 Low power consumption Applications : Free flowing liquids Suitable for side as well as top mounting Minimum and maximum failsafe field selectable Process temperature max 200°C Process pressure max.15 bar Flow/no-flow detection in pipe-lines

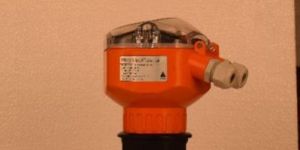

TLU is an ultrasonic non-contacting level meter which will increase the effectiveness of your liquid management process. It is designed its sensor and controller in one compact housing. TLU is two-wire loop-powered instrument and its measurement range is 5 meters. TLU menu makes the user easy and simple for calibration. All functions are optimized which enables you to effectively monitor the liquid level and keep your facilities running safely and reliably.Operating Principle : The sensor transmits ultrasonic pulses to the measurement target. The pulses are reflected from the surface of the target and received back by the sensor. The running time is converted in to the distance and it shows as level or volume on the display. Features : Compact Size User Friendly menus Temperature Compensation Two-wire loop-powered Simple Installation & Maintenance RS232, RS485, Modbus Various output types High protection class Explosion proof type LCD display Applications : Sedimentation tank Sewage treatment Food industry (Winery, Granary etc) Electricity mining industry Petrochemical industry

Accuracy : 0.25F.S, 0.5%F.S, 1%F.S

Operating Principle : TLC2 probe surface forms a capacitance with the walls of tank containing the liquid Level sensing probe gets divided into three parts - Stray capacitance Cstray Air part forming Cair Liquid part forming Cliq When level increases, Cliq increase, Cair falls while Cstray stays constant as probe/device is held at fixed location with respect to the tank. While, with level decreasing, Cair increaeses while Cliq falls, so in effect measuring capacitance provides information about liquid level in the tank. Software inside the device holds the higher and lower calibration values, and provides level information on the device output Features : Fast Switching Response High temperature endurable probes Single sensor allows pump-control & multi-point switching Easy calibration with or without material Remote electronics with std 10 meters cable length External indication LED available Threaded , Flanged Mountings & TC Electronic Inserts support all requirements Ingress protection : IP 68/65 (as per IS-13947) Ex-proof (Ex d T6 IP-66 IIC) Flameproof as per IS/IEC 60079-1:2007 Weatherproof (IP-66) as per IS/IEC 60529:2001 Suitable for Gas Group : IIC Suitable for Zone 1 & 2 atmospheres Compact size Rigid rod / flexible rope versions No potentiometers - hassle free calibration compensation against material build-up Applications : Free flowing homogeneous liquids like oil, raw water, WFI, DM/DI water etc Suitable for top mounting Process temperature max. 200°C Process pressure max. 20 bar

Process Pressure : absolute / max. 15 bar (for ceramic insulation : 1 atm)

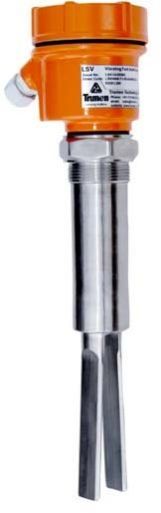

We are counted amongst the prominent Suppliers and Exporters of Tuning Fork Polyester Level Sensor. Our entity is based in Madhya Pradesh, India. We thoroughly examine it against the stringent quality parameters, to ensure its smooth functioning.   Applications : Free flowing powders and granules (size max. 10mm) Suitable for side as well as top mounting Minimum and maximum fail-safe field selectable Process temperature max. 250 ‚ Process pressure max. 15 bars   Features : Compact size Universal industrial power supply (12 to 80 VDC & 12 to 265 VAC)  Low power consumption No calibration required Various customized process connections Starting from 1" threaded size Settable switching delay as a standard feature

Number Of Flower : Vibrating Fork Level Limit Switch, Optical Level Sensor

Brand Name : Trumen

Material : Metal

Certification : CE Certified, ISO 9001:2008

Application : Dry Material

Country of Origin : 15 To 80 VDC & 15 To VAC

Frequency : 60Hz, 50Hz

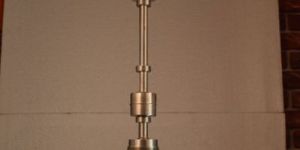

A reliable technique in industry for single / multiple liquid level sensing and control in open or pressurized vessels.Operating Principle : It operates on the basic buoyancy principle .It uses float that glides on the surface of liquids. This level switch consists of - Terminal Enclosure, Float Stem with Hermetically sealed Reed Switches and Float with magnets assembled inside. As the float rises or falls with liquid level, the internal magnet moves in or out of the field of the switch resulting in its opening or closing. A non-magnetic barrier tube containing the reed switch isolates it from the process.These type level controls are available for controlling level at up to four different preset locations and can virtually be made of any length. This switch is highly effective and cost shedding and also finds use in a wide range of industries.Features : Reliable & low cost PC/PLC/DCS, Alarm Annunciator configurable Available with External Chamber Applications : Fuel oil tank control, Boiler feed water drum control, cooling tower lubrication/cooling/filtration systems, paint shops, water/waste water treatment etc.

Switch Type : Reed Switch (SPST/SPDT)

Accuracy : 0.15 % FS

Output : 4 - 20mA (2 wires)

Side Mounted Level Switch is based on buoyancy principle .It is used for controlling the liquid level in underground & overhead tanks.Operating Principle : It consists of a pivoted float assembly & a switch enclosure. A magnet that is built into the float actuates rough the wall of a guide stem. The float buoys up along with the level rise and actuates the magnetic switch which is kept inside the stem. The magnetic transmission is glandless, leaving no scope for leakages from vessel into switch housing. These switches are manufactured in various materials, enclosures & special features to suit broad range of media / applications. Features : Reliable & low cost PC/PLC/DCS, Alarm Annunciator configurable Available with External Chamber Applications : Fuel oil tank control, Boiler feed water drum control, cooling tower lubrication/cooling/filtration systems, paint shops, water/waste water treatment etc.

Switch Type : Micro Switch

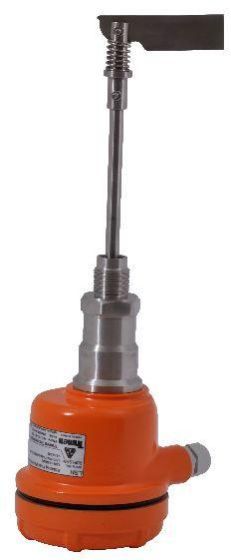

Operating Principle : Trumen rotating paddle level switches are spring loaded eccentricaly driven rotating vanes or blades, which rotate at a slow roational speed of 3rpm maximum, using a geared motor. When material is absent, rotating vanes are free to move and motor is held to its normal position by a spring. When material level reaches the rotating vanes, it tries to stop the rotation. This causes motor move in reverse as the spring can no longer hold it in its normal position. When motor rotates to a suffient degree, a limit switch gets triggered. This stops the power supply to the motor and another limit switch provides potential free output. Features : Rugged construction and design along with proper sealing to prevent dust penetration. No calibration required. Extensible length model available Different types of blades (vanes) available. Stable and reliable performace Applications : LSR is suitable for applications in free-flowing solid powders and grainules, for example in cement industries, plastics, pharmaceuticals, chemicals and fertilizers, powder, food and breweries, etc.

Material : SS 316 or SS 316L

We are a trusted Supplier and Exporter of RF Admittance Level Switch with Ceramic Insulation. We carry out our operations from Madhya Pradesh, India.    Applications : Suitable for all sticky/non-sticky bulk solids & liquids Suitable for the side as well as top mounting Process temperature max 600 (ceramic insulation) Process pressure max. 15 bars Minimum and maximum fail-safe field selectable.    Features : Compact size Universal industrial power supply (12 to 80 VDC & 12 to 265 VAC) Low power consumption Easy calibration Active shield compensation against material build-up Static charge safe for fly-ash, acids, plastic & other Applications susceptible to static charge/electricity Customized process connection like Threaded/Flanged etc

Brand Name : Trumen

Material : Powder

Certification : CE Certified, ISO 9001:2008 Certified

Operating Temperature : 600

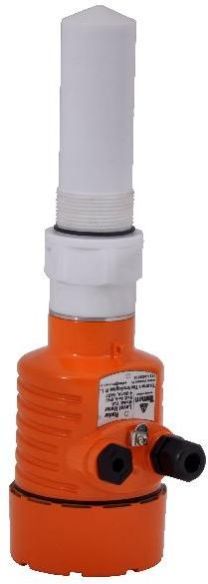

Application : Continuous level transmitter for Liquids/Bulk Solids/Powder such as Water, Chemical, Fly Ash, Cement, Cattle feed, Grains etc, in industries such as Chemical, Cement, Metallurgy, Refinery, Food Processing, etc.Approvals : Conformity of Europa (CE) Weatherproof IP-67 as per IS 13947. Flameproof (Ex d) as per IS/IEC 60079-1:2007 Suitable for Gas Group : II-C, T6 (pending)Advantages : Non contact measuring, no abrasion, no contamination, easy configuration.

Measuring Range : Up to 40m

Process Pressure : -0.1.…..3 bar

Accuracy : ±3mm/±15mm

Power Supply : 16....26Vdc

Signal output : 4-20mA/ HART (2-wire/ 4-wire), RS-485 ModBus-RTU

We have positioned ourselves as a prevalent Supplier and Exporter of Pump Control Level Switch. Our vendors use the top-notch materials and progressive techniques for manufacturing it. It is at par with the latest industrial standards and norms.    Applications : Suitable for conductive liquids like water Top mounting & side mounting options Minimum and maximum fail-safe field selectable Single point/multipoint/pump-control switching Process temperature maximum 200 ‚ Process pressure max. 3 bars   Features : Compact size Integral version with universal power supply (12 to 80 VDC & 12 to 265 VAC) Split models with controller + probe with 80 to 260VAC/12 to 60VDC Low power consumption No calibration required Various customized process connections like Threaded/Flanged.

Brand Name : Trumen

Frequency (Hertz) : 50HZ, 60Hz

Pole And Throw Specification : DPDT

Meter Technology : Differential

Mounting Options : Side Mount

Switch Type : Vibrating Rod

Current Rating : 5 A each @ 24VDC or 220VAC

Media Type : Dry Material

Working Pressure : absolute / max. 15 bar

Measuring Range : Insertion length (250mm to 3000mm)

Country of Origin : Made in India

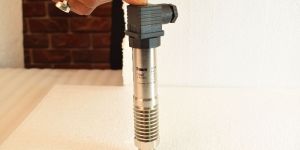

Product Overview : TFP-40T is made from high temperature silicon piezoresistive sensor chip. The piezoresistive sensor chip is packaged in a fluid-filled cylindrical cavity and isolated from measured media by a stainless steel diaphragm and housing. The measured media is transferred onto sensor through heating cooling parts, and high accuracy amplified circuit board is in stainless steel housing, transmitting sensor signal into standard output signal. A wide range of process connection and electrical connection options are available to meet almost requirement. Features : Measuring ranges from 350mbar to 600bar Absolute, gauge and sealed gauge Accuracy - ±0.25%FSO or ± 0.5%FSO Calibrated and temperature compensated Stainless steel construction Wider operation temperature range Variety of Pressure & Electrical connections Output 4...20mA, 0...10V, 0...5V and others Applications : Process control systems Refrigeration and HVAC controls Hydraulic systems and valve Machine building Pumps and compressors

Measuring Range : -1 bar to 600bar

Accuracy : 0.50% of FS (Standard) 0.25% of FS (Optional)

Power Supply : 12....36Vdc

TFP-40S is made from high-quality silicon piezoresistive sensor. The piezoresistive sensor is packaged in stainless steel housing. The TFP-40S is precision engineered to fit most industrial pressure measurement.The compact and rugged design makes these pressure transmitter suitable for applications including process control systems, hydraulic systems and valves, refrigeration and HVAC controls, level measurement and test equipment . A wide range of process connection and electrical connection options are available to meet almost requirement.Features : Measuring ranges from 100mbar to 600bar Absolute, gauge and sealed gauge Accuracy - ±0.25%FSO or ± 0.5%FSO Calibrated and temperature compensated Stainless steel construction Piezoresistive pressure sensor design Variety of Pressure & Electrical connections Output 4...20mA, 0...10V, 0...5V and others Applications : Process control systems Refrigeration and HVAC controls Hydraulic systems and valve Machine building Pumps and compressors

Measuring Range : -1 bar to 600bar

Accuracy : 0.50% of FS (Standard), 0.25% of FS (Optional)

Power Supply : 12....36Vdc

Material : Metal

Application : Liquid

Availability : 0-300gm

Frequency : 50Hz

Automatic Grade : Semi Automatic

Surface Treatment : Galvanised

Indication Rating : Flow Rate

Brand Name : Trumen

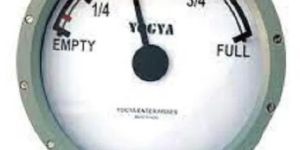

Number Of Flower : Magnetic Oil Level Gauge

Material : Cast Iron

Application : Power Transformer

Country of Origin : Made in India

Applications Free flowing powders and granules (size max. 10mm). Suitable for side as well as top mounting. Minimum and maximum fail safe field selectable. Process temperature max 250 ºC. Process pressure max. 15 bar. Features Compact size. Universal industrial power supply. 12 to 80 VDC & 12 to 265 VAC). Low power consumption. No calibration required. Various customized process connections. Starting from 1" threaded size. Settable switching delay as a standard feature.

Brand Name : Trumen

Material : solid,powder

Operating Temperature : 200

Power Supply : 15- 80 V Dc , 15 -260 VAC

Country of Origin : Indore

We are an established Supplier and Exporter of Cement Level Sensor in Madhya Pradesh, India. We procure it from our credible vendors, who use the top-notch materials and innovative techniques for fabricating it. We offer it at a reasonable rate.   Applications : Free flowing powders and granules Suitable for side as well as top mounting Minimum and maximum fail-safe field selectable Process temperature max. 200 ‚ Process pressure max. 15 bars   Features : Compact size Universal industrial power supply (12 to 80 VDC & 12 to 265 VAC) Low power consumption No calibration required Customized process connections like Threaded/Flanged/Hygienic etc. Settable switching delay as a standard feature

Number Of Flower : Vibration Switches

Brand Name : Trumen

Application : Solid,Powder

Output : DPDT Relay

Temperature : 200

Country of Origin : Indore

Operating Principle : Trumen hydrostatic pressure transmitter utilizes pressure exerted by liquid P(liq) and substract it by air pressure P(air) using a single pressure sensitive diaphragm and air-vent in connection cable. As Trumen hydrostatic pressure transducer is immersed deeper in the liquid, the P(liq) becomes higher than P(air) and the diphragm minutely deforms. This diaphragm deformation can't be seen visibly, but it is caught by piezo-resistive sensors secured on the sensitive diaphragm. Thus pressure exerted by liquid is sensed by Trumen hydrostatic sensor which is directly denotes the depth from the surface of liquid.

Accuracy : ± 0.25% (standard) ± 0.5% minimum % of Full Scale
