Monad Electronics Sitapura, Jaipur, Rajasthan

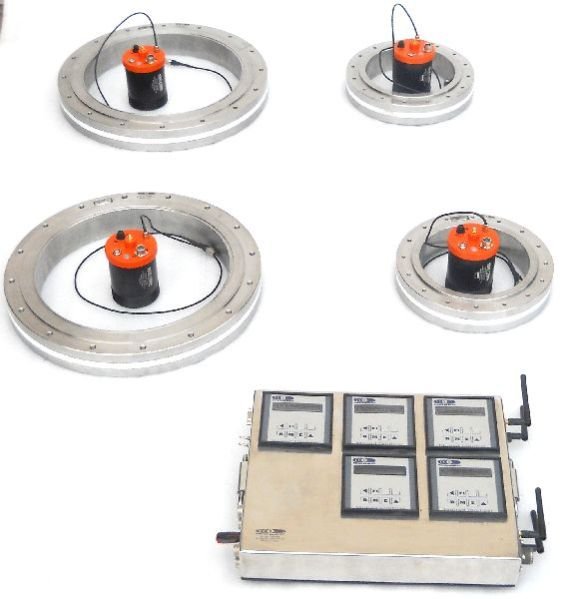

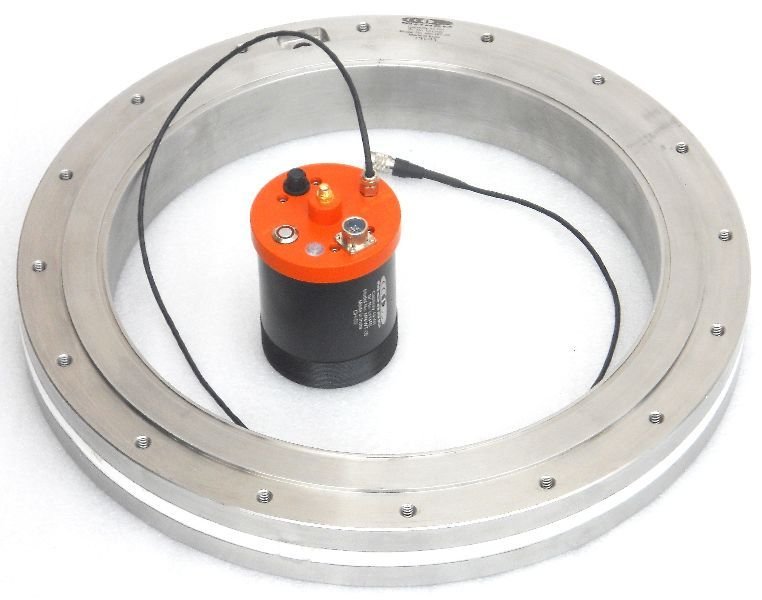

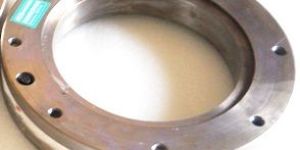

  The Automobile Wheel Torque Sensor is designed to be bolted to the brake drum or spindle of a car or truck in place of the regular wheel. The wheel is then bolted to the torque sensor. This moves the wheel outward approximately 11/2 inches from its original location. A slip ring or rotary transformer assembly is provided to connect the torque sensor to an instrument in the vehicle. Most torque sensors can be supplied with two sets of bolt holes so that it can fit two different bolt circle diameters, each with the same number of holes. The sensor is normally furnished with one adapter plate for one given stud pattern. Some of the wheel torque sensors are designed to be used with special wheels which bring the tire rim back to its original location, thus maintaining the original tire track. Also, on some models, a DC tachometer or 60-tooth gear and magnetic pickup generator can be supplied which provides a signal proportional to wheel speed. Features: - “At the source” torque measurement- Large selection of capacities available- Wheel centerline offset correction available for cornering testing- Special application versions available

Country of Origin : India

Number Of Flower : Torque Sensors

Application : Automobile Use

Condition : New

Power : NA

Total Carbohydrate : 1year

Alarm Range : NA

Brand Name : Monad

Theory : Strain gauge based Digital telemetry

Output : Analog & Digital

Number Of Flower : Weigh Belt Feeder

Availability : 10-100kg, 100-200kg, 200-400kg, 400-600kg, 600-800kg

Country of Origin : 110V, 220V, 380V, 440V

Frequency : 50Hz, 60Hz

Driven Type : Electric, Hydraulic, Mechanical, Pneumatic

Total Carbohydrate : 1yrs, 2yrs, 5yrs

Country of Origin : Made in India

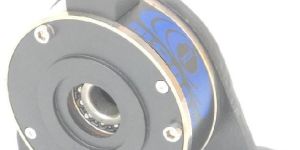

Monad electronics combines precision strain gauge force transducers with dead shaft mounting options to produce the highest accuracy web tension measurement systems.Monad transducers, developed for web tension applications, incorporate a differential bending beam design with a full Wheatstone Bridge strain gage configuration. This design provides stable, accurate, and repeatable measurement over a wide range of operating tensions while virtually eliminating temperature drift. All capacities are equipped with mechanical overload protection.Available with a mounting configuration for dead shaft applications (with horizontal or vertical support surfaces), Features : • Capacities from 2K to 20K Kg • Dual axis transducer design enables measurement of resultant force in all directions without limitation to Horizontal or vertical components• Functional up to 121°C• Sealed to IP67 - field proven design• Low profile - direct load cell replacement with simple retrofit installation • Factory calibrated for minimum start-up time Description : Web Tension Transducers measure web tension forces applied across a roll, using integral horizontal and vertical axis sensors. This innovative and exclusive two-dimensional approach to web tension force measurement enables accurate determination of the true resultant force, as well as the applied angle. Not only does this permit installation and measurement at any mounting angle or roll orientation, it also combines to form an expert diagnostics system that produces the highest level of web tension measurement confidence available today. The Load ecll is machined from a high strength corrosion resistant stainless steel to yield a low profile single piece construction that incorporates tubular sensingsections at each end. Two full Wheatstone Bridges are mounted internally to each sensor and provide ] output signals in the X and Y plane hat are externally, vectorially summed to determine the magnitude and direction of the resultant force. Each bridge is functional to 121°C, and dead weight calibrated for precision accuracy. The cylindrical sensing sections are sealed to meet IP67 requirements.Environmental sealing ensures long-term reliability for humid, wet, or wash down locations.

Brand Name : Monad

Availability : 4 LB (1.8 kgs.)

Country of Origin : 220-240 VAC input available

Country of Origin : Made in India

Monad Reaction Torque Sensors utilize bonded strain gauge technology and offer torque measurements from 0.1 N.m to ranges of  10000 KN.m .  A variety of mounting configurations are offered including: Shaft to Shaft, Flange to Flange and Shaft to Flange on the models. Monad torque sensors are machined from stainless steel and temperature hardened for low torsional deflection, as well as, temperature compensated for long-term stability. Monad specialise in completely customized design, contact us to discuss your particular application requirements.

Number Of Flower : Torque Sensors

Material : Alloy Steel

Application : Industrial Use

Condition : New

Power : 15w

Total Carbohydrate : 1year

Alarm Range : 1.5mtr

Country of Origin : India

Brand Name : Monad

Theory : Strain gauge

Output : 2mV/V

We are a leading Manufacturer & Exporter of Torque Sensor such as Clamp On Rotary Torque Sensor, Bottle Cap Torque Sensor 100kg cms, Clamp- On Rotary Torque Sensor, Digital Telemetry Rotary Torque Sensor, Differential Torque Sensor, Non Contact Rotary Torque Sensor and many more items from India.

Country of Origin : India

Number Of Flower : Sensors, Tranducer

Material : SS

Application : Industrial Use

Packaging Type : Oragange

Condition : Used, New

Total Carbohydrate : 1year

Brand Name : Monad

Part Number : MN-RT

Sensor Type : Strain gauge

Accuracy : ±0.01%

Operating Temperature : -2 to 50 °C

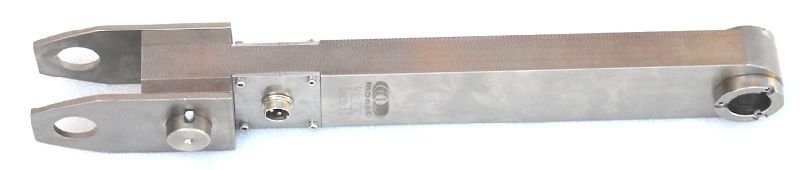

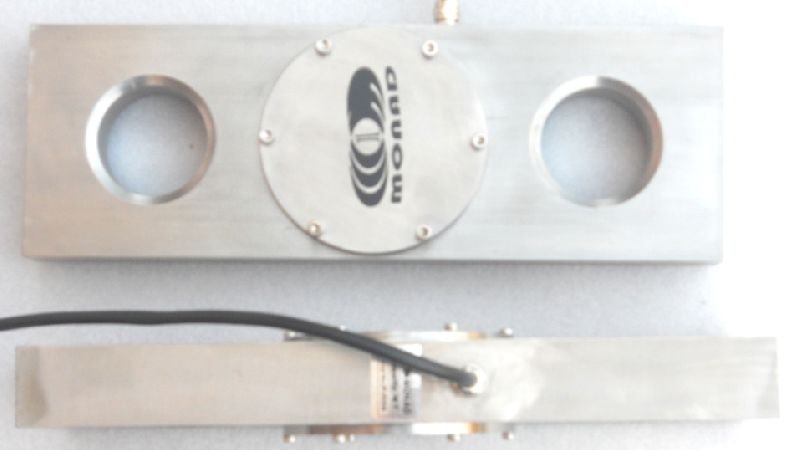

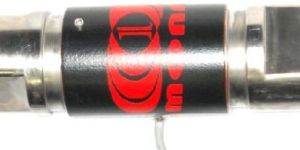

the tension link load cell of monad offers so much versatility, our range includes# load cell mounted digitizers,# wired load cell with separate digitizers# load cell with in built amplifiers# load cells with wireless remote display & keypad# load cells with inbuilt data logging# load cell for harsh ambient condition with ip68 & ip69 sealingdesigned for indoor and outdoor industrial use, the load cell will perform under virtually allenvironmental conditions (please consult for further details). surface mounted electronics provide aspace saving compact design and reliability in heavy shock and vibration applications. mechanicalswitches and a alpha numeric lcd ensure user- friendly performance and operator acceptance.capacities range from 1 to 1000 tons and units can be selected to read in pounds, kilograms, metric tons.

Number Of Flower : Load Cell

Material : Alloy Steel, Stainless Steel

Certification : ISO Certified

Application : Industrial Use

Power Source : Elecrtric

Output : 2mv, 3mv

Rated Load : 100 Kgf to 1000Tf

Temperature : -20°C to 180°C

Automation Grade : Automatic

Country of Origin : India

Brand Name : Monad

Theory : Strain agueg

Number Of Flower : Tank Weighing System

Availability : 0-50kg, 100-200kg, 200-400kg, 50-100kg

Country of Origin : 110V, 220V, 380V, 440V

Driven Type : Battery, Electric

Total Carbohydrate : 1yr, 2yrs, 5yrs

Loading Capacity : 0-500kg, 1000-2000kg, 2000-4000kg, 500-1000kg

Automation Grade : Automatic, Fully Automatic, Manual, Semi Automatic

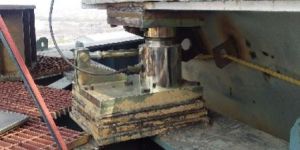

Application: •Tank, bin and hopper weighing•Silo weighing• Batching, blending, mixing, level and inventory monitoring  Features: • Capacity ranges of 1,000 to 100,000 Kg• Mounts directly to the floor or structural support• Self-checking with provisions for thermal expansion and contraction• Insensitive to side loads and bending moments•High output - well suited to high dead load/lowLive load applications• Load cells have matched outputs for multi-cell systems• Excellent combined error and repeatability•Accuracies exceed 0.1% with agitated loads• Integral conduit adaptor• Stainless steel, welded seal assemblies available

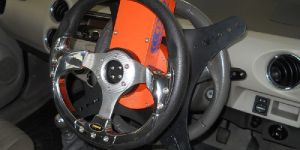

Features: Direct to steering column attachment True steering torque-feedback for automobiles,Cars,trucks, buses and material handling equipment. Custom designs & other versions are also available as per your requirement

We are the main supplier of this product.

Country of Origin : India

Number Of Flower : Solid Flow Meter

Brand Name : Monad

Material : Stainless Steel

Country of Origin : 220V

Operating Type : Automatic

Power : 24VDC Or 220VAC

Driven Type : Electric

Certificate : ISO 9001:2008 Certified

Display : Digital

Warrenty : 1 Year

Finishing : Powder Coated

Corrosion Resistance : Yes

Phase : Single Phase

Application : Industrial

Specialities : Accuracy

Line Size : Multisizes

Packaging Type : Metal Sheet Box

Repeatability : ±0.02%

Accuracy : ±0.1%

Analog Output : 4-20mA

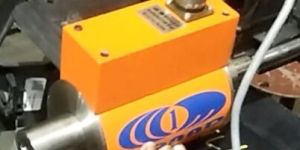

these sensors are primarily used to measure the output torque of clutch type nut runners in production fastening operations . units equipped with incremental encoders are available for applications where fastener’s angle of rotation as well as torque data are required. these sensors are used to monitor operation of systems usingthe following fastening strategies:- turn of the nut - tension control- yield control - torque rate. features: - adaptable for portable usage- no special adapter tools required- precision repeatable torque measurements- calibration reference for “hard usage”mechanical torque wrenches

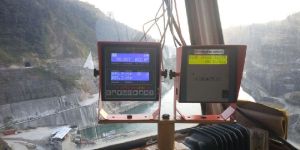

Monad Safe Load Indicator (SLI) rugged design makes it extremely suitable for harsh working environments as well as less demanding situations. It is both simple to set up and use and offers a wide range of configuration options to meet the requirements of virtually all types of cranes, monitoring anyall of the following: Features Wide Range 15T to 1000 T High Accuracy High Reliability High Linearity Rugged Construction High overload limit Single load monitor Dual load monitor Total load of all hooks Overhoisting protection Load and Angle Radius in FeetMeters Boom Angle Boom Length Boom tip height Wire rope deployment Hook travel Wind speed Crane Tilt Slewing Angle Alert or Alarm conditions Key Words Safe Load Indicator for ConventionalTruck cranes SLI for ConventionalTruck cranes ConventionalTruck cranes safety system LMI for Boom truck cranes RCI for Boom truck cranes

We are the main supplier of this product.

Material : Alloy Steel, Brass, Iron, Stainless Steel, Steel

Application : Loading Indication

Country of Origin : 0-6VDC, 6-12VDC

Display Type : Digital

Driven Type : Battery Use

Feature : Accuracy, Easy To Fit, Measure Fast Reading, Perfect Strength, Robust Construction, Rust Proof

Automation Grade : Automatic, Manual

Number Of Flower : Safe Load Indicator

Material : Stainless Steel

We are dealing in rotary torque sensor, • Install the shafts in the coupling hubs before fastening the couplings’ clamping screws! • Do not stretch the bellow couplings beyond the specified permissible elasticities. • The input and output shafts must be free from grease and burrs. • The shaft diameters should be made with a j6 tolerance to obtain the H7j6 preference fit.

Number Of Flower : Sensors

Application : Industrial Use

Condition : New

Total Carbohydrate : 1year

Country of Origin : India

Description: • Install the shafts in the coupling hubs before fastening the couplings’ clamping screws!• Do not stretch the bellow couplings beyond the specified permissible elasticities.• The input and output shafts must be free from grease and burrs.• The shaft diameters should be made with a j6 tolerance to obtain the H7/j6 preference fit. Features: - Nominal (rated) torques:0.1 N·m, 0.2 N·m, 0.5 N·m, 1 N·m,2 N·m, 5 N·m, 10 N·m, 20 N·m,50 N·m, 100 N·m, 200 N·m- Accuracy class: 0.2- Contact less transmission of the measurement signal- Measurement on rotating and stationary parts- Cylindrical shaft ends for non playfriction joints- Integrated measuring system for speed and angle of rotation- Torque output signal: "10 V Mounting Position: The MONAD Torque Transducer with bellow couplings can be used in any mounting position (horizontal, vertical or oblique). With vertical or oblique operation, please ensure that additional masses are sufficiently supported.

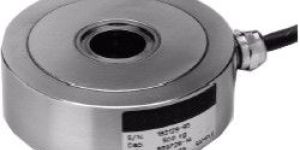

The Ring Torsion  is a low profilehighperformance stainless steel ring torsion type load cell. The fully welded construction and glass-tometal cable-entry ensure that this product can be used successfully in harsh environments found in the food, chemical and allied process industries. This product is suitable for small and medium platform scales, hoppers and process weighing. Application: • Platform scales• Belt scales• Silo hopper weighing Features: • Capacity range: 250kg to 60 ton• Low profile, stainless steel construction• Hermetically sealed, IP66/68• Meets OIML R-60, 6000d• Outputs are matched to ensure easy and accurate parallelconnection of multiple load cells

Leading Manufacturer and Exporter from Jaipur, our product range includes RCI Rated Capacity Indicator such as RCI for Cranes, RCI for Floating Cranes, RCI for Forklift Crane, RCI for Rough Terrain Crane, RCI for Side Lift Cranes, RCI for Straddle Crane and many more items. Rated Capacity Indicator (RCI) for Floating Cranes Monad Rated Capacity Indicator (RCI) rugged design makes it extremely suitable for harsh working environments as well as less demanding situations. It is both simple to set up and use and offers a wide range of configuration options to meet the requirements of virtually all types of cranes, monitoring anyall of the following: Features Wide Range 15T to 1000 T High Accuracy High Reliability High Linearity Rugged Construction High overload limit Single load monitor Dual load monitor Total load of all hooks Overhoisting protection Load and Angle Radius in FeetMeters Boom Angle Boom Length Boom tip height Wire rope deployment Hook travel Wind speed Crane Tilt Slewing Angle Alert or Alarm conditions Application On rivers In ports In sheltered waters In coastal waters In open-sea operation Key Words SLI system for Floating cranes Load Movement Indicator for Floating Cranes Rated Capacity indicator for Floating Cranes SLI for Floating Cranes LMI for Floating Cranes RCI for Floating Cranes Safe Load Indicator for Floating Crane Deck Crane Safety System

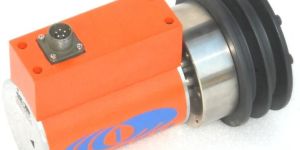

MONAD`s Sprocket/Pulley Torque Sensor is a low- cost, accurate method to measure processing torques. Coupled to any belt or chain driven stub shaft and monitored by a closed electrical circuit, machinery speeds and material feed rates can be precisely controlled. Consequently, this automation can increase productivity and decrease power consumption. Features: - High torsional stiffness- Insensitivity to belt/chain tension loads on torque readings*- Elimination of torque error due to bearing losses in jack shaft assembly- Measurements of torque “at the source”

Monad manufactures a wide range of absolute, gauge, and true gauge pressure sensors. All of these pressure sensors are manufactured as standard, modified standard, and custom transducers to provide fast delivery. Monad Pressure Sensor: * 10 inches of water (2.5 mBar) up to 200,000 psi (14,000 Bar). * Miniatures the size of your fingernail * Unamplified, amplified, and digital output * Sub Sea * Flush Mount * Superior long term stability Features: Monad is among a handful of companies offering pressure sensors that can measure pressure up to 200,000 psi with superior accuracy and reliability. Foil based strain gauge technology enables our pressure sensors to withstand pressure that would destroy silicon based or micromachined pressure sensors. The Model MPS-01 strain gauge pressure sensor measures pressure up to 60,000 psi with +/-0.1% accuracy. For ranges up to 100,000 psi, we offer the Model MPS-02 with 0.5% accuracy and operating temperature range from 0 to 250 degrees Centigrade. For your most demanding applications, we use a hoop-stress design and special metal alloys to custom-build pressure transducers that measure up to 200,000 psi safely, reliably, and with 0.75% accuracy. Typical applications for these tough, reliable high-end instruments are in oil-field geology and aerospace research and development. Our high pressure sensors offer optional compensated temperature ranges from0to 250 degrees Centigrade. with either millivolt or high-leve l outputs. Versions certified for hazardous environments are also available. The MAP-05 is a versatile, flush diaphragm, miniature pressure transducer which delivers a high-level, internally-amplified 1-5VDC, 1-10VDC, or 4-20mA output signal. The MAP-05 is fully welded from 17- 4PH stainless steel and hermetically sealed, making it a solid performer in harsh or corrosive environments.

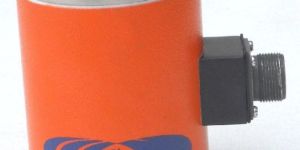

 Rated capacities of 20 to 100 metric tons• Stainless steel, welded seal construction• Multi-column monolithic element design• 15m standard cable length• Three times side loading tolerance relative to similarcompetitive products• Reduced eccentric loading sensitivity• Integral conduit adaptor• sealed to IP66/67 standards• ISO 9001:2000 Certified manufacturing facilities Application: • Truck scales• Railroad track scales• Tank, bin and silo weighing applications

Capacity : : 10 To 2500 N

Supply Voltage : :115Vdc or 220Vdc
