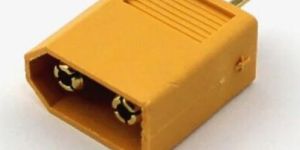

This is a high-quality male XT60 connector commonly used for the battery packs in drones, and RC car applications. The XT 60 connector is ideal for high current lithium battery packs that have a maximum continuous current of 60A

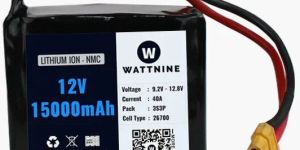

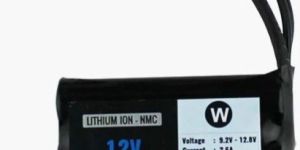

This Battery Pack is rated for 11.1V 15Ah (15,000 mAh). It is built using 26700 lithium NMC cells in a 3S3P configuration. The pack is tested to provide 15Ah at 15A discharge and can be charged using a 6A or 10A 12.6V Lithium charger. It also has a built-in BMS which provides over-charge, over-discharge, and short circuit protection. Charging Voltage- 12.6V Charging Current- 15A (max) Nominal Pack Voltage- 11.1V Discharge Current- Tested for 10A, 15A, 20A Terminals: XT60 Connector Warranty Terms: This battery pack comes with 1 year warranty from the date of purchase. Warranty is void if the pack/connector is physically damaged. Applications: Small scale UPS Battery Battery for GPS Tracking - Vehicle Tracking - Asset Tracking Wifi Modem or Router Battery for backup 12V Remote CCTV Camera PSP Industrial Machines Emergency Lights Robotics and RC cars Music Players and Audio Systems

Specifications of XH-W1219 Temperature Control Module Control Range: -50~110 °C Control Precision: 0.1 °C Measuring Input: NTC10K waterproof sensor L=0.5m. High-Temperature Alarm: -49~110 °C Input Voltage: DC 12V Output Type: Relay output 10A (max) Return Difference Setting: 0.1~30 °C Delay Starting: 0-10min Temperature Calibration: -10~10 °C

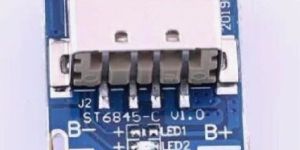

This is a 5V Step-up booster module for Lithium Battery Charging and protection Protection. It can be used for DIY power bank as it can provide 5V 1A output voltage with the input of 3.7V.

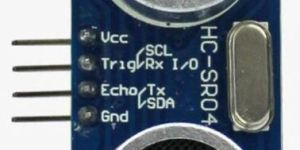

The Ultrasonic Sensor uses Ultrasonic waves to determine the distance of an object like Bats, hence it can be used as a distance measuring sensor. There are two Ultrasonic Transducers present in which one acts as a Transmitter which transmits a high frequency Ultrasonic signal and other acts as a receiver which will wait for the receiving of echo signal which gets reflected by any object in its path. The time between the two signals when divider by speed of sound gives us the distance of the object. Theoretically the sensor claims to have a measuring distance of 2cm to 400cm. However, a range up to 75-80cm can be easily achieved practically. They are cheap, easy to interface and require low power to operate. They can be used to measure the depth of water as waves can travel in water, detect and avoid obstacles in the path of a robot and also as a parking assist sensor.

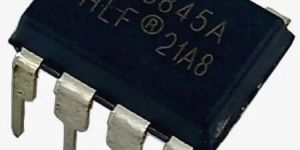

The UC3845 fixed frequency current mode controller is specifically designed for off-line and DC-to-DC converter applications offering the designer a cost effective solution with minimal external components. These integrated circuits feature a trimmed oscillator for precise duty cycle control, a temperature compensated reference, high gain error amplifier, current sensing comparator, and a high current totem pole output ideally suited for driving a power MOSFET. FEATURES: Fixed Frequency Current-Mode PWM Controller Trimmed Oscillator Discharge Current for Precise Duty Cycle Control Current Mode Operation to 500 kHz Automatic Feed Forward Compensation Latching PWM for Cycle−By−Cycle Current Limiting Internally Trimmed Reference with Under voltage Lockout High Current Totem Pole Output Under voltage Lockout with Hysteresis Low Startup and Operating Current

TP4056 Micro USB 5V 1A Lithium Battery Charger Board is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 module features a widely available micro USB connector and with a led indicator for state detection.

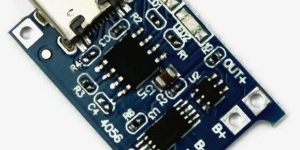

TP4056 Micro USB 5V 1A Lithium Battery Charger Board Protection Module is a complete constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 module features a widely available micro USB connector and with a led indicator for state detection.

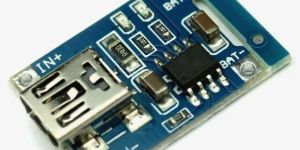

This 5V 1A TP4056 module with mini USB port is a constant-current / constant voltage linear charger for single cell lithium-ion batteries. It's SOP package and low external component count make the TP4056 ideally suitable for portable applications. TP4056 Module Specifications: Input voltage : 4.5V ~ 5.5V Full charge voltage: 4.2V Power: 4.2 w Charging accuracy: 1.5% Charging indicator: micro LED Input Interface: Mini USB port Charging method: linear charge Operating Temperature: -10 to +85ºC

The Tower Pro SG90 9g mini servo motor is the most commonly used servo motor in RC applications. The servo motors are used for control applications which require precision control like robot arm positioning, tool position in machining equipment. The servo motors usually provide control over 180° range. This angular position control is performed by PWM technique so by varying its duty cycle you can control the angular position of the motor. This servo motor can lift a maximum of 1.6 kg when suspended at 1cm distance from the shaft. It can also be used in robotic arm, CNC machine, Steering systems on RC cars and other robotic or automation applications as well.

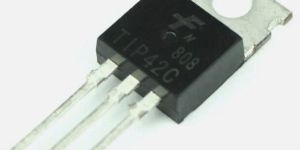

TIP42 Transistor is a PNP power transistor with a maximum gain of 75. It has a collector continuous current of 6A and a Collector Emitter voltage of 100V. The base current for TIP42C transistor is about 3A and the Emitter base voltage is 5V. The TIP42 Bipolar Power Transistor is designed for a general purpose power amplifier and switching applications. FEATURES & SPECIFICATIONS Collector-Emitter Voltage (VCEO): -40V Collector-Base Voltage (VCBO): -40V Emitter−Base Voltage (VEB): -5.0V Collector Current (Ic): 6A DC Current Gain (hFE): 15 to 75 Power Dissipation (PD): 65W Minimum Operating Temperature: -65 °C Maximum Operating Temperature: 150 °C fT Current Gain Bandwidth Product (VCE = 10V, IC = 500mA) 3.0 MH Available in TO-220 Package The TIP41, TIP41A, TIP41B, TIP41C (NPN); and TIP42, TIP42A, TIP42B, TIP42C (PNP) are complementary devices. It is available in TO-220 Package. You can also check out other Power Transistors from TIP series such as TIP31(NPN), TIP41 (NPN), TIP42 (PNP), TIP127 (PNP), TIP122 (NPN), TIP2955 (PNP).

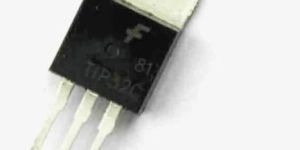

TIP32 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE. FEATURES: • Low saturation voltage • Simple drive requirements • High safe operating area • For low distortion complementary designs • Easy to carry and handle

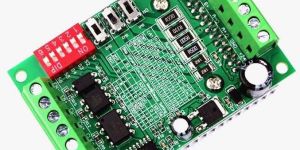

Stepper Motors are used in applications where you need to precisely control the position of the motor in applications like CNC machining, robotics and 3D printing. A4988, DRV8825, TMC2208, TB6560 are some of the Driver ICs we use for driving the stepper motors. But if you want complete control of the motor where you can control the steps, current flowing per winding, rotation direction of a stepper motor with maximum current of the 3A then TB6560 Stepper Motor Driver Module is the solution for you. This module can be powered by DC voltage ranging from 10V to 32V but is best powered by 24Vdc power supply. It has 6N137 high speed opto-couplers to ensure motor does not step out. It comes with Toshiba TB6560AHQ chip which has features like low-voltage shutdown, overheating parking and over-current protection circuit to ensure optimal performance. Rated current is 3A with peak of 3.5A with adjustable currents to meet your requirements. To ensure smooth working It has large heat sink to dissipate heat generated during operations. Specifications Operating Voltage: 10V-32V Operating currents: 3A Stepper driver IC: TB6560AHQ 6N137 High Speed Optocouplers for ensuring motor doesn’t step out

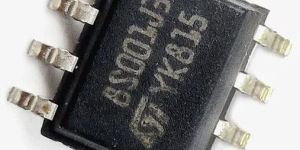

STM8S001J3M3 8-bit Microcontroller is a low cost and robust microcontroller offered by STMicroelectronics for systems where primary requirement is performance, robustness and low cost. Like Stm8L051F3P6, it also has STM8 Core CPU which can process 16MIPS at 16MHz thereby ensuring performance and processing power for your application. It has 8Kbyte of flash memory, 1Kbyte of RAM and 10-bit ADC for your application. It is available in SOP-8 package which means it has 8 pins and 5 of them can be used for external interrupts. It has 5 GPIOs with four of them having high sink outputs. You can use it in the hobbyist projects and also in low-cost industrial application where you want. For Emulation and In Circuit Debugging you can use STice emulation system offered by the ST Microelectronics and for programming and development you can use ST Visual Develop and ST Visual Programmer or ST socket boards available specifically for programming. You can use this MCU as a standalone IC instead of breakout boards like STM32F030F4P6 Development Board, STM8S103F3P6 STM8 Development Board or Atmel microcontrollers. Specifications 2.95 V to 5.5 V operating voltage Temperature range: −40 °C to 85 °C Harvard architecture and 3-stage pipeline 10-bit ADC UART, Smartcard, IrDA, SPI, I2C 5 GPIOs all external interrupt enabled Embedded single-wire interface module (SWIM)

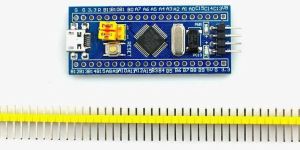

This is STM32F103C6T6 Development Board STM32 ARM Core Module. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C6T6. Board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core. Board is suitable for learners that want to learn STM32 microcontroller with ARM Cortex-M3 32-bit core. SPECIFICATIONS: Onboard Mini USB interface, you can give the board power supply and USB communication. 72MHz work frequency 32KB flash memory, 20K SRAM 2.0-3.6V power, I/O Reset(POR/PDR) 4-16MHz crystal 32 kHz oscillator for RTC with calibration Up to 2 x I2C interfaces (SMBus/PMBus) Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control) Up to 2 SPIs (18 Mbit/s) CAN interface (2.0B Active)

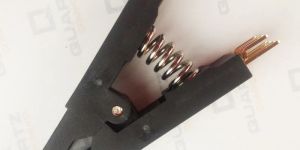

While you are programming a Small Outline Package IC (SOP), it is very difficult to connect the small surface mounted pins on the package to the Programmer Kit you are using. You must either design an small PCB to connect the SOP package IC and pins to take out the connecting wires which wont work in the case if your IC is already soldered and then the debugging becomes almost impossible. To save this trouble this Programmer Testing Clip which connects SOP16 pin package to DIP8 package which you can easily use with soldered IC on the board as it has a clip to connect and hold on to the SOP package IC while you can connect Dual Inline Package (DIP) pins on your programmer board DIP Holder. This will make your programming and debugging work very easy to execute without need to desolder and solder the SOP package IC on the PCB. Specifications 16 Pins for connecting SOP package IC Gold plated pins for better connection and reliability 16 pins for connecting DIP package 30 cm long connecting cable

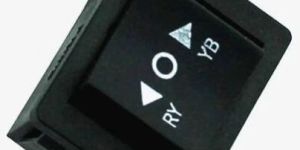

This is a flush mounting SPDT momentary rocker switch with 6A 250VAC current ratings. The 3 positions SPDT (Single Pole Double Throw) switch is suitable for DC motors and linear actuators. Package Includes: 1 x SPDT Momentary Rocker Switch - 6A 250V AC

When we develop a system, we go from concept to design to prototype to testing and then final product and in all of these prototyping and testing is the most important step as it irons out any flaws in your concept and remove the bugs. We do not make PCBs for testing purpose instead we use breadboard and breakout boards for the same. If we use QFP32/SOP16/SOP128 SMD package which require PCB soldering to work, it will be a problem while prototyping and testing as we do not design PCB in this stage. This Dual Side SMD package to DIP Package Adapter will help you out in this case. A side for pin pitch size 0.8mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin to 64pin) to 2.54mm/0.1 inch DIP. B side for pin pitch size 0.5mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin to 100pin) to 2.54mm/0.1 inch DIP. You can either use jumper wires or berg strips to make connections easily now. Specifications Pin spacing of 0.8mm, suitable for the common QFP, TQFP package transfer into DIP8 upright Pin spacing of 0.5mm, suitable for common LQFP, FQFP encapsulation transfer into DIP8 upright (change accordingly) Low cost and easy to use High-quality PCB FR4 Grade with FPT Certified. Package Contents 1× SOP16 DIP Adapter Converter PCB Board 0.65/1.27mm

The 35W Flat Soldering Tip is designed to deliver precision and durability for all your soldering needs. Crafted for compatibility with 35W soldering irons, this flat-tip design ensures even heat distribution and efficient soldering for a variety of applications.

M2.5 Metal Washer is for thin workpieces and sensitive surfaces. Suitable for metric screws.

are semiconductor devices which is used to amplify small signals coming from a sensor or a circuit and other systems to be recorded and registered by the controller you are using or any data logger to register your signals which generally are too small to be read by it. It is an active component and it can also be used in switching circuits to turn on or off the intended devices. It has 3 terminals namely Base(B), Collector(C), Emitter(E) for connections with other components in the circuit. Some transistors also contain fourth terminal named Substrate(S). The S9014 Transistor is a low signal and low noise NPN transistor with a good hFE (current gain) value of upto 1000 of high linearity this makes this transistor an ideal choice for designing Audio Frequency (AF) amplifiers or pre-amplifiers. It also has good collector dissipation (power dissipation) of 0.4W to driver speakers of decent rating. It has low collector current of 100mA hence refrain from using it with switching and driving circuit. S9014 Transistor Specification Low Noise NPN Transistor Current Gain (hFE), 60 to 1000 (good linearity) Continuous Collector current (IC): 100mA Collector-Emitter voltage (VCEO): 45 V Collector-Base voltage (VCB0): 50V Emitter Base Voltage (VBE0): 5V Transition Frequency 150MHz Available in To-92 Package

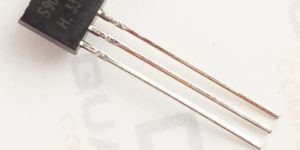

The S9013 transistor is an NPN transistor with excellent gain capability so that you can use it in amplifier application. The maximum DC gain it can give is 150 and it can have transistor frequency is 140MHz. It can have maximum collector current of 500mA and maximum collector power dissipation of 625mW. S9013 Transistor Specifications PNP Transistor with low noise Maximum DC Current Gain: 150 Collector Emitter Saturation Voltage: 0.25V Base-Emitter Saturation Voltage: 1.0V Transition Frequency: 140MHz Excellent Linear Gain Range

are semiconductor devices which is used to amplify small signals coming from a sensor or a circuit and other systems to be recorded and registered by the controller you are using or any data logger to register your signals which generally are too small to be read by it. It is an active component and it can also be used in switching circuits to turn on or off the intended devices. It has 3 terminals namely Base(B), Collector(C), Emitter(E) for connections with other components in the circuit. Some transistors also contain fourth terminal named Substrate(S). The S9012 transistor is an PNP transistor with excellent gain capability so that you can use it in amplifier application. The maximum DC gain it can give is 400 and it can have transistor frequency is 150MHz. It can have maximum collector current of 400mA and maximum collector power dissipation of 300mW.
