Apex Electricals Industrial Area, Jalandhar, Punjab

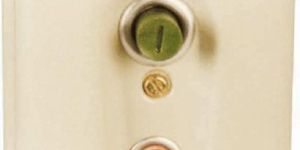

These starters come with Thermal Overload Relays and provide protection from overloading to the motor. It comes in a compact size and is a cost-effective solution for motor safety. We manufacture them in both Single and Three Phase functions. The Motor Ratings for which we make Mini Starter range from 0.25 H.P. to 7.5 H.P.

These Panels are specially designed to protect Submersible and Monoblock Pumps from over-loading and short circuit. In case of three phase DOL and Automatic Panels, these also protect the pump against Single Phasing, Phase Faliure, Phase Reversal etc.   Single Phase Panels For control and protection of Single Phase Submersible-Pumps upto 5 H.P Three Phase Panels For control and protection of Three Phase Submersible-Pumps upto 10 H.P Automatic Panels For protection of Heavy Duty Three Phase Submersible- Pumps upto 30 H.P. These panels start the pump in star position and when the pump gains its rated speed they automatically transfer it from star to delta position

Star-Delta Motor starters are used where application have heavy duty and the current used is high. To enable motor to start with low current, this starter passes low voltage to the motor while one starts in tin 'Star' position. Once the motor attains its rated speed the starter then is taken to 'Delta' position and it releases the full voltage thus enabling motor to now run to its full capacity. Change from 'Star' to 'Delta' is either done manually or automatically (using Bi-Metal Time Relay) depending on the model you choose. We manufacture both Manual Star-Delta and Automatic Star-Delta Starters. Manual Star-Delta uses very accessible handle to switch the motor from  'Star' to 'Delta' phase. Range goes up to 45 H.P. Once in full running condition this starter provides complete protection from Overloading. It consists of three major components other than the enclosure. The components are called asand (and Time Relay for Automatic Star-Delta Starter) and a . We use very high quality alloys as contacts so that the precise and chatter-free operation is achieved. The Solenoid coils inside the contactors are machine-wound with use high-precision winding machines. The powder-coated outer cover of Starters complies with IP54 Protection Class, which ensures that its sturdy and safe enough for use for years.

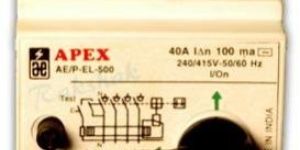

We are offering residual current circuit breaker. Rccb provides protection to human life and property against hazards posed by leakage of current. It senses the leakage of current within its range and forces the power supply to cut off in as less as 0.03 seconds thus saving damage to property and life. We manufacture rccbs in four ampere ratings.

We are offering push buttons applications are wide ranging and include industrial controls and panels, factory automation, vehicles (trainsbuses) and processing and packaging machinery. normal actuator with plastic front ring and holder raised actuator with plastic front ring and holder luminous raised actuator with plastic front ting and holder mushroom actuator 40mm with plastic front ring and holder lens assembly with holder selector actuator lamp holder for rear connection contact block for rear connection

Applications are wide ranging and include industrial controls and panels, factory automation, vehicles (trains/buses) and processing and packaging machinery. Normal Actuator with plastic front ring and holder Raised Actuator with plastic front ring and holder Luminous raised Actuator with plastic front ting and holder Mushroom Actuator 40mm with plastic front ring and holder Lens Assembly with Holder Selector Actuator Lamp Holder for rear connection Contact Block for Rear Connection

This product is specifically designed to help fight the common problem of Phase cut in a three phase connection. It has a simple and intuitive interface which can be operated by a layman. Phase Changer lets you divide two and even one present phase between all phases, including the missing ones. Which means that you can use power even in the phases which are absent in the main supply. To provide maximum safety the unit comes fitted with a three pole MCB and one can also order it with a RCCB to ensure safety from earth leakage also. We can offer Phase Changer up tp 63 Amperes.

Direct-on-line starters (or dol) are the most common type of ac motor starters. apex's dol range starts from 0.5 h.p. And goes till 40 h.p. Dol provides complete protection from overloading and single phasing (where three phase connection is used). It consists of two major components other than the enclosure. The components are called as contactors and overload relays we use very high quality alloys as contacts so that the precise and chatter-free operation is achieved. The solenoid coils inside the contactors are machine-wound with use high-precision winding machines. The powder-coated outer cover of dol complies with ip54 protection class, which ensures that its sturdy and safe enough for use for years. Classic d.o.l. Motor starters as the name suggests 'classic' is our flagship model, which is around for decades. It has been highly successful model and has undergone number of enhancements and imrovements. It is still a preference over its competitors.

We are offering these are made very sturdy (aluminum body) and their special design ensures that no live parts are being accessible. The units are powder coated to look great even after years.

A limit switch is an electro-mechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection. Limit switches are used in a variety of applications and environments because of their ruggedness, simple visible operation, ease of installation and reliability of operation. Used in applications which need a limit to connect/disconnect contacts, it comes in two types Snap Action/ Normal Action. Best instance of Limit Switch's application is Lifts or Elevators. The unit is Oil Tight and made of very sturdy Aluminum housing. Contacts used are silver alloys.

L.T. Control Switches or Low Tension Control Switches have various types and uses. They are used to control the function of motors or switching on/off, reversing the devices. The contacts used are alloys that provide long life and millions of operations without any problem. Choice can be made according to two parameters viz. load of your application and function. We manufacture Switches in two capacities 25 Amps, 32 Amps and 63 Amps which suit the most low voltage needs. Different functions manufactured by us are as follows: On/Off Switches Change Over Switches Forward/Reverse Switches Forward/Reverse Pole Changing Switches Star-Delta Switches Phase-Changer Switches

These are made very sturdy (Aluminum body) and their special design ensures that no live parts are being accessible. The units are powder coated to look great even after years. We manufacture Plugs & Sockets as per the following table:    Plug: 2 Pole + Earth, 250 V 20 Amps  Plug: 3 Pole + Earth, 440 V 20 Amps  Plug: 3 Pole + Earth, 440 V 30 Amps  Socket: 2 Pole + Earth, 250 V 20 Amps  Socket: 3 Pole + Earth, 440 V 20 Amps  Socket: 3 Pole + Earth, 440 V 30 Amps

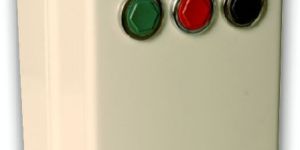

As the name suggests this motor starter is used where the motor needs to rotate in both sides (Clockwise and Anti-Clockwise). Its operated with use of buttons. Green button starts the motor. Red button stops it and black reverses the operation. This starter provides complete protection from Overloading. It consists of two major components other than the enclosure. The components are called as Contactors and Overload Relay. We use very high quality alloys as contacts so that the precise and chatter-free operation is achieved. The Solenoid coils inside the contactors are machine-wound with use high-precision winding machines. The powder-coated outer cover of Starters complies with IP54 Protection Class, which ensures that its sturdy and safe enough for use for years.

We are offering l.t. Control switches or low tension control switches have various types and uses. They are used to control the function of motors or switching onoff, reversing the devices. The contacts used are alloys that provide long life and millions of operations without any problem. Choice can be made according to two parameters viz. Load of your application and function. We manufacture switches in two capacities 25 amps, 32 amps and 63 amps which suit the most low voltage needs. Different functions manufactured by us are as follows: onoff switches change over switches forwardreverse switches forwardreverse pole changing switches star-delta switches phase-changer switches

We are offering bi-metal overload relays are used in conjuction with contactors. These are types of switches which sense the current flow in a continous manner. If the current level is higher than what it is set for, it will signal the coil within the contactor to break the current, thus halting the contactor. Our overload relays come in two types, for classic range and for compact range of starters. We also make delay timers which can be set to give a contactor a 6 to 20 seconds wait before passing the current.

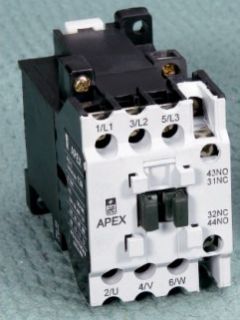

We are offering apex air break contactors. Contactors are the heart of motor starters and many other important electrical installations and panels. They make or break the connections after receiving signals from either over-load relays or any other mechanism. Being capable of performing millions of operations they have silver alloys as contacts and the outer body is heat resistant. They consist of a solenoid coil, a core (set) and contacts. Contactors are used to control electric motors, lighting, heating, capacitor banks, and other electrical loads.

Contactors are the heart of motor starters and many other important electrical installations and panels. They make or break the connections after receiving signals from either Over-Load Relays or any other mechanism. Being capable of performing millions of operations they have Silver Alloys as contacts and the outer body is heat resistant. They consist of a Solenoid Coil, a Core (set) and Contacts. Contactors are used to control electric motors, lighting, heating, capacitor banks, and other electrical loads. 'COMMANDER' series Apex’s new ‘COMMANDER’ Contactor series has a modular design. Designed to perform in rugged conditions, it comes ready with 1NO+1NC arrangement and various NO/NC arrangements using auxiliary contact blocks. These auxiliary contact blocks are quick and simple to mount. Also the design specifically emphasizes at minimizing of cost. The parts are very easy to replace which brings down the down-time hence cutting costs sharply. Benefits High electrical and mechanical life Noise-free and chatter-free operation Heat resistant outer body Special protection to personal from live parts Replacement of Coil and contacts extremely easy Proper marking on power and auxiliary terminals for error-free wiring.
