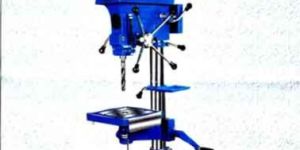

TECHNICAL SPECIFICATION: Model Itco Drilling Machine 20mm 8 speed is a heavy duty machine having drilling capacity in Steel 20mm, CI 22mm. The machine is suitable for Tapping, Reaming, Boring and Spot facing and has 8 spindle speeds. Spindle is made of alloy steel accurately machined and ground, supported in precision ground alloy steel quill carrying 2 taper roller bearings Spindle has 4 splines as per machine tool spline standard and drives through broached sleeve. Properly balanced spindle pulley is mounted on ball bearing with bracket support for absorbing V- belt load. Spindle MT bore accuracy 20 to 30 microns. Additional 4 speeds are obtained from Gear set. Head Is made from close grained CI, accurately machined to ensure perfect parallelism between the column and spindle. The quill carrying spindle is precisely ground to slide in precisely honed bore. A Precision ground Column is made from heavy section seamless steel tube which ensures rigidity and resists deflection. Square Table is accurately machined for precision work. All moving parts are accurately machined and ground. Machine Accuracy as per IS 2425 Technical Specifications DRILLING CAPACITY IN STEEL 20mm DRILLING CAPACITY IN CAST IRON 22mm MORSE TAPER IN SPINDLE MT-2 SPINDLE TRAVEL 125 PILLAR DIAMETER 72 PILLAR LENGTH 1065 DISTANCE BTW CENTRE OF SPINDLE & PILLAR FRONT 206 MAX DISTANCE BTW SPINDLE & TABLE 410 MAX DISTANCE BTW SPINDLE & BASE 785 TABLE WORKING SPACE : ROUND Ø 325 SQUARE 280 x 280 BASE WORKING SURFACE (MACHINED) 571 x 310 OVERALL SIZE OF BASE 355 x 245 NO OF SPINDLE SPEEDS 8 RANGE OF SPINDLE SPEEDS (rpm) 80-150-250-430-510-920-1590-2850 V BELT A 45 MOTOR 1H.P, 1400rpm, 3 Phase NET WEIGHT 120kg SPACE OCCUPIED (LxBxH) 710 x 430 x 1350
