VK Valves Pvt. Ltd. Focal Point, Jalandhar, Punjab

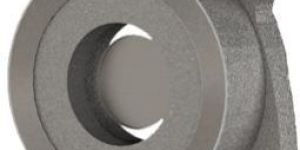

Wafer pattern designed to be sandwiched between flanges. Full bore for good flow characteristics. Suitable for wide range of fluids for application in process lines. Tight shutoff-lapped disc & seat Horizontal or vertical installation Easy maintenance Stainless steel construction

Working Based on Bernoulli’s Theorem Hardened disc to withstand continous water hammering  All Stainless Steel construction – better mechanical properties  Seat integral with the body – No possibilities of leakage from joints  Inbuilt Strainer – Avoids Clogging

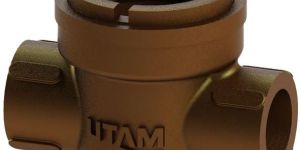

Single Window with Toughened Glass.

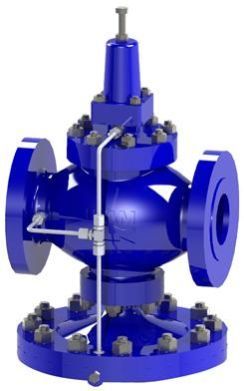

Integral Stainless Steel Strainer The Valve have Integral Fine Stainless Steel Mesh filter, to prevent valve seat leakage problem caused by small particle in steam/air flow. Fine Outlet Pressure Adjustment A small pitch adjusting screw make it possible to make extremely small adjustment in outlet pressure. The locknut prevents accidental adjustment. Inlet fluctuating pressure dose not affect the outlet pressure. Long Spring Life There is no contact between primary spring & steam/air. Which prevents the problem of spring rusting & helps to increase the spring life.Pressure Reduction Ratio Up To 35 : 1 Single valve capable to reduce pressure up to 35th part of inlet pressure. Normally this sort of pressure reducing valve required two stage reduction systemEasy Maintenance Easy to disassemble & assemble, without requirement of any special tool for maintenance. Easy to change stainless steel mesh & bellow. MATERIALS Optional body material with female screwed & flanged end Stainless steel bellows Stainless steel fine filter with 0.20mm mesh Stainless steel material valve trims

The Cr-V spring & novel disc & seat design provide reliable bubble – tight seal. Excellent re-seating ability. It features heavy-duty hood & lever mechanism, and a short tuned blow-down which adjusted with a       single ring to meet specific requirement. It can be used for ASME section VIII application at 150psig pressure rating. APPLICATION Boilers, piping lines and vessel protection, including fired and unfired pressure vessels. Power plants and heat exchangers cycles. Pressure reduction & air system. Chemical and pharmaceutical plants & food industry too. Refineries and pulp & paper mills. Pressure booster systems of water & air.

Integral Fine Stainless Steel Mesh filter No contact b/w spring& water,which increase the spring life The outlet pressure can be easily set by rotating the adjusting knob Inlet fluctuating pressure dose not affect. the outlet pressure. Excellent controllability. Easy installation & maintenance. Light in construction MATERIALS   High quality synthetic fibre(N-6) material bonnet & bowl Bronze body with female screwed end Fiber reinforced NBR diaphragm Stainless steel fine filter with 0.20mm mesh High quality synthetic(N-6) material valve trims

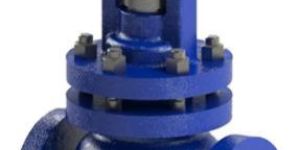

Leak Proof Isolation. All sealing valve components may be easily replaced in line. Long term Operation. No gland packing required. Low Coefficient of friction and low Operating torque. Larger effective sealing area - 600% more than globe valve.

Integral Stainless Steel Strainer Fine Outlet Pressure Adjustment Long Spring Life Pressure Reduction Ratio up to 20:1 Easy Maintenance All Internal Components made of Stainless Steel APPLICATION   Steam Compressed Air Industrial Gases

Rack and Pinion Operated with Key. Renewable Seat. Renewable Disc.

Flanged Ends Baffle Type

Screwed in Bonnet. Inside Screw. Rising Stem. Renewable Seat. Renewable Disc.

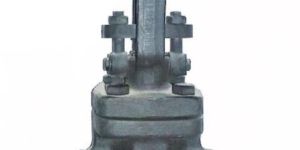

Bolted Bonnet, Outside And Yoke Type, Rising Stem

Bolted Bonnet, Outside And Yoke Type, Rising Stem

Full bore for good flow characteristics. Suitable for inert industrial gases. Suitable for water and other similar fluids. All PFTE seals . Hard chrome self-c leaning ba ll. Anti blow-out stem and inner seal.

Wafer pattern designed to be sandwiched between flanges. Full bore for good flow characteristics. Suitable for wide range of fluids for application in process lines. Tight shutoff-lapped disc & seat Horizontal or vertical installation Easy maintenance Stainless steel construction

Bolted Bonnet Outside screw & yoke type Renewable seat Back seat arragement Full flow area Renewable Disc APPLICATION   Air Alcohol Steam LPG Liquid Chlorine Ammonia

Bolted Bonnet Outside screw & yoke type Renewable seat Back seat arragement Full flow area Renewable Disc

Ideally suited to the meticulous demands of any steam system. Corrosion resistant air vent & steam lock release system. Self aligning main valve and water hammer proof. No live steam loss because of self aligning and water seal. Variable valve orifice mechanism for a complete immediate condensate        removal at all positive pressure difference. Integral air vent and SLR system for maximum air venting without any steam loss Strong stainless steam constructed float , capable to bear any type of water hammering Asbestos free graphite gasket. APPLICATION Steam Separator drainage Steam Unit Heater Steam Main Drip Air Handling Coil Heat Exchanger

Union Bonnet. Inside Screw. Rising Stem. Renewable Seat. Renewable Disc.

Full Bore. Standard Pattern. Teflon Seats and Seals. Lever Operated.

Spring Loaded Open Discharge Integral Seat Renewable Disc
