Y H Tools Manufacturers Focal Point, jalandhar, punjab

SIZE WIDTH OF JAWS OPENING OF JAWS WEIGHT(APROX) 6" 150MM 175MM  5KG  7" 175MM 200MM 9KG 8" 200MM 225MM 11KG 9" 225MM 250MM 15KG

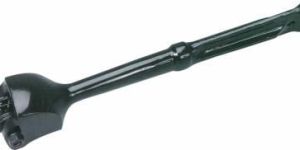

Features A wheel dresser removes the buildup of crud on the grinding surface, exposing new grains for better cutting performance. You can also use it to square the face of the wheel when it isn’t running true. The cast iron handle offers more stabilizing mass for better control.

Sizes available 3/8",7/16",1/2",5/8",3/4".

Key Features ·     Designed for maximum strength and rigidity ·     Useful for holding smll parts together for drilling, tapping ect ·     Made from steel with hardened, ground jaws ·     Very high holding strength Discriptions These clamps are extremely useful for work holding when drilling, tapping or other  machining operations. Made from hardened, ground steel with parallel adjusting screws. The ends of the jaws are bevelled to allow clamping under shoulders or in recesses. No end of uses for both  metal and woodworking crafts.

Features              Body of vice made of close grained cast iron           Positive locking to withstand heavy loads           Horizontal Swivel movement 360o, Vertical swivel movement 90o.           Fine acme thread screw made out of special steel.           Quick alignment to machine tables using a longitudinal slot.           Hardened and ground jaws.           Crank Handle is made of unbreakbale steel provided iwth a spring loaded mechanism.

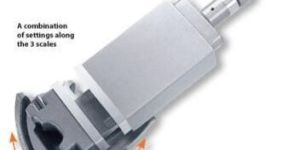

Features Body is made of graded cast iron High quality steel acme screw Hardened and accurately ground jaws This vice can set up at any angle with positive locking Upper angle base can incline from the horizontal position to the vertical position The entire unit may be swivelled on a base plate through 360o The lower angle setting base can incline upto 45o in both right and left directions.

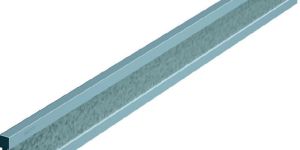

These straight edges are widely used for checking straightness and marking purposes. Steel straight edges are made using high quality steel and are available in hardened and unhardened form. Our steel straight edges are hand scrapped or lapped to achieve the desired accuracy as per standards. Light in weight, design of these straight edges make them ideal to use in various   industries such as Glass, Fabrication and windmill. The Engineer’s steel straight edges of bigger size are provided with milling slots to reduce weight. Our Steel Straight edges are supplied with computerized calibration certificate traceable to National Physical   Laboratory (NPL, Govt Of India ) New Delhi.  Standard sizes and accuracy of nicon Engineer’s Steel Straight Edges as per IS:2220-1990,  Grade-1

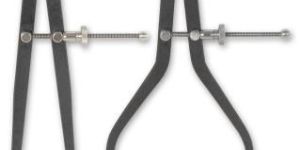

Internal,external,divider. Manufactured from Good Quality Carbon Steel & Finely Polised Legs.  Heat Treated Points to give accurate measurements and longer life. Sizes Availble 3",4",5",6",8",10",12",15",18",20",24",30",36",40".

FEATURES Sturdy and accurately made machine vice from graded cast iron Fine acme thread screw Jaws are made of special steel properly hardened, fixed jaw is provided with vertical and horizontal 'V' groove to hold the round job firmly The swivel base is graduated fully through 360o Vice can be converted from swivel base to fix by removing the base Quick alignment to machines through longitudinal slot provided in base. Crank handle is made of unbreakable ducktile iron steel providing loaded mechanism providing positive grip.

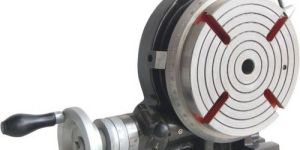

Direct reading to 2 minute for size 6",8" and 10" on hand wheel scale. . Direct reading to 1 minute for size 12",15",18" and 20" on hand wheel scale. . ACCURACY:- Maximum error 4 minutes of circular division using hand wheels. . Table flat to within 0.01 mm / 100 mm. . Working surface rotates in its own plane to within 0.030 mm. . Horizontal and Vertical supporting surface square with 0.01mm/100 mm. . Centre bush bore is true to table axis within 0.03 mm. . rotation of table is .025 mm . . The Base is provided with two bolt slots and both Horizontal & Vertical mounting on Machine Table.

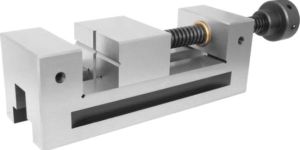

Features . clamping and releaseing is through a precision cut square thread spindle for smooth operation. . vice spindle moves in specialy designed gun metal bush wich reduces wear this enhancing life of the vice. . these vices are mainly used in tool manufacturing on granding ,milling machines,engraving & jig boring operations.

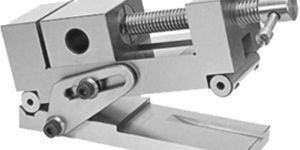

Features - Manufacturing from special alloy steel,these solid sine vices are fully hardened (55-60 HRC) and tempered,mounted on to     a precision hinges bottom plate. - All surfaces of the vice are precessional ground for maximum accuracy. - These are very useful for manufacturing processes that require the highest standards of clamping accuracy at desired            angles. - Very small angles to be set with ease using standard gauge blocks.

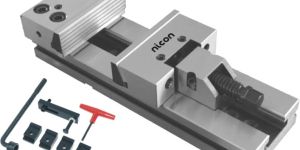

FEATURES. Modular vice designed for precision milling ,grinding and widely used with CNC and statndarad milling machines. High alloyed quality resistence steel ,case hardened HRC 60(aprox) is used in all body and accesories of vice to give maximum rigidity,high performence and no wear. Both jaw plates are in pull down angle.this ensure ,during the clamping opration a down load run of the work piece against the vice base and thus a precise and safely clamping. All components of vice are inter changealble with perfect alignment to provide diffrent work holding solutions. The space saving design and solid construction allow a maximum blocking to total overall dimension of the vice. Four extra tapped hole with ground back jaw rear face increase maximum opening capacity with the aditional of jaws extensions.

Features Sturdy and accurately made machine vices from graded casting Fine acme thread screw Jaws are made of special steel properly hardened The swivel base is graduated fully through 360o Vice can be converted from swivel base to fix by removing the base Quick alignment to machines through longitudinal slot provided in base and body Crank handle is made of all steel providing loaded mechanism providing positive grip.       Accuracy Chart Parallelism of bed of vice to base 0.02/100mm Prepredicular accuracy of fixed jaw to base 0.04 / 100 mm Parallelism of top surface of fixed jaw to base 0.02/100mm Flatness of base 0.03mm.

PRECISION DRILL MACHINE VICE HEAVY DUTY BODY OF VICE MADE FROM CLOSED GRAIN CAST IRON V GROOVE PROVIDED IN STABLE JAW TO INSURE FIRM GRIPPING OF ROUND JOBS SIZE AVAILABE 3",4",6"

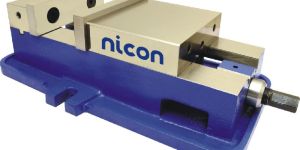

Features & Benifits . This vice is the earliest vice that can be vertical or on either side. . Enhanced body stucture reduces the deflection in opration while the vice mounted vertical or horizontal. . 80000 PSI ductile iron body. . Sealed bearing system reduces clamping pressure and increases bearing life. . Accuracy in parallelism & squareness with in 0.02/100mm. . Hardened bed and jaws maintain accuracy for long time. . No work piece tilt after clamping. . All parts interchangeable and available as spares. . Tenon and tenon slots provided for effortless truing of vice on machine table. . High clamping force can be achive by effortless handle movement wich eliminates hammering on handle.

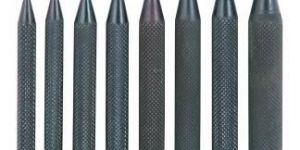

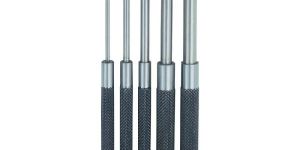

·         Pin sizes: 1/16'', 3/32'', 1/8'', 5/32'', 3/16'', 7/32'', 1/4'', 5/16'' ·         Carbon steel construction ·         Black oxide finish to prevent corrosion ·         Knurled handle

Sizes Available 100mm,125mm,150mm,200mm.

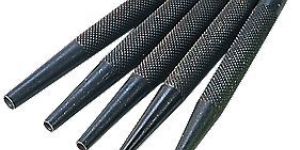

Sizes available 1/16" (1.6mm), 3/32" (2.4mm), 5/64" (2mm), 9/64" (3.6mm) and 5/32" (4mm

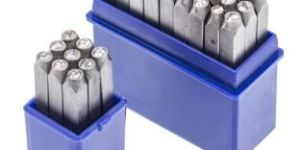

used for hand marking metals and other hard materials - the size relate to the height of the characters. Sizes available  2mm To 25mm

·         Pin sizes: 1/8'', 3/16'', 1/4'', 5/16'' and 3/8'' ·         Carbon steel construction ·         Black oxide finish to resist corrosion ·         Knurled handle ·         Hardened working end

 Features flame hardned bed. accuracy in parellelism & squareness with in 0.02/100mm . hardned jaw and bed maintain accuracy for long. unbreakable ducktile iron body. no work piece tilt after clamping all parts are interchangeble and available as spares tenon slots provided for effortless trueing of vice on machine table The swivel baseis graduated fully through 360o. Vice can be converted from swivel base to fix by removing the base high clamping force can be achive by effortless handle movement wich eliminates hammering on handle.

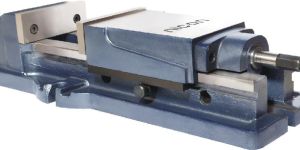

Unbreakable steel body Accuracy in squareness with in 0.02mm No external Hydraulic Power Pack Required Trouble free Performance Extremely Easy to clamp & un-clamp. No hammering, no pipe locking. Supplied with or without swivel base clamping pressure 3500 kg(aprox)
