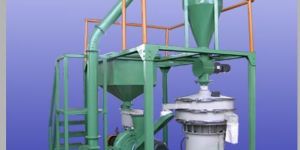

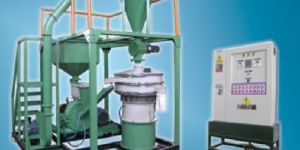

We are offering two stage pulveriser ability and control to give uniform and consistant powder quality. * power required per kg. Should be low for given mesh size. * cooling of grinding elements must be sufficient and effective. * hight output rate to meet ever growing demand. * ability to run machine un-attended. * all system protection to minimize breakdowns. * easy to clean & short colour change over time.user friendly operation.
We are offering two stage pulveriser ability and control to give uniform and consistant powder quality. * power required per kg. Should be low for given mesh size. * cooling of grinding elements must be sufficient and effective. * hight output rate to meet ever growing demand. * ability to run machine un-attended. * all system protection to minimize breakdowns. * easy to clean & short colour change over time.user friendly operation.

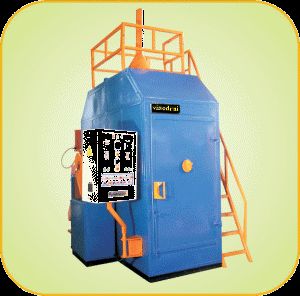

We are offering single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 500 liter maximum.
Typical cycle time 60 min. ( 20 min heating, 20 min cooling, 20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 3.0 liter diesel or 2.5 kg of lpg
electric load 3.5 h.p.
Process temperature 210 oc
production in 24 hrs 48 tanks of 500 lit.
Size of machine l 3.6 mtr x w 3.5 mtr x h 3.5 mtr
We are offering single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 500 liter maximum.
Typical cycle time 60 min. ( 20 min heating, 20 min cooling, 20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 3.0 liter diesel or 2.5 kg of lpg
electric load 3.5 h.p.
Process temperature 210 oc
production in 24 hrs 48 tanks of 500 lit.
Size of machine l 3.6 mtr x w 3.5 mtr x h 3.5 mtr
We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tank of 2000 liter maximum.
Typical cycle time 85 min. ( 35 min heating, 35 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 8.0 liter diesel or 7.2 kg of lpg
electric load 8.0 h.p.
Process temperature 210 oc
production in 24 hrs 16 tanks of 2500 lit.
L 5.7 mtr x w 4.8 mtr x h 3.2 mtr
We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tank of 2000 liter maximum.
Typical cycle time 85 min. ( 35 min heating, 35 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 8.0 liter diesel or 7.2 kg of lpg
electric load 8.0 h.p.
Process temperature 210 oc
production in 24 hrs 16 tanks of 2500 lit.
L 5.7 mtr x w 4.8 mtr x h 3.2 mtr

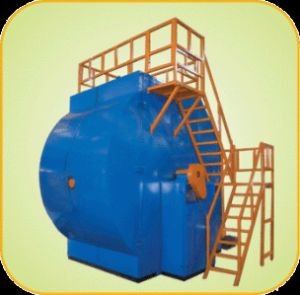

We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tank of 2500 liter maximum.
Typical cycle time 80 min. ( 35 min heating, 30 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 6.0 liter diesel or 4.8 kg of lpg
electric load 6.0 h.p.
Process temperature 210 oc
production in 24 hrs 16 tanks of 2500 lit.
L 5.5 mtr x w 4.6 mtr x h 3.0 mtr
We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tank of 2500 liter maximum.
Typical cycle time 80 min. ( 35 min heating, 30 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 6.0 liter diesel or 4.8 kg of lpg
electric load 6.0 h.p.
Process temperature 210 oc
production in 24 hrs 16 tanks of 2500 lit.
L 5.5 mtr x w 4.6 mtr x h 3.0 mtr
We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tank of 2000 liter maximum.
Typical cycle time 70 min. ( 30 min heating, 25 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 5.0 liter diesel or 4.25 kg of lpg
electric load 6.0 h.p.
Process temperature 210 oc
production in 24 hrs 16 tanks of 2000 lit.
L 4.0 mtr x w 3.3 mtr x h 2.7 mtr
We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tank of 2000 liter maximum.
Typical cycle time 70 min. ( 30 min heating, 25 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 5.0 liter diesel or 4.25 kg of lpg
electric load 6.0 h.p.
Process temperature 210 oc
production in 24 hrs 16 tanks of 2000 lit.
L 4.0 mtr x w 3.3 mtr x h 2.7 mtr

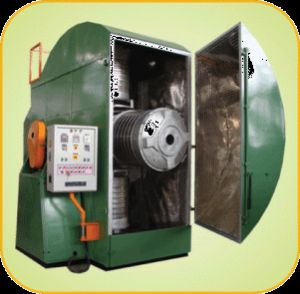

We are offering single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 2000 liter maximum.
Or four tanks of 1000 liter maximun.
Typical cycle time 80 min. ( 35 min heating, 30 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
uel consumption cycle 8.5 liter diesel or 7.2 kg of lpg
electric load 10.0 h.p.
Process temperature 210 oc
production in 24 hrs 32 tanks of 2000 lit. Or
64 tanks of 1000
l 6.3 mtr x w 4.1 mtr x h 5.0 mtr
We are offering single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 2000 liter maximum.
Or four tanks of 1000 liter maximun.
Typical cycle time 80 min. ( 35 min heating, 30 min cooling,
15 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
uel consumption cycle 8.5 liter diesel or 7.2 kg of lpg
electric load 10.0 h.p.
Process temperature 210 oc
production in 24 hrs 32 tanks of 2000 lit. Or
64 tanks of 1000
l 6.3 mtr x w 4.1 mtr x h 5.0 mtr

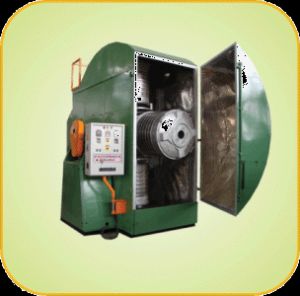

We are offering single station bi-axial machine en-1500x2.
Single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 1500 liter maximum.
Or four tanks of 500 liter maximum.
Typical cycle time 75 min. ( 30 min heating, 25 min cooling,
20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 6.0 liter diesel or 4.8 kg of lpg
electric load 8.0 h.p.
Process temperature 210 oc
production in 24 hrs 36 tanks of 1500 lit.
L 6.3 mtr x w 3.3 mtr x h 4.8 mtr
We are offering single station bi-axial machine en-1500x2.
Single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 1500 liter maximum.
Or four tanks of 500 liter maximum.
Typical cycle time 75 min. ( 30 min heating, 25 min cooling,
20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 6.0 liter diesel or 4.8 kg of lpg
electric load 8.0 h.p.
Process temperature 210 oc
production in 24 hrs 36 tanks of 1500 lit.
L 6.3 mtr x w 3.3 mtr x h 4.8 mtr

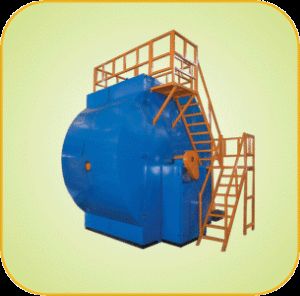

We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tanks of 1000 liter maximum.
Typical cycle time 60 min. ( 20 min heating, 20 min cooling, 20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 3.5 liter diesel or 2.9 kg of lpg
electric load 3.5 h.p.
Process temperature 210 oc
production in 24 hrs 20 tanks of 1000 lit.
L 3.8 mtr x w 3 mtr x h 2.3 mtr
We are offering single station bi-axial rotational moulding machine
one u arm
capacity one tanks of 1000 liter maximum.
Typical cycle time 60 min. ( 20 min heating, 20 min cooling, 20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 3.5 liter diesel or 2.9 kg of lpg
electric load 3.5 h.p.
Process temperature 210 oc
production in 24 hrs 20 tanks of 1000 lit.
L 3.8 mtr x w 3 mtr x h 2.3 mtr
We are offering single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 1000 liter maximum.
Or four tanks of 500 liter maximum.
Typical cycle time 65 min. ( 25 min heating, 20 min cooling,
20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 4.5 liter diesel or 3.8 kg of lpg
electric load 6.5 h.p.
Process temperature 210 oc
production in 24 hrs 40 tanks of 1000 lit.
L 5.9 mtr x w 2.9 mtr x h 4.7 mtr
We are offering single station bi-axial rotational moulding machine
one straight arm
capacity two tanks of 1000 liter maximum.
Or four tanks of 500 liter maximum.
Typical cycle time 65 min. ( 25 min heating, 20 min cooling,
20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 4.5 liter diesel or 3.8 kg of lpg
electric load 6.5 h.p.
Process temperature 210 oc
production in 24 hrs 40 tanks of 1000 lit.
L 5.9 mtr x w 2.9 mtr x h 4.7 mtr

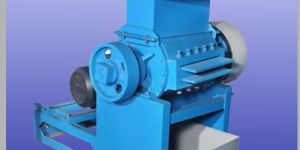

For a complete Plastic compounding unit a scrap grinder which gives you highest quality plastic granules is a must. Vinodrai provides you with an efficient scrap grinder which will help you re utilize all your Plastic scrap. Our technology focuses on getting you a high quality output at lower power consumption creating for you a winning profit opportunity.
For a complete Plastic compounding unit a scrap grinder which gives you highest quality plastic granules is a must. Vinodrai provides you with an efficient scrap grinder which will help you re utilize all your Plastic scrap. Our technology focuses on getting you a high quality output at lower power consumption creating for you a winning profit opportunity.
Vinodrai Offers Range of standard as well as customized moulds for water storage tanks, household products & Industrial Products. We offer sheet metal moulds, steel CNC machined moulds & Cast Aluminum moulds as per need of customer.
Vinodrai Offers Range of standard as well as customized moulds for water storage tanks, household products & Industrial Products. We offer sheet metal moulds, steel CNC machined moulds & Cast Aluminum moulds as per need of customer.
Rotational moulding process is a very simple process for manufacturing hollow, seamless products of all sizes and shapes. Due to its simple operation and relatively low cost moulds, this process has become very popular for manufacturing hollow items like water storage tanks.
Selection of a rotational moulding machine is based on the following considerations  Capacity of tank which have max share in market  Monthly expected production in terms of ltr.  Range of tanks required in market (Loft, Roof, House hold, Horizontal )  Running cost of production.The machine must be selected from the point of view that it should produce the capacity of tank most economically which have max. share in market.Machine must be able to produce required volume of tanks which are salable in market.And finally running cost that matters and not capital cost. In the competitive world, running cost of production is the key to survival of a company. The running cost depends upon the selection of the machine. If you selected the machine which is unable to control the fuel, electricity consumption. Employing heavy maintenance and need skilled labor then such machines though are cheap but finely take away the entrepreneur towards the loss.Therefore machine must be :-  Fuel saver  Less power consumable  Must not be labor oriented  Maintenance free and hence interruption free  Essay to operate  Productive and efficient.
Â
Rotational moulding process is a very simple process for manufacturing hollow, seamless products of all sizes and shapes. Due to its simple operation and relatively low cost moulds, this process has become very popular for manufacturing hollow items like water storage tanks.
Selection of a rotational moulding machine is based on the following considerations  Capacity of tank which have max share in market  Monthly expected production in terms of ltr.  Range of tanks required in market (Loft, Roof, House hold, Horizontal )  Running cost of production.The machine must be selected from the point of view that it should produce the capacity of tank most economically which have max. share in market.Machine must be able to produce required volume of tanks which are salable in market.And finally running cost that matters and not capital cost. In the competitive world, running cost of production is the key to survival of a company. The running cost depends upon the selection of the machine. If you selected the machine which is unable to control the fuel, electricity consumption. Employing heavy maintenance and need skilled labor then such machines though are cheap but finely take away the entrepreneur towards the loss.Therefore machine must be :-  Fuel saver  Less power consumable  Must not be labor oriented  Maintenance free and hence interruption free  Essay to operate  Productive and efficient.
Â
Vinodrai comprehensive solutions for the Rotomoulding industry includes ancillary machinery in the form of the Advanced Two-stage Pulveriser. We have multiple options for pulverisers that provide high output and can grind even heat sensitive polymers to quality powder.
Vinodrai comprehensive solutions for the Rotomoulding industry includes ancillary machinery in the form of the Advanced Two-stage Pulveriser. We have multiple options for pulverisers that provide high output and can grind even heat sensitive polymers to quality powder.
We are offering plc controlled rotational moulding machines.
Accurate process control.
* ease of operation.
* recipe storage and recall.
* ease of adjustment of process parameters.
* viewing temperature trends in a cycle.
* easy & quick diagonostic of machine.
* easy to understand and maintain.
* interlocks for safe operation of machine.
* alarms and messages for faults.
* log of alarms.
* production data storage.
* passoword security.
We are offering plc controlled rotational moulding machines.
Accurate process control.
* ease of operation.
* recipe storage and recall.
* ease of adjustment of process parameters.
* viewing temperature trends in a cycle.
* easy & quick diagonostic of machine.
* easy to understand and maintain.
* interlocks for safe operation of machine.
* alarms and messages for faults.
* log of alarms.
* production data storage.
* passoword security.

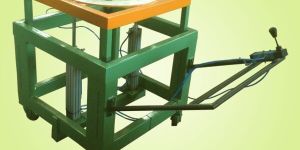

It is designed to reduce the mounting efforts and time which in turn would increase your production rate. It is a sturdy design with pneumatic mechanism for raising and holding the mould for mounting.Â
It is designed to reduce the mounting efforts and time which in turn would increase your production rate. It is a sturdy design with pneumatic mechanism for raising and holding the mould for mounting.Â

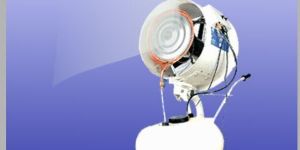

The Mist Cooling was designed to reduce the cooling time of the moulds by 40% and thus accelerate production. This incredibly powerful and portable fan pumps out a mist of water on the targeted area thereby absorbing and removing the heat from the air by evaporation. -  40 % Faster Cooling,-  Higher Production,-  Portable,-  7200 m3/hr,-  1 Ph 220 V 600W,-  Weight 60 Kg,-  550 x 450 x 1400 mm.Â
The Mist Cooling was designed to reduce the cooling time of the moulds by 40% and thus accelerate production. This incredibly powerful and portable fan pumps out a mist of water on the targeted area thereby absorbing and removing the heat from the air by evaporation. -  40 % Faster Cooling,-  Higher Production,-  Portable,-  7200 m3/hr,-  1 Ph 220 V 600W,-  Weight 60 Kg,-  550 x 450 x 1400 mm.Â

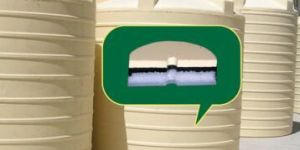

Foaming in Rotational Moulding. PE foam increases rigidity and stiffness of rotational moulded parts while minimising weight. Insulating properties of foam may also have useful applications. Rotational Moulding with PE foam is very simple if machine is equipped with proper process controls. "Vinodrai" machines are highly suitable for making foam products and insulated water tanks.Advantages of LLDPE Foam Tank.  Keeps Water Temperature Normal.  Higher Thickness and Rigid Tank.  Value added product, better customer prefrence.  Higher realization & better profits.
Foaming in Rotational Moulding. PE foam increases rigidity and stiffness of rotational moulded parts while minimising weight. Insulating properties of foam may also have useful applications. Rotational Moulding with PE foam is very simple if machine is equipped with proper process controls. "Vinodrai" machines are highly suitable for making foam products and insulated water tanks.Advantages of LLDPE Foam Tank.  Keeps Water Temperature Normal.  Higher Thickness and Rigid Tank.  Value added product, better customer prefrence.  Higher realization & better profits.

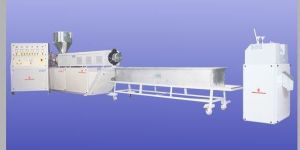

Our extruders are designed for ease of use, efficiency and reliability. It is best recommended for PE roto-moulding application. Saving cost for electrical power, manpower and material handling it gives a profitable production.
Our extruders are designed for ease of use, efficiency and reliability. It is best recommended for PE roto-moulding application. Saving cost for electrical power, manpower and material handling it gives a profitable production.
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 5000 liter maximum.
Typical cycle time 90 min. ( 40 min heating, 30 min cooling, 20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 12.0 liter diesel or 9.6 kg of lpg
electric load h.p. 18.0
process temperature 210 oc
production in 24 hrs 16 tanks of 5000 lit.
Size of machine l 6.5 mtr x w 6.4 mtr x h 5.6 mtr clamshell type bi-axial machine cs-5000
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 5000 liter maximum.
Typical cycle time 90 min. ( 40 min heating, 30 min cooling, 20 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 12.0 liter diesel or 9.6 kg of lpg
electric load h.p. 18.0
process temperature 210 oc
production in 24 hrs 16 tanks of 5000 lit.
Size of machine l 6.5 mtr x w 6.4 mtr x h 5.6 mtr clamshell type bi-axial machine cs-5000
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 30000 liter maximum.
Typical cycle time 240 min. ( 100 min heating, 90 min cooling, 50 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 40.0 liter diesel or 32.0 kg of lpg
electric load h.p. 30.0
process temperature 210 oc
production in 24 hrs 4 tanks of 25000 lit.
Size of machine l 16.0 mtr x w 9.5 mtr x h 12.0 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 30000 liter maximum.
Typical cycle time 240 min. ( 100 min heating, 90 min cooling, 50 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 40.0 liter diesel or 32.0 kg of lpg
electric load h.p. 30.0
process temperature 210 oc
production in 24 hrs 4 tanks of 25000 lit.
Size of machine l 16.0 mtr x w 9.5 mtr x h 12.0 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 25000 liter maximum.
Typical cycle time 200 min. ( 90 min heating, 70 min cooling, 40 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 34.0 liter diesel or 27.0 kg of lpg
electric load h.p. 30.0
process temperature 210 oc
production in 24 hrs 5 tanks of 25000 lit.
Size of machine l 15.0 mtr x w 9.0 mtr x h 11.0 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 25000 liter maximum.
Typical cycle time 200 min. ( 90 min heating, 70 min cooling, 40 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 34.0 liter diesel or 27.0 kg of lpg
electric load h.p. 30.0
process temperature 210 oc
production in 24 hrs 5 tanks of 25000 lit.
Size of machine l 15.0 mtr x w 9.0 mtr x h 11.0 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 20000 liter maximum.
Typical cycle time 180 min. ( 80 min heating, 60 min cooling, 40 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 30.0 liter diesel or 24.0 kg of lpg
electric load h.p. 25.0
process temperature 210 oc
production in 24 hrs 6 tanks of 20000 lit.
Size of machine l 13.0 mtr x w 8.0 mtr x h 10.2 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 20000 liter maximum.
Typical cycle time 180 min. ( 80 min heating, 60 min cooling, 40 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 30.0 liter diesel or 24.0 kg of lpg
electric load h.p. 25.0
process temperature 210 oc
production in 24 hrs 6 tanks of 20000 lit.
Size of machine l 13.0 mtr x w 8.0 mtr x h 10.2 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 10000 liter maximum.
Typical cycle time 120 min. ( 50 min heating, 40 min cooling, 30 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 24.0 liter diesel or 19.2 kg of lpg
electric load h.p. 21.0
process temperature 210 oc
production in 24 hrs 10 tanks of 10000 lit.
Size of machine l 6.9 mtr x w 8.0 mtr x h 8.1 mtr
We are offering clamshell bi-axial rotational moulding machine
one u arm
capacity one tank of 10000 liter maximum.
Typical cycle time 120 min. ( 50 min heating, 40 min cooling, 30 min loading & unloading )
fully automatic italian burner, diesel or lpg or natural gas
fuel consumption cycle 24.0 liter diesel or 19.2 kg of lpg
electric load h.p. 21.0
process temperature 210 oc
production in 24 hrs 10 tanks of 10000 lit.
Size of machine l 6.9 mtr x w 8.0 mtr x h 8.1 mtr
Secondary Business TypeManufacturer / Exporters / Wholesale Suppliers
Year of Establishment2004
No. of Employees21 - 50
Annual TurnoverRs. 5 to 25 Crore Approx.
Opening Hours
SUN : Closed
MON : 9:30 AM - 6:30 PM
TUE : 9:30 AM - 6:30 PM
WED : 9:30 AM - 6:30 PM
THU : 9:30 AM - 6:30 PM
FRI : 9:30 AM - 6:30 PM
SAT : 9:30 AM - 6:30 PM
Established in year 2004, Vinodrai Engineers P Ltd., is Retailer of Plastic Mould, plastic moulding machines, Plastic Water Storage Tanks, PLC controlled Rotational Moulding Machines, Single Station Bi-Axial Machine EN-500x2, Single Station Bi-Axial Machine EN-1000, Single Station Bi-Axial Machine EN-1000x2, Single Station Bi-Axial Machine EN-1500x2, Single Station Bi-Axial Machine EN-2000, Single Station Bi-Axial Machine EN-2000x2 from Jalna, Maharashtra.
Reviews & Ratings
Write a Review
Post Free Ad
