Akshar Exports GIDC Phase-2, Jamnagar, Gujarat

We are supplying leader of this product.

Material : Brass BS 2874

Size : X and Y

Size :16mm to 50mm Standard :BS 6121:Part-1:2005, EN 50262: 1999 Ingress Protection :IP66 Material :Brass BS 2874 Thread :Metric Features :Outer Displacement Seal Accessories :Shroud, Earth Tag, Lock Nut and Serrated Washer

Thread seal are used to maintain IP rating between cable gland and equipment, enclosure. It is necessary to fit on entry thread of cable gland.

Material : White Nylon, also available in red color

Size : M16 to M90 and ½" NPT to 3" NPT

Thickness : Unique thickness of thread seal is 2mm.

Application : For use on cable gland entry thread.

Purity : To maintain IP rating of enclosure. It is specially use when flameproof, explosion proof or increas

We are supplying leader of this product.

We manufacture PVC flexible pipe, galvanized steel flexible conduit, PVC coated galvanized flexible conduit and other Conduit Pipe Fittings Accessories. exactly as per Customer Specifications, Drawing & Requirement.

Application : Outdoor or Indoor use with all type of galvanized steel Conduit Pipe Fittings

We are supplying leader of this product.

Material : High Tensile Brass as per BS 2874 - CZ 112

Size :16mm to 115mm and 38" to 4" Standard :BS 6121:Part-1:2005, EN 50262: 1999 Function :Providing seal on outer sheaths of unarmored cable in indoor and outdoor area. Ingress Protection :IP65 Material :Brass BS 2874 Thread :Metric and BSP Operating Temp. :-20°C to +80°C Features :Outer Compression seal

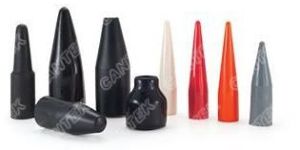

The Shrouds are made from high grade poly vinayl chloride. Shroud manufacturing from two different process, one is Dip moulding and another one is Injection moulding.

CP Nickel Plated But Brass Nozzle / Insert CP/Nickel Plated Sleeve / Collar Rubber Washer / Rin

Serrated washer also known as “Vibration Proof Washers”. Serrated washers have the unique feature of serrations on internal surfaces. When final flattening of the safety washer occurs with tightening of the screw, these serrations bite into the mating faces, thus preventing loosening of the screw, nut, bolt, etc due to vibration. Serrated Washers are ready to fit washer to sustain preload and avoid loosening. Due to above feature of serrated washer are also used in cable gland accessories. Serrated Washers fitted internally to the equipment and before a locknut act as an anti-vibration device to prevent the cable gland or other cable entry device and locknut. Particularly required in situation where vibrating heavy machinery such as mud, shakers, vibrating machine or pump, drilling equipment, Used for high vibration resistance due to positive equipment contact, Excellent pretensioning, Through proper radius selection, no splittingcracking occurs during tightening, Extensive application and flexibility, minimizes stocks.

Size : M16 to M90, 1/2" to 3" NPT sizes

Grade : DIN 6798J

Serrated washer also known as “Vibration Proof Washers”. Serrated washers have the unique feature of serrations on internal surfaces. When final flattening of the safety washer occurs with tightening of the screw, these serrations bite into the mating faces, thus preventing loosening of the screw, nut, bolt, etc due to vibration. Serrated Washers are ready to fit washer to sustain preload and avoid loosening. Due to above feature of serrated washer are also used in cable gland accessories. Serrated Washers fitted internally to the equipment and before a locknut act as an anti-vibration device to prevent the cable gland or other cable entry device and locknut. Particularly required in situation where vibrating heavy machinery such as mud, shakers, vibrating machine or pump, drilling equipment. Feature 1. Used for high vibration resistance due to positive equipment contact.2. Excellent pretensioning.3. Through proper radius selection, no splitting/cracking occurs during tightening.4. Extensive application and flexibility, minimizes stocks.

Material : Serrated washer made up of Stainless Steel 316L grade and also available in mild steel with Zinc Plating.

Stop plug are designed to sealing or close any unused entries in electrical enclosures, equipment and junction boxes, etc. Stop plug are always used with o ring to seal properly.

We are supplying leader of this product.

Size : 1/2" x 3/8" to 1" x 3"

Material : Brass

We are supplying leader of this product.

Size : 20 mm to 50 mm & 3/4" to 2" All available in Male & Female Thread

Application : Mechanical protection for electrical cable and wire

We are supplying leader of this product.

Application : RFC Conduit Fitting is durable and offering a degree of weather proofing, as well as the flexibilit

Size :PG 7 to PG 48 and M12 to M63 Ingress Protection :IP66 Thread :Metric, PG Material : Nylon Polyamide Accessories :Lock Nut

Size :M10 to M75 Material :Brass, chromium plated Gland Type : JIS Standard-88028803F8801 Entry Thread : BSP Ingress Protection : IP66 Application : For use all types of unarmored cable

We are supplying leader of this product.
