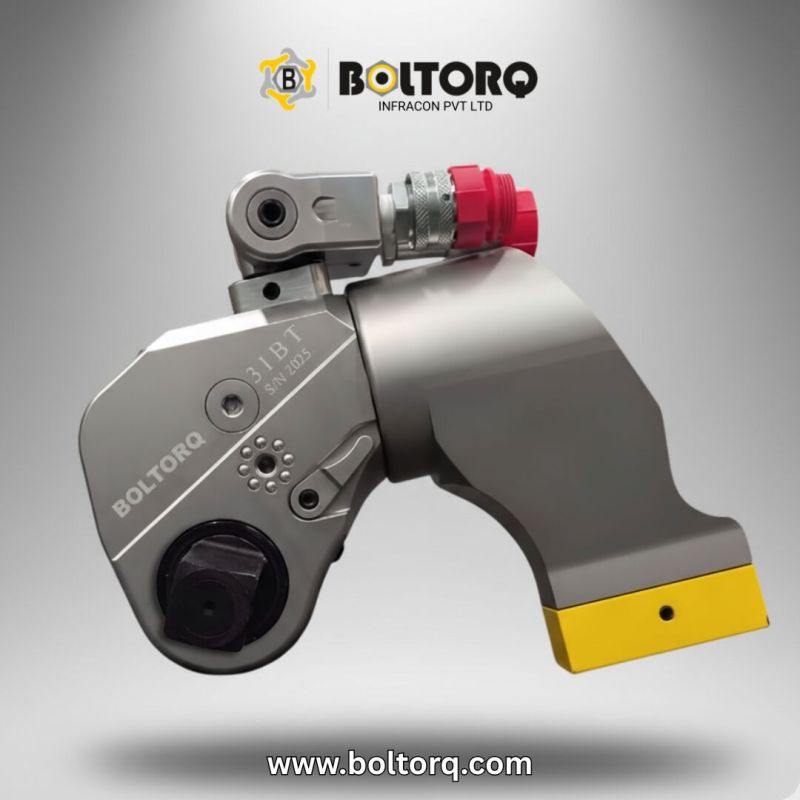

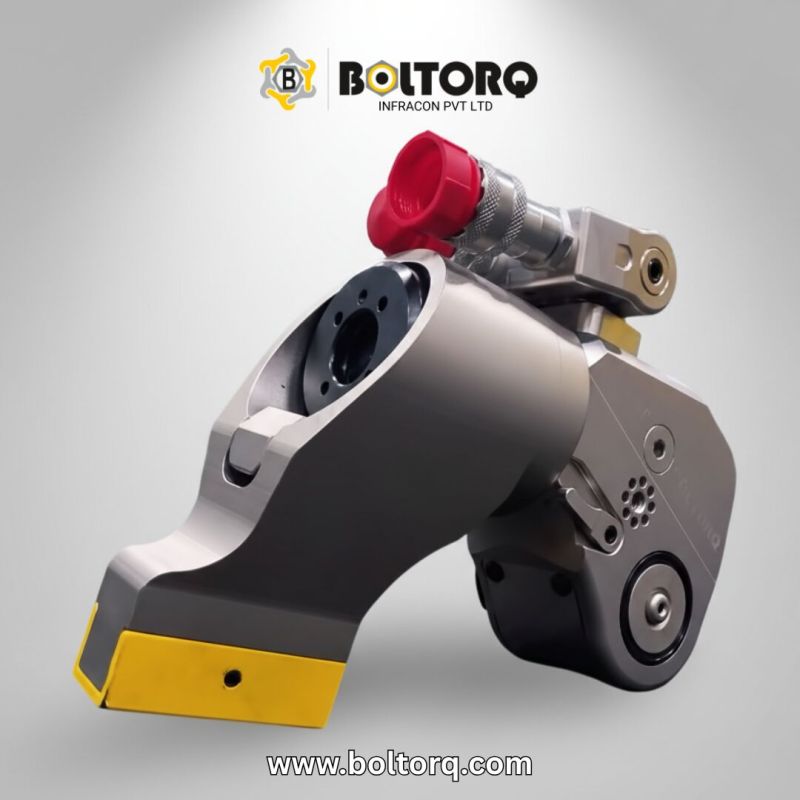

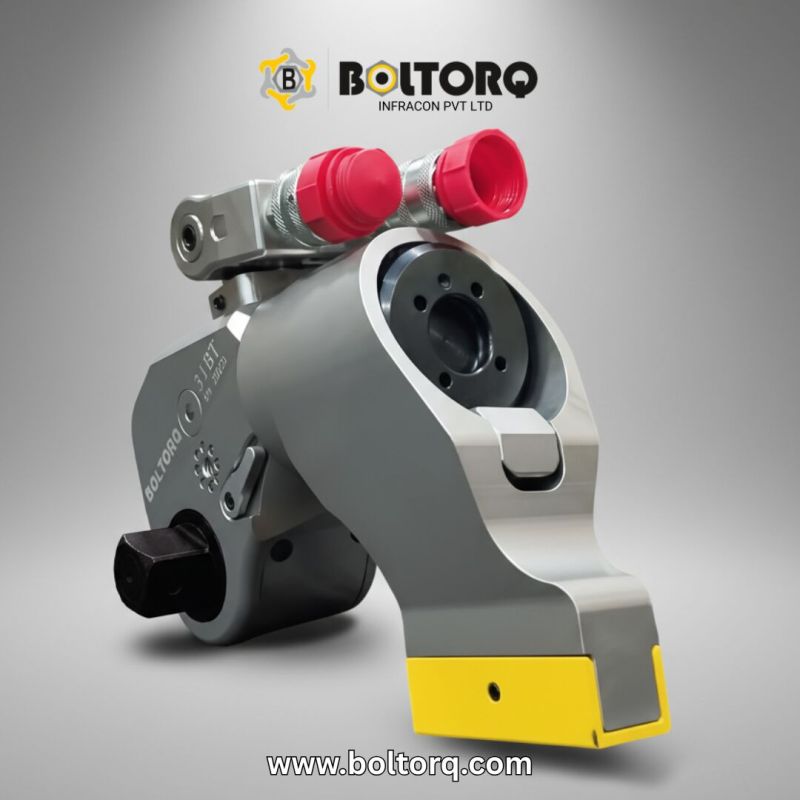

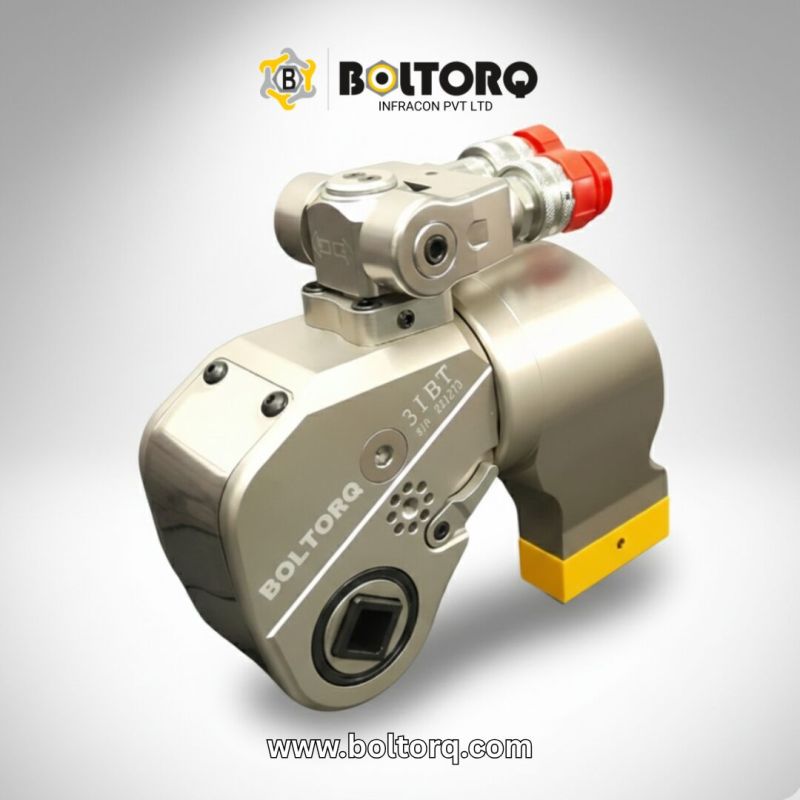

The Square Drive Hydraulic Torque Wrench is your definitive solution for high-torque industrial bolting. With a maximum working pressure of 70 Mpa (700 bar) and ±3% accuracy, this comprehensive series offers 10 models to cover bolt sizes from M16 up to M125. Engineered with lightweight Aluminum-Titanium Alloy for maximum strength and unmatched site performance.
Key Features & Operational Benefits
Our Square Drive Hydraulic Wrenches are built for power, versatility, and precision, making them essential for critical heavy industry applications.
Guaranteed Precision: Operates at a maximum working pressure of 70 Mpa (700 bar) while maintaining proven accuracy within ±3%. This is crucial for safety-critical joints.
Most Comprehensive Range: With a total of 10 available models, the series covers a massive torque output from 112 N.m up to 72000 N.m, covering the most extensive range of bolt sizes (M16−M125) in the market.
Unrestricted Operation: The 360×180 multi-axis swivel ensures the wrench is free to operate without space limitations, improving efficiency in confined work areas.
Versatile Reaction Arm: Features a 360 adjustable reaction arm that allows the tool to be securely placed against virtually any support point, enhancing safety and adaptability.
Superior Durability & Weight: Compact design utilizes advanced Aluminum-Titanium Alloy, resulting in a high-intense, robust tool that remains relatively lightweight, minimizing operator fatigue.
Optimal Compatibility: The square drive mechanism works seamlessly with a wide range of high-intense sockets, ensuring suitability for diverse bolt sizes and standards.
Hassle-Free Maintenance: Equipped with a new locking coupler that guarantees unhindered access and free flow of oil, simplifying maintenance and extending the life of the tool.
Technical Specifications
Model Type
Max. Torque (N.m)
Min. Torque (N.m)
Bolt Size Covered (M)
Square Drive (Inch)
Weight (Kg)
IBT3
451
183
M16 - M36
3/4"
2.5
IBT5
752
451
M22 - M48
1"
5
IBT8
1078
752
M27 - M56
1-1/2"
8
IBT10
1551
1078
M30 - M64
1-1/2"
11
IBT20
2666
1551
M36 - M72
1-1/2"
15
IBT25
3472
2666
M42 - M90
2-1/2"
26.5
IBT35
4866
3472
M48 - M100
2-1/2"
35
IBT50
7200
4866
M64 - M120
2-1/2"
50
IBT
72000
67200
M72 - M125
2-1/2"
87
Common Specifications: Max Working Pressure: 70 Mpa (700 bar); Accuracy: ±3%.
