Ojasvi Corporation Jam, Jamnagar, Gujarat

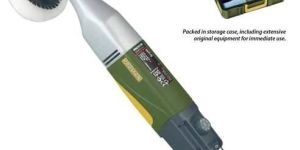

For perfect surfaces even in tight spots: For finishing of blank surfaces, cleaning, rust removal, for the „finishing touches“ after varnishing.Balanced special motor, powerful, quiet and long-lasting. Quiet planetary gear in die-cast aluminium housing and continuously variable speed control (full-wave electronics) for low and constant speeds even during high contact pressure.Main housing of glass-fibre reinforced POLYAMIDE with soft component. Securely stored in stylish case made of high-grade polypropylene with original equipment for immediate use. Rubber backing disc with hook and loop fastening, polishing sponge (medium hard), lambswool polishing disc, polishing felt for metals and non-ferrous metals (medium hard), 12 sanding discs K 2000 and NIGRIN polishing emulsion (75ml) as well as a microfibre cloth.Technical data:230V. 100W. 800 – 2,800rpm Length 270mm. Weight 720g. Insulated to class 2.

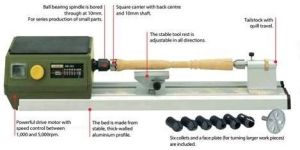

  MICRO woodturning lathe DB 250 Turning in miniature is a pleasing hobby.One can make glasses, cups, saucers, vases and columns for a doll house. In model trains, one can make lighting masts, windows, tanks. Limbs for marionettes and hundreds of classical miniature turning tasks may be carried out with ease. The electronic speed control assists in the lower range in a ‘semi-automated’ painting process. Technical data:Motor 230V. 100W. 50/60Hz. Centre distance of 250mm, 40mm swing. 25mm swing over support. Variable speed control covering between 1,000 and 5,000rpm. Headstock spindle bore of 10mm. Tailstock travel 20mm. Includes 6 collets (2 – 3 – 4 – 6 – 8 – 10mm), drive centre, live centre and face plate.

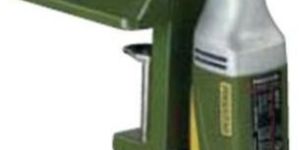

With ball joint. To be rotated and swivelled in all directions.20mm collar for MICROMOT drilling and milling devices, such as FBS 240/E, FBS 12/E, IBS/E, LBS/E, MICROMOT 50, 50/E and 50/EF. Made of die-cast ZINC. With clamp for quick and secure fastening to workbenches and table tops up to 60mm thickness. Alternatively, it can also be fixed to any workplace with 2 standard screws.

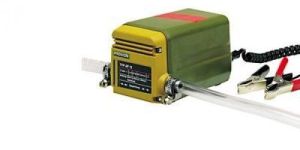

  Easily pumps motor, diesel and heating oil. Pump capacity approx. 250l/hr (with 1/2'' feed hose). When changing oil with the wand, approx. 3l/min (40°C oil temperature). 200cm long feed line with crocodile clips for battery terminals. Feed and supply side connecting pieces for 1/2'' hoses. Includes a wand (approx. 800mm long, outer diameter 6mm) for the oil dipstick shaft, permanently fitted with a reinforced hose. A 1/2'' transparent outlet hose, approx. 150cm long, is supplied. Housing of glass fibre reinforced POLYAMIDE, approx. 120 x 90 x 90mm. Approx. weight 1.4kg.

For 0.4 to 2Nm.  Automatic quick-release when tightening screws: Clearly audible and palpable click signal when the selected torque is reached. Pre-setting of the torque by turning the knurled ring at the end of the handle (lockable). Clearly legible scale display. 50mm long slim shaft with magnetic holder for 1/4" (6.3mm) standard bits. Includes adapter with 1/4" male hexagon drive to 1/4" male square drive for sockets. Accuracy +/- 6 %. Total length 170mm. Weight 135g.

For stationary use of MICROMOT electrical precision tools with metal head in combination with a vise.Especially suited for industrial drill/grinder IBS/E, belt sander BS/E, longneck angle grinder LHW, super jig saw STS/E and delta sander OZI/E. Made of glass-fibre reinforced POLYAMIDE.

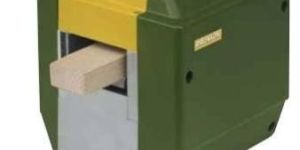

  Thicknesser DH 40 Load bearing components are all made of die-cast aluminium, with milled seats for bearings and spindles.These characterics are essential for vibration-free, smooth thicknessing of soft and hard woods. Triple-spindled table (of die-cast aluminium, flat-milled) which can be accurately adjusted to 1/10mm by handwheel (zero adjustable). Automatic even feed with anti-kickback device: The knurled, spring-mounted infeed roller transports even irregularly shaped work pieces. A rubber-coated outfeed roller prevents marking the newly planed surface. Precision planer block with two HSS planer blades.Technical Data:230V. 200W. 50/60Hz. Thicknessing up to 40mm thick and up to 80mm wide. Maximum depth of cut 0.8mm. Cutter speed 6,000rpm. Feed rate 4.8m/min. Table length 232mm. Weight approx. 8kg.

It is produced with ultrafine cemented carbide, and the end tooth geometry specially designed for rail can give it excellent service life. It is suitable for drilling of steel rails and applicable to all kinds of drilling machines for steel rails.

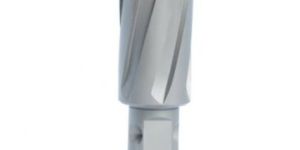

TCT ANNULAR CUTTER with unique types geometry and random-space tips provide clearly cutting, fast feed rate, less vibration, smooth hole surface and long tool life, the effective of drilling is much better and quicker than the common drills. TCT ANNULAR CUTTER can be used on magnetic drilling presses, drilling machine and electric drill in rotary mode and all kinds of drilling presses with all types of shank.

  Surface planer AH 80 Supporting construction all made of die-cast aluminium with CNC-machined fits. Pre-condition for vibration-free, clean planing of soft and hard woods.The heart of the machine: Ball-bearing mounted planer block with exchangeable HSS blades. Belt-driven by special low noise DC motor. Plane-milled table, of which the right table half is fine adjustable via toggle screw. Adjustable longitudinal stop, to both sides inclinable through 45° (scale available). Practical safety milling protection that does not interfere during work. Main switch with emergency-stop and restart protection. Including suction connection and push stick.Technical data:230V. 200W. 50/60Hz. Table 400 x 80mm. Planing width 80mm. Maximum chip removal (infeed) 0.8mm. Speed 6,000rpm. Weight 5.5kg. Insulated to class 1.

Super jig saw STS/E NO 28 530 The alternative 12V jig sawSTS 12/E is described on page 16.This unit offers fantastic and precise cutting capacity. Stable head of die-cast zinc for precise fitting. The housing head is made of glass-fibre reinforced POLYAMIDE. Special balanced, low noise DC motor with high life expectancy. The stroke speed is variable by means of full wave electronic speed control. Footplate adjustable up to 45° for mitre cuts. Ideal for tight curves in wood (up to 12mm), PC cards to 5mm and non-ferrous metals to 3mm. Complete with 4 Super-Cut sawing blades of various pitches for wood, plastic and metal. Safely stored in an attractive and extremely stable case made from high-grade polypropylene, as described on the left.Technical data:230V. 80W. Stroke speed of 2,000 – 4,500/min. Length 230mm. Weight 700g. Insulated to class 2.NO 28 530Jig saw blades made of special steelPitch of 1.5mm, teeth ground and set. Usable on hard and soft woods, plywood, fibreglass reinforced sheets as well as soft plastics. Fits STS/E and STS 12/E.

Speeder ratchet spanner set. 6-piece. With reverse lever. Spanners 6 - 19mm. One each in sizes 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15 and 17 x 19mm. Reliable ratchet mechanism with inner ring gear of CrV steel (reversible). Packed in sturdy steel box (powder coated) with flap clasp. Tray with practical recess area for storage of small parts (the depicted nuts are not included in the scope of delivery).

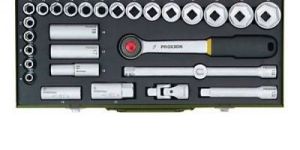

  Socket set for heavy duty mechanics. With 1/2" ratchet.   Sockets from 8 - 34mm (the latter for M 22 according to new standard). Deep sockets for protruding bolts sizes 13, 17 and 19mm. Spark plug sockets 16 and 21mm. See photo for full content. The ratchet - the key item. Made from CrV steel in one single piece. Hardened and with perfect toothing: several of the 52 teeth engage simultaneously for transmitting extremely high torque. Quick release mechanism: releasing sockets at the push of the button.Sturdy, welded steel box, powder coated for durability. With distortion-free, indestructible trays of injected POLYPROPYLENE. Oil and acid resistant and easy to clean. With easy-to-read and durable marking of all socket sizes!

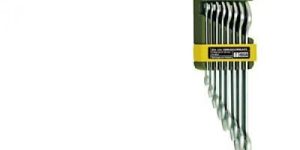

8-piece SlimLine-open-end spanner set, including holder. To DIN 3110 and ISO 3318. Carefully hardened and plated. With clearly readable sizes.Includes 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19 and 20 x 22mm. Supplied with a plastic holder with slot for each spanner and holes for attaching to a wall. All spanners clearly labelled to make them easy to find. NO 23 800set  Optimal surface protection by means of double nickel-plating and single chrome-plating. With easy to hold, smooth finish. With durable laser inscribed and clearly readable sizes in mm. Polished heads: slim and thin walled. Torque characteristics still exceed DIN/ISO requirements. Dimensional tolerances are better than those required by DIN/ISO. Each piece is calibrated and checked.

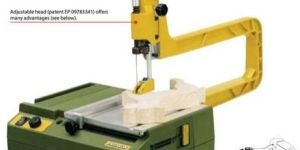

Scroll saw DS 230/E The ideal machine for the delicate job: model building, toy making and precision mechanics. With electronic speed control.Cuts soft wood up to 40mm, hard wood up to 10mm, plastics (including PC cards) up to approx. 4mm and non-ferrous metals up to 2mm. Plane-milled die-cast aluminium table (160 x 160mm). Saw frame with 300mm throat made from very stable ribbed die-cast aluminium. Blade guide with integrated blower. Height adjustable head (3 positions) offering two advantages: – Blade usage is improved as the head may be lowered in two steps, making new blade teeth available. This effectively triples blade life. – The lowest head position still allows blades, shortened by 60mm, to be used. Low noise and persevering AC motor with high life expectancy. Quiet and wear-resistant drive via toothed belts. Adjustable mitre fence and angle stop with scale. Includes 5 saw blades (3 coarse-toothed and 2 fine-toothed).

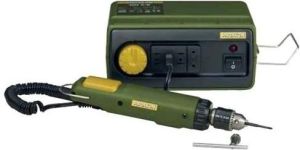

screwdriver MIS 1 With pre-selectable torques of 0.35 - 2Nm.Small, light and easy to handle. An ideally positioned rocker switch provides on/off/reverse. A chuck facilitates acceptance of all bit shanks of up to 6.5mm (also for standard 1/4" bits). Housing of glass fibre-reinforced POLYAMIDE. Complete with 16 inserts of chrome molybdenum steel.The depicted mains adapter MICROMOT NG 5/E is not included.

EBS.500 NEW! Designed for sawing all kinds of metal tubes, pipes and profiles up to 125mm (5") wide. The simple adjustment of vice, cutting angle and sawing speed make it a very practical metal sawing machine for every workshop.         Features: Digital electronic speed regulator "constant speed' Double motor protection: - Average Limiter                                               - Temperature Limiter   Anti - reset safety function Steady and sturdy steel base User-friendly vice with clear indicators Ergonomic handgrip Adjustable bar stop rod for mass-produced cuts Versatile, fast and easy to use Wide cutting angle adjustment range Simple speed adjustment with quick guide MOTOR POWER 1010 W INPUT SINGLE PHASE MOTOR RATED VOLTAGE 110-120V OR 220-240V RATED FREQUENCY 50-60Hz CUTTING SPEED adjustable, 30-80 m (100 - 265 ft) per minute CUTTING ANGLE adjustable, 0°-60° SAW BAND 13 x 0.65 x 1440 mm, 10-14 TPI M42 10% Cobalt CUTTING CAPACITY   RANGE AT 0º Pipe max. ø125 mm (5")    Square 130 x 125mm (5" x 5") RANGE AT 45º Pipe max. ø76 mm (3")   Square 76 x 76mm (3" x 3") RANGE AT 60° Pipe max. ø50 mm  (2")   Square 50 x 50mm (2" x 2") DIMENSIONS 650 x 310 x 450 mm (machine)   724 x 375 x 460 mm (packaging)

Router base OFV NO 28 566 For slotting, milling grooves and milling edges.Regardless whether with parallel limit stop (maximum throat 150mm), for circular milling with centring pin (100 - 400mm) or freehand. Adjustable depth control with preselectable stroke. Ideal also as drilling guide for round parts through prism in the guiding plate.

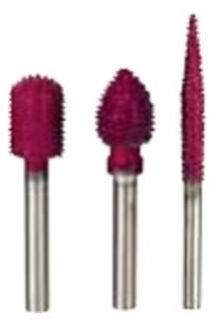

For sculpting, cleaning and smoothing wood and fibre glass. The material can be removed precisely and without physical effort. High stability and easy to clean with a Bunsen burner. Also for use on rubber, foam and silicone. Shafts Ø 3.2. Do not use on metal !Ball nose cylinder 7.5 x 12NO 29 060Cone 8 x 12NO 29 062Taper 4 x 19NO 29 064 For the clean storage of micro drills, grinding bits, brushes and other rotating tools with shaft diameters of 2.35 – 3.2. Without bits and cutters.

Rotates in all directions. Made of die-cast zinc.Easily clamps to workbenches and tables of up to 60mm. Alternatively, use 2 standard screws to secure to the work surface. Ball and socket: rotates in all directions (even downwards). 75mm jaws with protective covers (for delicate workpieces). Maximum clamping width 70mm and weight 1.6kg.

Precision lathe PD 250/E Centre distance 250mm. Swing 70mm. Height over cross slide 43mm.Machine bed: Of cast iron, wide-legged prismatic guide. For vibration- free work even at high loads. Rear flange for mounting the mill/ drill head PF 230. Covered lead spindle.Headstock: Of die-cast aluminium. Precision bearing mounted main spindle (run-out without chuck 1/100mm) with 10.5mm opening. Chuck side 70mm hollowed to 14mm. With MK 2 bore. Rotary switch for engaging the automatic feed via lead and feed spindle (optionally 0.05 or 0.1mm/rev.).Tailstock: Of die-cast aluminium. Sleeve Ø 20mm, retractable up to 30mm. With millimetre scale, MK 1 bore and live centre.Support: Bed carriage made of die-cast zinc. Cross slide and top slide of steel (adjustment 60 or 45mm). Turning tool post for cutting tools size 8 x 8mm. Drive: Quiet DC special motor with 3-stage belt drive for 300 – 900 and 3,000rpm. With additional speed control (full-wave electronics) continuously adjustable to 100 – 300 or 1,000rpm, depending on belt ratio. Clockwise - anticlockwise rotation. Main switch with emergency stop function and restart protection.Lathe chuck: High quality 3-jaw chuck as per DIN 8386 Class 1 (concentricity tolerance 0.04mm). Capacity through reversing jaws from 2 - 75mm. Including lathe chuck guard with safety shutdown.Handwheels: Of aluminium, with adjustable scale ring (1 division = 0.05mm, 1 revolution = 1mm).Thread cutting device: With change gears for left-hand and righthand threads of the most important metric pitches (0.5 – 0.625 – 0.7 – 0.75 – 0.8 – 1 – 1.25 – 1.5mm).Other technical data:230V. 50/60Hz. Size L 560, W 270, H 170mm. Weight approx. 12kg.

Precision drill/grinder FBS 240/E The maximum speed of 20,000rpm is continuously variable down to 5,000rpm. The full wave electronic speed control results in virtually constant torque, even at lower speeds, in turn facilitating micro drilling, cleaning and polishing. The spindle runs in a precision ball bearing and is lifted with a lock button. The 20mm collar fits MICROMOT drill stands and vices. The machine is fitted with a special, balanced, low noise DC motor with high life expectancy. Stable housing of glass-fibre reinforced POLYAMIDE with soft components in the finger grip area. Complete with 43 quality inserts in a sturdy plastic case. The heart of our MICROMOT precision tools for 220 - 240V: the direct current (DC) special motor. Technical data:5,000 - 20,000rpm. Maximum power consumption 100W, 220 - 240V. Length 200mm. Weight 450g. Insulated according to class 2 requirements. Keyless chuck with 0.3 - 3.2mm capacity.

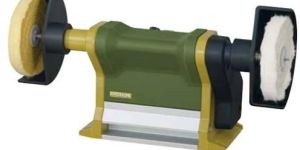

Polishing machine PM 100 Shaft drive via toothed belt: The motor no longer limits the working area. The slim housing around the main shaft even enables machining the surface of very long and variously shaped work pieces.Load bearing side parts made of aluminium with milled bearing seats enable very quiet low-vibration operation.With long, ball bearing mounted main shaft (distance from disc to disc approx. 360mm) and adjustable protective guards to work cleanly with polishing pastes. Powerful drive through DC motor with speed control (full-wave electronics). For high starting torque and enormous traction even during strong contact pressure. Firm mounting with screws, but also with the attached screw clamp in horizontal or vertical position.

Pensander PS 13 Linear (not rotating) stroke. Long-lasting special DC motor. Housing of glass-fibre reinforced POLYAMIDE. Four sanding arbors with straight shanks and four angled (all different shapes) as well as three sheets of pre-profiled self-adhesive sanding pads are included. The sheets are of grits 180, 240 and 400 with 5 of each shape per sheet.
