Peshavaria Exports Pvt. Ltd. Udyog Nagar, JAMNAGAR, Gujarat

We offer Uninsulated Copper Tube Sheet Terminals. Application For use with all types of electrical copper cable fittings. To secure overhead line distribution connection system. Options Type: With or without bell mouth With or without inspection hole Single, Double & four hole palm Straight or right angle palm Plating : Electroplated Tin (TP) as per BS 1872 Material Copper tube to BS 2871 C106 Conductor Sizes in Metric From 1.5mm to 1000 mm Square Stud hole size in Metric Suitable for Stud Size M3 to M25

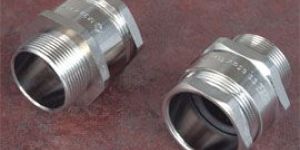

We offer Nickel Plated Cable Glands. Standard EN 50262:1999 Application Outdoor or Indoor for use all types of Unarmoured cable Function produces seal on outer sheath of the cable Ingress Protection IP55 EN 60529 Material Brass BS 2874 CZ121 Pb3 Finish Electro Nickel Plated Options Thread : PG NPT BSP BSPT Plating: Chrome (TP) Zinc (ZP) Tin (TP) Material : Aluminium Alloy & Stainless Steel 316 Seals : PCP black Silicone orange Operating Temperature Standard Seals - 20o C to + 100o C Extruded seals - 60o C to + 160o C Cable Type Unarmoured Accessories refer page for Accessories for Cable Glands

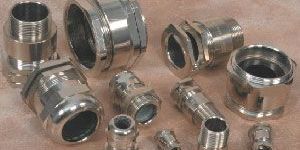

We offer metal cable glands. Application Outdoor or Indoor for use all types of braided or armoured cable fittings. Ingress Protection IP54 IP66 & IP68 5 bar Options Thread : ISO MEtric, ET NPT NPS BSP BSPT PG Plating: Electroplated Nickel (NP) Zinc (ZP) Chrome (TP) Tin (TP) Material Brass BS 2874, CZ121 Pb3 & 316 Stainless Steel Size in Metric From M12 to M63

We offer Brass Locknuts. Application To use fastening glands to the enclosures or gland plate or into equipment. Function Standard: With metric thread as per EN 60423 or DIN 40430. To secure only brass cable glands to a gland plate. EMC: With metric thread as per EN 60423 or DIN 40430 with cutting edges to cut through paint layers or powder coatings, for optimum contact. Material Brass BS 2874 CZ121 Pb3 Options Thread: ET NPT BSP BSPT PG Plating: Chrome (CP) Zinc (ZP) Tin (TP) Material: Aluminium Alloy & Stainless Steel 316 Types: Standard EMC (with sharp corners) Operating Temp. -60o C to + 300o C

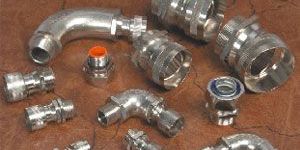

We offer Brass Flexible and Liquid Tight Conduit Glands. Application Outdoor or Indoor for use all types of braided or armoured cable fittings. Options Thread : ISO MEtric, ET NPT NPS BSP BSPT PG Plating: Electroplated Nickel (NP) Zinc (ZP) Chrome (TP) Tin (TP) Types: Fixed and Swivel Material Brass BS 2874, CZ121 Pb3 & 316 Stainless Steel Size in Metric From M16 to M36

We offer Brass Conduit Pipe Fittings & Accessories. Application Outdoor or Indoor for use with all types of Galvanized steel conduit pipe fittings. Options Thread : ISO Metric ET NPT NPS BSP BSPT PG Plating : Electroplated Nickel (NP) Chrome (CP) Zinc (ZP) Tin (TP) Standard : BS 4568, Part-2, 1970., BS 31, 1940 & also light Duty can be Supplied Material Brass CZ121 316 Stainless Steel Sizes in Metric From M12 to M90

We are offering brass cable glands. Standard en 50262:1999 application outdoor or indoor for use with all types of unarmoured cable. Function produce seal on outer sheath of the unarmoured cable ingress protection ip66 with nitrile thread seal en 60529 material brass bs 2874 cz121 pb3 options ip rating : ip68, 3 bar with fibre or nylon with thread seal en 30529 thread : et npt bsp dspt pg plating: nickel (np) chrome (tp) zinc (zp) tin (tp) material :brass casting bs 2874 , aluminium alloy stainless steel 316 seals: pcp black silicon orange operating temp. standard seals -20o c to +80o c extended seals - 60o c to + 180o c cable type unarmoured accessories refer to page accessories for cable glands available in both loose piece & packed form, please specify & refer to page cable gland kit

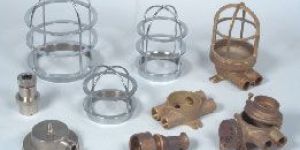

We offer Brass Bulb Guards. Application Outdoor or Indoor for use all types of bulb guards for Marine electrical fittings. Options Plating: Electroplated Nickel (NP) Zinc (ZP) Chrome (CP) Tin (TP) Material Brass CZ121 & Aluminium Alloy Type Aluminium bulb guard, Brass wire net bulb guards, Cast brass Bulb guards Ceiling light fixtures, Deck light fixtures and Bracket light fixtures

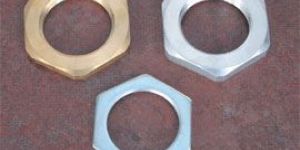

We offer Brass Aluminium Steel . Application Brass: Brass Locknuts are traditional components used in fastening glands to the gland plate & as they are identical material to the gland, corrosion effects are minimal. Mild Steel: Steel (Galvanized) Locknuts are a cheaper alternative & should be used only dry, low humidity conditions. Aluminium: Alu. Locknuts are for use with PEPL Alu. Glands only. Eg: BWA & CWA. Alu. Locknuts are recommended when installing PEPL Alu. Cable Glands to prevent the electrolytic action of galvanic corrosion which can occur when dissimilar metals are coupled together. Function Standard: With ISO metric thread as per EN 60423. To secure only brass cable glands to a gland plate. EMC: With ISO metric thread as per EN 60423 with cutting edges to cut through paint layers or powder coatings, for optimum contact. Material Brass BS 2874 CZ121 Pb3 Mild Steel (BS 970) Galvanized Aluminium Alloy (BS 1476) Options Thread: ET NPT BSP BSPT PG Plating: Chrome (CP) Zinc (ZP) Tin (TP) Types: Standard EMC (with sharp corners) Operating Temp. -80o C to + 300o C

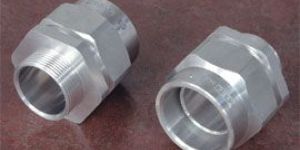

We offer Aluminium Cable Glands. Standard BS 6121 - 1 : 2005 Application Dry indoor for use with all types of AWA or ASA extruded bending cable Function provides mechanical cable retention & electrical continuity via aluminium armoured wire or strip termination Ingress Protection P2X EN 60529 Material Aluminium Alloy Options Thread : ET NPT BSP BSPT PG Clamps : Aluminium wire armour AWA for BWA Aluminium strip armour cable ASA for BY Operating Temperature - 20o C to + 300o C Cable Type AWA or ASA extruded bending cable Accessories refer page for Accessories for Cable Glands Available in both loose piece & packed form, please specify & refer Cable Gland Kit
