(2 products available)
  • GPRS and GSM Based Wireless Pump House Monitoring System +2

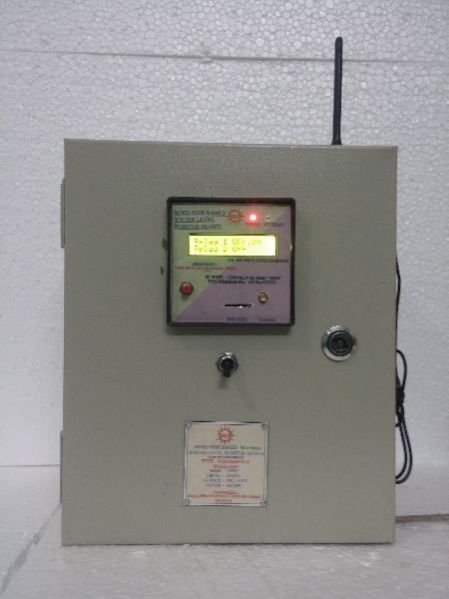

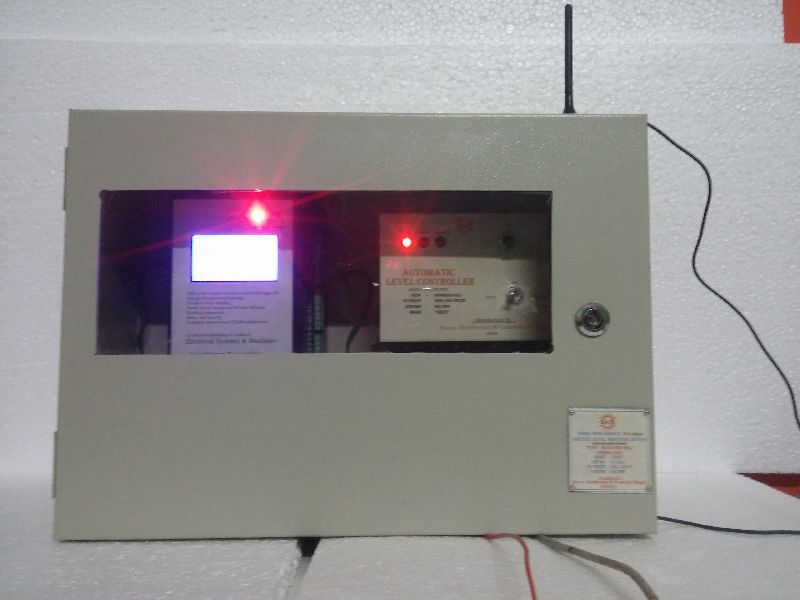

    GPRS and GSM Based Wireless Pump House Monitoring System

    Get Price Quote
    With features like superior quality and unmatched grade, our product range is the best one available in Jodhpur(India). We have different payment options to choose from as per the convenience of the clients. In the type of operation processed online, the procedure depends on the gateway or processor model; both of them ensure complete security.   Details : SECO'S Wireless Systems Developed on latest Technology, for Operations of Pump HOUSE, Receive the signal from Wireless Device Transceiver and send these Signals through GPRS enabled SIM to Central Server via Cell Phone Tower. Once the data Is available at Central Server, the User can Login From User End Application Software From his Internet connected PC/Laptop to Monitor his remote Systems Pump House. The User can Monitor & do Switching ON/OFF pumps through Mobile Phone. Monitoring will Be on 128x64 graphic Display will show protections of. Voltage, Current, Hz, Power Factor, KW, KWH, KVA, KVAH. With SMS on four Cellphone With Receiver Winner Ph Wireless Cat No. 212212.
    ...more
    Surya Electronics & Controls
    Nai Sarak, Jodhpur
    10 yrs 4.0 (1)
  • Solar Data Logger

    Solar Data Logger

    Get Price Quote
    • Recorded valuesRecords Minimum, Average & Maximum Irradiance, Voltage & Current
    • Min. and max. time resolutionAlways 20ms
    • Pyranometer sensor accuracy+/-2% of range
    • Measurement range0-1500Wm-2
    • Irradiance measurement accuracyTypically 5% of range
    • Pyranometer Input Lead LengthMetric 5m, Imperial/ English 16’ (feet)
    • Voltage measurement range1 to 300Vdc
    • Input impedance10MOhm
    • Voltage (DC) measurement accuracy1V – 5V < 2%, 60V model, 6V – 60V < 1%. 300V model 60V – 300V
    • Voltage Input Lead LengthMetric 2m, Imperial/English 6’ (feet)
    • Current measurement range-10A to +10A or -100A to +100A, selectable range
    • Current measurement accuracy<5% of selected range
    • Current Input Lead LengthMetric 1.5 metres; Imperial/English 4’ (feet)
    • Sampling frequency800Hz (every 1.25ms)
    • Data recordedAvg, max & min irradiance, voltage & current values during the averaging period
    • Memory capacity192kB able to record 32,000 levels per channel
    • Memory typeNon-volatile SEEPROM
    • Memory - averaging period & duration1 sec to 60 mins (1 sec gives 2 hrs logging, 60 min gives 300 days logging)
    • Real-time clock accuracyGreater than 0.001%
    • Battery life while loggingUnlimited – 12Vdc PSU option & battery backup or1 day on battery power only
    • Battery TypeUnit contains four 9V Alkaline batteries (E-Block, PP3, 1604A)
    • Communications Interface typeUSB
    • Environmental (temp & sealing)-10C to +40C or +14°F to +104°F
    • Dimensions & WeightMetric 260 x 180 x 190mm & 2kg Imperial/English - 102 x 72 x 8” & 4lb
    • StandardsRecording - EN50160: 1994 - CAT II
    • PV-3 SOLAR DATA LOGGER The PV-3 data logger is used by installers, householders, renewable energy companies to check PV (photo voltaic) installations. It can record solar irradiation up to 1,500W/m2 (watts per square metre), DC Voltage and DC Current produced by the panel, allowing you to assess the performance of a solar energy installation Why is the Electrocorder better than other similarly priced competitors? The Electrocorder range use a constant sampling technique, unlike the single reading of competitors. When the loggers start to record, they sample every channel 16 times per cycle, a cycle is 16ms at 60Hz and 20ms at 50Hz. At the end of each averaging period, 3 quantities are saved for each channel, the TRMS average, the Max, which is the highest cycle value during the period and the Min, lowest cycle value. This means that it will record all the peaks and troughs which are one cycle or longer When recording the Electrocorder will store the average voltage (and current if applied) over the period chosen (1 sec to 60 min), it will also record the highest (max) & lowest (min) cycle values during that period. The voltage levels are stored with dates and times. With the back-up battery, the Electrocorder can continue to record for 4 weeks. An external 12Vdc PSU input is available, to allow for prolonged logging without batteries   Features Records Solar Irradiance, 0-1500W/m-2 PV system output Vdc to 300V, Idc to 100A Monitor charging circuits, PV (photovoltaic) cell, DC motor, and many other application Accurately record DC voltages up to 60Vdc Two voltage input channels and one current channel Records VAvg, VMax & VMin on 2 channels. Data is stored in non-volatile memory Kit includes logger, fused voltage input leads, DC current probe, pyranometer, USB lead, 12Vdc PSU, software and carry case Memory capacity of 32,000 TRMS voltage values per channel (10 bit), up to 300 days continuous recording Best cost/performance ratio
    ...more
    Fusion
    Jodhpur
    17 yrs
