Automatic sand blasting machine quick start sand blasting machine easy to use sand blasting machine best quality sand blasting machine portable sand blasting machine easy to fill sand in sand blasting many capacity are abailability of sand blasting machine.

We offer Vacuum Blasting Machine. It is a small handy blasting tool for light work, touch-up cleaning and maintenance job. It does blasting in dust free conditions. unit weight: 3.5 kg. Abrasive charge: 1.8 kg. Total weight: 5.3 kg. no special skill required to operate. small enough to be fitted through tank manhole, or into hard to get at areas. ideal for locations where abrasive must be fully contained i.e. Machinery area, electronic equipment etc. swivel head allows blasting at any position-overhead, side-ways, down hand etc. most common re-useable abrasive may be used, such as shot and grit, aluminium oxide etc one-man operation equals three man cleaning by wire brushing, disc sanding or other hand cleaning methods. always ready to use. Attach to 19 mm air line and start blasting. no electrical connections. Requires 33 to 60 cfm at 90 to 100 psi pressure. Best pattern approx. 31.8 mm wide. a while metal surface is obtained suitable for any recoating.

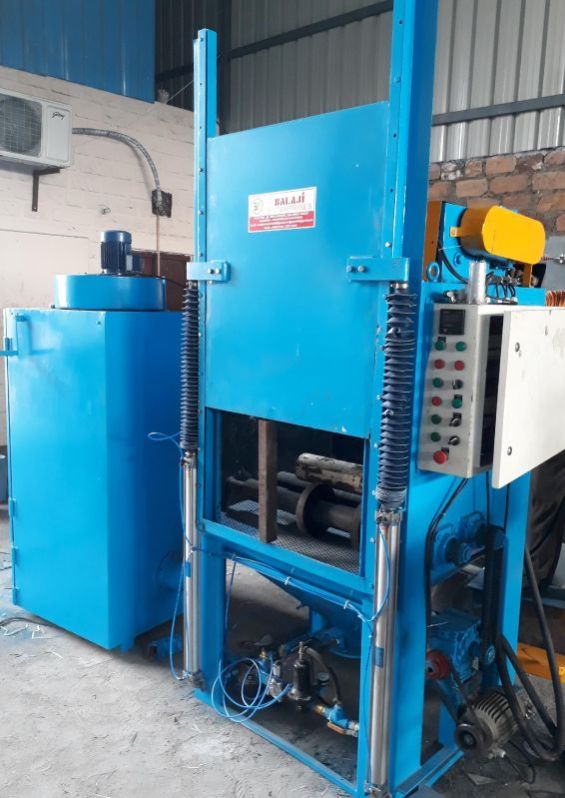

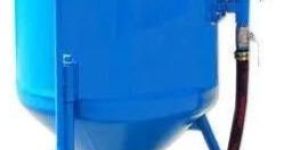

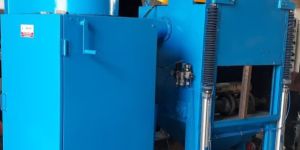

pressure blasting machine for drum & cylinders

MEC offers an environment friendly cabinet type abrasive blasting machine for generating anchor pattern on components that can be handled in a cabinet enclosure and operator maneuver the blasting nozzle from hand holes provided at the front of cabinet. To view the blasting operation, a vision window is provided at front side.3 variants are available in the cabinet type blasting machines, viz., Suction blasting, Pressure Blasting & Wet Blasting.Suction Blasting : Works on Injection Suction principle of blasting. Uses the venturi principle to draw abrasive from a non-pressurized hopper to the blast gun where it is combined with the compressed air stream and propelled against the work surface. Suction blast machines are most easily distinguished by having two hoses (one for air and one for abrasive) running to the blast gun.Pressure Blasting: Works on Direct Pressure principle of blasting. Uses a pressurized vessel or "blast pot" that holds the abrasive media. In a pressure blast machine the air pressure in the vessel and in the "pusher" line is the same. This means that there is no pressure differential between the blast pot and the blast line – this allows the abrasive media to meter into the air stream at the blast pot and then run the length of the blast hose out to the nozzle. Pressure abrasive blast equipment has a single hose running to the blast nozzle.Wet Blasting: Works on Injection Suction principle of blasting. Uses a slurry pump to draw the wet slurry of very fine abrasive and water to the blast gun where it is combined with the compressed air stream and propelled against the work surface.

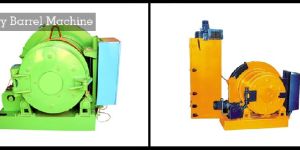

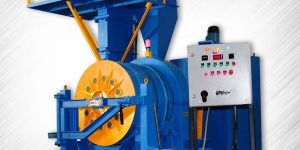

This machine is probably the smallest in the family of Airless Machines, and miniature version of Tumblast Machine (power consumption is very low 5 HP only). Specially designed for cleaning of Small/Medium size Iron, Steel, Alloy, and Non-Ferrous Casting, Forging, Heat treated Parts etc. Hence it is ideal for foundries, forging unit and small job shops where less space is required and economic production is concerned. The Machine has rotatory barrel type (Size: 649 mm Dia x 625 mm Length) with thick perforated rubber sheet. The door is opened and components are fed into the machine. The barrels rotate at low rpm and tumbling action, which also ensures the safety of the components. The powerful Blast wheel fires shots on the components and uniform blasting is done. The machine is controlled by control panel and electronic timer. Also, abrasive Recollection System along with Dust Collector (dry type) is also provided as standard fitment.

We are offering suction blaster. The suction blaster is work on induction-suction principle of abrasive delivery. It is mainly useful for fine and medium matte finish on soft and plastic material in wide range of heat treatment shops, too, die and mould makers and shot peening of light metal components etc.

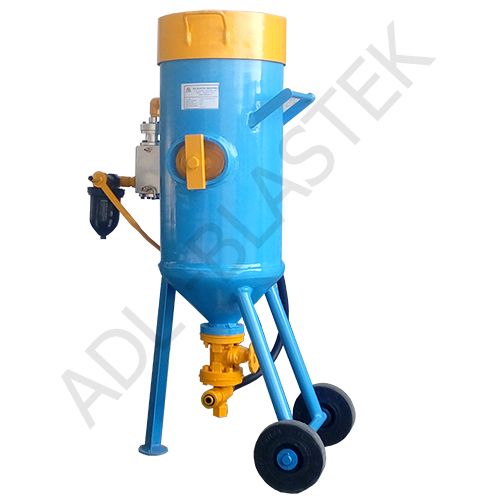

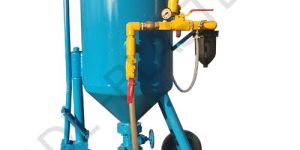

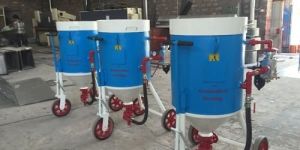

The portable abrasive blaster are safe, high productivity systems designed for use with a wide range of abrasive media. The operation is performed on metals, glass, ceramics, plastic and stone.The machine works on pressure blasting principle, consist of a blast generator. The abrasives are filled at the top of machine when machine is not working and blast generator is not pressurized. At the top, a vibrating sieve is provided to sieve the abrasive filled. The oversize abrasive and debris are retained on the screen, thus prevent the choking of blast line. When mushroom valve is opened the abrasive will get transferred to blast generator for blasting. The mushroom valve gets closed when compressed air is switched on and abrasive storage tank gets pressurized, for free fall of abrasive into the mixing tube. From mixing tube the abrasive is carried away by compressed air to the nozzle for blasting. The Blast Generator is fabricated from MS Steel plate of thickness not less than 6 mm as per IS-2825 and hydraulically tested for 250 psi.

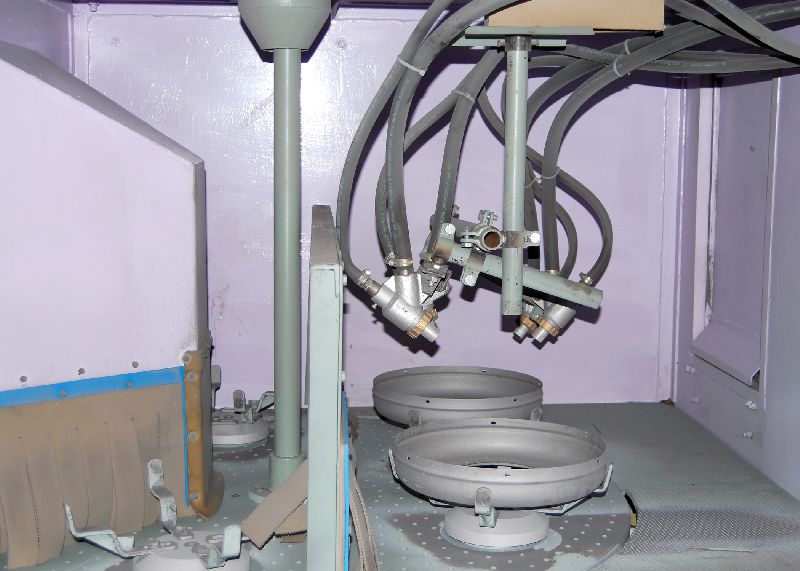

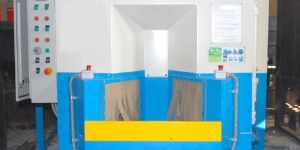

Mec shot has recently designed manufactured, installed & commissioned airless blasting machines with rotary indexing hanger for surface preparation of aluminum dye casted automobile engines parts.

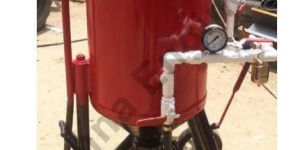

Krishna engineers are a very prominent voice of the market for providing a high quality range of stone sand blasting machine to our most valued customers.
