Mec Shot Blasting Equipments Pvt. Ltd. Basni, Jodhpur, Rajasthan

The Wet Scrubber consisting of single stage scrubbing filters which is located at the bottom of multi nozzles. The paint spray fume scrubber is suitable for the collecting 3 micron and above sized particulate. In paint spray fume scrubber the fume is sucked through the ducts connected from paint spray room to the scrubber fume inlet and flows upward through single stage scrubbing filters. The contaminated air get washed by spraying water from spry nozzles and separates the paint dust or fume. The air flows upward through multiple sections tangential set of vanes and flows out through the exhaust fan, thus keeping the environment friendly. the scrubbing liquor is fed by gravity from a inlet water pipe , avoiding the need for blockage prone spray nozzles. The water flows down to distribution cone, which forms the lower face of the vane scrubbing assembly. the particulate laden gases enter the body of the scrubber tangentially allowing large particles to be collected in the lower section submersed in water tank. The paint sludge floating on the water is clean from time to time through the inspection doors at least daily once. The paint sludge that is settled at the bottom of the water tank is cleaned by opening the drain plug at least once in a week. ( the time for removing the sludge may vary as per the working and customer to make its own time schedule) a portion of finely atomized scrubbing water containing the collected particulate is carried upward with the gas to the helical separator. The separator imparts a secondary centrifugal motion to the gas stream as it passes through the vanes, causing the liquor to impinge and separate on the walls of the separate on the walls of the separator chamber. the spraying water get clean in strainer and recycles by a water pump and is then carried by gravity back to the spray nozzles.

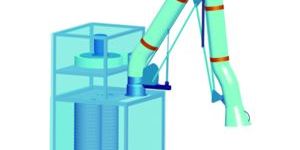

Weld fume cartridge filter dust collector Is a portable and compact unit with low noise level. The suction arm which is a swinging arm for convenient and long reach with maximum flexibility along with suction hood reaches the welding spot with utmost convenience. The welding fumes and dust laden air is sucked (due to suction created by exhaust fan (motor) and enters into the fume collector. The contaminated fume dust passes through Pre-fume collector, Pre-filter, Expansion chamber and cartridge element. The fume collector Is provided with a damper valve to regulate suction.

The spray painting is carried out by operator with the help of spray painting gun [Buyer to arrange spray painting gun]. The paint fume particles are sucked by the partial vacuum created by exhaust fan through a water curtain. The air is cleaned by scrubbing action in turbulent water. The particulate matter remains floating on water tank is periodically removed manually. The air discharged into the atmosphere is clean and thus keeps the environment clean and friendly.

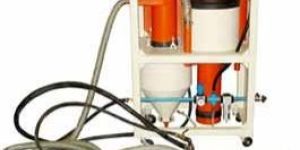

We offer Vacuum Blasting Machine. It is a continuous operating grit blasting machine in which abrasive is automatically recovered instantly after impacting the surface. Powered by only compressed air, it needs no electricity and hence s suitable for site work. It removes light paint and scale very fast and the removal process is much better than chemical cleaning or wire brushing. No hazardous gas is produced so operator is completely safe. It is also fully suitable for finishing, etching, shot peening and surface preparation before coating. a number of abrasives can be used such as metallic grit, glass beads, steel shots, plastic media and walnut shell etc. To meet specific requirement of cleaning and finishing. The impact of blast stream is highly controllable so that surface is not deformed or damaged. If a galvanized or anodized sheet is painted, the removal of paint can be easily effected without any harm to galvanized/anodized layer. Mounted on four castor wheels, it can be wheeled to required site. Instant recovery of dust and abrasive within the gun head ensures pollution free atmosphere, thus nearby operations can be performed simultaneously. The machine could be used for: local rust removal at spots grit / shot blasting. shot peening. paint removal for aircraft components. cleaning before and after welding surface etching.

We offer Vacuum Blaster p-15r is a high performance blast machine for quick removal of mill scale, rust, weld slag, old paint etc. It has it's own integral system of instant recovery of abrasive, dust and debris. No flying dust and abrasive to contaminate surrounding. portable: mounted on 4-wheels. It can be wheeled to job site. Needs only one man to operate. blasting at high speed & high velocity: the abrasive is pressure fed to blast gun, it is propelled at high force against work surface, thus increasing blasting output. uniform cleaning & finishing: abrasive is cleaned of dust and debris in reclaimer before being recharged from blast nozzle. This ensures uniform surface finishing all the time. re-use of abrasive: metallic abrasives like c.i. Grit and steel shots are used several times. Media recycling is automatic. Any type of abrasive except sand can be used depending upon surface to be cleaned and finish required. easy control: start/ stop control is located at blast gun for ease of operator. safe operation: operator need not wear air-fed helmet or to work inside the blast room. He is fully safe. He works in dust free conditions. Vacuum recovery is made possible either by pneumatic or by electric vacuum pump. dust free operation: dust, debris and used abrasive are recovered at the blast point. No flying of dust and abrasive into surrounding area. Work can go on uninterrupted e.g. Painting can be done along with blasting. how it works: the system of p-15r machine is shown here in diagrammatic cross-section; the arrows marked in green indicate abrasive flow from abrasive tank which is a pressure vessel, to blast gun and its return via vacuum hose to reclaimer. The arrows marked in red represent recovery of debris and dust from blast gun. Abrasive is pressure fed from abrasive tank : to blast gun blast gun remains in close touch with surface to be cleaned. After cleaning the surface, abrasive, debris and dust is vacuum conveyed to reclaimer. where good reusable abrasive is air washed and sieved and then returned to abrasive tank (a) for reuse. Dust and debris is trapped by cyclone. and dust collector thus only clean air is discharged into the atmosphere. Reverse air flow (vacuum) is created by compressed air ejector or by vacuum pump. blast gun pressurizes stream of abrasive at the work surface and automatically transfers all dust, debris and used abrasive to reclaimer via a vacuum hose. Four castor wheels facilitate movement along work surface. A nylon brush surrounds the gun body to prevent escape of abrasive and dust.

We offer Vacuum Blasting Machine. It is a small handy blasting tool for light work, touch-up cleaning and maintenance job. It does blasting in dust free conditions. unit weight: 3.5 kg. Abrasive charge: 1.8 kg. Total weight: 5.3 kg. no special skill required to operate. small enough to be fitted through tank manhole, or into hard to get at areas. ideal for locations where abrasive must be fully contained i.e. Machinery area, electronic equipment etc. swivel head allows blasting at any position-overhead, side-ways, down hand etc. most common re-useable abrasive may be used, such as shot and grit, aluminium oxide etc one-man operation equals three man cleaning by wire brushing, disc sanding or other hand cleaning methods. always ready to use. Attach to 19 mm air line and start blasting. no electrical connections. Requires 33 to 60 cfm at 90 to 100 psi pressure. Best pattern approx. 31.8 mm wide. a while metal surface is obtained suitable for any recoating.

We offer Vacuum Blasting Machine. Blast cleaning with vacuum blasters have proceed to be a novel and highly effective method of cleaning ships' decks prior to applying protective coatings, without stopping other work on board. Likewise, shot peening is a solution to retard stress corrosion failure of ship hulls. By virtue of size and non movement of such jobs into the blast room, the blasting operation becomes difficult. Therefore, mobile closed circuit vacuum blast machine is the right solution.

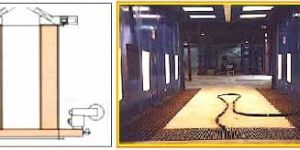

The U Shaped Partial Reclaim System adds two longitudinal metered screw assemblies along each side wall of the blast room. The position of the screw assemblies allows automatically reclaiming approx. 60 - 90% of the blast media. This floor design is typically utilized in a "flow-through" room configuration where heavy work pieces and/or material handling devices can drive into the room and position the work piece on the steel covered concrete floor located between the longitudinal screws. This system is best suited for medium to high production.

The mold is clamped in horizontal position on the turn table using centering plates & four heavy duty T-slot clamps. The turn table is tilted hydraulically at suitable angle. The work car with turntable and mold is driven inside the cabinet. The turn table is rotated through electric motor with gear box arrangement. A spring is provided for holding the gun arrangement to avoid fatigue of operator. The abrasive is pressurized in a pressure vessel by compressed air and then forced through the nozzle to blast clean the trye mold.

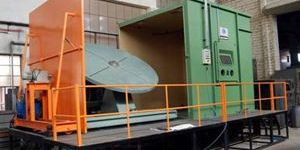

We have Tyre Mould Cleaning Machine. Tyre mould requires cleaning to remove foreign particles, keeping dimensional tolerances intact. The machine features motorized vertical or horizontal or tilting turntable mounted on trolley with motorized winch. Machine is built in with cartridge filter dust collector for dust extraction and automatic abrasive recycling arrangement. Blast gun is manipulated manually.

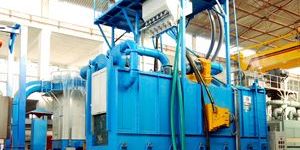

Tunnel Type Wheel Shot Blasting with number of blast wheels varies according to the production output available. This is the most used and flourishing series for the long structural, channels, angles, plates, gratings, pipes.

We offer airless Shot Blasting Machine type has found major applications in cleaning the long structures like angles, channels, beams, pipes, torr bars & flat structures like plate, gratings etc. To obtain sa 2.5 finish. the machine has the roller type conveyor arrangement with the variable speed ac drive for obtaining the desired finish with varying the conveying speed. essential elements: blast wheel assembly. shot blasting chamber with mm lining. abrasive re-circulation consisting of screw conveyor, bucket elevator, rotary screen separator & dribble valve. dust collection system: pulse jet type. roller conveyor.

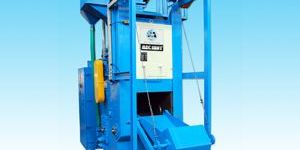

Tumblast Type Wheel Shot Blasting They have been designed to carry out the multifarious jobs of cleaning and peening in lesser time and of a better quality than all other makes of the machine.

We offer Tumblast Type Blast Room. Smooth complexion for your metal surface. These machines are sturdy, rugged and proven across a wide variety of working conditions. They have been designed to carry out the multifarious jobs of cleaning and peening in faster time and of a better quality than all other makes of the machine. The latest design of blast wheel is incorporated, in order, also to keep the maintenance costs significantly low. The rubber conveyor belt is rugged and given long life. Hence the machine is most economical in operation. dust collector options are available i.e. Fabric, cartridge type, as per your choice, the machine is available with various additional optional features like auto-mechanical loader, program-logic control system, time control, system for blast wheel, sound reducer etc. Please select the optional features as per your choice. applications: aesthetic finishing of die castings of aluminum, zinc & alloy steels. desanding & descaling of castings & forgings. shot peening of heavily stressed components. preparation of surface for protective coating. cleaning of castings & forgings. removal of heat treated scales.

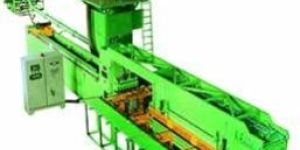

We offer Tube Id Cleaning machine. Tubes associated in nuclear fuel applications particularly zirconium tubes require inside cleaning to get uniform rough surface. The machine is fully automatic for tube loading, positioning while cleaning and uploading. The operational sequence is programmable through plc control. Multi tubes can be cleaned at a time. Machine is fitted with wet type dust collector and system is dust free.

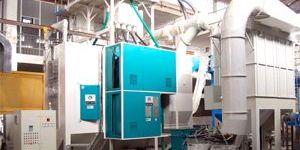

Tippers and Trailers Wheel Shot Blasting get affected with variable atmospherically conditions. To protect them, these structures are blasted and required roughness is achieved good bonding strength for painting powder coating.

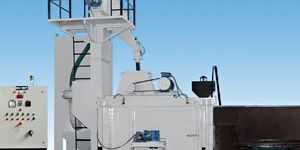

Swing Table Type Wheel Shot Blasting are sturdy, rugged and proven across a wide variety of working conditions. They have been designed to carry out the multifarious jobs of cleaning and peening in faster time and of a better quality than all other makes of the machine.

We offer Swing Table Type Blast Room. Applications: aesthetic finishing of die castings of aluminum, zinc& alloy steel. desanding& descaling of casting& forgings. shot peening of heavily stressed components. preparation of surface for protective coating. cleaning of castings& forgings. removal of heat treated scales.

Stone Industries are advancing towards development for Sand Stones, Marble Panels, Granite, Cement Paving Blocks to achieve required roughness on one side either for good bonding strength or esthetic look after laying on the Room flooring & Road Side Pavements. Mec Shot has recently designed, developed, manufactured & successfully installed Airless Shot Blasting Roller Conveyor Machines for different usages like Sand Stones, Marble Panels, Granite and Cement Concrete Interlocking Paving Blocks. Shot Blasting is a mechanical surface preparation process or technique to improve the bonding strength of job by blasting with small balls. Roughness is formed on the surface of the job by the striking tinny spherical balls.

We have Stainless Steel Sheet Blasting Machine and Stainless Steel Plate Blasting Machine to achieve homogeneous satin finish on both side of ss sheet glass bead blasting is carried out in the offered model : sb-151626 spl. It operates on suction-induction principle of abrasive blasting. The operator place the sheet on roller conveyor such that plate gets inserted into the vertical drive roller. The vertical drive roller conveyor carries it into blast chamber where blast gun move vertically on both the sides, thus, finishing it's external surface. used abrasive/glass beads and dust created during blasting is sucked through suction hose to reclaimer where abrasive is reclaimed and collected in a storage tank for recycling and the dust is carried ahead and collected inside filter bags and clean air is discharged into the atmosphere. The operator has only to load and unload the sheet on and from the roller conveyor. glass bead finishing of ss sheet to achieve homogeneous satin finish on both sides. base material: 300-400ss sheet size max.: 2500mm x 4000mm sheet size min.: 600mm [w] x 1000 mm [l] sheet thickness: 0.6 to 5 mm blasting material: glass beads, "ad" grade upto 'o' grade blasting required: both sides of sheet.

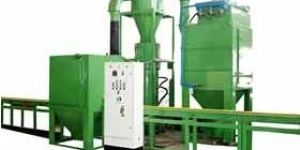

We offer Stainless Steel Flat Machine. The machine is engineered for inline cleaning of external surface of stainless steel flats to reputed customers. The machine is simple to operate with minimum maintenance and operator has to simply load and unload the stainless steel flats on rotating rollers. the abrasive media generally used is c.i. Grit of 25 mesh. The edges of the stainless steel flats especially are required to be blast cleaned to remove rust, corrosion & edges defect. the machine is highly productive and featured with roller arrangement, 4 high speed blasting nozzles, abrasive recovery and cleaning system, dry dust collection unit and control panel. the machine is suited for continuous working. The stainless steel flats are placed on motorized roller arrangement, which moves the stainless steel flat forward inside the blast chamber. The stainless steel are flat exposed to the abrasive blast stream through the 4 blast nozzle assembly for blast cleaning. The dust created during blasting is separated & collected in pleated filter bag dust collector and clean air is discharged to atmosphere keeping the environment clean and eco-friendly.

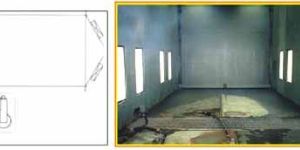

A Single Screw Partial Reclaim System is the most economical floor design available. The system contains the major components heavy-duty screw, belt and bucket elevator, air-wash separator, perforated storage hopper with a caged man ladder and handrail. This is a basic "automatic" reclaim package that can be expanded to and "h", "u" or full floor reclaim system.

We offer Silicon Waffers Cleaning Machine. The machine operates on suction principle of abrasive blasting. It incorporates highly engineered indexing turntable. synchronization of gun reciprocation and job rotation is through plc. This hi-tech synchronization produce a uniform non reflective finish and clean surface of silicon waffers. applications: the surface finishing of critical component used in solar cell i.e. Silicon waffer (dia. 100-300 mm) is a very specialized task. Surface preparation of silicon waffer before etching and silver pasting is done to get better yield (wattage) from solar cell.
