METALLIZING EQUIPMENT COMPANY PRIVATE LIMITED Basni, Jodhpur, Rajasthan

Shot Peening Machine MEC automatic glass bead peening machine is designed to peen API threads of drilling components as per MIL-S-13165 standard. To provide two axes shot peening operation for the generation of controlled compressive stress and to improve the galling resistance of the internal & external threads roots on the pipes at both ends. Machine is suitable for peening job of maximum size 12 mtrs [L] &12" Dia     SYSTEM FEATURES & BENEFITS Standard: Pneumatic operated front door for easy loading Motorized roller arrangement for job rotating 2 Controlled speed gun manipulation for OD & ID peening Quick change OD & ID peening pressure nozzles Large work envelope in cabinet High production machine Offline vibratory sieve classifier unit for size classification Offline spiral type separator for shape classification Gravity feed grit recovery system Easy part pixture change over Work car movement for extended length of job High volume pressure chamber for long duration peening   Optional: Automatic shot peening media adder Rotary lance drive. Shot flow control magna valve Custom part holding fixtures

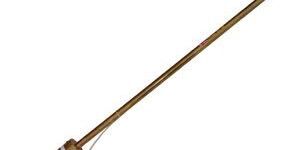

The Mini Plasma Spray Extension Gun is a versatile production gun designed for internal diameter coating applications. The Mini Plasma Spray gun operates up to 15 kW power in the subsonic mode and is available in two spray angle hardware configrations: 45º and straight-head. It can deposit coatings into diameters as small as 38mm (1.5 in.).

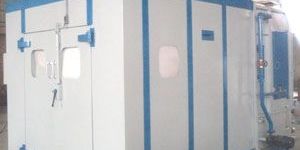

MEC Acoustic Chamber Thermal spraying process inherently generates noise level above threshold limits.   Therefore, it is necessary to bring down noise level to permissible limit, apart from collecting over sprayed dust & fumes acoustic cells are designed for both purposes: for reducing noise level as well as to arrest extra sprayed dust & fumes so as to keep clean condition of operation.   MEC has designed modular series of Acoustic chambers with several options. Download Catalogue

Number Of Flower : Laser Cladding Machine

Condition : New

Availability : 125 Kgs

Brand Name : MEC

Country of Origin : 3 Phase 420 V

MEC CNC bead peening machine is designed for effective peening on aero engine component (Blade Airfoils). To generate the controlled compressive stress to the surface and to enhance the surface properties, increase fatigue strength by creating small pores, increase life of components and prevent galling, ferreting, cracking & corrosion.The system has capacity to peen upto 48" length of blade.   SYSTEM FEATURES & BENEFITS Standard: 2-axis servo controlled reciprocation Variable speed turntable rotation Work car with manual winch for ease of job loading approach High volume pressure tank for long duration peening Quick change & accurate positioned 6 peening nozzles Colored touch screen HMI &Siemens PLC panel Efficient reclaimer with screening Easy part fixture change over   Optional: Automatic shot peening media adder Closed loop air pressure control Magnetic separator Rotary lance drive Spiral type shot separator Vibratory sieve classifier unit Motorized work car movement
