Panchal Pumps & Systems Panki, Kanpur, Uttar Pradesh

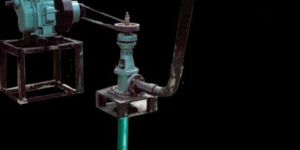

Power : >25 HP

Number Of Flower : Borewell

Maximum Discharge Flow : 1001 - 5000 LPM

Usage : Water Lifting, Irrigation, Agriculture

Specialities : Driven by Electric Motor, Diesel Engin, Tractor PTO, Cattle, Solar Power

Country of Origin : Made in India

Capacity : 5-50 LPM

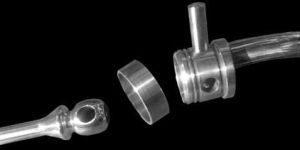

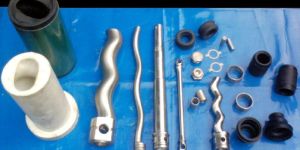

“panchal” serves genuine spares which are manufactured in – house under stringent quality checks at every stage. “panchal” also serves spares for other national and international brands of repute with guarantee for 100% interchangeability. pin & bush joints are used with coupling rods to safeguard the coupling rod damage by timely replacement of pin & bush. These joints are lubricated with lubricants contained in the boot seal for extended life cycle. cardan uj joints superior to conventional gear and single pin & bush joints are employed to take up free angular movements, axial forcess, torque loads prevail in progressive cavity pump, employing two sets of pins perpendicular to each other. pin joints are applicable for food products applications in which the coupling rods are used without bushes for the coupling rod pins to ensure no ingression of bacteria. As of now no cover boot seal used to contain lubrication. The media itself acts as lubrication for the pin in the coupling rod.

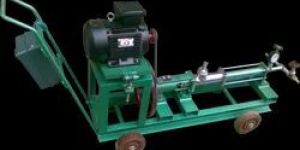

Features: Easy to move anywhere Trolley Type design and driven by Electric Motor Diesel Engine. Uses: Slurry PumpingTransfer, Direct Spray, Tanker Loading – Unloading etc. Capacity: 120 m³hr.

Features: Easy to move anywhere Trolley Type design and driven by Electric Motor Diesel Engine. Uses: Slurry PumpingTransfer, Direct Spray, Tanker Loading – Unloading etc. Capacity: 120 m³hr.

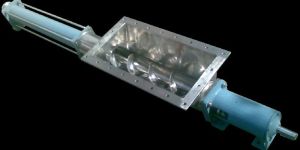

Augur type suction inlet allows in gravity flow of highly viscous material on to augur cum connecting rod which pushes the substance to the pumping element. Execution Long life closed or open Cardon Joints Pin Joints. Reversible flow direction. Suction delivery standard connections or IDF & option SMS, DIN, JIS Clamp & Ferrule Type. Housing in AISI 304, AISI 316 & AISI 316L. The surface is smooth, eliminating product retaining pockets. Rotor Shaft & Rotating Parts in AISI 304, AISI 316 & AISI 316L Torsion Free Moulded to Stainless Steel M.S. Tube Rubber Stator in NCR Food Grade Nitrile, EPDM in white & black colour elastomers. Shaft Sealing by Stuffing Box food grade Gland Packed Mechanical Seal Specifications: Capacity - Up to 120 m³hr. Pressure Stages - 6, 12, 18 & 24 Bar Temperature - Up to 150° C 302° F Viscosity - Up to 30,000 cst Solid Handling Capability - Up to 7% Application: Aluminium Magnesium Hydroxide Past, Clay Slurry, Explosive Slurry, Formic Acid Slurry, Grease, Green Asbtestos Slurry, Grout Mix, High Consistency Paper Pulp, Lecithin, Lithophone Paste, Malt Mix, Minced Meat Mash Grapes, Oil Paste Paint Pre-Mix, Pickle Mix Pigmented Varnish, Putty, Shrikhand, Starch Slurry, Thick Cole Slurry, Undiluted Sludge Yoghurt, Etc.

Application : Transferring Viscous Fluid

Country of Origin : Made in India

Number Of Flower : Positive Displacement Progressive Cavity Single Screw Rotary Pump

Brand Name : PANCHAL

Pressure : High Pressure

Power : Electric/Diesel Engine/Tractor

Material : Stainless Steel

Country of Origin : Made in India

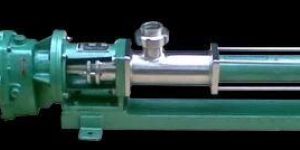

We provide Sanitary Progressive Cavity Pumps. Specifications: Capacity - Up to 50 m³hr. Pressure Stages - 6, 12, 18 & 24 Bar Temperature - Up to 150° C 302° F Viscosity - Up to 30,000 cst Solid Handling Capability - Up to 12%

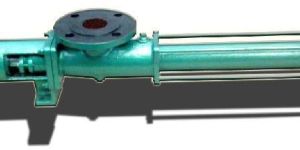

We Offer Progressive Cavity Single Screw Pump. Capacity: Up to 120 m³/hr. Pressure Stages: 6, 12, 18 & 24 Bar Temperature: Up to 150° C / 302° F Viscosity: Up to 30,000 cST Solid Handling Capability: Up to 7%

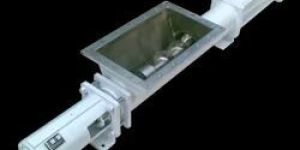

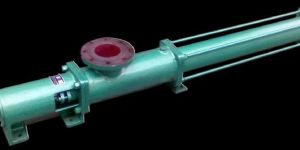

Number Of Flower : Positive Displacement Screw Pump

Application : Slurry,Sludge,Chemical,oil,clay etc.

All elastomers are selected for chemical resistance, designed for operating temperatures of -30°C to 150°C, Rotor SS, Cr-Ni steel and hard-chrome plated & spacial alloys. Spares available for leading brands.

Country of Origin : Made in India

Execution: Long life, Flexi shaft and closed or open Cardan Joints. Quick to dismantle, convenient to clean Barrel in AISI 304, AISI 316 & AISI 316L. Rotor Shaft & Rotating Parts in AISI 304, AISI 316 & AISI 316L Torsion Free Moulded to Stainless Steel Tube Rubber Stator in Nitrile, Hyplon, FPM, NCR Food Grade Nitrile, EPDM in white & black colour elastomers. Shaft Sealing by Stuffing Box Gland Packed Mechanical Seal Capacity - Up to 50 m³hr. Pressure Stages - 6, 12, 18 & 24 Bar Temperature - Up to 150° C 302° F Viscosity - Up to 30,000 cst Solid Handling Capability - Up to 12% Applications: Acidic And Alkaline Slurry, Alum, Bentonite Slurry, Black , Casein Slurry, Ceramic Slurry, Clay Molasses, Coating Mix, Detergent Slurry, Ferrite Slurry, Fuel Oil Sludge, Glue, Grout Mix, Lube Oil, Magma, Massecuite, Molasses, Paint, Paper Pulp, Printing Ink, Rosins, Sewage Sludge, Soap Stock, Sodium Silicate, Spent Grains, Sulphited Syrup, Sugar Syrup, Cane Juice, Varnish, Vegetable Oil and Gum Sludge Viscose, Yeast, Etc.

Pressure : Up To 275 m3/hr.

Application : Single Screw Pump Application

Application : Single Screw Pump Uses

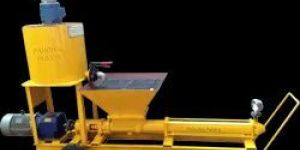

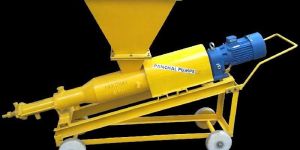

Application : Cement Grouting / Cement Injection / Bentonite Injection / Chemical Injection

Brand Name : PANCHAL

Applications : Pressure grouting, window & door frame grouting, building construction, self leveling under layment , and floor toping, floor restoration, slap under sealing, mud jacking, solid stabilization, slurry cut-off walls, anchors, roadways repair, dowel rod grouting, slap raising, waterproofing, cuble, rock bolts, well casing, spraying top coats, plastering. Technical Specifications: Capacity - 4 - 40 LPM Discharge Pressure - 12 Bar, 24 Bar & 36 Bar

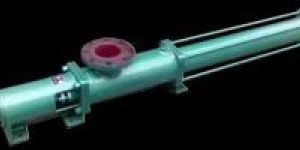

PPT series Progressive Cavity Pumps find their place of applications in almost all the industries in the engineering world. Be it coal slurry or volatile chemicals, harsh abrasives or fibrous pulps, these PPI pumps are preferred better as right choice. Whenever the pumping is found difficult, these pumps do their duty as per the user’s requirement. Features: Long life, closed or open cardan joints pin joints. Reversible flow direction. Suction Delivery connections in DIN ANSI BS Housing in CF8, CF8M, Alloy 20 (Fabricated AISI 304, AISI 316, AISI 316l) Rotor Shaft & Rotating parts in AISI 304, AISI 316 & AISI 316L, Alloy 20, Hastealloy, optionally hard chrome plated. Torsion free moulded to Stainless Steel M.S. Tube Rubber Stator in Natural, Nitrile, EPDM, Hycar, Butyle, FPM, Silicon, Hypalon. Shaft Sealing by Stuffing Box Gland Packed Mechanical Seal Specifications: Capacity - Up to 120 m³hr. Pressure Stages - 6, 12, 18 & 24 Bar Temperature - Up to 150° c 302° f Viscosity - Up to 30,000 cST Solid Handling Capability - Up to 7 Application: Acidic And Alkaline Slurry, Alum, Bentonite Slurry, Black , Casein Slurry, Ceramic Slurry, Clay Molasses, Coating Mix, Detergent Slurry, Ferrite Slurry, Fuel Oil Sludge, Glue, Grout Mix, Lube Oil, Magma, Massecuite, Molasses, Paint, Paper Pulp, Printing Ink, Rosins, Sewage Sludge, Soap Stock, Sodium Silicate, Spent Grains, Sulphited Syrup, Sugar Syrup, Cane Juice, Varnish, Vegetable Oil and Gum Sludge Viscose, Yeast, Etc.
