Iga Tech Industrial Electronics Pvt. Ltd. Vazhakkala, Kochi, Kerala

 High frequency on-line double conversion technology ● DSP (Digital signal processors) control technology ● Active power factor correction (APFC), input power factor up to 0.99 ● Output power factor 0.9 ● Wide input voltage range (110V ~ 300Vac) and frequency range (40 ~ 70Hz) ● Auto sensing frequency ● 50/60Hz frequency conversion ● Cold start ● Rear ventilation design and variable speed fan ● Effective software and hardware protection ● Quick and stable charging, 90% capacity restored in 3 h (standard model UPS) ● Linear derating in low voltage input reducing battery discharging times ● Settable delayed start when power is restored ● Advanced battery management (ABM) ● Multiple functions settable via LCD: output voltage, EOD, auto-start, bypass mode, ECO mode and frequency conversion mode ● Multi-platform communications: RS232 (standard), USB / RS485 / SNMP / dry contacts (optional)

ProductTitle: NetGuard seriesProduct Category ： UPS SystemsProduct Sub Category ：Line Interactive UPS  This series UPS is perfect to protect and power certain equipment, such as personal computers, small scale exchange, POS machines ect. It provides comprehensive power protection against surges and spikes, and also provides pure voltage with boost and buck AVR. It power equipment sufficient runtime without any objectionable dip or brownout to that device. And it is the simplicity and low costs. Installation is easy and quick. FEATURES Wide input AVR 150-270V Cold start facility Extended battery backup time Microprocessor controlled design O/P over load,Battery over drain protected

Key Features◆LCD display MPPT（Maximum Power Point Tracking) solar charge controller◆12V/24V/48VDC automatic recognition, Max PV input 100VDC◆Three Stages charging, fast charge/Constant charge/Floating charging◆Vented, Sealed, Gel, NiCd battery or customer other battery selectable.◆User-Defined charge voltage by software◆LCD+LED Display the input and output parameter of PV and battery◆with Temperature Compensation◆RS232 Communication(Optional)

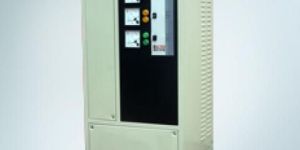

ProductTitle: IGA SCVSProduct Category ：StabilizersProduct Sub Category ：Servo Controlled    We are the manufacturer of Servo controlled voltage stabilizer( Air cooled, oil cooled ), offers safe and excellent performance throughout life 1Ph In /1 Ph Out , 3 Ph In / 3 Ph  out servo stabilizer  available. Generator compatible. Better efficiency  and  specially  designed  transformer to minimize  losses      Protected against  short circuit , single phasing (optional) 220/230/240  L-N  available(  factory settable) No wave form distortion. + /- 1%  output voltage regulation and wide input voltage range – 120 -290 (L-N) Low/ high voltage protection. Analog / Digital metering

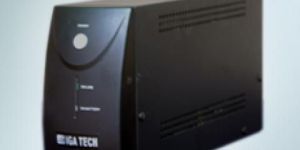

ProductTitle: IGA PC GuardProduct Category ： UPS SystemsProduct Sub Category ：Offline UPS  It’s cute /compact design and quiet operation makes it a partner for business or home application. Intelligent shutdown software Cute ,compact, Reliable design EMI,RFI, Surge ,Short circuit protection Provides clean power Cold start facility Offline battery charging Intelligent battery power management Wide input voltage range

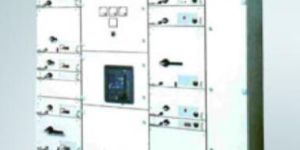

ProductTitle: IGA LV Motor Control Center Product Category ：Other Power ProductsProduct Sub Category ：LV Motor Control  The product meets internationally acclaimed IEC 60439-1 Standard Personal safety and ease of maintenance Easing mounting of channel bases and interconnection of enclosures  Overload relay can operate on each unit door by insulating push button without opening the door  Isolation of vertical bus comapartment from the compartments is accomplished by a full height barrier which is moulded glass reinforced polyester  The bus system construction has the inherent mechanical strength to withstand fault stresses   Bus braces are moulded from a glass reinforced polyester material with high strength  Modular designs with all units,plus ample horizontal-bush bar space and master terminal board space  Uniform compliment of auxiliary parts in unit VFD's and soft starters available as Functional Units

ProductTitle: IGA APFCProduct Category ：Other Power ProductsProduct Sub Category ：APFC Panel Non power factor corrected non linear loads disturbs power quality of utility supply. Due to this PF  will go too low and electricity board  impose  penalty charge along with  electricity bill .Improvement of  power factor with  IGA APFC Panel  saves cost and ensure return of  investments. Automatic multistep power factor control. Microprocessor based controller with four quadrant measurement. Self adaptable with short reaction time for extremely   fluctuating power levels. Manufactured with reliable, long lasting components suitable for any rugged load conditions. Surge suppression and harmonic  trapping inductors (optional) Door mounted intuitive, programmable user interface. Wide range available 20 kvar- 1000 kvar; Intelligent control. Thyristor / Contactor  switching models ( optional)

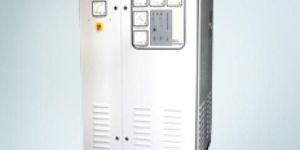

ProductTitle: Float-Boost ChargerProduct Category ：Battery ChargerProduct Sub Category ：Industrial Charger     IGA offers  battery charger with superior design, reliable and longer life with excellent performance. Input and output with breaker protection. Float cum boost dual charger(parallel charger) Industrial Battery charger On board settings, for current and voltage. Analog /Digital panel metering. Status LEDS on the front panel. Visible and Audible alarm. External alarm contacts for all alarms( optional) Over current and voltage protection. Marine grade ingress protection available (optional)

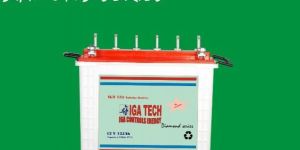

Premium Range - The Ultimate  Battery Tough Condition - Tough Battery with Thicker Plates Long Life - 1200 Cycles @ 80% DOD More Electrolyte per Ampere Hour

ProductTitle: DC Power suppliesProduct Category ：Battery ChargerProduct Sub Category ：DC Power Supply   SMPS DC Power supplies are designed to accept wide input voltage having ripple free DC output. Manufactured with high quality reliable raw materials to meet any rugged applications. Voltage  ranges  -12V,24, 48V AC - DC, DC – DC version available. Compact size for wall mounting/u -size rack mounting models Charges  VRLA, Ni-Cd Batteries Output power  10A – 35A Low emissions. Analog /LCD version  available.( metering) LED  indications for the status  of unit Isolated remote alarm contacts(Optional)

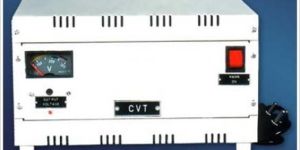

ProductTitle: CVT-500Product Category ：StabilizersProduct Sub Category ：CVT Input Voltage 1 phase : 180V-260V. (Other choices on request)Line Frequency : 50 Hz.Output Voltage : 220/230 ± 1%.Efficiency : 90% (approx) under full load conditions.Output Wave Form : Sinosoidal.Wave Form Distortion : 5% (Approx) under full load conditions.Load Power Factor : 0.75% lag to 0.9% lead.Ambient Temperature : -5°C to 50°C.Effect of Frequency : 1.6% (approx) change in output voltage for every 1% change in line frequency.

ProductTitle: CHLORIS LITEProduct Category ：Solar Power ProductsProduct Sub Category ：Solar Inverter  CHLORIS LITE Built for high performance against the typically tough Indian grid conditions,CHLORIS LITE Series provides you an economical power solution and gives the benefit of optimal renewable energy, 365 days a year.Advanced DSP control technology and high efficiency MPPT gives you the maximum solar generation and a true sinewave so that even your sensitive appliances can run uninterrupted for a long time. Combined with solar power controller and inverter hybrid function. DSP Controlled Design is used. Pure sine wave output with inbuilt isolation. User friendly display gives status of the system. Intelligent  automatic bypass  & charging ( On utility mode) Surge, over voltage, lightening protection. Overload ,Short circuit, Deep discharge protection MNRE approval (Under Processing)
