Capacitor Start & Run, Capacitor Start – Capacitor Run, Capacitor Start Induction Run, Offers Custom Built Non Standard motors with complete Solutions, Engineered for specific and critical applications.

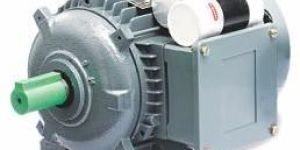

Motor TypeAC Single Phase Squirrel Cage LV Induction Motor
Output Range0.12 to 2.2kW; 0.16 to 3hp
Frame Size63 to 112M as per IS 1231 & IS 2223
SALIENT FEATURES
Output Range: 0.12 to 2.2kW; 0.16 to 3hp
Voltage: 230V± 10%
Combined Variation: ±10%
Mounting Type: Foot(B3), Flange(B5), Face(B14), Foot cum Flange(B35) & Foot cum Face(B34)
Insulation: Class 'B/F'
MOC: Available in Cast Iron & Aluminium
Enclosure: Totally Enclosed Fan Cooled (TEFC)
Grease Type: Lithium Based Grease
'CE' marked, IEC 60034
Capacitor types: Capacitor Start & Run, Capacitor Start - Capacitor Run, Capacitor Start Induction Run
Engineered for specific and critical applications
Frame Size: 63 to 112M as per IS 1231 & IS 2223
Frequency: 50Hz/60Hz ± 5%
Pole: 2 & 4, / RPM: 1500 & 3000
Degree of protection: IP55 as per IS:4691
Ambient Temp / Temp Rise: 45°C / 70°C
Duty/Rating: S1/Continuous as per IS 996.
Position of Terminal Box : Top towards drive end/LHS/RHS
Cooling: Shaft Mounted Fan (IC411)
Fitted with Thermal Overload Protector
Offers Custom Built Non Standard motors with complete Solutions
Motor Type: AC Single Phase Squirrel Cage LV Induction Motor
