Aarti Engineering Ichalkaranji, Kolhapur, Maharashtra

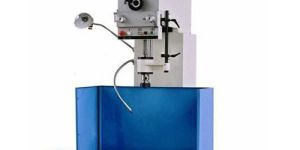

We manufacture a vast range of vertical honing machine including vertical honing heads and unpreserved tooling which are most suitable for vertical honing applications. The vertical honing machine come in various lengths and diameters depending upon the needs of customers for various projects. It has an electronic system which allows the electronic easy functionality of the machine. It is a combination of advanced technology and the old methods which prove to be a great combination resulting in an effective and unique vertical honing machine.

These type Teflon Bellow Seal is generally used in acids, alkalis & extremely corrosive services. Materials Seal Faces: GFT Si Carbon Vs Ceramic Si Secondary Seals: PTFE GFT Metal Parts: SS-304, SS-316, SS-316L Hastelloy Operating Limits Shaft Dia: 16mm to 100mm Pressure: 5 Bars (max) Temperature: -20°C to +90°C Speed: 2900 rpm (max)

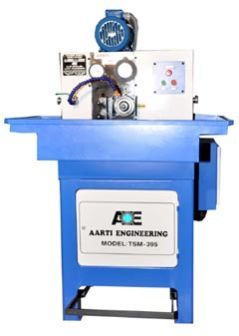

MODEL TSM-395 honing machine STROCKING MANUAL I.D. RANG FOR POWER STROCKING �3 mm to �95mm LENTH RANGE OPEN END OR BLIND END BORES SPINDLE SPEEDS 400 TO 1200 RPM SPINDLE MOTOR 1 H.P. HONING OIL PUMP RV 25170, 2800 RPM HONING OIL CAPACITY 40 LITERSS FLOOR SPACE 836mm- W x 1110mm-D 1500mm H WEIGHT 350 KG Net (Without honing oil)

Horizontal honing machine is highly efficient of carrying out the applications of horizontal honing. This machine has a mechanism of rugged hydraulic control of stroking and rotation. This comes in various lengths and diameters, and is capable to be applied to the suitable projects. It needs relatively less time as compared to other horizontal honing machine. There is a range of light duty, medium duty and heavy duty horizontal honing machine. The machine offer high productivity to the users. And is most efficient to be used. Horizontal machine manufactured at us are an exact and suitable solution for the projects including processing of long container, pipe etc.

TYPE HORIZONTAL IMAGE MODEL TSA-1696 honing machine honing machine STROKING POWER & MANUAL I.D.RANG FOR POWER STROCKING �3mm TO �95 mm FOR MANUAL STROCKING �3mm TO �120 mm LENGTH OPEN END OR BLIND END BORES UPTO 250 mm LENGTH SPINDDLE SPEEDS VFD 0 TO 3000RPM SROKING RATES 80,110,160,220,310 STROKESMIN. SPINDLE MOTOR 1 H.P STROKE MOTAR SEKF ENGINEERING BAND TYPE SPINDLE BRAKE ELECTRICALLY OPERATED HONING OIL PUMP RV 40170,2800 RPM HONING OIL CAPACITY 60 LITERSS FILTER SYSTEM SELF CONTAINED FLOOR SPACE 990W*1410D**1500H WEIGHT 520 KG NET(without honing oil)
