B.S. Engineering Machinery Private Limited Birati, Kolkata, West Bengal

The Heavy duty Belt Sander Machine suitable for Board & Plywood of max: size 8' x 4' sheet Sanding  & Polishing for Premium Quality Finishing of Plywood / Boards & Doors with Dust Collection Points. The Machine is very sturdy due to which it eliminates all unnecessary vibrations and hence gives a better polish on the surface of boards.

Driven Type : Electric

Automatic Grade : Automatic

Certification : CE Certified

Country of Origin : 220V, 440V

Number Of Flower : Wide Belt Sanding Machine

Country of Origin : India

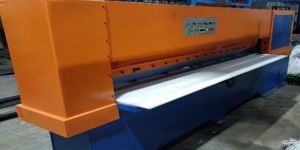

Salient Features     • Hydraulic Pressure Bar and Knife Bar Movement. • Guiding Laser Light For Cutting Position. • Infrared Sensors to Prevent Accidental Hand Injury during Cutting. • Automatic Veneer Feeding Arrangement with Digital Display

Country of Origin : India

Availability : 5600 Kg

Driven Type : Elecric

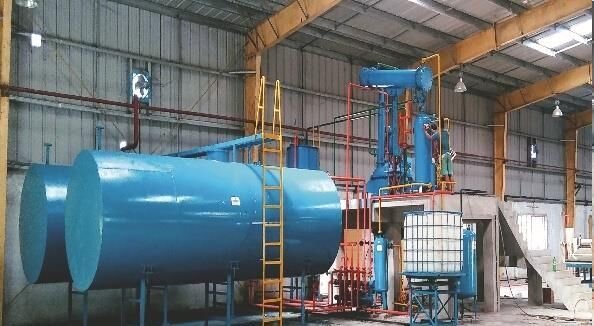

Model Details: BS Max Therm Thermic Fluid Heater Five Pass (MXT Serious)\\n \\nNextMXT Series with 5 Pass Thermic Fluid Heater Model is designed to cater the heat requirement of the Process Industries for consistent temperature with Fuel Efficiency.\\nRotary Value with Geared Motor for ash removal makes MXT an ideal and attractive choice to the industries such as Textiles, Edible, Oil Plants, Laminates, Plywood Foods etc.\\nThe MXT TFH System is a forced circulation, Semi Automatic Thermic Fluid Heater. The Thermic Fluid is circulated in a closed loop through heater and user equipment where the heat is dissipated through process. The same Thermic Fluid is re-circulated through heater for reheating. The separate expansion and de aerator tanks ensure a pressure less and vapor free system. The Thermic Fluid Heater gives high temperature &advisable up-to 250°C using Thermic Fluids at near atmospheric pressure as compared to steam heating which requires 8-14 Kg / cm² pressure. Thus expensive high pressure pipelines and fittings condensate return system is eliminated.\\n \\nRadiant Heater Exchange\\n \\n2 Sets of Multi-start helical tube Coil manufactured from Boiler tubes BS: 3059 of adequate thickness ensuring longer Life of heater. Heavy duty M.S. Shell with adequate insulation & cladding peeks the heat loss at minimum. Connection Duct: between two heat exchanger is provided & not require any refractory due to lower flue gas temperature passing to Convective Coil unit.\\n \\nConvective Heater Exchange \\n2 sets of Multi-Start helical tube coils ensure two passes of flue gas, heavy duty M.S. shell with adequate insulation & cladding keeps heat losses to minimum. Dust collection by Rotary Value provide at bottom which can be easily opened by hinge for heater cleaning.\\n \\nThe External Furnace\\n \\n \\n• MXT –BSTFH – Introduce larger combustion chamber volume and larger great area with special Type Fire Bars used for high bed pressure by FD Fan for maximum combustion efficiency & Fuel flexibility.\\n• Combustion of High-Pressure FD Fan & ID Fan with high capacity Air-Pre-Heater ensures complete combustion of low grade fules through specialized type Furnace Bed.\\n• Furnace with heavy duty steel structure & casing lined with high quality fire & Insulation bricks and Baffle Wall ensure longer Furnace and Radiant Coil Life.

Country of Origin : India

Availability : 100-1000kg

Number Of Flower : Automatic

Certification : CE Certified

Application : Industrial

Power Source : Solid Coal

Automatic Grade : Automatic

Material : Metal

Finishing : Polished

Driven Type : Electric

Pressure : High Pressure

Operating Type : Automatic

Country of Origin : India

Salient Features\\n \\n • MS Body with Heavy Duty Channels.\\n• 7.5 HP 1440 RPM 2 Nos Motor. \\n• 5.0 HP 2 Nos. Motors. \\n• HP Gears Motors. \\n• Inside and Out Side Trolly Three Roller for Guide. \\n• Six Brush Rollers (German Abrasive) \\n• Heavy Duty 5” Rubber Roller for Conveyor. \\n• Guide Rollers. \\n• Motorized Size Adjuster with Display. \\n• Fuji Drives for Speed Control. \\n• Electric Panel with Wiring. \\n• 5HP Dust Collectors with Pipes.\\n \\n \\nTechnical Specifications\\n  \\n• MS Body with Heavy Duty Channels. \\n• 7.5 HP 1440 RPM 2 Nos. Motor. \\n• 5.0 HP 2 Nos. Motors \\n• 3.0 HP Gears Motors. \\n• Total Power: 28 HP

Automatic Grade : Semi Automatic

Usage/Application : Plywood Industry

Certification : CE Certified

Country of Origin : 380V

Country of Origin : India

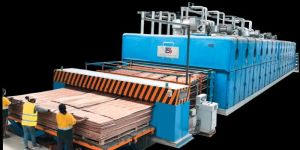

The Roller Veneer Dryer Machine is a semi-automatic machine with a capacity of 80-90 CBM/Hr, designed for drying core veneer. It uses thermic oil or steam as its heating resource and is made in India.

Automatic Grade : Automatic

Certification : CE Certified

Availability : 1000-2000kg

Total Carbohydrate : 1year

Country of Origin : India

Driven Type : Electric

Pneumatic Paddle Chopper Machine complete with Pneumatic cylinder, spring and high-quality Tempered Knife, fitted with mild steel table for veneer holding and cutting.

Country of Origin : India

Number Of Flower : Plywood Paddle Chopper Machine

Certification : CE Certified

Application : Cutting Plywood

Automatic Grade : Automatic

Driven Type : Electric

These Multilayer Hot Presses are ideal for making plywood, Bamboo Board, Particle Board and other Composite Boards. The Structure is fabricated with steel plates as per the pressure capacity. High Pressure is achieved with Window-Frame type Structure. Hot Platens are made of solid MS Plates with drilled holes for Steam/ Thermic Oil Flow.\\\\n \\\\n \\\\nThis gives uniform Temperature across the plates. \\\\n \\\\n• Standard Model of Hot Press for Plywood: (650, 720, 1000, 1200) Tones \\\\n• Bamboo/ Composite Brand Hot Press: (1200, 1600, 2500, 3200) Tons \\\\n• Size of Platens: (1980 x 1350) mm; (2590 x 1350) mm; (2700 x 1370) mm \\\\n• Daylight / Layers: 7, 10, 12, 15, 20.

Country of Origin : India

Certification : CE Certified

Application : Plywood Industry

Driven Type : Electric

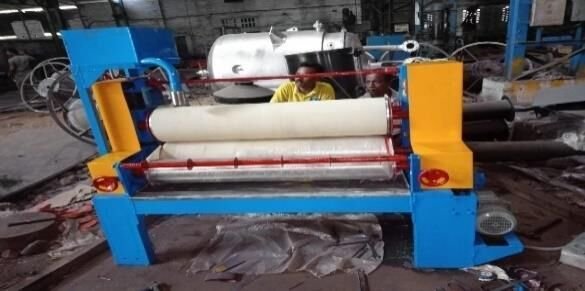

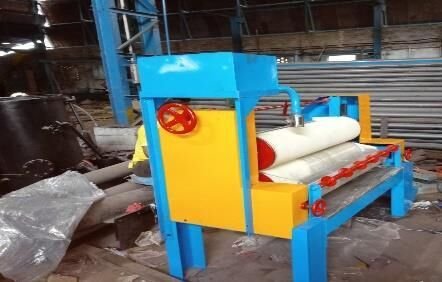

1400mm & 2750mm Capacity Heavy duty Glue Spreader Machine having 2 Nos. Rubber Rollers and 2 Nos. Stainless Steel Doctor Rollers complete with Motor and Reduction Gear Box. The machine has also got a Stainless-Steel tray for excess glue collection.

Country of Origin : India

Country of Origin : 440V

Material : Stainless Steel

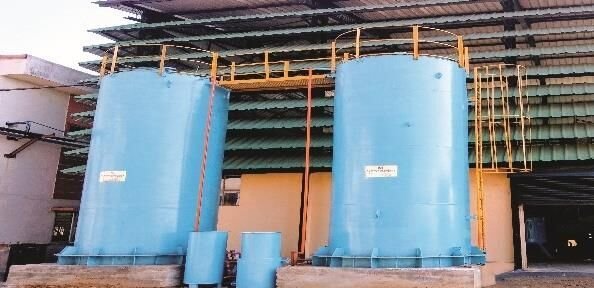

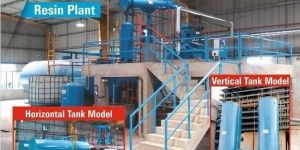

Resin Kettle made of Stainless Steel material which is suitable for preparation of urea, Phenolic and Melamine Resins for the application of bonding process. The Resin Kettle is of Double Jacket type design with Torishperical base and top. The Supply also includes Shell & Tube type Condenser with Stainless Steel Tubes and Standard Accessories like Separator and receiver Tanks and Vacum System.       Technical Specifications   Capacity: (500/1000/1500/2000/3000/5000/10000) Kgs. Above as per requirement   Heating Medium: Steam / Thermic Oil / Hot Water

Material : Metal

Finishing : Fine FInishing

Automatic Grade : Automatic

Certification : CE

Country of Origin : 220V

Number Of Flower : Resin Plant

Country of Origin : India

Driven : Electric

Horizontal Type Glue Mixer Machine (Capacity: 150 & 200 Liters) driven by Reduction Gear Box with Motor (3 HP 1440 RPM). The Machine has got agitator (as highlighted in the picture) which helps to mix the glue with extenders thoroughly. The Machine is made of Stainless Steel (Grade: 304) with an outlet value for collecting glue. Highly effective, Easy to use, Long service life

Power : 2 HP

Country of Origin : India

Application : Plywood Industry

Material : Stainless Steel

Heavy duty Chain Feed Cutting Machine suitable for cutting upto 8’ x4’ sheet with a chain conveyor system on both sides of the machine with a provision for self pressing system from top and continuous cutting, one\\nsi8de of the saw will be fixed from the other side (right hand side) adjustable from 2’ to 8’ according to the desired width complete with 2 Nos. (5.0 H.P. 2900 R.P.M.) Motors for the purpose of cutting R.P.M. Motors\\nfor the purpose of cutting, 1 No. (3 H.P. 1440 R.P.M.) motor for driving the chain conveyor and 1 No. Reduction Gear Box. Pre-cut saw system arrangement is available with 2 Nos. (0.5 H.P.) MOTOR. The Pre cut saw is an ideal attachment to prevent and chipping. TCT saws are not included.

Application : Plywood Industry

Certification : CE Certified

Country of Origin : 200 VAC 575VAC

Number Of Flower : Automatic

Country of Origin : India

Total Carbohydrate : 1year

Material : Stainless Steel

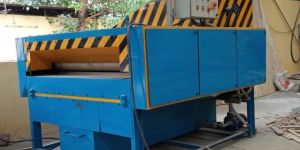

Salient Features   • 12 Nos. Rollers, Roller Length 54 “, Roller Dia 7”. • Kirloskar Make Pump Capacity 32 Liters for Spraying of Chemicals On Plywood Surfaces. • Heating System for Chemical Heating with Inbuilt Heating SS Tank. • Gear Boxes 2. • Two Motors 3 Hp Drive Motor & 2 Hp Pump Motor. • Both Side Trolley Attached for Feeding & Discharge of Plywood • 20 Mt Per Minute Running Speed • Fully Panel Operated - [ The Machine is Inclusive of Control Panel]

Material : Metal

Application : Industrial Use

Country of Origin : India

The Cold Press is in down Frame. There are feeding and discharge conveyor. The top Pressing frame up movement is by separate double-acting pair of piston cylinder.     Salient Features   • Construction – Fabricated Window Bolted Frame • Main Window Frame – 50 MM Thick x 8 No. • In-Feed Conveyor – 4000 • Inside Press Conveyor – 5400 • Inside Conveyor Belt – Free Supply – Senhapati • Inside & Outside Conveyor Power – 3 HP Geared Motor & 1No Vfd Control for Outside and Inside Press Conveyor.

Driven Type : Electric

Condition : New

Automatic Grade : Automatic

Application : Cutting Plywood

Certification : CE Certified

Number Of Flower : Plywood Machine

Country of Origin : India

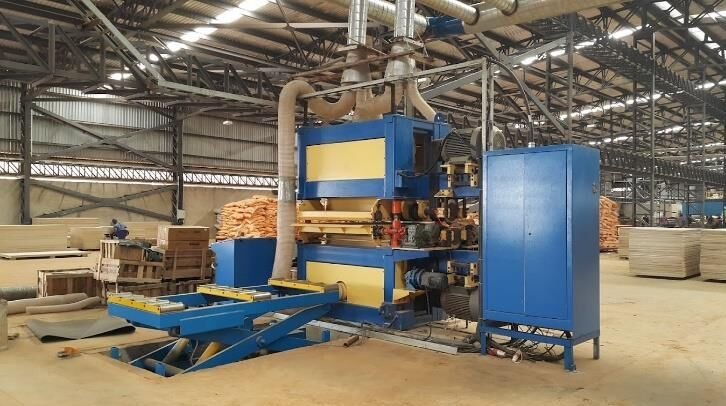

The Heavy duty Calibration Cum Belt Sander Machine suitable for Thickness Calibration / Rectification of Veneer Roughness & to smoothen the rough Surface for application of thin Face Veneer on Board & Plywood of max: size 8' x 4' sheet and also Sanding & Polishing of Face Veneer for Premium Quality Finishing of Plywood / Boards & Doors by Air-Pad Sanding . The Machine is having Dust Collection Points to attach with Dust Collector and The Machine is very sturdy due to which it eliminates all unnecessary vibrations and hence gives a better polish on the surface of boards.

Country of Origin : India

Number Of Flower : Calibration Machine

Country of Origin : 220V

Certification : CE Certified

Automatic Grade : Automatic

Driven Type : Electric

  Band Dryer with SS-304 Band and Auto Alignment of Board Continuous conveyor Band Dryer is Ideal for drying thin Face Veneer, Sliced / Peeled Decorative Veneers, PF Resin Impregnated Core Veneers, Bamboo Mat/ Curtain etc. The machine has stainless steel Bands or Conveyors for rust-free operation. Each deck has a set of pressing Band to keep the dried material in portion and prevent wear and tear. Double set of Jet Boxes provide uniform drying all along the length of the Dryer. The Dryer has extended feeding section to enable proper arrangement of the materials during feeding. The Dryer is supplied with specially designed Alloy Fan and Dyno Drive for variable feed speeds and Band Tensioning with Auto Alignment System along with separate desk Feeding & Discharge Conveyors. Standard Models of Band Dryers are available in 4 section 3 deck, 5 section 3 decks, 8 Section 3 deck, 10 Section 3 deck. Technical Data – 10’ / 2750mm Standard Band Width MESH / BAND Dryer for Thin Veneer

Material : Iron

Finishing : Polished

Power Source : Electric

Automatic : Automatic

Country of Origin : 220V

Number Of Flower : Belt Dryer

Country of Origin : India

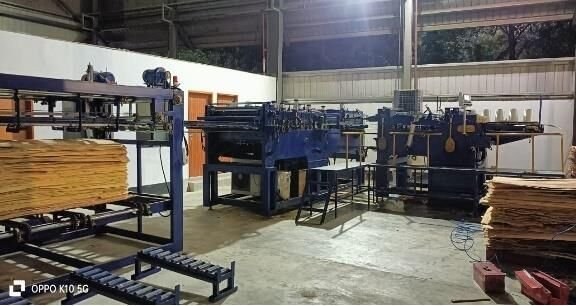

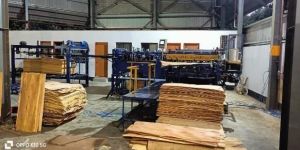

Salient Features of Core Composers   • HMI-PLC controlled & operated by 1 operator saves manpower. • The entire system servo-motor based & controlled through multiple sensors to achieve higher efficiency and perfection in veneer joining. • Saving of manpower by 70% from veneer repairing, 80% from core veneer joining & Putty work manpower saving 50%. • Heating & cooling System for glue. Air Conditioning system for glue cooling down

Automatic Grade : Automatic

Country of Origin : 220V

Number Of Flower : L type Panel Composer Machine

Total Carbohydrate : 1year

Country of Origin : India

This machine is mainly used for Trimming of four rough Edges of Plywood, Block Board, Practical Board and MDF Board etc.     Salient Features • Cutting saw speed above 6000 RPM. • Trolly movement on Liner-Guide rails . • Synchronized Longitudinal & Traverse board movement. • Fast, Easy and Labour saving operations. • Auto-Board stacker with Hydraulic Scissor Lift.     Dust Collector and Air Compressor not included.

Country of Origin : India

Number Of Flower : Sawing Machines

Country of Origin : 220v, 440v

Certification : CE Certified

Application : Cutting

Automatic Grade : Automatic

Material : Mild Steel

Driven Type : Electric

Automatic Grade : Automatic

Country of Origin : 440V, 220V

Country of Origin : India

Hydraulic Scissor Lift complete with motor and following   specification:     1. Dead Height : 300mm 2. Open Height : 1500 mm, 2000 mm, 3. Table Size : (2400 x 1200) mm, 4. Foot Switch operated solenoid value-controlled system, 5. Both side platform for operator, 6. Motor Required: 1 No. 2 H. P. 1440 R.P.M.

Driven Type : Hydraulic

Automatic Grade : Automatic

Application : Lifting Heavy Loads

Certification : CE Certified

Country of Origin : 220V

Number Of Flower : Hydraulic Scissor Lift

Country of Origin : India

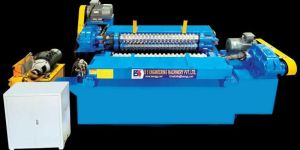

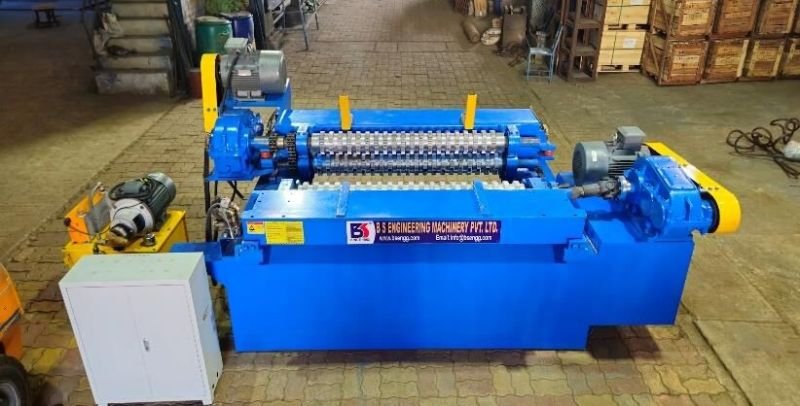

Salient Features • Robust Structural Design of Machine & Maintenance Free. • Movement of Knife Head by Hydraulic Cylinders. • Splined Gripper Roller for Faster Operation and minimum log slippage

Material : Iron

Finishing : Fine FInishing

Power Source : Electric

Number Of Flower : Log Debarker Machine

Country of Origin : India

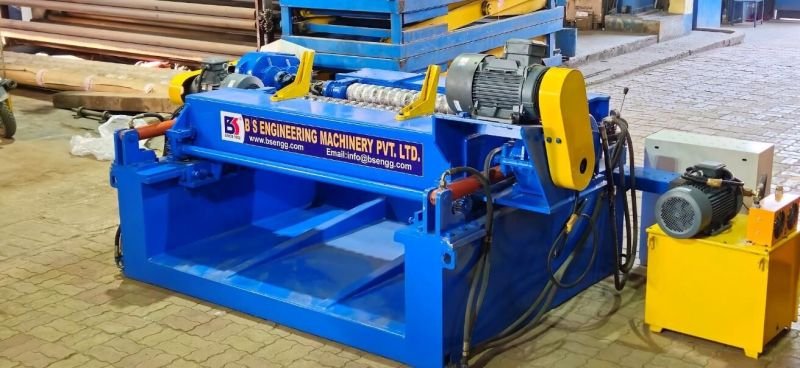

Salient Features     • Heavy duty Core Veneer Spindle-less peeling Machine for up to 500mm Dia Log with All SERVO Motor Design. • Diamond cut Cross Roller for small left-over. • High Peeling Speed (Adjustable 45 – 1 50 Meter / Minute) along with uniform veneer thickness. • Adjustable Scoring Knives, can be adjusted for 3 different veneer width sizing. • Knife Head slides on Oli Bed for accurate movement. • 90 mm dia Lead Screw along with Brass Nut, Gives accurate feeding and uniform veneer thickness and long life of machine. • Left-over core Dropping System. • Rotary Cutter Driven by Servo Motor for Accurate Veneer Cutting.

Automatic Grade : Automatic

Certification : CE Certified

Number Of Flower : High Speed Spindleless Peeling Machine

Country of Origin : India

Country of Origin : 440V, 220V

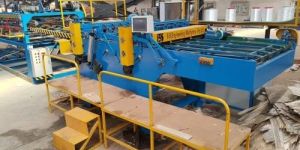

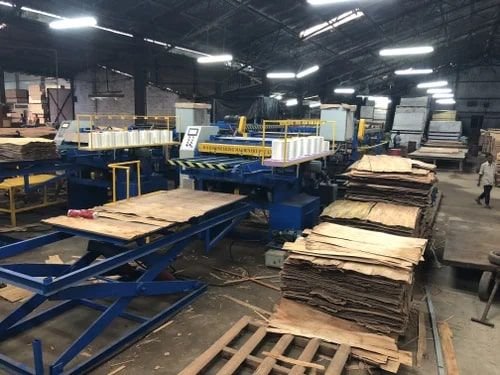

Salient Features of Core Composers\\n \\n \\n• HMI-PLC controlled & operated by 1 operator saves manpower. \\n• The entire system servo-motor based & controlled through multiple sensors to achieve higher efficiency and perfection in veneer joining.\\n• Saving of manpower by 70% from veneer repairing, 80% from core veneer joining & Putty work manpower saving 50%.\\n• Heating & cooling System for glue. Air Conditioning system for glue cooling down.

Country of Origin : India

Total Carbohydrate : 1year

Certification : CE Certified

Usage/Application : Veneer Industry

Driven Type : Electric

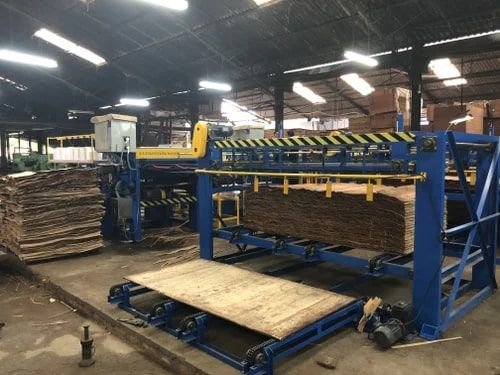

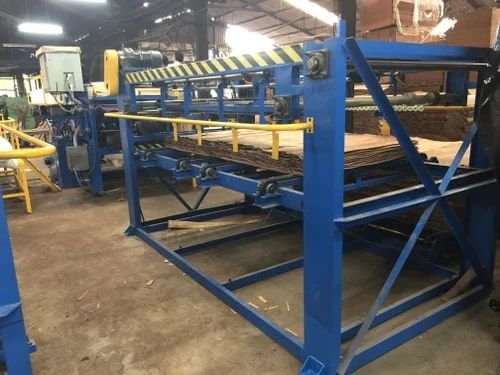

  This is Semi-Automatic Veneer Feeder for Dryer. The Veneer palletstobe Placed by Fork Lift to 2 Nos. Scissor lifts at Auto - Feeder end. Once the veneer pallets Placed on Scissor Lift, 3 no worker can start Veneer feeding. Once the top pressing roller is pressured down on the feeding roller by pneumatic cylinder,the Automatic Veneer Feeder Unit puts the veneers in respective decks. The Veneer Feeder unit moves up and down by help of Hydraulic Cylinders stops at desired levels by the help of Sensors / encoders PLC+HMI of the Decks. Power requirement: 2 Hp for Feeder, 15 Hp for Hydraulic Station &2 Nos. Scissor Lifts. Suitable for Veneer thickness 1–4mm. Machine Length; 4600mm, Width: 1200mm, Height: 1490mm.

Driven Type : Electric

Automatic Grade : Automatic

Certification : CE Certified

Country of Origin : 220V, 440V

Number Of Flower : Veneer Dryer

Country of Origin : India
