Efficiency as per B. S. 2831, Test Dust No II & III :90-95%
Media & Constraction :
3 or 5 ply Hdpe crimped with 1 ly of PVC net by which the media becomes noncorrosive. It is encased in metallic panel type frame duly guarded by grill (on option).
Application :
It is applied for pre filtration in air conditioning & ventilation system etc.
Features:-
Media & Constraction :
3 or 5 ply Hdpe crimped with 1 ly of PVC net by which the media becomes noncorrosive. It is encased in metallic panel type frame duly guarded by grill (on option).
Application :
It is applied for pre filtration in air conditioning & ventilation system etc.
Features:-
Efficiency as per B. S. 2831, Test Dust No II & III :85 to 95%
Media & Constraction :
Cylindrical (snap,collar & rope type)bag filter are made of synthetic needle felts,Nomex,Ryton,Glass fibre (for high temp.)e.t.c.This material can be surface treated by PTFE,TEFLON,SS WIRE for water repellence,antistatic, heat resistance property.
Application :
For Industrial dust control in power station ,cupula,cement indutry,brick processing unit.
Media & Constraction :
Cylindrical (snap,collar & rope type)bag filter are made of synthetic needle felts,Nomex,Ryton,Glass fibre (for high temp.)e.t.c.This material can be surface treated by PTFE,TEFLON,SS WIRE for water repellence,antistatic, heat resistance property.
Application :
For Industrial dust control in power station ,cupula,cement indutry,brick processing unit.
Efficiency as per B. S. 2831, Test Dust No II & III :95 to 99%.
Media & Constraction :
Made of fine water resistance, pleated glass fibre media which is spaced by alluminium spacer. It is housed in a single or double flanged G.I. Casing.
Application :
It is applied to fine filters for air separation plant, centrifugal compressors, Gas Turbine units etc
Media & Constraction :
Made of fine water resistance, pleated glass fibre media which is spaced by alluminium spacer. It is housed in a single or double flanged G.I. Casing.
Application :
It is applied to fine filters for air separation plant, centrifugal compressors, Gas Turbine units etc

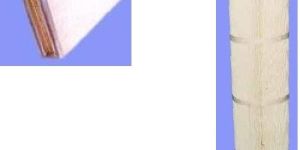

Product Name :Pulse Type Paper Filter Cartridge(Panel)
Model :CASC Series
Filter Grade :EU 6 to EU 8
Recommended Air Velocity :1 to 3 mtr./sec.
Initial Pressure Drop :10 to 25 mm. of wg.
Efficiency as per B. S. 2831, Test Dust No II & III :90 to 98%
Media & Constraction :
Organic endure type paper is pleated, seperated and encased in a specially designed metallic casing. The pleats are duly spaced as well as reinforced by lines of special adhesive. Cleaning is done by air uplsing.
Application :
It is applied in augmented self-cleaning air filtration system, Gas Turbine.
Media & Constraction :
Organic endure type paper is pleated, seperated and encased in a specially designed metallic casing. The pleats are duly spaced as well as reinforced by lines of special adhesive. Cleaning is done by air uplsing.
Application :
It is applied in augmented self-cleaning air filtration system, Gas Turbine.
Efficiency as per B. S. 2831, Test Dust No II & III :98 to 99.97%.
Media & Constraction :
The basic media of these filters are either glass fibre paper or cellulose and synthetic fibre mix paper. The seperator used are hot melt type and are suitable to work upto temp. of 100 C. The media is encased in aluminium,G.I. frame with no metallic spacers.
Application :
It is applied for multi stage filter system in ACVS, Micro electronic, medicine, and compressors.
Media & Constraction :
The basic media of these filters are either glass fibre paper or cellulose and synthetic fibre mix paper. The seperator used are hot melt type and are suitable to work upto temp. of 100 C. The media is encased in aluminium,G.I. frame with no metallic spacers.
Application :
It is applied for multi stage filter system in ACVS, Micro electronic, medicine, and compressors.
Efficiency as per B. S. 2831, Test Dust No II & III :99.97%.
Media & Constraction :
Filter media fabricated from water repellent 100%micro glass fibre paper pleated over corrugated aluminium/paper board seprator,encased in an GI /Al frame.Neoprene sponze rubber sealing provided for leakproof sealing
Application :
Cleanroom of class 1000 & below,Operation Theater,Control room.
Media & Constraction :
Filter media fabricated from water repellent 100%micro glass fibre paper pleated over corrugated aluminium/paper board seprator,encased in an GI /Al frame.Neoprene sponze rubber sealing provided for leakproof sealing
Application :
Cleanroom of class 1000 & below,Operation Theater,Control room.
Efficiency as per B. S. 2831, Test Dust No II & III :85 to 95%
Media & Constraction :
It comprises a 'V' shaped procket of welded construction. The end of the pocket are solid, with one or both sides of the 'V' made up of the form of louvers slits. They are totally maintenance free.
Application :
It is applied in coarser filtration where minimum maintenance is required.
Media & Constraction :
It comprises a 'V' shaped procket of welded construction. The end of the pocket are solid, with one or both sides of the 'V' made up of the form of louvers slits. They are totally maintenance free.
Application :
It is applied in coarser filtration where minimum maintenance is required.
Efficiency as per B. S. 2831, Test Dust No II & III :90 to 98%
Media & Constraction :
Special compressed woolen or cotton felt / synthetic needle felt is stitched with wire net and pleated in deep folds. It is encsed in metallic panel type casing. Spacers made of alluminium is provided to segregate the pleats of the media.
Application :
It is applied for fine filtration in air conditioning & ventilation system, suction air filtration in compressors etc.
Media & Constraction :
Special compressed woolen or cotton felt / synthetic needle felt is stitched with wire net and pleated in deep folds. It is encsed in metallic panel type casing. Spacers made of alluminium is provided to segregate the pleats of the media.
Application :
It is applied for fine filtration in air conditioning & ventilation system, suction air filtration in compressors etc.
Efficiency as per B. S. 2831, Test Dust No II & III :80 to 90%
Media & Constraction :
Synthetic fibre filter fleece is reinforced on the air outlet side with wire bordered with a cardboard frame. The media is pleated in deep folds.
Application :
It is applied in air conditioning & ventilation systems, slip ring generators, gas turbines etc.
Media & Constraction :
Synthetic fibre filter fleece is reinforced on the air outlet side with wire bordered with a cardboard frame. The media is pleated in deep folds.
Application :
It is applied in air conditioning & ventilation systems, slip ring generators, gas turbines etc.
Efficiency as per B. S. 2831, Test Dust No II & III :85%.
Media & Constraction :
It utilises a rotating metal screen as the filtering media and is backed by an oil drop eliminator to avoid oil carry over into the air stream. It is made of heavy M.S. sheet. The movement of the filter screen is controlled by a timer.
Application :
It is applied in coarser filtration where minimum maintenance is required.
Features:-
Media & Constraction :
It utilises a rotating metal screen as the filtering media and is backed by an oil drop eliminator to avoid oil carry over into the air stream. It is made of heavy M.S. sheet. The movement of the filter screen is controlled by a timer.
Application :
It is applied in coarser filtration where minimum maintenance is required.
Features:-
Efficiency as per B. S. 2831, Test Dust No II & III :90 to 95%
Media & Constraction :
Cellulose paper resin bonded,Hdpe wiremesh 3 to 5 layers,Coir pad along with zigzag cotton & metallic media. This filter are two type 1.Circular 2. box .
Application:
Suction side of Compressor,Genarator & industrial Machinary
Media & Constraction :
Cellulose paper resin bonded,Hdpe wiremesh 3 to 5 layers,Coir pad along with zigzag cotton & metallic media. This filter are two type 1.Circular 2. box .
Application:
Suction side of Compressor,Genarator & industrial Machinary
